The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Head motion during a five-minute structural MRI scan is unavoidable and systematically biases automated measurements like cortical thickness, but retrospective scans usually lack an objective motion label. This paper claims that a 3D convolutional network trained only on synthetically motion-corrupted brain volumes can assign a continuous motion score to real retrospective scans, without prospective motion correction or special hardware. On an independent dataset with manual ratings the score reaches a representative R² of 0.65, and the predicted motion is significantly associated with FreeSurfer mean cortical thickness in 12 of 15 datasets, with the same negative direction previously reported for real motion. Predicted motion also tracks the known age pattern: more motion in children and in older adults. If correct, the method gives researchers a cheap, scalable way to enter motion as a covariate or quality metric in studies of brain anatomy.

What carries the argument

The mechanism is the synthetic motion-augmentation plus RMS labeling loop. Clean volumes are corrupted by sampling a sequence of rigid-body transforms, applying them in image domain, and blending the resulting k-space lines; the RMS deviation of the composed transform (Jenkinson's metric) provides a continuous, objective label for every corrupted volume. The network learns to regress this label from the corrupted image alone, and heavy dropout plus noise and contrast augmentation is what makes the regressor survive the shift to real scanners. The architecture details matter less than this labeling loop: a two-convolution SFCN with 50-bin soft classification and KL-divergence training.

What would settle it

Scan a cohort with simultaneous optical motion tracking during MPRAGE acquisition, run the model on each volume, and compute the Spearman correlation between predicted score and tracked motion magnitude; if it approaches zero or reverses sign, the synthetic-to-real transfer claim is refuted. A cheaper partial test: on MR-ART's paired clean and deliberately moved scans from the same subject, check that the model consistently assigns higher motion to the moved scan in every individual, not just on average.

Watch

Extended reading notes

Core claim

The authors build SFCN2, a lightweight 3D fully convolutional network that outputs a probability distribution over 50 motion bins and is trained by minimizing KL divergence to a Gaussian centered on the true motion label. The labels come from an entirely synthetic pipeline: 449 manually screened 'clean' T1 volumes from the Healthy Brain Network are repeatedly corrupted by TorchIO's k-space rigid-body motion augmentation, and each corrupted volume is labeled with the RMS deviation of the net transformation, an objective geometric quantity. Without any fine-tuning on real artifacts, the model ranks the MR-ART manual motion grades with Spearman 0.71, and its score shows a significant negative association with mean left-hemisphere cortical thickness in 12 of 15 held-out datasets (FDR-corrected), matching the known thickness-reducing effect of motion. The score also reproduces the established age pattern, with higher predicted motion in younger and older participants. The paper's central claim is that this synthetic-to-real transfer is genuine motion estimation, not just image-quality scoring.

Load-bearing premise

The approach stands or falls on the assumption that TorchIO's synthetic rigid-body k-space corruptions look enough like real head motion in MPRAGE scans that a network trained on them will score real scans correctly across scanner brands, protocols, and age groups.

Editorial extensions

If this is right

Researchers can add the predicted motion score as a covariate in statistical models of cortical thickness, absorbing a bias that otherwise distorts group differences in pediatric and clinical populations.
Quality control becomes an automated, continuous rating on already-acquired MPRAGE-like scans, replacing or complementing noisy manual review.
The method transfers across scanner manufacturers and protocol variants without retraining, as shown by the significant associations on GE and Siemens datasets.
Individual FreeSurfer estimates can be confidence-weighted or flagged when predicted motion is high, before downstream analyses are run.
Studies whose subjects move more (children, ADHD, schizophrenia) can now quantify that motion post hoc, addressing a confound previously requiring prospective hardware.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

A natural next step the paper does not take is to threshold the continuous score into a formal inclusion or exclusion criterion; the current validation uses the score as a continuous covariate, not as a QC gate.
The same synthetic-labeling loop could be extended to other artifact families (e.g., susceptibility, flow, ghosting) or other morphometric outputs (surface area, volume) by training separate regressors, since the label generation is modular.
The transfer claim would be strengthened by a direct comparison against measured motion from vNavs or an optical tracker on the same subjects; the paper only validates against manual ratings and indirect thickness and age associations.
Because the score is derived from a single volume, its per-subject reproducibility across repeated scans of the same person is untested; a test–retest study would clarify how much of the score is motion versus acquisition-specific noise.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

You should know this paper: it's a serious methods submission on estimating head motion from structural MRI using a CNN trained on simulated motion. The concrete contributions are a slightly deeper SFCN variant (two convs per block), a specific augmentation pipeline, and validation across 15 datasets—one held-out training site, MR-ART with manual ratings, and 11 OpenNeuro datasets. That scale is genuinely unusual for this kind of work, and the authors release code, model weights, data splits, and manual labels. The validation is mostly careful: they apply FDR correction over 525 thickness models, report per-dataset coefficients, and show age correlations that match prior findings.

The soft spots are real but not fatal. The abstract says R²=0.65 versus manual labels; the body reports a Spearman rank correlation of 0.71 on MR-ART and never shows that R². That is an inconsistency the authors need to fix. More substantively, the claim that the score measures motion rather than generic image quality is underdetermined. The only direct validation is against MR-ART's 3-level clinical usability grade, which is a coarse, quality-based label. The authors have HBN vNavs data—which provides continuous, recorded motion—yet never report a validation against it. That is the single most useful addition a revision could make. The thickness and age correlations are indirect: any blur/ghosting-sensitive index would likely reproduce them, because those artifacts also bias FreeSurfer and are more common in children.

I'd also like to see a direct comparison to Pollak et al. 2023, whose real-motion depth-camera labels give a proper regression target. Without that, the advantage of this synthetic pipeline is asserted, not demonstrated.

The paper is honest about its own limits: the Discussion lists "more accurate artifact simulators" as future work, which is the right concession. The synthetic-to-real transfer is the load-bearing premise, and the paper doesn't fully prove it.

Bottom line: this deserves peer review. A good referee can push on the vNavs validation, the abstract/body metric discrepancy, and the Pollak baseline. It's not a desk reject, and it's worth discussing in reading group if you're working on image QC.

Referee Report

4 major / 6 minor

Summary. The paper trains a 3D convolutional neural network (SFCN2) to regress a scalar head-motion score from T1-weighted structural MRI. Training labels are RMS deviation values computed from synthetic rigid-body motion applied to clean HBN volumes using TorchIO. The model is evaluated on a synthetic test set, on MR-ART manual three-level motion grades, and on 15 real datasets by correlating predicted motion with FreeSurfer cortical thickness and age. The authors report a synthetic test R² of 0.94, a Spearman correlation of 0.71 with MR-ART labels, significant thickness–motion associations in 12/15 datasets after FDR correction, and age correlations consistent with prior literature.

Significance. If the central claim holds—that a model trained on synthetic motion artifacts yields a motion-specific score transferable across scanners and protocols—the work would provide a scalable, retrospective motion-assessment tool for structural MRI, with direct relevance to population studies of neurodevelopment and psychiatric disorders. Strengths include the unusually broad external evaluation (14 independent datasets plus one held-out site from the training cohort), explicit FDR correction across 525 fitted models, and publicly released code, model weights, manual labels, and an open-source CLI tool, all of which support reproducibility. The paper also demonstrates that simulated motion reproduces the known negative thickness–motion relationship in synthetic data, a useful internal consistency check.

major comments (4)

[Abstract; §3.1.2] The abstract states that the method achieves "a representative R² = 0.65 versus manual labels," but the body reports only a Spearman rank correlation of 0.71 against MR-ART's three-level grades; no R² value is reported in Section 3.1.2 or anywhere else in the results. The authors must either report the actual R² and its computation (e.g., against which continuous variable, since MR-ART labels are ordinal) or correct the abstract, because the abstract's headline performance claim is currently unsupported by the presented evidence.
[§2.1; §3.1.2] No validation is reported against continuous ground-truth motion, despite the availability of vNavs data. Section 2.1 states that CBIC and CUNY include T1w volumes acquired with vNavs-based prospective correction, and these same sites are used to generate synthetic training data. Yet the paper never compares predicted motion scores against the recorded vNavs motion estimates on those real volumes. Such a comparison would directly test whether the score tracks real in-scanner motion rather than generic image quality, and it is feasible with data already in the authors' possession. Without it, the claim that the model estimates head motion (Conclusion, Section 5) rather than a general artifact index is underdetermined.
[§2.3.2, Eq. (1)] The RMS deviation label depends on an estimated brain radius Rc, but the paper never specifies how Rc is obtained. Because Rc scales the rotation contribution to the label, different choices change the label distribution and thus the learned score. Please state whether Rc is a fixed constant, derived from the affine-registered images, or taken from a template, and report its value; without this, the label definition is not fully reproducible.
[§3.1.2; §3.2.2] The real-data validation strategy is indirect: MR-ART's three-level clinical-usability grades conflate motion with overall image quality, and the thickness and age correlations could plausibly be reproduced by any quality index that tracks blur or ghosting. The MR-ART dataset includes paired STAND/HM1/HM2 scans with known instructed motion levels, but the manuscript only reports the Spearman correlation against the three-level grade and does not report whether the predicted score discriminates the instructed motion condition in a paired analysis (e.g., STAND vs. HM1 vs. HM2). Adding such an analysis, or the vNavs comparison above, is necessary to support the conclusion that the model learns "purely synthetic motion artifacts" rather than a general quality score.

minor comments (6)

[§2.2] The word "generalisabiliy" is misspelled and should be "generalizability."
[§3.2.3] The sentence "These findings agree are in line with the literature" contains a duplicated verb; it should read "These findings are in line with the literature."
[Figure 6 caption] The caption states "bottom left and top bottom"; the last phrase should be "bottom right" or similar.
[§2.4; §2.5] Section 2.4 says the network is trained by minimizing KL divergence, while Section 2.5 says the validation selection criterion is Jensen-Shannon divergence; please clarify which objective is used for training and which for model selection.
[§2.3.2] The variable name "emotion" is easily misread as "emotion" and should be renamed to something like "e_motion" or "target_motion" for clarity.
[§5] The claim "This is the first attempt at correcting motion-related biases..." is stronger than what the paper demonstrates and could be softened to "a method for estimating motion that can be used to correct for motion-related biases."

Circularity Check

1 steps flagged · score 2.0 of 10

No significant circularity: the regressor is trained on synthetic RMS-deviation labels and validated on independent real-data outcomes (MR-ART labels, thickness in 15 datasets, age). One minor selection loop: the final model was chosen partly by its MR-ART correlation, which is then reported as headline validation.

other [Section 3.1.3 (ablation, Table 3) selects the model; same labels are then reported as validation in Section 3.1.2.]
"On the MR-ART manual labels, the complete model outperforms the other variations by a large margin. This confirms that our model is more robust in real scenarios, even if its performance on synthetic data is lower."

Table 3 ranks four architecture/augmentation variants by their Spearman correlation with the MR-ART three-level labels, and the variant with the highest MR-ART correlation (0.71) is declared the complete model and used throughout the paper. The same MR-ART labels are then reported in Section 3.1.2 as validation evidence ('Our model achieves a high correlation of 0.71... demonstrating our model's capability for real motion prediction without fine-tuning on independent data'). The headline real-data correlation is thus partly self-referential: the configuration was selected because it maximized this very quantity, so the reported 0.71 is an optimistic selection-maximum rather than an unbiased prediction estimate.

full rationale

The paper's derivation chain is largely self-contained. The predicted quantity — the RMS deviation of simulated rigid-body k-space transforms (Eq. 1, Section 2.3.2) — is computed from the same transform matrices used to corrupt the clean volumes, so the synthetic labels are internally consistent by construction, and the network never sees cortical thickness, age, or manual ratings during training. Consequently, the real-data validations are genuinely out-of-sample: the Spearman 0.71 against MR-ART usability grades, the motion-thickness GLM coefficients (Eq. 2, Section 3.2.2), and the age regressions (Eq. 3, Section 3.2.3) all use predicted scores that the model could not have been fitted to reproduce. No fitted parameter is renamed as a prediction, no uniqueness theorem is imported from the authors, and no ansatz is smuggled in via self-citation. The self-citation (Bricout et al., 2025) is minor and not load-bearing — the SFCN architecture originates from Peng et al. (2021) and its motion-estimation use from Pollak et al. (2023). One minor self-referential step is flagged: the final configuration was selected partly by its MR-ART Spearman correlation (Table 3), and that same correlation is then presented as validation, modestly inflating the headline number. Two concerns noted in the manuscript are correctness risks rather than circularity: the Discussion's concession that creating 'more accurate artifact simulators' is future work, and the absence of validation against the continuous vNav motion measurements that the HBN CBIC/CUNY acquisitions (Section 2.1) could have supplied — the MR-ART three-level label conflates motion with general image quality. Score 2 reflects the minor selection loop; the central claim retains substantial independent evidence.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The central claim rests on a chain of domain assumptions: synthetic artifacts represent real motion, the RMS metric is a valid scalar, manual labels are ground truth, and the GLM captures the motion-thickness relationship. The empirically chosen sampling coefficients and the clean-volume cutoff are free parameters that shape the label distribution. No new physical entities are introduced.

free parameters (5)

translation sampling coefficient = max(emotion, 1)
Empirically chosen in Section 2.3.2 to define the range of simulated translation magnitudes; affects the distribution of synthetic motion labels.
rotation sampling coefficient = max(2*emotion, 1)
Empirically chosen in Section 2.3.2 to define rotation ranges; affects the synthetic label distribution.
transform tolerance = 0.02
Tolerance from Section 2.3.2 used to accept or reject random transforms so the actual RMS deviation matches the desired motion score.
brain radius Rc = not stated
Required for the RMS deviation formula (Equation 1) but its estimation is not described; directly scales every label.
clean-volume QC cutoff = 449 of 4079 volumes
Only volumes rated 'Clean' or 'Barely Noticeable' by one rater are used for synthetic generation; this selection shapes the training distribution.

assumptions (5)

domain assumption Synthetic motion via rigid-body transforms and k-space corruption mimics real head motion artifacts.
Used throughout Section 2.3.2 and assumed in Sections 3.1.2 and 3.2.2.
domain assumption RMS deviation is an adequate scalar summary of motion severity.
Defined in Equation 1 and used as the training label; its adequacy for representing complex 3D motion is assumed.
domain assumption Manual labels in MR-ART provide a valid ground truth for real motion.
Section 3.1.2 uses the three-level manual grades to validate the model.
domain assumption Cortical thickness is linearly related to motion after adjusting for age and sex.
Equation 2 and Table 5 use a GLM with this assumed linearity.
domain assumption FreeSurfer cortical thickness estimates from processed volumes are used as ground truth.
Section 2.3.1 assumes the FreeSurfer thickness measurements are accurate enough for correlation testing.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Estimation of Head Motion in Structural MRI and its Impact on Cortical Thickness Measurements in Retrospective Data." pith.science (2026). https://pith.science/paper/XX7LUQYH

@misc{pith2026250523916,
  author       = {Pith},
  title        = {Pith review of: Estimation of Head Motion in Structural MRI and its Impact on Cortical Thickness Measurements in Retrospective Data},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XX7LUQYH}},
  note         = {Machine review of arXiv:2505.23916}
}

abstract

Motion-related artifacts are inevitable in Magnetic Resonance Imaging (MRI) and can bias automated neuroanatomical metrics such as cortical thickness. These biases can interfere with statistical analysis which is a major concern as motion has been shown to be more prominent in certain populations such as children or individuals with ADHD. Manual review cannot objectively quantify motion in anatomical scans, and existing quantitative automated approaches often require specialized hardware or custom acquisition protocols. Here, we train a 3D convolutional neural network to estimate a summary motion metric in retrospective routine research scans by leveraging a large training dataset of synthetically motion-corrupted volumes. We validate our method with one held-out site from our training cohort and with 14 fully independent datasets, including one with manual ratings, achieving a representative $R^2 = 0.65$ versus manual labels and significant thickness-motion correlations in 12/15 datasets. Furthermore, our predicted motion correlates with subject age in line with prior studies. Our approach generalizes across scanner brands and protocols, enabling objective, scalable motion assessment in structural MRI studies without prospective motion correction. By providing reliable motion estimates, our method offers researchers a tool to assess and account for potential biases in cortical thickness analyses.

Figures

Figures reproduced from arXiv: 2505.23916 by the authors.

**Figure 1.** Data processing flow. Black arrows represents training data, red arrows represents data used to assess synthetic motion effect, and green arrows represents test data from real datasets [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗

**Figure 2.** Description of the SFCN2 architecture motion score = N Xbins i xi · motioni where xi is the predicted probability for the i-th bin, and motioni is the center value of the i-th bin. Our model is a slightly heavier variation of SFCN, using two convolutions per block instead of one. This architecture is more expressive, which might help capture subtlety while still being light enough for efficient training. We refer to… view at source ↗

**Figure 3.** Prediction on the synthetic test set for our model compared to ground [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗

Figures from the paper (5 more)

**Figure 4.** Figure 4: Predicted motion score distribution for each MR-ART motion label. The [PITH_FULL_IMAGE:figures/full_fig_p011_4.png]

**Figure 5.** Figure 5: First row Linear regressions of order one between Motion Score and Left [PITH_FULL_IMAGE:figures/full_fig_p012_5.png]

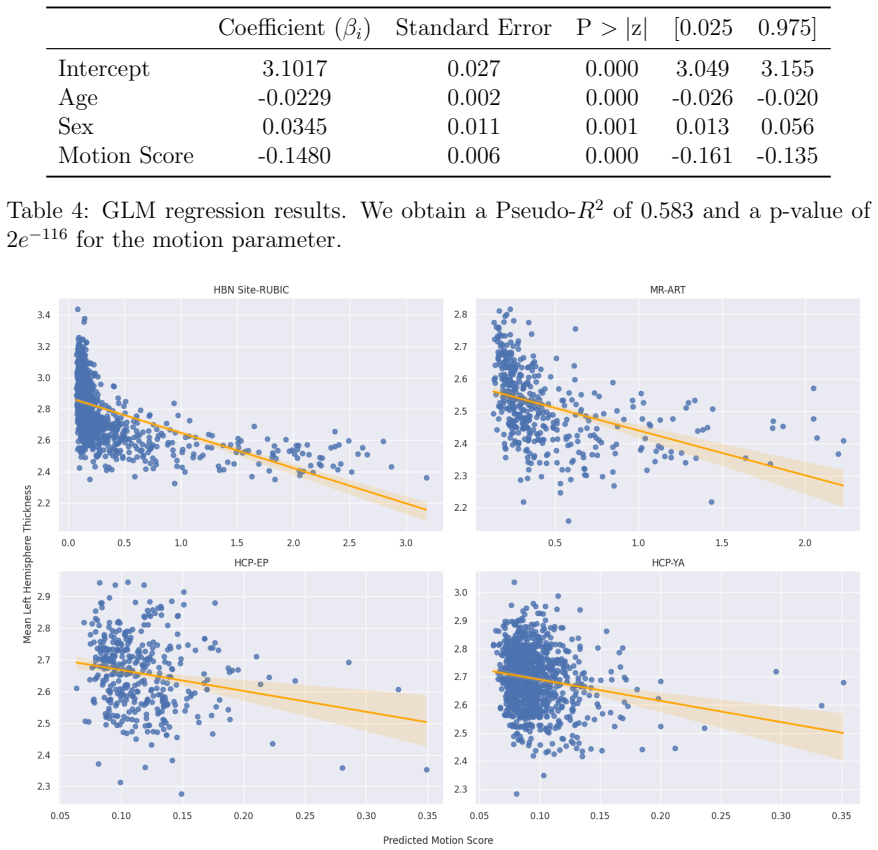

**Figure 6.** Figure 6: Regression between mean left hemisphere cortical thickness and our model’s [PITH_FULL_IMAGE:figures/full_fig_p013_6.png]

**Figure 7.** Figure 7: Predicted motion score distribution for each dataset. [PITH_FULL_IMAGE:figures/full_fig_p014_7.png]

**Figure 8.** Figure 8: Examples from HBN presented to Rater Two and Three [PITH_FULL_IMAGE:figures/full_fig_p023_8.png]
