arxiv: 2605.15666 · v1 · pith:XYISDOKBnew · submitted 2026-05-15 · 💻 cs.CV

ChronoEarth-492K: A Large Scale and Long Horizon Spatiotemporal Hyperspectral Earth Observation Dataset and Benchmark

Haozhe Si , Yuxuan Wan , Yuqing Wang , Minh Do , Han Zhao This is my paper

Pith reviewed 2026-05-20 18:21 UTC · model grok-4.3

classification 💻 cs.CV
keywords hyperspectral imagingEarth observationdatasetspatiotemporal modelingself-supervised learningtemporal analysissatellite imagerybenchmark
0
0 comments X

The pith

ChronoEarth-492K introduces the first large-scale temporally calibrated hyperspectral dataset spanning 17 years of Earth observations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents ChronoEarth-492K, a new dataset built from NASA's 17-year EO-1 Hyperion hyperspectral archive. It includes 492,354 harmonized patches from 185,398 locations worldwide, with many sites having multiple observations over time to support analysis of changes. Existing hyperspectral datasets lack this temporal depth, which has slowed progress in learning models that track ecosystem dynamics over long periods. The authors also create a benchmark with tasks for static and temporal predictions using land cover and soil data. This setup allows testing of foundation models on both short and long time scales.

Core claim

ChronoEarth-492K comprises 492,354 radiometrically harmonized patches across 185,398 global locations over 17 years, with 28,786 sites containing multi-temporal sequences of at least three observations that enable both short- and long-horizon temporal analysis in hyperspectral self-supervised learning.

What carries the argument

ChronoEarth-492K, the collection of radiometrically harmonized hyperspectral patches with multi-temporal sequences from the EO-1 Hyperion mission, which provides the temporally consistent data for spatiotemporal modeling.

If this is right

  • Developers can now train hyperspectral models on long-horizon sequences to better understand land cover changes over years.
  • The benchmark enables standardized comparisons of models on static, short-term, and long-term Earth observation tasks.
  • Baseline results show how current foundation models perform on this new temporal dataset.
  • Researchers gain access to a platform for systematic spatiotemporal hyperspectral representation learning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Models trained on this data might reveal patterns in ecosystem responses to climate variations that shorter datasets miss.
  • Future work could combine these spectral sequences with climate models to forecast environmental shifts.
  • This approach could be extended to other satellite archives to create even longer temporal records.

Load-bearing premise

The radiometric harmonization ensures that spectral values from different years can be compared directly without leftover calibration differences.

What would settle it

Comparing spectral signatures from repeated observations of the same stable location across different years and finding large unexplained variations would indicate that the harmonization does not fully remove temporal inconsistencies.

Figures

Figures reproduced from arXiv: 2605.15666 by Han Zhao, Haozhe Si, Minh Do, Yuqing Wang, Yuxuan Wan.

Figure 1

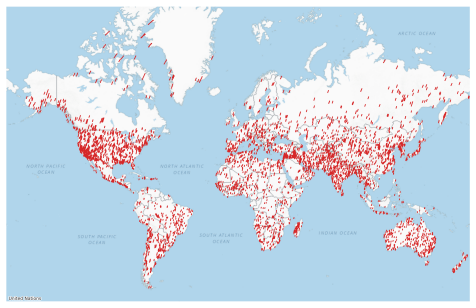

Figure 1. Figure 1: Global Distribution of the ChronoEarth dataset. The map illustrates the world-wide [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

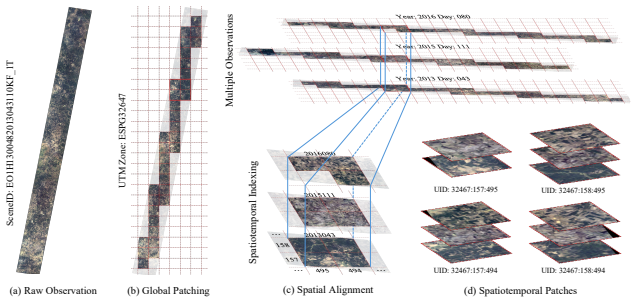

Figure 2. Figure 2: Global Patching and Spatial Alignment for ChronoEarth. (a) Raw EO-1 Hyperion observation. (b) Global patching using a UTM-zone–specific gridding system, where each patch is assigned a unique spatial identifier based on its zone and grid coordinates. (c) Spatial alignment of patches sharing the same identifier across multiple observations. (d) Formation of spatiotemporal patch sequences by aggregating align… view at source ↗
Figure 3
Figure 3. Figure 3: Temporal distribution of ChronoEarth: (a) number of timestamps per location, (b) time gaps [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Sample pseudo-RGB images and labels from the ChronoEarth-Benchmark. [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Label and spatial distribution per split for static CDL dataset. [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Label and spatial distribution per split for static CLCD dataset. [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7

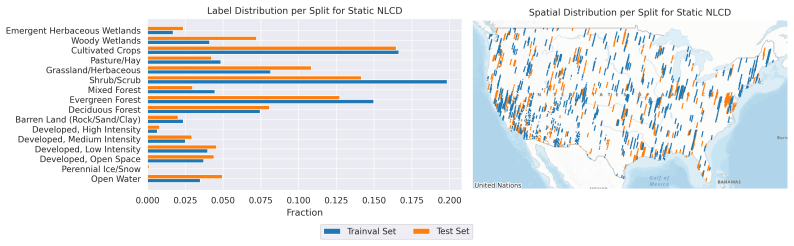

Figure 7. Figure 7: Label and spatial distribution per split for static NLCD-S dataset. [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗

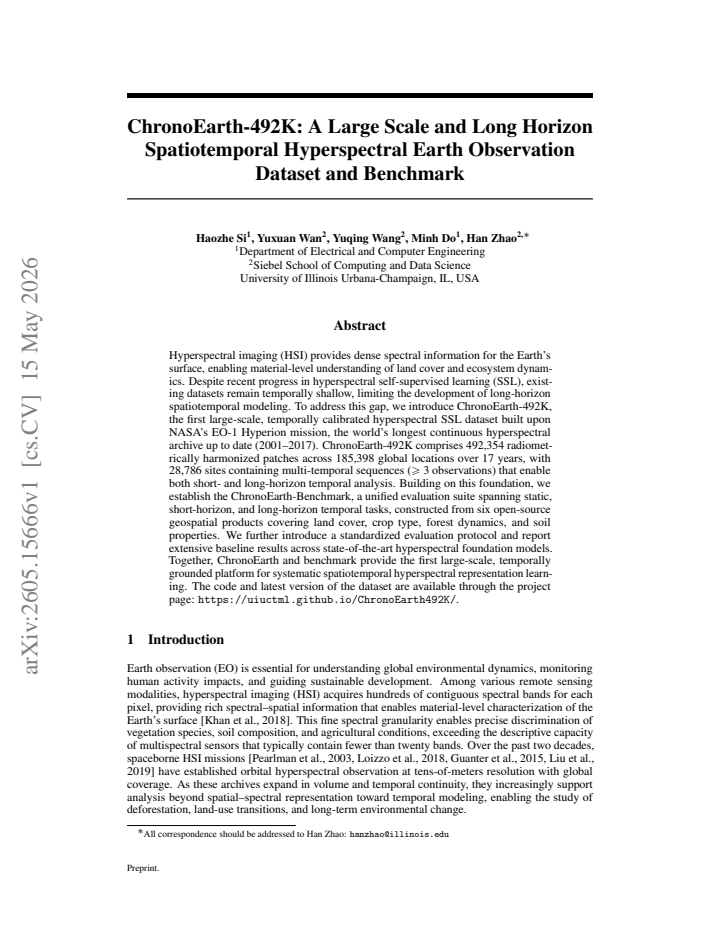

read the original abstract

Hyperspectral imaging (HSI) provides dense spectral information for the Earth's surface, enabling material-level understanding of land cover and ecosystem dynamics. Despite recent progress in hyperspectral self-supervised learning (SSL), existing datasets remain temporally shallow, limiting the development of long-horizon spatiotemporal modeling. To address this gap, we introduce ChronoEarth-492K, the first large-scale, temporally calibrated hyperspectral SSL dataset built upon NASA's EO-1 Hyperion mission, the world's longest continuous hyperspectral archive up to date (2001-2017). ChronoEarth-492K comprises 492,354 radiometrically harmonized patches across 185,398 global locations over 17 years, with 28,786 sites containing multi-temporal sequences ($\geq 3$ observations) that enable both short- and long-horizon temporal analysis. Building on this foundation, we establish the ChronoEarth-Benchmark, a unified evaluation suite spanning static, short-horizon, and long-horizon temporal tasks, constructed from six open-source geospatial products covering land cover, crop type, forest dynamics, and soil properties. We further introduce a standardized evaluation protocol and report extensive baseline results across state-of-the-art hyperspectral foundation models. Together, ChronoEarth and benchmark provide the first large-scale, temporally grounded platform for systematic spatiotemporal hyperspectral representation learning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper introduces ChronoEarth-492K, a large-scale hyperspectral Earth observation dataset derived from the NASA EO-1 Hyperion archive (2001-2017). It comprises 492,354 radiometrically harmonized patches across 185,398 global locations, with 28,786 sites providing multi-temporal sequences of at least three observations. The work also establishes the ChronoEarth-Benchmark, a unified evaluation suite for static, short-horizon, and long-horizon tasks drawn from six open geospatial products (land cover, crop type, forest dynamics, soil properties), along with a standardized protocol and baseline results on state-of-the-art hyperspectral foundation models.

Significance. If the radiometric harmonization is shown to produce temporally stable spectral values, the dataset would provide a valuable new resource for developing and evaluating long-horizon spatiotemporal models in hyperspectral self-supervised learning, addressing the current limitation of temporally shallow HSI datasets. The scale, global coverage, and inclusion of a multi-task benchmark with baselines represent a concrete contribution to the field.

major comments (1)
  1. [Dataset construction and harmonization process] The dataset construction description states that patches are 'radiometrically harmonized' to support direct temporal comparison across the 17-year span, yet no quantitative validation is provided (e.g., inter-annual variance reduction on pseudo-invariant sites, spectral angle mapper scores between same-location observations separated by multiple years, or residual calibration error metrics). This validation is load-bearing for the central claim that the 28,786 multi-temporal sites enable reliable long-horizon analysis without residual artifacts biasing SSL pretraining or benchmark evaluations.
minor comments (1)
  1. [Dataset statistics and site selection] Clarify the exact criteria used for site selection and the definition of 'multi-temporal sequences' (e.g., minimum temporal spacing) to allow reproducibility of the 28,786-site subset.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review and positive evaluation of our work. We appreciate the recognition of the dataset's potential contribution to long-horizon spatiotemporal modeling in hyperspectral self-supervised learning. Below, we address the major comment point by point.

read point-by-point responses

  1. Referee: The dataset construction description states that patches are 'radiometrically harmonized' to support direct temporal comparison across the 17-year span, yet no quantitative validation is provided (e.g., inter-annual variance reduction on pseudo-invariant sites, spectral angle mapper scores between same-location observations separated by multiple years, or residual calibration error metrics). This validation is load-bearing for the central claim that the 28,786 multi-temporal sites enable reliable long-horizon analysis without residual artifacts biasing SSL pretraining or benchmark evaluations.

    Authors: We acknowledge that providing quantitative validation for the radiometric harmonization process is crucial to substantiate the reliability of the multi-temporal sequences for long-horizon analysis. While the manuscript describes the harmonization procedure in detail (Section 3.2), we agree that empirical validation metrics were not included. In the revised version, we will add a new subsection with quantitative assessments, including inter-annual variance reduction on pseudo-invariant sites, spectral angle mapper (SAM) scores for same-location observations over multiple years, and residual calibration error metrics. These will be computed using the available data and reported with corresponding figures and tables to demonstrate temporal stability. revision: yes

Circularity Check

0 steps flagged

No significant circularity: dataset curation paper with external grounding

full rationale

This is a data resource and benchmark paper whose central contribution is the assembly of 492k patches from the external NASA EO-1 Hyperion archive plus six open geospatial products. No equations, fitted parameters, self-referential predictions, or derivation chains appear in the provided text. The radiometric harmonization step is presented as a preprocessing choice applied to the external archive rather than a result derived from the paper's own outputs or self-citations. The evaluation suite is likewise constructed from independent open-source labels. The paper is therefore self-contained against external benchmarks with no load-bearing internal reductions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the fidelity of the source satellite archive and the success of radiometric harmonization; these are treated as given rather than independently validated within the provided text.

axioms (1)
  • domain assumption NASA EO-1 Hyperion mission data from 2001-2017 constitutes a reliable, continuous hyperspectral archive suitable for multi-year analysis after harmonization.
    The entire dataset is constructed upon this mission record.

pith-pipeline@v0.9.0 · 5787 in / 1292 out tokens · 85985 ms · 2026-05-20T18:21:38.197501+00:00 · methodology

discussion (0)
