pith. sign in

arxiv: 2512.13623 · v1 · pith:Y2EOZA5Jnew · submitted 2025-12-15 · ❄️ cond-mat.mtrl-sci

Rapid synthesis of dual-element isotope-enriched alpha-MoO3 crystals by reactive vapor transport

Ryan W. Spangler , Jacob M. Shusterman , Anton V. Ievlev , Patrick E. Hopkins , Joshua D. Caldwell , Jon-Paul Maria This is my paper

Pith reviewed 2026-05-21 16:38 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords alpha-MoO3isotope enrichmentreactive vapor transportphonon polaritonsRaman spectroscopynanophotonicsthermal managementisotopically enriched crystals
0
0 comments X

The pith

A rapid reactive vapor transport method grows mm-scale alpha-MoO3 crystals enriched with specific 98Mo and 18O isotopes in minutes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a reactive vapor transport technique that grows millimeter-scale, high-quality alpha-MoO3 crystals in just a few minutes while making efficient use of scarce isotopically pure precursors such as gaseous 18O2. High source temperatures around 900°C and atmospheric pressure with metallic molybdenum sources maximize precursor conversion and yield, allowing uniform incorporation of 98Mo and 18O in multiple combinations. Raman spectroscopy confirms the resulting crystals exhibit phonon energy redshifts that are modest with molybdenum enrichment and more pronounced with oxygen enrichment. This isotopic control is positioned as a practical route to study and tune lattice vibrations for applications in nanophotonics and thermal management.

Core claim

We develop a rapid reactive vapor transport technique to efficiently utilize limited isotopically pure precursors, particularly gaseous 18O2, and synthesize mm-scale, high-quality crystals within few-minute growth durations. We unlock this capability by using metallic molybdenum precursors with high source temperatures (900 C) and total pressures (1 atm) to maximize precursor efficiency and yield. Subsequently, we grow MoO3 single crystals with high and uniform enrichment levels of 98Mo and 18O isotopes in several different permutations. As probed by Raman spectroscopy, modest and significant phonon energy redshifts occur following 98Mo and 18O enrichment, respectively. By demonstrating a

What carries the argument

The rapid reactive vapor transport process that uses metallic molybdenum precursors at 900°C and 1 atm to convert limited gaseous 18O2 into uniformly isotope-enriched alpha-MoO3 crystals.

Load-bearing premise

Using metallic molybdenum precursors at high source temperatures and atmospheric pressure will convert limited 18O2 gas into high-quality crystals that incorporate the chosen isotopes uniformly throughout their volume.

What would settle it

Direct isotope ratio measurements such as secondary ion mass spectrometry that show enrichment levels below 90 percent or large spatial gradients across individual crystals would falsify the claim of high and uniform dual-element enrichment.

Figures

Figures reproduced from arXiv: 2512.13623 by Anton V. Ievlev, Jacob M. Shusterman, Jon-Paul Maria, Joshua D. Caldwell, Patrick E. Hopkins, Ryan W. Spangler.

Figure 1
Figure 1. Figure 1: Reactive vapor transport growth method. (a) Schematic of the growth chamber used for crystal growth. (b) Temperature profile of the three-zone furnace during a typical growth run comprised of the ramp-up (I), growth (II), and cool-down (III) stages [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: α-MoO3 flakes. (a) Photograph of numerous large crystals grown within the small quartz tube. (b) Optical micrograph and (c) EDS spectrum and stoichiometry of the α-MoO3 crystals [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

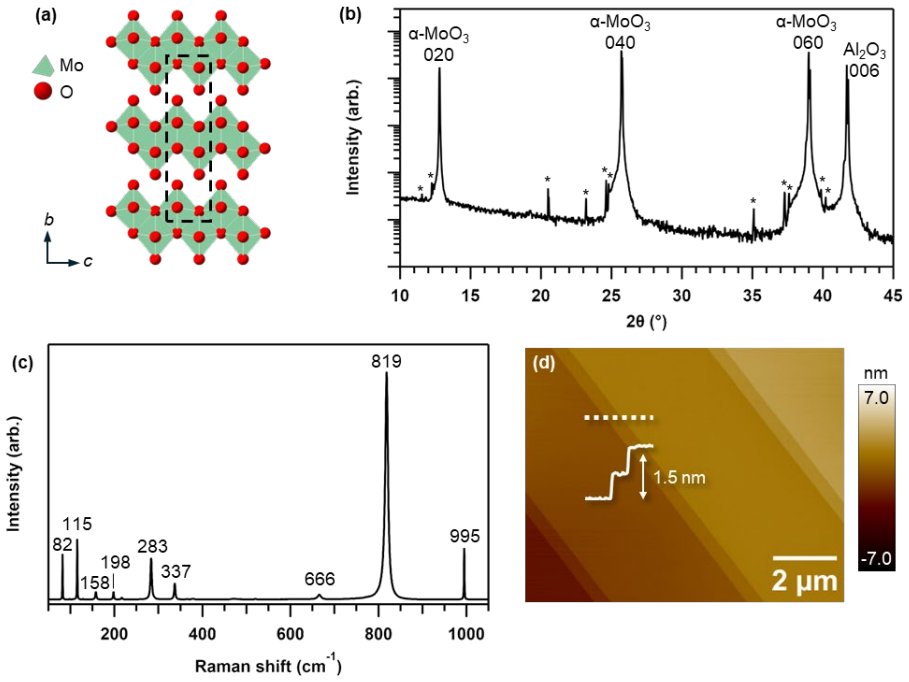

Figure 3. Figure 3: Physical properties of α-MoO3 flakes. (a) α-MoO3 crystal structure viewed along the a￾axis with the unit cell outlined. (b) XRD θ-2θ scan of a α-MoO3 flake transferred onto a c-axis￾oriented Al2O3 substrate. (*) = reflections arising from secondary and λ 2 wavelengths. (c) Raman spectrum of a flake transferred onto a Si substrate with the major α-MoO3 vibration frequencies labeled, and (d) AFM height image… view at source ↗
Figure 4
Figure 4. Figure 4: Pressure dependence of reactive vapor transport growth. (a-d) Photographs and (inset) optical micrograph of α-MoO3 flakes grown at different O2 pressures: (a) 150 Torr, (b) 360 Torr, (c) 490 Torr, and (d) 740 Torr [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

In this work, we develop a rapid reactive vapor transport technique to efficiently utilize limited isotopically pure precursors, particularly gaseous 18O2, and synthesize mm-scale, high-quality crystals within few-minute growth durations. We unlock this capability by using metallic molybdenum precursors with high source temperatures (900 C) and total pressures (1 atm) to maximize precursor efficiency and yield. Subsequently, we grow MoO3 single crystals with high and uniform enrichment levels of 98Mo and 18O isotopes in several different permutations. As probed by Raman spectroscopy, modest and significant phonon energy redshifts occur following 98Mo and 18O enrichment, respectively. By demonstrating control over both molybdenum and oxygen isotopic fractions, we establish a powerful tool to advance nanophotonics and thermal management goals using MoO3. This work is motivated by the possibility to enhance and engineer lattice vibrational mode phenomena including thermal conduction and hyperbolic phonon polariton (HPhP) dispersion, with particular interest in comparing the effects of light and heavy element enrichment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes the development of a rapid reactive vapor transport method to synthesize millimeter-scale alpha-MoO3 crystals enriched with isotopes of molybdenum (98Mo) and oxygen (18O) using limited isotopically pure precursors. The technique employs metallic molybdenum sources at 900°C and 1 atm pressure for efficient precursor utilization, achieving growth in a few minutes. Enrichment is claimed to be high and uniform, as evidenced by Raman spectroscopy showing phonon redshifts, with the goal of enabling phonon engineering for nanophotonics and thermal management.

Significance. If the high and uniform enrichment levels are quantitatively confirmed, this synthesis approach would provide an efficient route to isotopically engineered MoO3 crystals, supporting targeted studies of phonon dispersion, thermal transport, and hyperbolic phonon polaritons by allowing independent control over Mo and O isotopic fractions. The rapid growth times and precursor-efficient design using metallic sources represent practical advances for working with scarce isotopic materials.

major comments (2)
  1. [Abstract] Abstract and method development section: the central claim of 'high and uniform enrichment levels of 98Mo and 18O isotopes' (with context implying ~98 %) is not quantitatively established. Raman phonon redshifts confirm isotopic incorporation but the shift magnitude depends on reduced mass, anharmonicity, and local environment; converting observed wavenumbers to atomic % enrichment requires either calibrated reference samples with independent composition measurements (e.g., SIMS) or a quantitative phonon model under isotopic disorder, neither of which is described.
  2. [Method development section] Method development section: the assumption that 900 °C source temperature and 1 atm total pressure with metallic Mo precursors will produce uniform enrichment throughout mm-scale crystals rests on bulk Raman spectra alone; no spatially resolved compositional mapping or cross-sectional analysis is provided to substantiate uniformity across the crystal volume.
minor comments (2)
  1. [Abstract] Abstract: 'few-minute growth durations' should be replaced with specific time ranges (e.g., 2–5 min) to aid reproducibility.
  2. Ensure full experimental details (precursor masses, gas flow rates, substrate positions) are provided in the methods for independent replication.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and for recognizing the practical advances of our rapid reactive vapor transport method. We address each major comment point by point below, clarifying the basis for our enrichment claims and making targeted revisions to improve precision without overstating the spectroscopic evidence.

read point-by-point responses

  1. Referee: [Abstract] Abstract and method development section: the central claim of 'high and uniform enrichment levels of 98Mo and 18O isotopes' (with context implying ~98 %) is not quantitatively established. Raman phonon redshifts confirm isotopic incorporation but the shift magnitude depends on reduced mass, anharmonicity, and local environment; converting observed wavenumbers to atomic % enrichment requires either calibrated reference samples with independent composition measurements (e.g., SIMS) or a quantitative phonon model under isotopic disorder, neither of which is described.

    Authors: We agree that Raman shifts alone do not yield a direct atomic-percentage quantification without calibration or detailed modeling. In the revised manuscript we will update the abstract and method sections to describe the enrichment as 'high' based on the magnitude of the observed redshifts, which align with reduced-mass expectations for near-complete substitution as reported in prior isotopic studies of MoO3 and related oxides. We will add a short paragraph referencing the expected frequency scaling and note that full quantitative validation would require complementary techniques such as SIMS. This revision removes any implication of a specific percentage while preserving the spectroscopic support for substantial isotopic incorporation. revision: partial

  2. Referee: [Method development section] Method development section: the assumption that 900 °C source temperature and 1 atm total pressure with metallic Mo precursors will produce uniform enrichment throughout mm-scale crystals rests on bulk Raman spectra alone; no spatially resolved compositional mapping or cross-sectional analysis is provided to substantiate uniformity across the crystal volume.

    Authors: We acknowledge that spatially resolved mapping would strengthen the uniformity claim. The Raman data presented were collected at multiple surface locations on each crystal, all showing identical phonon shifts within experimental resolution. Given the vapor-phase transport mechanism and the sub-10 μm thickness of the resulting plates, we expect compositional uniformity throughout the volume. In the revision we will explicitly state the multi-point Raman protocol and add a brief justification for relying on bulk measurements for these thin crystals. We do not plan additional cross-sectional experiments at this stage, as the existing evidence is consistent with uniform incorporation under the reported growth conditions. revision: partial

Circularity Check

0 steps flagged

No significant circularity; experimental synthesis claims are self-contained

full rationale

This is an experimental materials synthesis paper with no mathematical derivations, equations, model fittings, or theoretical predictions. Claims rest on physical growth processes (high-temperature reactive vapor transport) and direct Raman spectroscopy observations of phonon shifts. No load-bearing steps reduce by construction to inputs, self-citations, or ansatzes. The enrichment verification via observed shifts is an empirical measurement whose quantitative mapping to atomic percentages may require external calibration, but that is an evidence-strength issue, not circularity. The derivation chain is independent of the target results.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

This experimental paper introduces no new theoretical entities or free parameters. The claims depend on standard assumptions in crystal growth and spectroscopy. The main 'cost' is the experimental validation of enrichment uniformity and efficiency.

axioms (2)
  • domain assumption Isotopic substitution leads to predictable shifts in phonon frequencies detectable by Raman spectroscopy
    This is used to infer the enrichment levels from observed redshifts.
  • domain assumption The reactive vapor transport process at specified conditions produces single crystals of alpha-MoO3
    Background knowledge in materials synthesis invoked for the growth method.

pith-pipeline@v0.9.0 · 5736 in / 1663 out tokens · 113942 ms · 2026-05-21T16:38:49.391725+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

79 extracted references · 79 canonical work pages

  1. [1]

    Department of Materials Science and Engineering, The Pennsylvania State University, University Park, PA 16802, USA

    work page

  2. [2]

    Center for Nanophase Material Sciences, Oak Ridge National Laboratory, Oak Ridge, TN 37830, USA

    work page

  3. [3]

    Department of Mechanical and Aerospace Engineering, University of Virginia, Charlottesville, V A 22904, USA

    work page

  4. [4]

    Department of Materials Science and Engineering, University of Virginia, Charlottesville, V A 22904, USA

    work page

  5. [5]

    Department of Physics, University of Virginia, Charlottesville, V A 22904, USA

    work page

  6. [6]

    Interdisciplinary Materials Science Program, Vanderbilt University, Nashville, TN 37240, USA

    work page

  7. [7]

    We unlock this capability by using metallic molybdenum precursors with high source temperatures (900 °C) and total pressures (~1 atm) to maximize precursor efficiency and yield

    Department of Mechanical Engineering, Vanderbilt University, Nashville, TN 37235, USA Corresponding author: Jon-Paul Maria jpm133@psu.edu Abstract In this work, we develop a rapid reactive vapor transport technique to efficiently utilize limited isotopically pure precursors, particularly gaseous 18O2, and synthesize mm-scale, high -quality crystals within...

    work page

  8. [8]

    hyperbolic

    Introduction Isotope engineering can tune and optimize phonon- derived phenomena , including thermal conductivity and electron -phonon interactions, by altering elemental atomic masses and nuclear spins.1–4 For instance, exchanging one isotope for another shifts phonon frequencies, while mixing multiple isotopic species increase s phonon scattering events...

    work page

  9. [9]

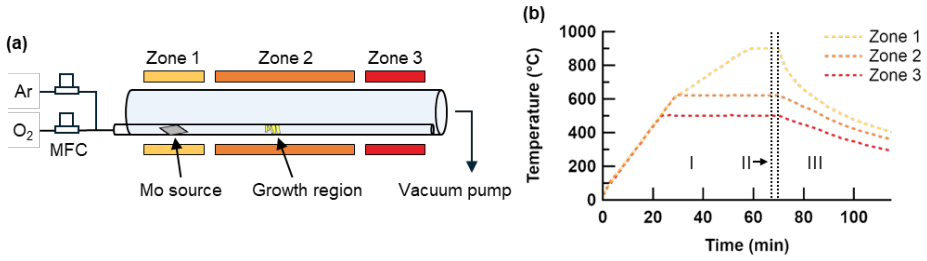

    1(a), where a molybdenum source is reactively sublimated in a hot zone (Zone 1) and transported to a cooler region (Zones 2-3) for deposition

    Methods 2.1 Reactive vapor transport synthesis We perform the reactive vapor transport growths in a three- zone horizontal tube furnace (Thermcraft XST-3-0-24-3V2-F02) shown schematically in Fig. 1(a), where a molybdenum source is reactively sublimated in a hot zone (Zone 1) and transported to a cooler region (Zones 2-3) for deposition. The furnace is equ...

    work page

  10. [10]

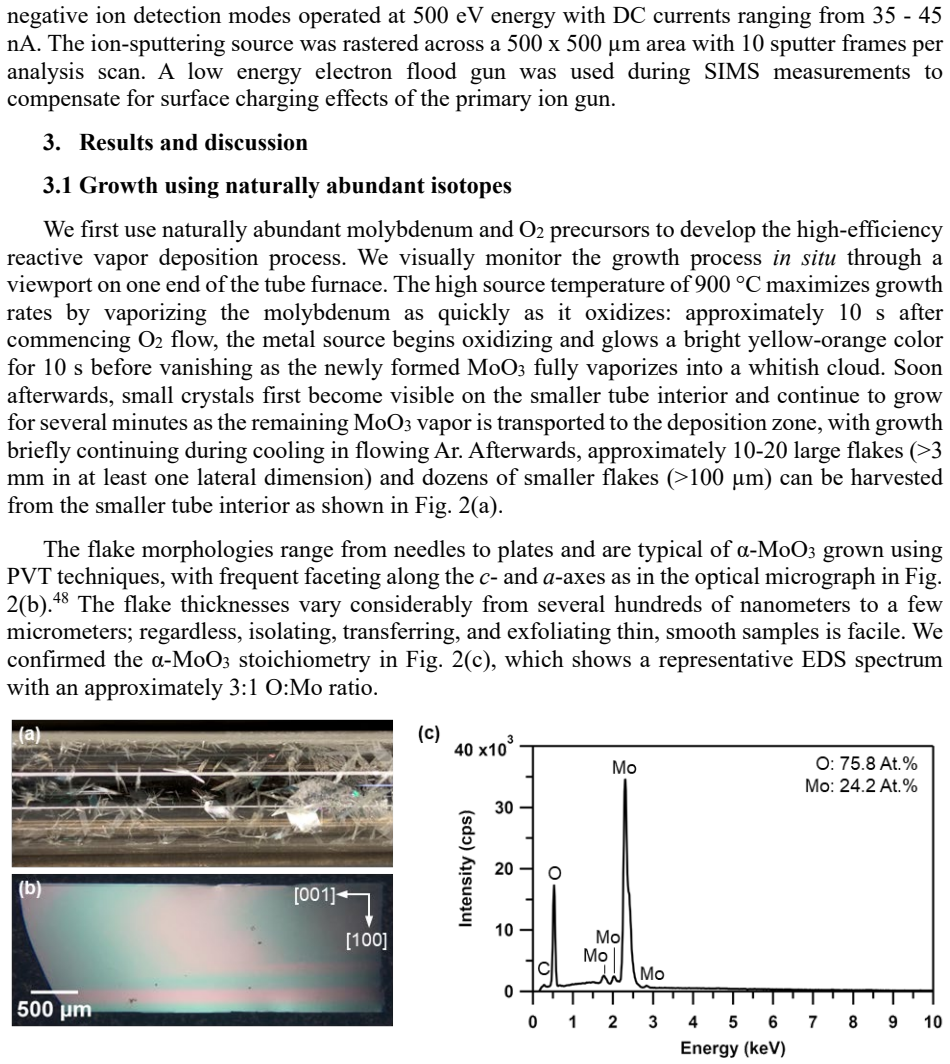

    We visually monitor the growth process in situ through a viewport on one end of the tube furnace

    Results and discussion 3.1 Growth using naturally abundant isotopes We first use naturally abundant molybdenum and O2 precursors to develop the high-efficiency reactive vapor deposition process . We visually monitor the growth process in situ through a viewport on one end of the tube furnace. The high source temperature of 900 °C maximizes growth rates by...

    work page

  11. [11]

    Our technique efficiently consumes limited 18O2 sources to enable high-yield growth using less than 1 standard L of gaseous oxygen

    Conclusions Using reactive vapor transport , we have developed a method to rapidly synthesize α-MoO3 flakes with control over both the oxygen and molybdenum isotopic fraction s. Our technique efficiently consumes limited 18O2 sources to enable high-yield growth using less than 1 standard L of gaseous oxygen. Chemical and structural characterization reveal...

    work page

  12. [12]

    W911NF-21-1-0119

    Acknowledgements This work was supported by the Army Research Office under grant no. W911NF-21-1-0119. ToF- SIMS characterization was conducted at the Center for Nanophase Materials Sciences, which is a DOE Office of Science User Facility, and using instrumentation within ORNL's Materials Characterization Core provided by UT-Battelle, LLC under Contract N...

    work page 2076

  13. [13]

    Plekhanov, V . G. (2000). Isotope engineering. Physics-Uspekhi, 43(11), 1147. https://doi.org/10.1070/PU2000v043n11ABEH000264

    work page doi:10.1070/pu2000v043n11abeh000264 2000

  14. [14]

    K., Zheng, Q., Chen, X., Lee, H., Sun, H., Li, S., Udalamatta Gamage, G

    Chen, K., Song, B., Ravichandran, N. K., Zheng, Q., Chen, X., Lee, H., Sun, H., Li, S., Udalamatta Gamage, G. A. G., Tian, F., Ding, Z., Song, Q., Rai, A., Wu, H., Koirala, P., Schmidt, A. J., Watanabe, K., Lv, B., Ren, Z., … Chen, G. (2020). Ultrahigh thermal conductivity in isotope-enriched cubic boron nitride. Science, 367(6477), 555–559. https://doi.o...

    work page doi:10.1126/science.aaz6149 2020

  15. [15]

    Vuong, T. Q. P., Liu, S., Van der Lee, A., Cuscó, R., Artús, L., Michel, T., Valvin, P., Edgar, J. H., Cassabois, G., & Gil, B. (2018). Isotope engineering of van der Waals interactions in hexagonal boron nitride. Nature Materials, 17(2), 152–158. https://doi.org/10.1038/nmat5048

    work page doi:10.1038/nmat5048 2018

  16. [16]

    A., Puretzky, A

    Yu, Y ., Turkowski, V ., Hachtel, J. A., Puretzky, A. A., Ievlev, A. V ., Din, N. U., Harris, S. B., Iyer, V ., Rouleau, C. M., Rahman, T. S., Geohegan, D. B., & Xiao, K. (2024). Anomalous isotope effect on the optical bandgap in a monolayer transition metal dichalcogenide semiconductor. Science Advances, 10(8), eadj0758. https://doi.org/10.1126/sciadv.adj0758

    work page doi:10.1126/sciadv.adj0758 2024

  17. [17]

    Srivastava, G. P. (1990). The Physics of Phonons (1st ed.). Routledge. https://doi.org/10.1201/9780203736241

    work page doi:10.1201/9780203736241 1990

  18. [18]

    Abeles, B. (1963). Lattice Thermal Conductivity of Disordered Semiconductor Alloys at High Temperatures. Physical Review, 131(5), 1906–1911. https://doi.org/10.1103/PhysRev.131.1906

    work page doi:10.1103/physrev.131.1906 1963

  19. [19]

    G., & Watanabe, F

    Cahill, D. G., & Watanabe, F. (2004). Thermal conductivity of isotopically pure and Ge-doped Si epitaxial layers from 300 to 550 K. Physical Review B, 70(23), 235322. https://doi.org/10.1103/PhysRevB.70.235322

    work page doi:10.1103/physrevb.70.235322 2004

  20. [20]

    Giri, A., & Hopkins, P. E. (2020). Achieving a better heat conductor. Nature Materials, 19(5), 482–484. https://doi.org/10.1038/s41563-020-0658-z

    work page doi:10.1038/s41563-020-0658-z 2020

  21. [21]

    R., & Schurig, D

    Smith, D. R., & Schurig, D. (2003). Electromagnetic Wave Propagation in Media with Indefinite Permittivity and Permeability Tensors. Physical Review Letters, 90(7), 077405. https://doi.org/10.1103/PhysRevLett.90.077405

    work page doi:10.1103/physrevlett.90.077405 2003

  22. [22]

    R., Kolinko, P., & Schurig, D

    Smith, D. R., Kolinko, P., & Schurig, D. (2004). Negative refraction in indefinite media. Journal of the Optical Society of America B, 21(5), 1032. https://doi.org/10.1364/JOSAB.21.001032

    work page doi:10.1364/josab.21.001032 2004

  23. [23]

    J., Alekseyev, L., Howard, S

    Hoffman, A. J., Alekseyev, L., Howard, S. S., Franz, K. J., Wasserman, D., Podolskiy, V . A., Narimanov, E. E., Sivco, D. L., & Gmachl, C. (2007). Negative refraction in semiconductor metamaterials. Nature Materials, 6(12), Article 12. https://doi.org/10.1038/nmat2033

    work page doi:10.1038/nmat2033 2007

  24. [24]

    I., & Narimanov, E

    Jacob, Z., Smolyaninov, I. I., & Narimanov, E. E. (2012). Broadband Purcell effect: Radiative decay engineering with metamaterials. Applied Physics Letters, 100(18), 181105. https://doi.org/10.1063/1.4710548

    work page doi:10.1063/1.4710548 2012

  25. [25]

    Biehs, S.-A., Tschikin, M., & Ben-Abdallah, P. (2012). Hyperbolic Metamaterials as an Analog of a Blackbody in the Near Field. Physical Review Letters, 109(10), Article 10. https://doi.org/10.1103/PhysRevLett.109.104301 12

    work page doi:10.1103/physrevlett.109.104301 2012

  26. [26]

    G., Fali, A., White, S

    Folland, T. G., Fali, A., White, S. T., Matson, J. R., Liu, S., Aghamiri, N. A., Edgar, J. H., Haglund, R. F., Abate, Y ., & Caldwell, J. D. (2018). Reconfigurable infrared hyperbolic metasurfaces using phase change materials. Nature Communications, 9(1), 4371. https://doi.org/10.1038/s41467-018-06858-y

    work page doi:10.1038/s41467-018-06858-y 2018

  27. [27]

    He, M., Iyer, G. R. S., Aarav, S., Sunku, S. S., Giles, A. J., Folland, T. G., Sharac, N., Sun, X., Matson, J., Liu, S., Edgar, J. H., Fleischer, J. W., Basov, D. N., & Caldwell, J. D. (2021). Ultrahigh-Resolution, Label-Free Hyperlens Imaging in the Mid-IR. Nano Letters, 21(19), 7921–7928. https://doi.org/10.1021/acs.nanolett.1c01808

    work page doi:10.1021/acs.nanolett.1c01808 2021

  28. [28]

    D., Aharonovich, I., Cassabois, G., Edgar, J

    Caldwell, J. D., Aharonovich, I., Cassabois, G., Edgar, J. H., Gil, B., & Basov, D. N. (2019). Photonics with hexagonal boron nitride. Nature Reviews Materials, 4(8), 552–567. https://doi.org/10.1038/s41578-019-0124-1

    work page doi:10.1038/s41578-019-0124-1 2019

  29. [29]

    S., Wagner, M., McLeod, A

    Dai, S., Fei, Z., Ma, Q., Rodin, A. S., Wagner, M., McLeod, A. S., Liu, M. K., Gannett, W., Regan, W., Watanabe, K., Taniguchi, T., Thiemens, M., Dominguez, G., Neto, A. H. C., Zettl, A., Keilmann, F., Jarillo-Herrero, P., Fogler, M. M., & Basov, D. N. (2014). Tunable Phonon Polaritons in Atomically Thin van der Waals Crystals of Boron Nitride. Science, 3...

    work page doi:10.1126/science.1246833 2014

  30. [30]

    D., Kretinin, A

    Caldwell, J. D., Kretinin, A. V ., Chen, Y ., Giannini, V ., Fogler, M. M., Francescato, Y ., Ellis, C. T., Tischler, J. G., Woods, C. R., Giles, A. J., Hong, M., Watanabe, K., Taniguchi, T., Maier, S. A., & Novoselov, K. S. (2014). Sub-diffractional volume-confined polaritons in the natural hyperbolic material hexagonal boron nitride. Nature Communicatio...

    work page 2014

  31. [31]

    https://doi.org/10.1038/ncomms6221

    work page doi:10.1038/ncomms6221

  32. [33]

    Poddubny, A., Iorsh, I., Belov, P., & Kivshar, Y . (2013). Hyperbolic metamaterials. Nature Photonics, 7(12), 948–957. https://doi.org/10.1038/nphoton.2013.243

    work page doi:10.1038/nphoton.2013.243 2013

  33. [34]

    V ., Boltasseva, A., & Shalaev, V

    Kildishev, A. V ., Boltasseva, A., & Shalaev, V . M. (2013). Planar Photonics with Metasurfaces. Science, 339(6125), Article 6125. https://doi.org/10.1126/science.1232009

    work page doi:10.1126/science.1232009 2013

  34. [35]

    Ma, W., Alonso-González, P., Li, S., Nikitin, A. Y ., Yuan, J., Martín-Sánchez, J., Taboada- Gutiérrez, J., Amenabar, I., Li, P., Vélez, S., Tollan, C., Dai, Z., Zhang, Y ., Sriram, S., Kalantar-Zadeh, K., Lee, S.-T., Hillenbrand, R., & Bao, Q. (2018). In-plane anisotropic and ultra-low-loss polaritons in a natural van der Waals crystal. Nature, 562(7728), 557–

    work page 2018

  35. [36]

    https://doi.org/10.1038/s41586-018-0618-9

    work page doi:10.1038/s41586-018-0618-9

  36. [37]

    Zheng, Z., Chen, J., Wang, Y ., Wang, X., Chen, X., Liu, P., Xu, J., Xie, W., Chen, H., Deng, S., & Xu, N. (2018). Highly Confined and Tunable Hyperbolic Phonon Polaritons in Van Der Waals Semiconducting Transition Metal Oxides. Advanced Materials, 30(13), 1705318. https://doi.org/10.1002/adma.201705318

    work page doi:10.1002/adma.201705318 2018

  37. [38]

    G., Errea, I., Taboada-Gutiérrez, J., Duan, J., Martín-Sánchez, J., Tresguerres-Mata, A

    Álvarez-Pérez, G., Folland, T. G., Errea, I., Taboada-Gutiérrez, J., Duan, J., Martín-Sánchez, J., Tresguerres-Mata, A. I. F., Matson, J. R., Bylinkin, A., He, M., Ma, W., Bao, Q., Martín, J. I., Caldwell, J. D., Nikitin, A. Y ., & Alonso-González, P. (2020). Infrared Permittivity of the Biaxial van der Waals Semiconductor α-MoO3 from Near- and Far- Field...

    work page doi:10.1002/adma.201908176 2020

  38. [39]

    L., Tamagnone, M., Sun, F., Jiang, Y ., Ke, Y ., Chen, J., Huang, W., Wilson, W

    Zheng, Z., Xu, N., Oscurato, S. L., Tamagnone, M., Sun, F., Jiang, Y ., Ke, Y ., Chen, J., Huang, W., Wilson, W. L., Ambrosio, A., Deng, S., & Chen, H. (2019). A mid-infrared 13 biaxial hyperbolic van der Waals crystal. Science Advances, 5(5), eaav8690. https://doi.org/10.1126/sciadv.aav8690

    work page doi:10.1126/sciadv.aav8690 2019

  39. [40]

    D., Canassa, T

    Barcelos, I. D., Canassa, T. A., Mayer, R. A., Feres, F. H., de Oliveira, E. G., Goncalves, A.- M. B., Bechtel, H. A., Freitas, R. O., Maia, F. C. B., & Alves, D. C. B. (2021). Ultrabroadband Nanocavity of Hyperbolic Phonon–Polaritons in 1D-Like α-MoO3. ACS Photonics, 8(10), 3017–3026. https://doi.org/10.1021/acsphotonics.1c00955

    work page doi:10.1021/acsphotonics.1c00955 2021

  40. [41]

    J., & Dai, Q

    Qu, Y ., Chen, N., Teng, H., Hu, H., Sun, J., Yu, R., Hu, D., Xue, M., Li, C., Wu, B., Chen, J., Sun, Z., Liu, M., Liu, Y ., García de Abajo, F. J., & Dai, Q. (2022). Tunable Planar Focusing Based on Hyperbolic Phonon Polaritons in α-MoO3. Advanced Materials, 34(23), 2105590. https://doi.org/10.1002/adma.202105590

    work page doi:10.1002/adma.202105590 2022

  41. [42]

    G., Duan, J., Alonso-González, P., De Liberato, S., Paarmann, A., & Caldwell, J

    He, M., Folland, T. G., Duan, J., Alonso-González, P., De Liberato, S., Paarmann, A., & Caldwell, J. D. (2022). Anisotropy and Modal Hybridization in Infrared Nanophotonics Using Low-Symmetry Materials. ACS Photonics, 9(4), 1078–1095. https://doi.org/10.1021/acsphotonics.1c01486

    work page doi:10.1021/acsphotonics.1c01486 2022

  42. [43]

    Chen, Y ., Pacheco, M. A. S., Salihoglu, H., & Xu, X. (2024). Greatly Enhanced Radiative Transfer Enabled by Hyperbolic Phonon Polaritons in α-MoO3. Advanced Functional Materials, 34(40), 2403719. https://doi.org/10.1002/adfm.202403719

    work page doi:10.1002/adfm.202403719 2024

  43. [44]

    L., Newman, W., Molesky, S., & Jacob, Z

    Cortes, C. L., Newman, W., Molesky, S., & Jacob, Z. (2012). Quantum nanophotonics using hyperbolic metamaterials. Journal of Optics, 14(6), 063001. https://doi.org/10.1088/2040-8978/14/6/063001

    work page doi:10.1088/2040-8978/14/6/063001 2012

  44. [45]

    J., Nolen, J

    Cleri, A. J., Nolen, J. R., Wirth, K. G., He, M., Runnerstrom, E. L., Kelley, K. P., Nordlander, J., Taubner, T., Folland, T. G., Maria, J.-P., & Caldwell, J. D. (2023). Tunable, Homoepitaxial Hyperbolic Metamaterials Enabled by High Mobility CdO. Advanced Optical Materials, 11(1), Article 1. https://doi.org/10.1002/adom.202202137

    work page doi:10.1002/adom.202202137 2023

  45. [46]

    J., Dai, S., Vurgaftman, I., Hoffman, T., Liu, S., Lindsay, L., Ellis, C

    Giles, A. J., Dai, S., Vurgaftman, I., Hoffman, T., Liu, S., Lindsay, L., Ellis, C. T., Assefa, N., Chatzakis, I., Reinecke, T. L., Tischler, J. G., Fogler, M. M., Edgar, J. H., Basov, D. N., & Caldwell, J. D. (2018). Ultralow-loss polaritons in isotopically pure boron nitride. Nature Materials, 17(2), Article 2. https://doi.org/10.1038/nmat5047

    work page doi:10.1038/nmat5047 2018

  46. [47]

    J., Matson, J., Folland, T., Liu, S., Edgar, J

    Pavlidis, G., Schwartz, J. J., Matson, J., Folland, T., Liu, S., Edgar, J. H., Caldwell, J. D., & Centrone, A. (2021). Experimental confirmation of long hyperbolic polariton lifetimes in monoisotopic (10B) hexagonal boron nitride at room temperature. APL Materials, 9(9), 091109. https://doi.org/10.1063/5.0061941

    work page doi:10.1063/5.0061941 2021

  47. [48]

    S., Sun, Z., Matson, J

    Ni, G., McLeod, A. S., Sun, Z., Matson, J. R., Lo, C. F. B., Rhodes, D. A., Ruta, F. L., Moore, S. L., Vitalone, R. A., Cusco, R., Artús, L., Xiong, L., Dean, C. R., Hone, J. C., Millis, A. J., Fogler, M. M., Edgar, J. H., Caldwell, J. D., & Basov, D. N. (2021). Long- Lived Phonon Polaritons in Hyperbolic Materials. Nano Letters, 21(13), 5767–5773. https:...

    work page doi:10.1021/acs.nanolett.1c01562 2021

  48. [49]

    E., Folland, T., Matson, J., Watanabe, K., Zavalin, A., Ueda, A., Collins, Warren

    He, M., Lindsay, L., Beechem, T. E., Folland, T., Matson, J., Watanabe, K., Zavalin, A., Ueda, A., Collins, Warren. E., Taniguchi, T., & Caldwell, J. D. (2021). Phonon engineering of boron nitride via isotopic enrichment. Journal of Materials Research, 36(21), 4394–4403. https://doi.org/10.1557/s43578-021-00426-9

    work page doi:10.1557/s43578-021-00426-9 2021

  49. [50]

    H., Lin, X., & Dai, S

    Chen, M., Zhong, Y ., Harris, E., Li, J., Zheng, Z., Chen, H., Wu, J.-S., Jarillo-Herrero, P., Ma, Q., Edgar, J. H., Lin, X., & Dai, S. (2023). Van der Waals isotope heterostructures for engineering phonon polariton dispersions. Nature Communications, 14(1), 4782. https://doi.org/10.1038/s41467-023-40449-w 14

    work page doi:10.1038/s41467-023-40449-w 2023

  50. [51]

    Janzen, E., Schutte, H., Plo, J., Rousseau, A., Michel, T., Desrat, W., Valvin, P., Jacques, V ., Cassabois, G., Gil, B., & Edgar, J. H. (2024). Boron and Nitrogen Isotope Effects on Hexagonal Boron Nitride Properties. Advanced Materials, 36(2), 2306033. https://doi.org/10.1002/adma.202306033

    work page doi:10.1002/adma.202306033 2024

  51. [52]

    Zhao, Y ., Chen, J., Xue, M., Chen, R., Jia, S., Chen, J., Bao, L., Gao, H.-J., & Chen, J. (2022). Ultralow-Loss Phonon Polaritons in the Isotope-Enriched α-MoO3. Nano Letters, 22(24), 10208–10215. https://doi.org/10.1021/acs.nanolett.2c03742

    work page doi:10.1021/acs.nanolett.2c03742 2022

  52. [53]

    F., Krylyuk, S., Schwartz, J

    Schultz, J. F., Krylyuk, S., Schwartz, J. J., Davydov, A. V ., & Centrone, A. (2024). Isotopic effects on in-plane hyperbolic phonon polaritons in MoO3. Nanophotonics, 13(9), 1581–

    work page 2024

  53. [54]

    https://doi.org/10.1515/nanoph-2023-0717

    work page doi:10.1515/nanoph-2023-0717 2023

  54. [55]

    Kittel, C., & Masi, J. F. (1954). Introduction to Solid State Physics. Physics Today, 7(8), 18–

    work page 1954

  55. [56]

    https://doi.org/10.1063/1.3061720

    work page doi:10.1063/1.3061720

  56. [57]

    D., Lindsay, L., Giannini, V ., Vurgaftman, I., Reinecke, T

    Caldwell, J. D., Lindsay, L., Giannini, V ., Vurgaftman, I., Reinecke, T. L., Maier, S. A., & Glembocki, O. J. (2015). Low-loss, infrared and terahertz nanophotonics using surface phonon polaritons. Nanophotonics, 4(1), 44–68. https://doi.org/10.1515/nanoph-2014- 0003

    work page doi:10.1515/nanoph-2014- 2015

  57. [58]

    G., & Chupka, W

    Berkowitz, J., Inghram, M. G., & Chupka, W. A. (1957). Polymeric Gaseous Species in the Sublimation of Molybdenum Trioxide. The Journal of Chemical Physics, 26(4), 842–846. https://doi.org/10.1063/1.1743417

    work page doi:10.1063/1.1743417 1957

  58. [59]

    E., Hoch, M., & Johnston, H

    Blackburn, P. E., Hoch, M., & Johnston, H. L. (1958). The Vaporization of Molybdenum and Tungsten Oxides. The Journal of Physical Chemistry, 62(7), 769–773. https://doi.org/10.1021/j150565a001

    work page doi:10.1021/j150565a001 1958

  59. [60]

    Fourcaudot, G., Gourmala, M., & Mercier, J. (1979). Vapor phase transport and crystal growth of molybdenum trioxide and molybdenum ditelluride. Journal of Crystal Growth, 46(1), 132–135. https://doi.org/10.1016/0022-0248(79)90120-9

    work page doi:10.1016/0022-0248(79)90120-9 1979

  60. [61]

    Zeng, H. C. (1998). Chemical Etching of Molybdenum Trioxide: A New Tailor-Made Synthesis of MoO3 Catalysts. Inorganic Chemistry, 37(8), 1967–1973. https://doi.org/10.1021/ic971269v

    work page doi:10.1021/ic971269v 1998

  61. [62]

    Balakumar, S., & Zeng, H. C. (1999). Growth modes in vapour-phase prepared orthorhombic molybdenum trioxide crystals. Journal of Crystal Growth, 197(1), 186–194. https://doi.org/10.1016/S0022-0248(98)00924-5

    work page doi:10.1016/s0022-0248(98)00924-5 1999

  62. [63]

    Zheng, Q., Huang, J., Cao, S., & Gao, H. (2015). A flexible ultraviolet photodetector based on single crystalline MoO 3 nanosheets. Journal of Materials Chemistry C, 3(28), 7469–

    work page 2015

  63. [64]

    https://doi.org/10.1039/C5TC00850F

    work page doi:10.1039/c5tc00850f

  64. [65]

    Zheng, B., Wang, Z., Chen, Y ., Zhang, W., & Li, X. (2018). Centimeter-sized 2D α-MoO3 single crystal: Growth, Raman anisotropy, and optoelectronic properties. 2D Materials, 5(4), 045011. https://doi.org/10.1088/2053-1583/aad2ba

    work page doi:10.1088/2053-1583/aad2ba 2018

  65. [66]

    A., R, I

    Jones, H. A., R, I. L., & Mackay, G. M. J. (1927). The Rates of Evaporation and the Vapor Pressures of Tungsten, Molybdenum, Platinum, Nickel, Iron, Copper and Silver. Physical Review, 30(2), 201–214. https://doi.org/10.1103/PhysRev.30.201

    work page doi:10.1103/physrev.30.201 1927

  66. [67]

    A., Trasferetti, B

    Bica de Moraes, M. A., Trasferetti, B. C., Rouxinol, F. P., Landers, R., Durrant, S. F., Scarmínio, J., & Urbano, A. (2004). Molybdenum Oxide Thin Films Obtained by the Hot-Filament Metal Oxide Deposition Technique. Chemistry of Materials, 16(3), 513–

    work page 2004

  67. [68]

    https://doi.org/10.1021/cm034551a

    work page doi:10.1021/cm034551a

  68. [69]

    Siciliano, T., Tepore, A., Filippo, E., Micocci, G., & Tepore, M. (2009). Characteristics of molybdenum trioxide nanobelts prepared by thermal evaporation technique. Materials 15 Chemistry and Physics, 114(2), 687–691. https://doi.org/10.1016/j.matchemphys.2008.10.018

    work page doi:10.1016/j.matchemphys.2008.10.018 2009

  69. [70]

    Gong, Y ., Zhao, Y ., Zhou, Z., Li, D., Mao, H., Bao, Q., Zhang, Y ., & Wang, G. P. (2022). Polarized Raman Scattering of In-Plane Anisotropic Phonon Modes in α‑MoO3. Advanced Optical Materials, 10(10), 2200038. https://doi.org/10.1002/adom.202200038

    work page doi:10.1002/adom.202200038 2022

  70. [71]

    Wen, M., Chen, X., Zheng, Z., Deng, S., Li, Z., Wang, W., & Chen, H. (2021). In-Plane Anisotropic Raman Spectroscopy of van der Waals α-MoO3. The Journal of Physical Chemistry C, 125(1), 765–773. https://doi.org/10.1021/acs.jpcc.0c09178

    work page doi:10.1021/acs.jpcc.0c09178 2021

  71. [72]

    APL Materials , author =

    Jain, A., Ong, S. P., Hautier, G., Chen, W., Richards, W. D., Dacek, S., Cholia, S., Gunter, D., Skinner, D., Ceder, G., & Persson, K. A. (2013). Commentary: The Materials Project: A materials genome approach to accelerating materials innovation. APL Materials, 1(1), 011002. https://doi.org/10.1063/1.4812323

    work page doi:10.1063/1.4812323 2013

  72. [73]

    K., Huck, P., Yang, R

    Horton, M. K., Huck, P., Yang, R. X., Munro, J. M., Dwaraknath, S., Ganose, A. M., Kingsbury, R. S., Wen, M., Shen, J. X., Mathis, T. S., Kaplan, A. D., Berket, K., Riebesell, J., George, J., Rosen, A. S., Spotte-Smith, E. W. C., McDermott, M. J., Cohen, O. A., Dunn, A., … Persson, K. A. (2025). Accelerated data -driven materials science with the Material...

    work page doi:10.1038/s41563-025-02272- 2025

  73. [74]

    Andersson, G., & Magneli, A. (1950). On the crystal structure of molybdenum trioxide. Acta Chemica Scandinavica, 4, 793–797. https://doi.org/10.3891/acta.chem.scand.04-0793

    work page doi:10.3891/acta.chem.scand.04-0793 1950

  74. [75]

    Sitepu, H. (2009). Texture and structural refinement using neutron diffraction data from molybdite (MoO 3 ) and calcite (CaCO3 ) powders and a Ni-rich Ni50.7 Ti49.30 alloy. Powder Diffraction, 24(4), 315–326. https://doi.org/10.1154/1.3257906

    work page doi:10.1154/1.3257906 2009

  75. [76]

    Dieterle, M., Weinberg, G., & Mestl, G. (2002). Raman spectroscopy of molybdenum oxides. Physical Chemistry Chemical Physics, 4(5), 812–821. https://doi.org/10.1039/b107012f

    work page doi:10.1039/b107012f 2002

  76. [77]

    E., & Ferretti, A

    Firment, L. E., & Ferretti, A. (1983). Stoichiometric and oxygen deficient MoO3(010) surfaces. Surface Science, 129(1), 155–176. https://doi.org/10.1016/0039- 6028(83)90100-0

    work page doi:10.1016/0039- 1983

  77. [78]

    Markov, I. V . (2017). Crystal growth for beginners: Fundamentals of nucleation, crystal growth, and epitaxy (3rd edition). World Scientific. https://doi.org/10.1142/10127

    work page doi:10.1142/10127 2017

  78. [79]

    T., Ushikubo, T., Fu, B., & Valley, J

    Kita, N. T., Ushikubo, T., Fu, B., & Valley, J. W. (2009). High precision SIMS oxygen isotope analysis and the effect of sample topography. Chemical Geology, 264(1), 43–57. https://doi.org/10.1016/j.chemgeo.2009.02.012

    work page doi:10.1016/j.chemgeo.2009.02.012 2009

  79. [80]

    Tang, G.-Q., Li, X.-H., Li, Q.-L., Liu, Y ., Ling, X.-X., & Yin, Q.-Z. (2015). Deciphering the physical mechanism of the topography effect for oxygen isotope measurements using a Cameca IMS-1280 SIMS. Journal of Analytical Atomic Spectrometry, 30(4), 950–956. https://doi.org/10.1039/C4JA00458B

    work page doi:10.1039/c4ja00458b 2015
