Hidden Defect Chemistry in Ion-Irradiated MoS₂ Field-Effect Transistors Revealed by Photocurrent Loss

Pith reviewed 2026-06-30 04:58 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords MoS2field-effect transistorsion irradiationsulfur vacanciesphotocurrentdefect passivationcarbon contaminationTMDCs
0
0 comments X

The pith

Photocurrent loss under 532 nm light reveals irradiation-induced sulfur vacancy changes in MoS2 transistors that remain hidden in dark measurements due to hydrocarbon passivation from carbon residues.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to demonstrate that low-energy argon ion irradiation of monolayer MoS2 field-effect transistors creates sulfur vacancies whose electronic signatures are concealed by surface contamination in standard dark electrical tests. While dark transfer curves appear largely unaffected up to moderate ion fluences, both photocurrent magnitude and light-induced photodoping fall steadily as fluence rises under illumination. Surface imaging and spectroscopy detect persistent carbon residues after cleaning, and density-functional calculations indicate that hydrogen-carbon groups attached at vacancy sites remove the expected in-gap states. A sympathetic reader would care because reliable interpretation of defect engineering in processed two-dimensional devices requires optical probes to bypass this masking effect.

Core claim

Low-energy 40 eV Ar+ irradiation preferentially generates sulfur vacancies in the MoS2 channel while limiting substrate damage. Dark transfer characteristics remain robust up to moderate fluences and degrade only at the highest fluence. Under 532 nm illumination, photocurrent and photodoping decrease systematically with increasing fluence, exposing the irradiation-induced changes. Atomic force microscopy and X-ray photoelectron spectroscopy detect substantial carbon-containing residues even after extended cleaning. These residues are proposed to act as a reservoir for hydrocarbon-mediated passivation of the vacancies. Density-functional-theory calculations show that unsaturated vacancies int

What carries the argument

Hydrocarbon-mediated passivation of sulfur vacancies by persistent carbon-containing surface residues, which suppresses in-gap states according to the DFT model of H-Cs configurations.

If this is right

  • Dark transfer curves show apparent robustness against irradiation up to moderate fluences, with degradation appearing only at the highest fluence.
  • Photocurrent and light-induced photodoping decrease systematically with ion fluence under 532 nm illumination.
  • Atomic force microscopy and X-ray photoelectron spectroscopy confirm persistent carbon residues that can serve as a passivation reservoir.
  • Density-functional-theory calculations establish that unsaturated sulfur vacancies create in-gap states while H-Cs configurations remove them.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Photocurrent measurements under above-band-gap light may function as a general probe for detecting passivated defects across other processed two-dimensional material devices.
  • Processing-induced carbon contamination should be treated as a systematic variable in any defect-engineering study of transition-metal dichalcogenides rather than an incidental factor.
  • Alternative surface-cleaning protocols or in-situ characterization under illumination could unmask vacancy effects that current dark-only workflows miss.

Load-bearing premise

Carbon-containing residues that remain on processed devices supply a reservoir enabling hydrocarbon-mediated passivation of the irradiation-created sulfur vacancies.

What would settle it

Thorough removal of all carbon residues before irradiation followed by the same fluence series would produce immediate degradation in dark transfer curves and eliminate the systematic photocurrent drop with fluence.

Figures

Figures reproduced from arXiv: 2606.30361 by D. Sutarma, L. Breuer, L. Daniel, L. Klieve, M. Schleberger, O. Altenhoff, O. Kharsah, P. Kratzer, S. Sleziona, U. Hagemann.

Figure 1

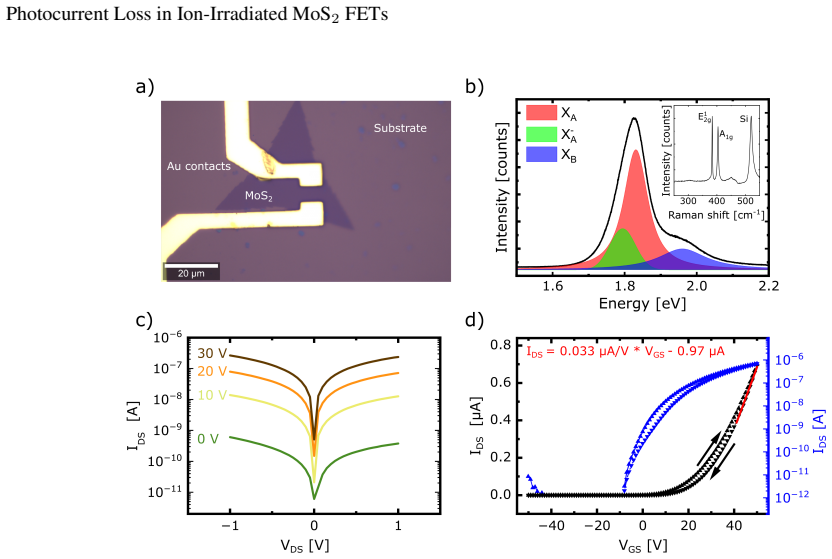

Figure 1. Figure 1: (a) Microscopic image of an MoS2 monolayer with Cr/Au contacts on a SiO2 substrate. (b) Pl spectrum of MoS2 confirming the monolayer properties of the flake. The insert shows the corresponding Raman spectra. (c) Output characteristics of an MoS2 FET. The output current for negative and positive VDS applied is rather symmetric, with a ratio of ≈ 1.1, indicating mostly ohmic behavior. (d) Transfer characteri… view at source ↗
Figure 2
Figure 2. Figure 2: (a) Time-resolved photocurrent measurements for [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

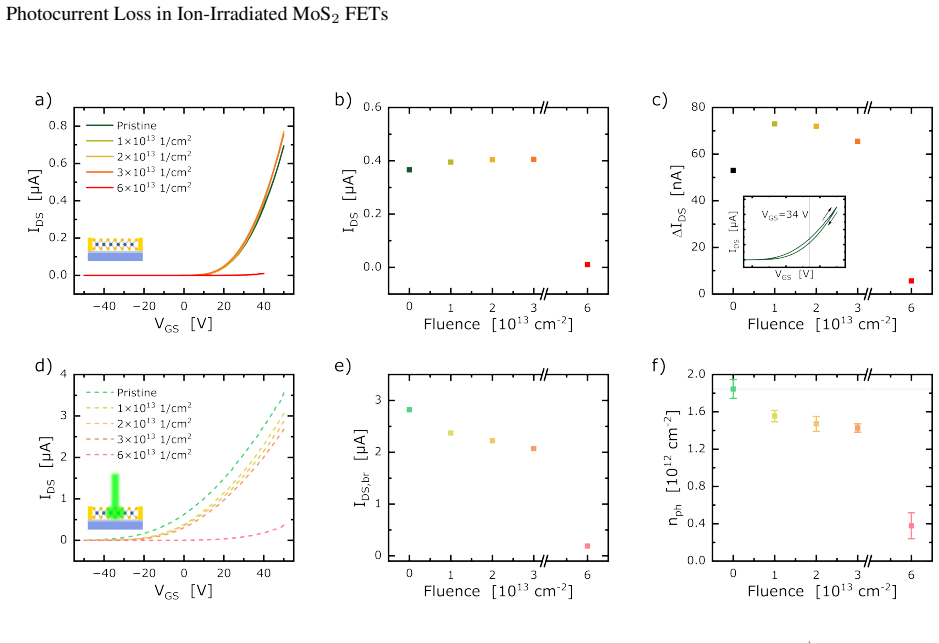

Figure 3. Figure 3: (a) Transfer curve for an MoS2 FET under dark conditions for different fluences of Ar+ ions. Through fitting the transfer curve at high voltages, the mobility and threshold voltage are extracted. (b) IDS extracted from (a) at VGS=40 V. The current remains nearly unchanged up to a fluence of 3×1013ions/cm2 and only decreases for high fluences. (c) Memory window extracted from the hysteresis for each irradia… view at source ↗
Figure 4
Figure 4. Figure 4: XPS spectrum of the C 1s region measured on a processed [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Unfolded band structures from monolayer MoS2 5 × 5 supercell, pristine (a), sulfur vacancy (VS) (b), CH substitution (H-CS) on sulfur vacancy (c), carbon occupying sulfur vacancy (CS) (d). Typical in-gap states stemming from VS are saturated with CH substitution. To assess the thermodynamic stability of the defect configurations, we calculated their respective formation energies. The formation energy (Ef )… view at source ↗
read the original abstract

Defect engineering in monolayer MoS$_2$ is a promising route to tune field-effect transistors (FETs), but the electronic response of defects in processed devices can be masked by contacts, substrate effects, adsorbates, and chemical passivation. Here, we irradiate MoS$_2$ FETs with low-energy 40~eV Ar$^+$ ions to preferentially create sulfur vacancies (V$_S$) in the channel while minimizing substrate damage. We compare dark and illuminated electrical characterization with surface analysis and first-principles calculations. Dark transfer characteristics show an apparent robustness against irradiation up to moderate fluences, with pronounced degradation only at the highest fluence. Under 532~nm illumination, however, the photocurrent and light-induced photodoping decrease systematically with increasing ion fluence, revealing irradiation-induced changes that are hidden in standard dark measurements. Atomic force microscopy and X-ray photoelectron spectroscopy show substantial carbon-containing residues on processed devices even after extended cleaning. We propose that such residues may provide a reservoir for hydrocarbon-mediated passivation of sulfur vacancies. Density-functional-theory calculations provide a microscopic model consistent with this scenario: unsaturated V$_S$ introduce in-gap states, H-C$_S$ configurations suppress these states, and carbon substitution without hydrogen leaves defect states in the band gap. Our results highlight carbon-containing surface contamination as a key factor in interpreting defect engineering experiments on MoS$_2$ and related TMDC devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript claims that low-energy (40 eV) Ar+ irradiation of monolayer MoS2 FETs preferentially creates sulfur vacancies (VS) whose electronic effects are masked in dark transport by hydrocarbon passivation from carbon-containing surface residues. Dark transfer curves remain robust up to moderate fluences, but 532 nm photocurrent and light-induced photodoping decrease systematically with fluence. AFM/XPS detect persistent carbon residues after cleaning; DFT shows that H-CS configurations suppress the in-gap states of bare VS while CS does not. The work concludes that carbon contamination must be considered when interpreting defect-engineering results in TMDC devices.

Significance. If the passivation mechanism is confirmed, the result would be significant for defect engineering in 2D materials because it shows how standard dark measurements can miss irradiation-induced changes and demonstrates the diagnostic value of photocurrent. The fluence-dependent optical response, surface spectroscopy, and DFT together constitute a coherent multi-probe strategy; the explicit identification of H-CS as a passivating species is a concrete microscopic hypothesis that can be tested further.

major comments (3)
  1. [Surface analysis and discussion of passivation mechanism] The central claim that hydrocarbon passivation of VS explains the hidden photocurrent loss rests on correlative AFM/XPS detection of carbon residues plus DFT, but lacks fluence-dependent quantification of passivated versus unsaturated VS densities or direct controls that remove carbon (different substrates, UHV processing). This chain is load-bearing for the interpretation.
  2. [Illuminated electrical characterization] Alternative fluence-dependent mechanisms that could reduce photocurrent only under illumination (e.g., substrate adsorbates, contact barrier changes, or mobility degradation) are not quantitatively compared to the passivation model or ruled out by additional controls.
  3. [DFT calculations] DFT results establish that H-CS removes in-gap states while bare VS and CS do not, yet the calculations are not used to predict the expected magnitude or spectral dependence of the photocurrent drop, leaving the link to the experimental fluence trend qualitative.
minor comments (2)
  1. [Figures and experimental results] Error bars and number of devices measured should be stated explicitly for all fluence-dependent photocurrent and threshold-voltage data.
  2. [Methods] The ion fluence values and exact cleaning protocols could be tabulated for reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments and the positive assessment of the work's significance. We address each major comment below with clarifications and proposed revisions.

read point-by-point responses
  1. Referee: The central claim that hydrocarbon passivation of VS explains the hidden photocurrent loss rests on correlative AFM/XPS detection of carbon residues plus DFT, but lacks fluence-dependent quantification of passivated versus unsaturated VS densities or direct controls that remove carbon (different substrates, UHV processing). This chain is load-bearing for the interpretation.

    Authors: We agree that fluence-dependent quantification of passivated versus unsaturated VS and direct controls (e.g., UHV processing or alternative substrates) would provide stronger evidence. In the revised manuscript, we will add quantitative analysis of existing XPS C 1s spectra to estimate carbon coverage trends with fluence and include an expanded discussion section explicitly addressing the correlative nature of the evidence, the limitations of current controls, and recommendations for future experiments. The systematic photocurrent fluence dependence (absent in dark data) together with AFM/XPS and the DFT model remains consistent with the proposed mechanism. revision: partial

  2. Referee: Alternative fluence-dependent mechanisms that could reduce photocurrent only under illumination (e.g., substrate adsorbates, contact barrier changes, or mobility degradation) are not quantitatively compared to the passivation model or ruled out by additional controls.

    Authors: We will revise the manuscript to add a dedicated comparison of alternatives. Mobility degradation is inconsistent with the observed robustness of dark transfer curves up to moderate fluences. Contact barrier modifications would be expected to appear in dark characteristics as well. Substrate adsorbates are mitigated by the described cleaning protocols and are directly addressed by the persistent carbon detected in post-cleaning XPS and AFM. These points will be quantified and discussed relative to the passivation model using the existing dataset. revision: yes

  3. Referee: DFT results establish that H-CS removes in-gap states while bare VS and CS do not, yet the calculations are not used to predict the expected magnitude or spectral dependence of the photocurrent drop, leaving the link to the experimental fluence trend qualitative.

    Authors: The DFT calculations supply a microscopic model explaining why illumination reveals the defects while dark transport does not. We acknowledge that the connection to the experimental fluence trend is qualitative. In the revision we will add explicit text stating that quantitative prediction of photocurrent magnitude or spectral dependence would require device-scale transport simulations that incorporate the calculated defect levels, which lies beyond the present scope. The 532 nm data are noted as consistent with involvement of the in-gap states identified by DFT. revision: partial

Circularity Check

0 steps flagged

No circularity: experimental photocurrent trends, surface spectroscopy, and independent DFT are self-contained.

full rationale

The paper's central claim rests on direct experimental observations (fluence-dependent photocurrent loss under 532 nm illumination versus robustness in dark) combined with AFM/XPS detection of carbon residues and separate first-principles DFT modeling of defect states (unsaturated V_S vs. H-C_S). No equations reduce by construction to fitted inputs, no predictions are statistically forced from the target data, and no load-bearing steps invoke self-citations or imported uniqueness theorems. The interpretation of hydrocarbon passivation is presented as a proposal consistent with the data rather than a derivation that collapses to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim depends on the interpretation that observed carbon residues actively passivate vacancies via hydrocarbons; this is supported by XPS but the microscopic mechanism is supplied by DFT without independent verification of the exact chemical species or their surface mobility.

axioms (1)
  • domain assumption Density-functional-theory calculations with standard approximations accurately capture the in-gap states of V_S and their modification by H-C_S configurations in monolayer MoS2.
    Invoked to provide the microscopic model consistent with the passivation scenario.
invented entities (1)
  • H-C_S configurations no independent evidence
    purpose: To suppress the in-gap states introduced by unsaturated sulfur vacancies.
    Postulated in the DFT model to explain how carbon residues can passivate defects.
