Precision mass measurements of multistrange baryons and their antiparticles

ALICE Collaboration This is my paper

Pith reviewed 2026-06-26 14:53 UTC · model grok-4.3

classification ⚛️ nucl-ex hep-ex
keywords massomegameasurementsprecisionscaleantiparticlesbaryonscalculations
0
0 comments X

The pith

ALICE reports mass measurements of Ω−, Ξ− and antiparticles at ~60 ppm precision via invariant-mass reconstruction in pp collisions, calibrated on K0S and Λ, reducing lattice QCD scale uncertainty.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The ALICE detector at the LHC tracked the decay products of short-lived Omega and Xi baryons in proton-proton collisions. By finding the displaced vertices where these particles decayed and combining the momenta and identities of the daughter particles, the collaboration reconstructed the parent masses. They achieved fractional uncertainties near 60 parts per million, for example reporting the anti-Omega mass as 1672.558 plus or minus 0.034 statistical plus or minus 0.102 systematic MeV per c squared. Calibration relied on the well-known masses of neutral kaons and lambda particles to anchor the momentum scale.

Previous world averages for these masses came from experiments more than forty years old and lacked detailed systematic uncertainty estimates. The new measurements also allow direct comparison between particles and antiparticles to test CPT symmetry in the multistrange sector. Because lattice QCD calculations often use the Omega or Xi mass to set the overall energy scale, the reduced uncertainty here propagates into other predictions, such as the hadronic vacuum polarization contribution to the muon magnetic moment, potentially reaching sub-per-mille accuracy.

The work demonstrates how modern tracking and particle identification at a collider can deliver spectroscopy results competitive with or better than dedicated fixed-target experiments.

Core claim

Each mass is measured with a fractional uncertainty of about 60 parts per million, for example M_{\bar{\Omega}^+}=1672.558\,\pm\,0.034\,({\rm stat.})\,\pm\,0.102\,({\rm syst.}) MeV/c^2. These results establish new precision benchmarks in strange-baryon spectroscopy and enable stringent tests of Charge-Parity-Time invariance in the multistrange-hadron sector. Our measurement reduces the scale uncertainty in lattice QCD calculations, enabling for instance sub per mille precision for the hadronic vacuum-polarization contribution to the muon anomalous magnetic moment.

Load-bearing premise

The analysis assumes that the systematic uncertainties arising from tracking, particle identification, and vertex reconstruction are correctly estimated and do not introduce a bias larger than the quoted 0.102 MeV/c² systematic term, with the K0S and Λ masses providing an unbiased calibration anchor. This premise enters when the abstract states that the excellent tracking and PID capabilities enable accurate reconstruction of displaced decay vertices.

Figures

Figures reproduced from arXiv: 2606.20144 by ALICE Collaboration.

Figure 1

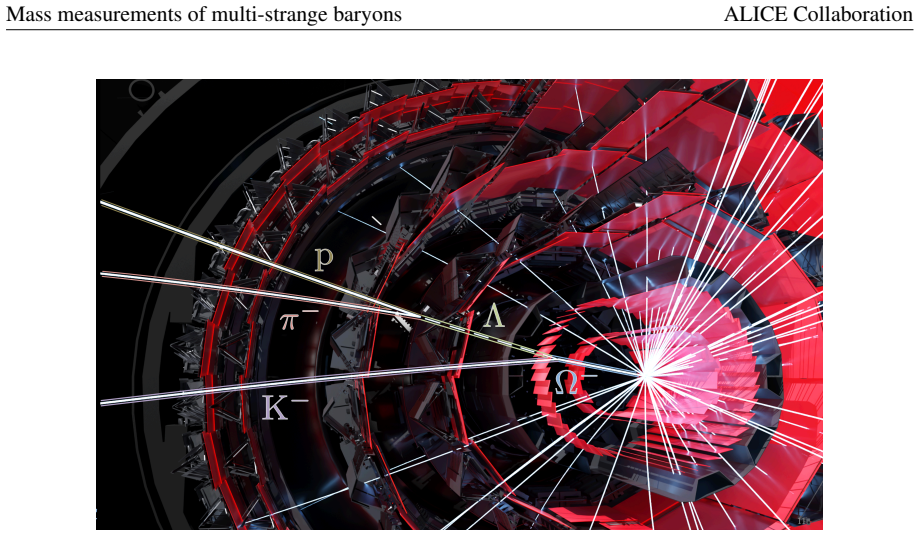

Figure 1. Figure 1: A typical Ω decay in the ALICE detector, with the 6 silicon layers of ITS, with the active detector elements in red and support structures in grey. The trajectories of the Ω, Λ, kaon, proton and pion trajectories are indicated with borders in light blue, light green (dashed line), light violet, olive-green and red-orange, respectively. acceptance (pseudorapidity |η| < 0.8), the experiment offers excellent … view at source ↗
Figure 2

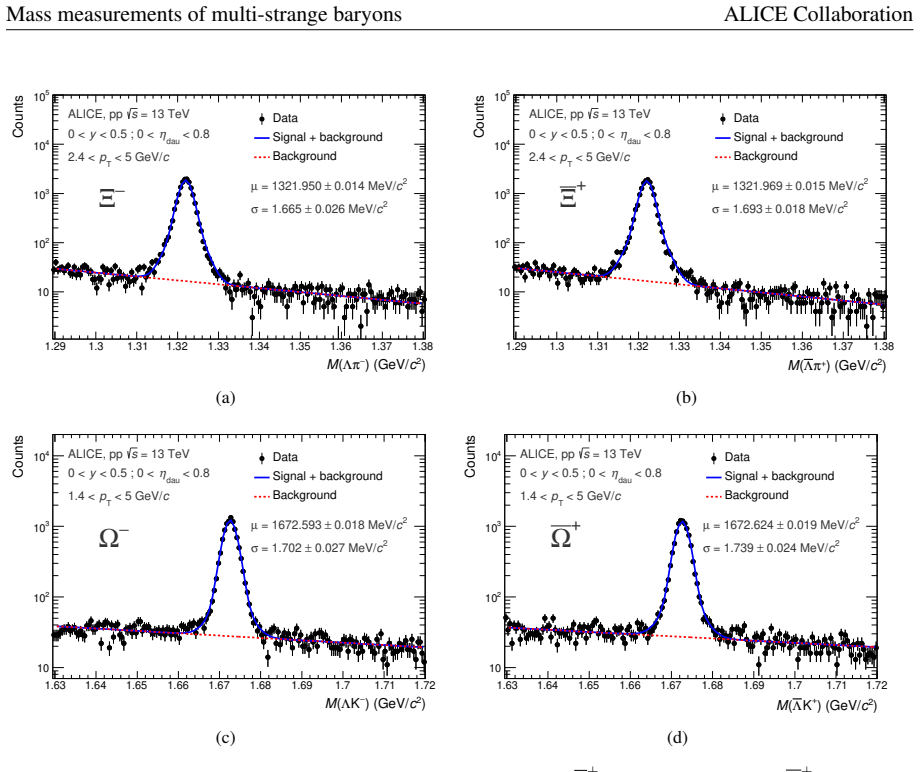

Figure 2. Figure 2: Examples of invariant-mass distributions of the Ξ − (2(a)), Ξ + (2(b)), Ω− (2(c)) and Ω + (2(d)). The measured mass µ and mass resolution σ from the fit, with their associated statistical uncertainties, are displayed. and 4% respectively. Based on the mass parameters extracted from the invariant-mass peaks, the relative mass difference between particle and antiparticle is evaluated as ∆M/M = ( µpart. − µpa… view at source ↗
Figure 3

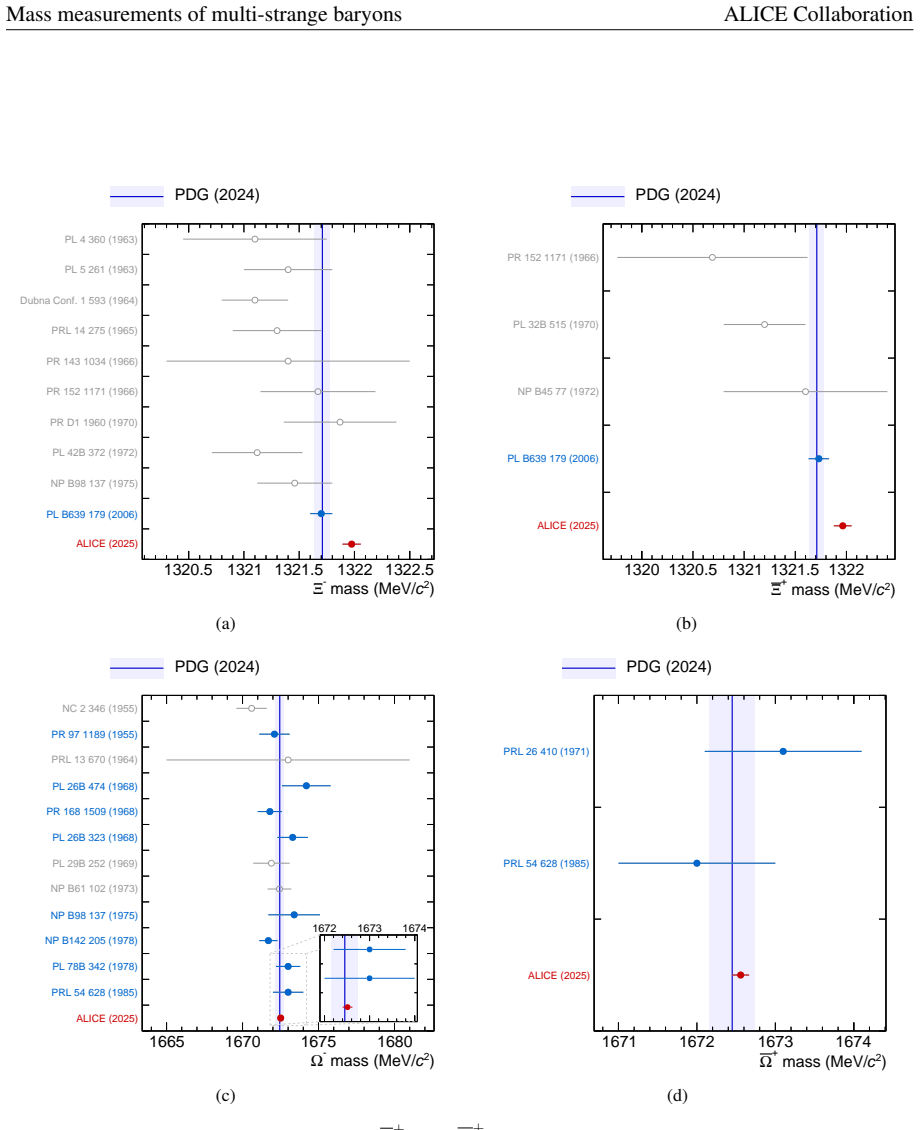

Figure 3. Figure 3: Measurements of the mass of Ξ −, Ξ + , Ω−, Ω + . The present results are shown in red. The vertical lines and bands represent the mass values currently tabulated by the PDG [1]; The full blue markers represent the measurements on which such PDG average values rely, by contrast to the open grey markers standing for measurements that were discarded. Note that for the present averages, the PDG assumes a prior… view at source ↗
read the original abstract

The $\Omega^-$ baryon, composed of three strange quarks (sss), was predicted by the quark model and discovered in 1964, playing a pivotal role in establishing quarks as fundamental constituents of matter. Despite its importance, experimental knowledge of its mass remains limited, with the current world average relying on measurements performed more than four decades ago and lacking robust estimates of systematic uncertainties. This is notable given the central role of the $\Omega^-$ mass, and alternatively that of the $\Xi^-$(dss), in lattice QCD calculations, where it is widely used to set the overall physical scale. Precise scale setting is essential for first-principles studies of quark confinement, chiral symmetry breaking, and stringent tests of the Standard Model. Here we report high-precision measurements of the masses of the $\Omega^-$ and $\Xi^-$ baryons and their antiparticles, determined from invariant-mass reconstruction of their decay products in proton$-$proton collisions at the LHC. The analysis exploits the excellent tracking and particle-identification capabilities of the ALICE experiment, enabling accurate reconstruction of the displaced decay vertices characteristic of these short-lived particles. Each mass is measured with a fractional uncertainty of about 60 parts per million, for example $M_{\bar{\Omega}^+}=1672.558\,\pm\,0.034\,({\rm stat.})\,\pm\,0.102\,({\rm syst.})$ MeV/$c^2$. The precisely known K$^0_{\rm S}$ and $\Lambda$ masses are used for calibration. These results establish new precision benchmarks in strange-baryon spectroscopy and enable stringent tests of Charge-Parity-Time invariance in the multistrange-hadron sector. Our measurement reduces the scale uncertainty in lattice QCD calculations, enabling for instance sub per mille precision for the hadronic vacuum-polarization contribution to the muon anomalous magnetic moment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports precision mass measurements of the Ω−, Ξ− baryons and their antiparticles via invariant-mass reconstruction of their decay products in pp collisions at the LHC using the ALICE detector. The analysis exploits displaced-vertex reconstruction and calibrates the mass scale with the known K0S and Λ masses, achieving fractional uncertainties of ~60 ppm (e.g., M_{ar{\Omega}^+} = 1672.558 ± 0.034 (stat.) ± 0.102 (syst.) MeV/c²). The results are presented as new benchmarks for strange-baryon spectroscopy, enabling CPT tests in the multistrange sector and reduced scale uncertainty for lattice QCD calculations.

Significance. If the reported central values and uncertainties are robust, the measurements would supply improved anchors for setting the physical scale in lattice QCD, directly benefiting calculations of quantities such as the hadronic vacuum polarization contribution to the muon anomalous magnetic moment at the sub-per-mille level. The direct experimental approach with external calibration anchors avoids circularity and strengthens the utility for CPT-invariance tests in the baryon sector.

major comments (1)
  1. [Abstract] Abstract and analysis description: the quoted 0.102 MeV/c² systematic uncertainty is asserted to fully bound contributions from tracking, PID, magnetic-field scale, material budget, and displaced-vertex reconstruction. However, the text provides no explicit differential studies, tables, or figures demonstrating that the K0S/Λ calibration chain produces equivalent scale accuracy for the longer-lived, higher-mass Ξ/Ω topologies or for antiparticles; an unaccounted differential bias of even 0.15 MeV/c² would double the total uncertainty and undermine the 60 ppm precision claim.
minor comments (2)
  1. The abstract states that K0S and Λ masses 'are used for calibration' but does not list the specific decay channels or kinematic ranges employed for the multistrange species.
  2. A table comparing the new mass values and uncertainties directly to the current PDG averages would improve readability and context.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. The single major comment identifies a legitimate need for more explicit validation of the calibration procedure across different topologies. We address the point directly below and will incorporate additional material in the revised version.

read point-by-point responses

  1. Referee: [Abstract] Abstract and analysis description: the quoted 0.102 MeV/c² systematic uncertainty is asserted to fully bound contributions from tracking, PID, magnetic-field scale, material budget, and displaced-vertex reconstruction. However, the text provides no explicit differential studies, tables, or figures demonstrating that the K0S/Λ calibration chain produces equivalent scale accuracy for the longer-lived, higher-mass Ξ/Ω topologies or for antiparticles; an unaccounted differential bias of even 0.15 MeV/c² would double the total uncertainty and undermine the 60 ppm precision claim.

    Authors: We appreciate the referee drawing attention to this aspect of the systematic evaluation. The quoted 0.102 MeV/c² uncertainty is obtained by propagating variations in the K0S and Λ calibration constants (derived from the same data-taking period and detector conditions) together with changes in track-selection and vertexing criteria; these variations are designed to capture common-mode effects from tracking, PID, magnetic-field scale, and material budget that affect all species equally. Because the momentum-scale correction is applied globally before invariant-mass reconstruction, the procedure is in principle topology-independent. Nevertheless, we agree that the manuscript would benefit from explicit differential checks. In the revised version we will add a dedicated appendix (or extended section) containing (i) a table of mass-scale residuals for Ξ and Ω relative to the K0S/Λ calibration samples and (ii) separate distributions for particles and antiparticles, demonstrating that any residual differential bias lies well below the quoted systematic uncertainty. revision: yes

Circularity Check

0 steps flagged

Direct experimental measurement with external calibration; no circular derivation

full rationale

The paper reports invariant-mass reconstruction of Ω and Ξ baryons and antiparticles in pp collisions, with masses calibrated to the externally known K0S and Λ masses. No equations, ansatze, or self-citations reduce the reported masses (e.g., M_Ω̄⁺ = 1672.558 ± 0.034(stat.) ± 0.102(syst.) MeV/c²) to fitted inputs or prior results by the same authors. The central claims are empirical measurements whose uncertainty budget is stated to be bounded by the quoted systematic term; the derivation chain is self-contained against external benchmarks and contains no load-bearing self-referential steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an experimental measurement paper. No free parameters are fitted to derive the masses, no new axioms are introduced beyond standard particle physics reconstruction techniques, and no new entities are postulated.

pith-pipeline@v0.9.1-grok · 5869 in / 1440 out tokens · 38784 ms · 2026-06-26T14:53:50.588197+00:00 · methodology
