Verifiable and Confidential DNN Inference on Low-End Edge Devices

Mohamed Khalil Kiri (EURECOM) , Ivan De Oliveira Nunes (University of Zurich) , Aur\'elien Francillon (EURECOM) , Norrathep Rattanavipanon (PSU Phuket) This is my paper

Pith reviewed 2026-06-27 21:42 UTC · model grok-4.3

classification 💻 cs.CR
keywords DNN inferenceTrustZone-Mtrusted execution environmentverifiable computationmodel confidentialityedge devicessecure inferenceSHANGRI-LA
0
0 comments X

The pith

A new middle-privilege runtime on TrustZone-M lets untrusted code run DNN inference while a tiny secure-world piece keeps the model secret and verifies results.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents VECODI, a framework that adds one new execution abstraction called SHANGRI-LA to TrustZone-M hardware on low-end microcontrollers. SHANGRI-LA creates a third runtime world whose privileges sit strictly between the usual secure and non-secure worlds, so the bulk of the inference code can stay outside the trusted computing base. Only a small, application-independent piece of code remains in the secure world to hold the model parameters and to produce a proof that the correct model and correct code were used. If the design holds, low-cost edge devices can therefore deliver both model confidentiality and verifiable inference results without the large trusted code bases or high overheads of prior approaches.

Core claim

VECODI introduces SHANGRI-LA, a new execution abstraction on TrustZone-M TEEs that establishes a third runtime environment with privileges strictly between the Secure and Non-Secure Worlds. VECODI leverages SHANGRI-LA to execute untrusted inference code in the Non-Secure World while using minimal application-agnostic Secure-World support to protect model confidentiality and enable verifiability (with respect to proper execution of inference code and model parameters) of inference results.

What carries the argument

SHANGRI-LA, the execution abstraction that creates a third runtime environment with intermediate privileges between the Secure and Non-Secure Worlds on TrustZone-M hardware.

If this is right

  • DNN inference on constrained devices can keep models confidential without moving large parts of the model or runtime into the secure world.
  • Verification of correct model and code execution becomes possible with only a small, reusable secure-world component.
  • Runtime overhead and memory use remain low enough for practical deployment on boards such as the NUCLEO-L552ZE-Q.
  • The trusted computing base stays application-agnostic and therefore does not grow when new models or inference tasks are added.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same three-world split could be applied to other embedded workloads that need both confidentiality and execution proofs, such as sensor data processing or control loops.
  • If side-channel resistance holds on real silicon, the approach reduces the incentive to enlarge the secure world for every new application.
  • Implementations on other TrustZone-M or similar hardware could be checked by measuring whether an attacker can still leak weights or tamper with outputs under the new privilege boundary.

Load-bearing premise

The TrustZone-M hardware together with the SHANGRI-LA layer can be built without opening side-channel leaks or escalation routes that would let an attacker in the non-secure world read the model or forge a valid result.

What would settle it

A successful attack from the non-secure world that either extracts model parameters or produces an undetected incorrect inference result on the NUCLEO-L552ZE-Q board while VECODI is active.

Figures

Figures reproduced from arXiv: 2606.07470 by Aur\'elien Francillon (EURECOM), Ivan De Oliveira Nunes (University of Zurich), Mohamed Khalil Kiri (EURECOM), Norrathep Rattanavipanon (PSU Phuket).

Figure 1

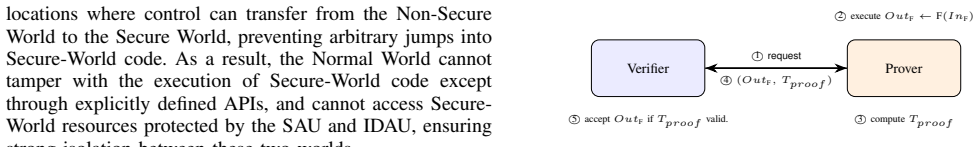

Figure 1. Figure 1: Generic Proof-of-Execution (PoX) workflow. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

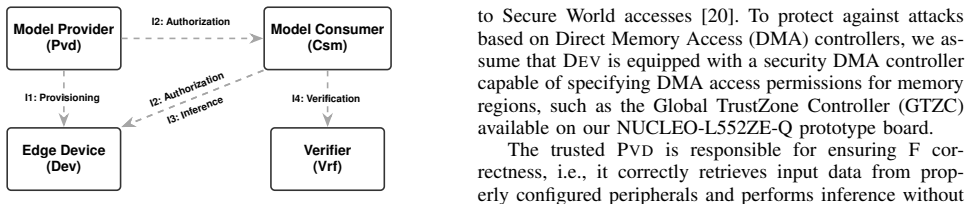

Figure 2. Figure 2: Interactions between PVD, DEV, CSM, and VRF. I1: Provisioning. PVD securely provisions DEV with re￾quired cryptographic material and installs the input-retrieval and inference code, F, along with M on DEV. I2: Authorization. CSM requests permission from PVD to use M on DEV. If approved, PVD issues an authorization token TCSM on M’s identifier IDM, encoding CSM’s usage policy on M. I3: Inference. CSM invoke… view at source ↗
Figure 3

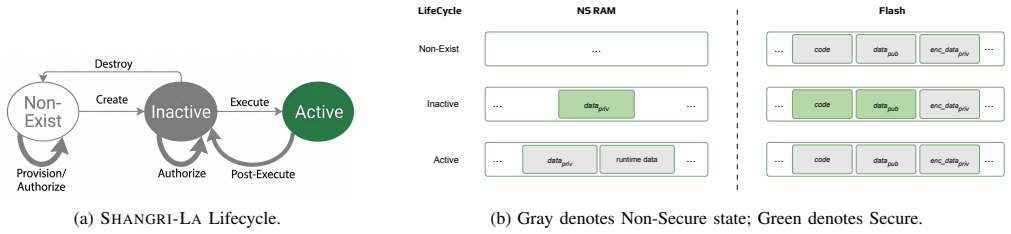

Figure 3. Figure 3: Overview of SHANGRI-LA lifecycle (a) and its corresponding TrustZone-M memory state (b). to produce verifiable evidence that isolated code within SHANGRI-LA executed correctly and that a given output corresponds to that execution. 5. SHANGRI-LA Isolation Abstraction: A Third Runtime Environment on TrustZone-M Here, we describe SHANGRI-LA, starting with its high￾level lifecycle and then detailing the Secure… view at source ↗
Figure 4

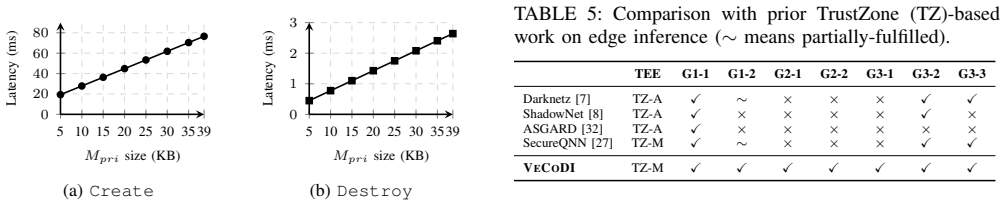

Figure 4. Figure 4: Latency of Create and Destroy. 7.4. Case Study To validate VECODI in a realistic deployment setting, we implement a complete image classification pipeline on the NUCLEO-L552ZE-Q board (including image acquisi￾tion via UART from a hardware camera interface). DEV receives images over a UART-based camera stream, runs inference using the encrypted ResNet model, and returns classification results. This pipeline… view at source ↗
read the original abstract

Deploying deep neural network (DNN) inference on low-end edge devices raises two key challenges: protecting model confidentiality against a potentially compromised edge system and enabling verifiable inference without incurring prohibitive overhead. Existing approaches either house partial models and inference software within trusted execution environments (TEEs), resulting in high cost and an application-dependent trusted computing base (TCB), or execute in untrusted environments, providing little security. In this work, we present VECODI, a framework for verifiable and confidential DNN inference on constrained edge devices. At its core, VECODI introduces SHANGRI-LA, a new execution abstraction on TrustZone-M TEEs that establishes a third runtime environment with privileges strictly between the Secure and Non-Secure Worlds. VECODI leverages SHANGRI-LA to execute untrusted inference code in the Non-Secure World while using minimal application-agnostic Secure-World support to protect model confidentiality and enable verifiability (with respect to proper execution of inference code and model parameters) of inference results. We realize VECODI on a real-world NUCLEO-L552ZE-Q development board and open-source its prototype. Our results show VECODI's small TCB, memory footprint, and runtime overhead, making it a practical option for secure inference in low-end edge devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper claims to introduce VECODI, a framework for verifiable and confidential DNN inference on low-end edge devices. It proposes SHANGRI-LA, a new execution abstraction on TrustZone-M TEEs that establishes a third runtime environment with privileges between Secure and Non-Secure Worlds. This allows untrusted inference code to run in the Non-Secure World with minimal application-agnostic Secure-World support to protect model confidentiality and enable verifiability of inference results. A prototype is realized on the NUCLEO-L552ZE-Q board, open-sourced, with claims of small TCB, memory footprint, and runtime overhead.

Significance. If the result holds, VECODI would offer a practical solution for secure DNN inference on constrained devices by minimizing the TCB and overhead compared to existing TEE approaches. The open-sourcing of the prototype on real hardware is a positive aspect that supports reproducibility.

major comments (2)
  1. [Abstract] Abstract: The abstract states that a prototype was realized on real hardware with small TCB and overhead, but provides no quantitative data, threat model details, or evaluation methodology; this prevents assessment of the soundness of the confidentiality and verifiability claims.
  2. [Abstract] Abstract: The description of SHANGRI-LA does not provide concrete details on the isolation mechanism or enforcement against side channels (timing, cache, DMA, exception paths) or escalation vectors, which is load-bearing for the central claim that untrusted Non-Secure code cannot access model parameters or alter execution state.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on the abstract. We address the two major comments point by point below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The abstract states that a prototype was realized on real hardware with small TCB and overhead, but provides no quantitative data, threat model details, or evaluation methodology; this prevents assessment of the soundness of the confidentiality and verifiability claims.

    Authors: The abstract is intentionally concise as a high-level summary. The threat model is fully specified in Section 3, the evaluation methodology and hardware setup in Section 5, and quantitative results (including TCB size, memory footprint, and runtime overhead with comparisons) appear in Section 6. To address the concern, we will revise the abstract to include a few key quantitative highlights and a one-sentence reference to the threat model. revision: yes

  2. Referee: [Abstract] Abstract: The description of SHANGRI-LA does not provide concrete details on the isolation mechanism or enforcement against side channels (timing, cache, DMA, exception paths) or escalation vectors, which is load-bearing for the central claim that untrusted Non-Secure code cannot access model parameters or alter execution state.

    Authors: The abstract offers only a summary description. Concrete mechanisms for SHANGRI-LA's intermediate privilege level, including enforcement of isolation, side-channel resistance (timing, cache, DMA), exception handling, and escalation prevention, are detailed in Sections 4.2–4.4 using TrustZone-M hardware features and minimal application-agnostic Secure-World code. We will modestly expand the abstract's SHANGRI-LA sentence to reference these isolation properties. revision: partial

Circularity Check

0 steps flagged

No circularity: systems construction with no equations or self-referential derivations

full rationale

The paper describes a hardware/software systems architecture (VECODI + SHANGRI-LA on TrustZone-M) whose claims rest on the stated isolation properties of the TEE hardware and the concrete implementation on a NUCLEO board. No equations, fitted parameters, predictions, or mathematical derivations appear in the abstract or described content. No self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The design is externally falsifiable via the open-sourced prototype and hardware measurements, satisfying the criteria for a self-contained, non-circular systems result.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The design rests on standard assumptions about TrustZone-M isolation and introduces one new software abstraction; no free parameters or fitted values appear in the abstract.

axioms (1)
  • domain assumption TrustZone-M hardware provides strong isolation between Secure and Non-Secure Worlds
    Invoked to justify placing minimal support in the Secure World while running inference code outside it.
invented entities (1)
  • SHANGRI-LA no independent evidence
    purpose: Third runtime environment with privileges strictly between Secure and Non-Secure Worlds
    Newly introduced execution abstraction to reduce TCB while enabling verifiability.
