arxiv: 2604.23165 · v2 · pith:YNPXEG5Qnew · submitted 2026-04-25 · 💻 cs.CV

BSViT: A Burst Spiking Vision Transformer for Expressive and Efficient Visual Representation Learning

Hongxiang Peng , Dewei Bai , Hong Qu This is my paper

Pith reviewed 2026-05-08 08:31 UTC · model grok-4.3

classification 💻 cs.CV
keywords burst spikingspiking vision transformerself-attention mechanismneuromorphic hardwareenergy efficiencyevent-based visionvisual representationpatch masking
0
0 comments X

The pith

Burst spikes and dual-channel attention improve accuracy in spiking vision transformers without sacrificing energy efficiency.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to overcome the limited capacity of binary spike representations and the high cost of global attention in spiking vision transformers. It does so by introducing a mechanism that uses burst spikes for keys, binary for queries, and dual excitatory-inhibitory channels for values, combined with local patch masking. This keeps all operations as simple additions suitable for neuromorphic chips. If successful, it would make spiking neural networks more competitive for practical visual tasks on low-power hardware. Sympathetic readers care because current spiking models trade too much accuracy for their efficiency gains.

Core claim

BSViT features a Dual-Channel Burst Spiking Self-Attention where queries use binary spikes, keys use burst spikes to boost capacity, and values use dual binary channels for signed interactions. The design adds patch adjacency masking to limit attention to local areas for sparsity and incorporates burst coding throughout the model. Experiments show it surpasses other spiking transformers in accuracy on both standard image and event-driven vision datasets while matching their energy efficiency.

What carries the argument

The Dual-Channel Burst Spiking Self-Attention (DBSSA) that separates spike types across query, key, and value paths to enable richer interactions using only additions.

Load-bearing premise

The assumption that assigning binary spikes to queries, burst spikes to keys, and dual channels to values will meaningfully expand representational capacity and spike interactions while remaining strictly addition-based.

What would settle it

A direct comparison experiment on a vision benchmark like CIFAR-10 or DVS Gesture where BSViT accuracy falls short of or energy exceeds that of a conventional binary spiking transformer.

Figures

Figures reproduced from arXiv: 2604.23165 by Dewei Bai, Hong Qu, Hongxiang Peng.

Figure 1
Figure 1. Figure 1: Concept of the Spiking Self-Attention(SSA) and our Dual-channel Burst Spik￾ing Self-Attention(DBSSA). (a) is the vanilla Spiking Self-Attention, only using binary spike matrix to calculate attention map. (b) is our DBSSA mechanism that introduces a burst spiking coded K to increase information capacity and a dual-channel V to capture both excitatory and inhibitory features while keeps the whole process add… view at source ↗
Figure 2

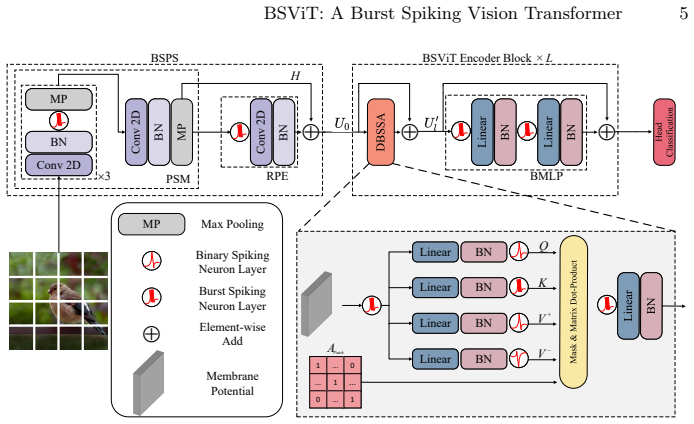

Figure 2. Figure 2: The overview of BSViT. W(ℓ+1)S (ℓ) burst[t] = Sburst (ℓ) X [t] k=1 W(ℓ+1) , (3) where Vθ denotes the interval between consecutive membrane potential thresh￾olds, and n is the maximum allowed burst level. Sburst[t] ∈ 0, 1, . . . , n thus en￾codes the number of spikes emitted at timestep t. Conceptually related to the integer spike formulation in I-LIF [31], we convert integer values to binary values additio… view at source ↗
Figure 3

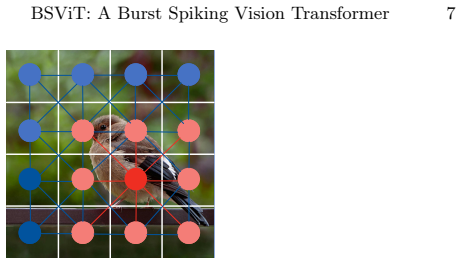

Figure 3. Figure 3: The neighbors of each patch in an image. neuron. This excitatory-inhibitory dynamic acts as a critical filtering mechanism that actively suppresses redundant attention scores, thereby significantly improv￾ing the signal-to-noise ratio in the aggregated attention maps. The formulations are as follows: Q = SN binary (BN(XWQ)), (12) K = SN burst (BN(XWK)), (13) V + = SN binary (BN(XWV + )), (14) V − = −SN bin… view at source ↗
read the original abstract

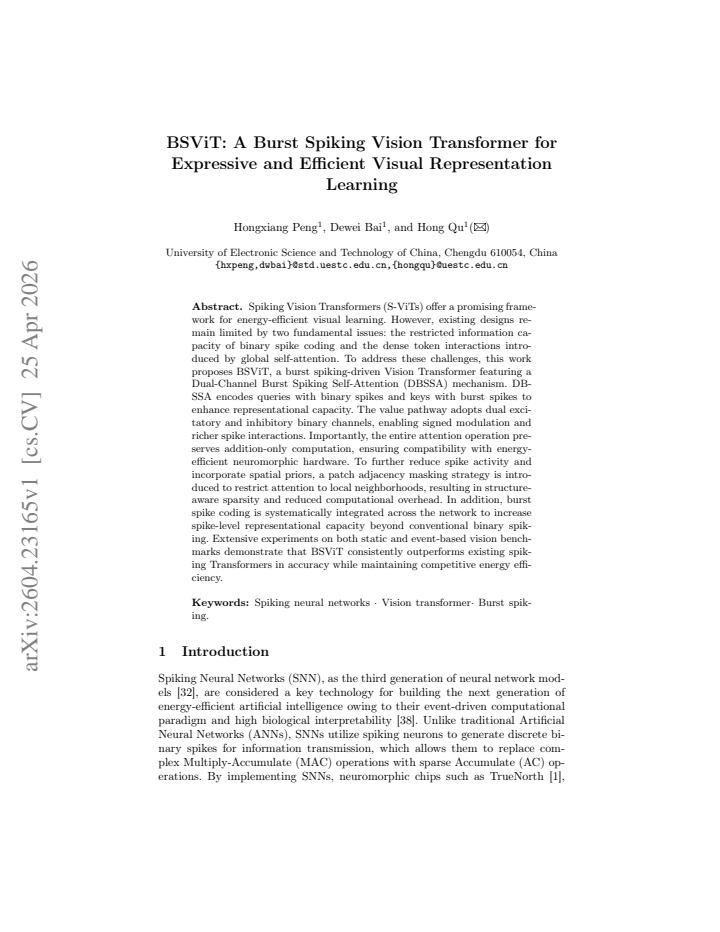

Spiking Vision Transformers (S-ViTs) offer a promising framework for energy-efficient visual learning. However, existing designs remain limited by two fundamental issues: the restricted information capacity of binary spike coding and the dense token interactions introduced by global self-attention. To address these challenges, this work proposes BSViT, a burst spiking-driven Vision Transformer featuring a Dual-Channel Burst Spiking Self-Attention (DBSSA) mechanism. DBSSA encodes queries with binary spikes and keys with burst spikes to enhance representational capacity. The value pathway adopts dual excitatory and inhibitory binary channels, enabling signed modulation and richer spike interactions. Importantly, the entire attention operation preserves addition-only computation, ensuring compatibility with energy-efficient neuromorphic hardware. To further reduce spike activity and incorporate spatial priors, a patch adjacency masking strategy is introduced to restrict attention to local neighborhoods, resulting in structure-aware sparsity and reduced computational overhead. In addition, burst spike coding is systematically integrated across the network to increase spike-level representational capacity beyond conventional binary spiking. Extensive experiments on both static and event-based vision benchmarks demonstrate that BSViT consistently outperforms existing spiking Transformers in accuracy while maintaining competitive energy efficiency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper introduces BSViT, a burst spiking Vision Transformer featuring Dual-Channel Burst Spiking Self-Attention (DBSSA). Queries use binary spikes, keys use burst spikes, and values employ dual excitatory/inhibitory binary channels to boost representational capacity and spike interactions. The design claims to preserve strictly addition-only attention computation for neuromorphic hardware compatibility, augments this with patch-adjacency masking for local sparsity, and integrates burst coding network-wide. Experiments on static and event-based vision benchmarks are said to show consistent accuracy gains over prior spiking Transformers while retaining competitive energy efficiency.

Significance. If the empirical gains and addition-only property are verified, the work would meaningfully advance energy-efficient spiking vision models by addressing binary-coding capacity limits and global-attention density without sacrificing neuromorphic compatibility. The dual-channel and burst mechanisms, together with experiments spanning both static and event-based datasets, represent a concrete step toward richer yet hardware-friendly SNN representations.

major comments (1)
  1. [DBSSA mechanism] The claim that DBSSA preserves addition-only computation (central to the energy-efficiency and neuromorphic-compatibility assertions) requires explicit verification. Burst encoding of keys inherently requires temporal accumulation, and dual excitatory/inhibitory channels for values typically introduce signed operations. The manuscript should supply the precise spike-interaction equations or circuit mapping (e.g., in the DBSSA definition) showing that no counting, scaling, or subtraction primitives are used.
minor comments (2)
  1. [Abstract] The abstract states performance claims without any numerical results, baselines, or error bars; including at least headline metrics would strengthen immediate assessment.
  2. Clarify the precise definition and temporal window used for burst spikes versus standard rate coding, and how patch-adjacency masking interacts with the attention mask in implementation.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive evaluation of BSViT and for the constructive comment on the DBSSA mechanism. We address the concern directly below and will revise the manuscript accordingly to strengthen the verification of the addition-only property.

read point-by-point responses

  1. Referee: [DBSSA mechanism] The claim that DBSSA preserves addition-only computation (central to the energy-efficiency and neuromorphic-compatibility assertions) requires explicit verification. Burst encoding of keys inherently requires temporal accumulation, and dual excitatory/inhibitory channels for values typically introduce signed operations. The manuscript should supply the precise spike-interaction equations or circuit mapping (e.g., in the DBSSA definition) showing that no counting, scaling, or subtraction primitives are used.

    Authors: We appreciate this comment, which correctly identifies the need for more explicit verification to support the neuromorphic-compatibility claims. In the current manuscript, DBSSA is defined such that query-key interactions use binary spike queries and temporally accumulated burst keys, with all accumulation performed via successive additions to spike counters (no explicit counting or scaling operators). The dual excitatory/inhibitory value channels are realized as two independent binary spike streams whose contributions are summed separately before a final rate-based readout; the signed modulation emerges from the opposing spike polarities without introducing subtraction in the attention arithmetic itself. Nevertheless, we agree that the presentation would benefit from greater clarity. In the revised manuscript we will add the full set of spike-interaction equations together with a neuromorphic circuit mapping (new figure) that demonstrates every operation reduces to addition, thereby confirming the absence of counting, scaling, or subtraction primitives. revision: yes

Circularity Check

0 steps flagged

No circularity; central claims are empirical architecture proposals validated by experiments

full rationale

The paper introduces BSViT as a novel architecture with DBSSA (binary-spike queries, burst-spike keys, dual excitatory/inhibitory value channels) plus patch-adjacency masking, then reports benchmark results showing accuracy gains at competitive energy. No equations, fitted parameters, or derivations are presented that reduce by construction to the inputs; the addition-only compatibility and representational-capacity claims are architectural assertions tested empirically rather than proven via self-referential math or self-citation chains. The derivation chain is therefore self-contained as an engineering proposal plus external validation.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 2 invented entities

The proposal rests on standard assumptions from the spiking-neural-network literature and introduces new architectural components whose independent validation is not provided in the abstract.

axioms (2)
  • domain assumption Spiking neural networks can perform visual representation learning with substantially lower energy than conventional networks
    Implicit background assumption for all S-ViT work referenced in the abstract.
  • domain assumption Addition-only arithmetic is compatible with neuromorphic hardware implementations
    Explicitly stated as a design goal for the attention operation.
invented entities (2)
  • Dual-Channel Burst Spiking Self-Attention (DBSSA) no independent evidence
    purpose: To encode richer spike interactions via burst keys and signed dual-channel values while remaining addition-only
    New attention block introduced by the paper
  • Burst spike coding integrated across the network no independent evidence
    purpose: To raise spike-level representational capacity beyond binary spikes
    Systematic integration claimed as a core contribution
