Automating Equational Proofs in Dirac Notation

T0 review · 3 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Dirac notation's first-order theory is decidable, and equations reduce to unique normal forms.

desk verdict A useful, honestly-scoped rewriting tool for Dirac notation whose abstract oversells the decision procedure: completeness is still a conjecture, and the paper itself supplies a valid identity the §7 algorithm cannot decide. read the letter →

arxiv 2411.11617 v1 pith:YYT2YVHI submitted 2024-11-18 cs.PL

Yingte Xu , Gilles Barthe , Li Zhou This is my paper · ORCID
classification cs.PL MSC 03B2503C1068Q4281P68
keywords Diracnotationbra-kettermrewritingequationalreasoningdecidabilityrealclosedfieldsquantumprogramverificationsymboliccomputation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Dirac notation is the everyday language of quantum states, but until now equational reasoning in it has been largely manual. This paper treats bra-ket notation as a typed algebraic theory and asks what can be decided automatically. It proves that, for fixed finite-dimensional Hilbert spaces, the first-order theory of Dirac notation is decidable: every formula reduces to one about complex numbers, where Tarski's theorem on real closed fields applies. For the common problem of deciding whether two expressions are equal, it constructs an associative-commutative term-rewriting system that is sound, terminating, and locally confluent, so equality can be established by comparing unique normal forms. The authors report that a prototype based on the system solves most of the Dirac-notation equations extracted from an existing quantum-program verification library in under a second each, while flagging the converse completeness direction as a conjecture for the core system and unproved for the extended big-sum language.

What carries the argument

The load-bearing object is the many-sorted first-order theory DN with types S for scalars, K(sigma) and B(sigma) for kets and bras over a classical basis type sigma, and O(sigma,tau) for linear operators, together with the AC term-rewriting system R_DN. The theory's decidability rests on the basis-expansion identity that decomposes every ket, bra, and operator into complex combinations of basis elements; the rewrite system's work is to orient the linear-algebra equalities into rules that sort multiplications to the right, distribute tensor products, reduce inner products of basis kets to Kronecker deltas, and propagate adjoints and conjugates until a unique normal form modulo AC is reached. For the extended language DNE with big sums, the machinery adds sum-elimination by delta symbols, pushing symbols into sums, swapping and splitting index sets, and a final alpha-equivalence check by constrained AC-unification.

What would settle it

Find well-typed core-language terms e1 and e2 that are semantically equal but whose R_DN normal forms differ; the tool would report them unequal, disproving relative completeness. For the extended language, a concrete non-joinable pair or an infinite rewriting sequence in R_DNE would falsify the assumption that the stated algorithm is a decision procedure.

Watch

Extended reading notes

Core claim

The central claim is that Dirac notation has a decidable first-order theory and a practical equational proof procedure. The decidability argument embeds the many-sorted theory of kets, bras, operators, tensor products, inner and outer products, adjoints, scalars, and Kronecker deltas into the first-order theory of complex numbers: over a fixed finite basis, every state and operator is uniquely determined by complex coefficients, and quantifiers over them become quantifiers over complex numbers; decidability then follows from Tarski's theorem. The equational procedure is a term-rewriting system modulo associativity and commutativity with more than 150 rules, which the paper proves sound, terminating, locally confluent, and hence normalizing to a unique normal form, aided by automated termination and critical-pair tools and a mechanized soundness proof. The paper's Theorem 7.4 gives the one-way direction: same normal form implies semantic equality. The converse, relative completeness of the rewriter, is stated as Conjecture 7.5, with only a weaker completeness result relying on expansion over bases; for the extended language with big sums, termination and confluence of the rewriting rules are not proved.

Load-bearing premise

The load-bearing premise is that the rewrite system's normal forms are complete enough that every semantically valid equation of the core language reduces to the same normal form; the authors state this general direction as Conjecture 7.5, having proved only a weaker basis-expanded version.

Editorial extensions

If this is right

  • Quantum program verifiers can replace long manual Dirac-notation proof snippets by calls to a normal-form checker, as demonstrated on the stepwise proof of the HHL algorithm.
  • Equations with free variables, such as the maximally-entangled-state law (M tensor I)|Phi> = (I tensor M^T)|Phi> for arbitrary M, can be checked symbolically, which numerical matrix methods cannot do.
  • A certificate of semantic equality is produced whenever two expressions have the same R_DN normal form, because every rewriting rule is sound for finite-dimensional Hilbert-space semantics.
  • Widespread identities in linear algebra and super-operator theory, including traces, partial traces, Choi states, and adjoints, collapse to near-instant normal-form checks.
  • Big-sum expressions such as entangled states over index sets and quantum while-loop approximations are handled by an extension with sum-index swapping and alpha-equivalence checking.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If Conjecture 7.5 is settled positively, the core rewrite system becomes a genuine decision procedure for equality, upgrading its current sound-only status to complete.
  • The decidability theorem is dimension-fixed: it concerns finite-dimensional Hilbert spaces of known dimension, so first-order reasoning about dimension-parametric or infinite-dimensional spaces remains out of scope for the decision procedure as stated.
  • For the extended big-sum language, the absence of termination and confluence proofs means the algorithm should be read as a sound simplifier plus heuristic equality checker; a divergence sample would show it is not a decision procedure.
  • The symbolic, variable-level nature of the equations makes the approach complementary to fast numerical circuit-verification tools, which cannot handle free variables and which the paper reports remain about three orders of magnitude faster on concrete quantum circuits.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper develops a many-sorted first-order theory DN for Dirac notation—bras, kets, operators, scalars, tensor products, adjoints, and Kronecker deltas—and an extension DNE with finitely indexed sums. Its first main result is a proof that the first-order theory of DN is decidable for fixed finite-dimensional Hilbert spaces by reduction to the theory of complex numbers and Tarski's theorem (Theorem 6.2). Its second claimed result is an efficient decision procedure for equations based on an AC term-rewriting system R_DN, with soundness proved in Coq and termination/local confluence checked with AProVE and CiME2. The paper also defines an extended algorithm for DNE, implements the approach in a Mathematica package called DiracDec, and evaluates it on CoqQ lemmas, Palsberg-Yu examples, and parameterized quantum circuits. The body is honest about the main limitation: completeness of R_DN is left as Conjecture 7.5, and termination/confluence of R_DNE are explicitly not proved.

Significance. If the completeness conjecture and the DNE termination/confluence issues were resolved, this would be a substantial and useful contribution to automated reasoning for quantum programs. The strongest, most reliable parts of the paper are the machine-checked soundness proof for the rewrite rules, the decidability theorem under the fixed finite-dimensional restriction, the explicit identification of the delta-product obstruction to completeness, and the extensive empirical evaluation. As it stands, however, the advertised 'efficient decision' claim is conditional: the paper establishes a sound simplification engine and a decidability result, but not a proven decision procedure for the full language presented in the abstract.

major comments (3)
  1. [§7.2, Theorem 7.4 and Conjecture 7.5] The second headline claim of the paper is not a theorem. Theorem 7.4 proves only the soundness direction: identical R_DN normal forms imply semantic equality. The converse—semantic equality implies identical normal forms—is explicitly left open in Conjecture 7.5, and the paper itself observes that δ_{i,j}×δ_{i,k} and δ_{i,j}×δ_{j,k} have identical denotations but are both irreducible and not AC-equivalent under R_DN. Thus the §7 normal-form test cannot decide this valid equation unless an additional oracle for δ-product equivalence is supplied. The abstract's statement that 'validity of equations can be decided efficiently' is therefore unsupported by the present theorems. The claims should be reframed as a sound simplifier or heuristic, or the completeness theorem must be proved for a precisely delimited fragment.
  2. [§8, Definition 8.3 and text after Lemma 8.4] The extended-language algorithm is also not established as a decision procedure. Definition 8.3 prescribes rewriting to R_DNE normal forms, applying Sum-Expand once, rewriting again, and checking alpha-equivalence, but the paper explicitly says that termination and confluence of R_DNE are not proved. The algorithm additionally relies on the axioms (Sum-Swap) and (Alpha-Eq) outside the rewrite system, and no invariant is given to show that the one-pass expansion reaches a unique normal form. The evaluation in §10 demonstrates practical usefulness, but it does not compensate for the absence of a termination or completeness proof. The extended procedure should be presented as a heuristic, with the open termination and confluence conditions stated prominently.
  3. [Abstract and §6, Theorem 6.2] The decidability claim as stated in the abstract is overbroad. Theorem 6.2 is explicitly restricted to fixed finite-dimensional Hilbert spaces, and its proof relies on the basis-decomposition axioms of Definition 6.1 to reduce quantification over kets, bras, and operators to quantification over finitely many complex coefficients. The abstract instead says that 'the first-order theory of Dirac notation is decidable' without this restriction. Either the abstract should include the fixed finite-dimensional qualification, or the theorem should be extended to genuinely variable or infinite-dimensional spaces, which the paper does not do.
minor comments (5)
  1. [Figure 6, Ax-Adjoint] The displayed rule for the adjoint of addition is garbled: '(D1+D2)† = D† 1+D† 2' should be typeset as (D1+D2)† = D1† + D2†.
  2. [Appendices C and D] The same symbol R'_DN is used for two different systems: the untyped erasure of R_DN in Definition C.3 and the extended system with basis unification and expansion in Definition D.2. These should be renamed to avoid confusion.
  3. [Lemma D.8] In the scalar case of Lemma D.8, the proof writes 'J a1+a2 K > 0 = J e K', which is not meaningful for complex scalars. This should be replaced by a statement about nonzeroness or norm, especially because this lemma is part of the only attempted weak completeness proof.
  4. [Abstract and §10] The counts of examples are inconsistent: the abstract says 'more than 100 examples', Section 1 says 'more than 200 examples', and Section 10.1 reports 243 CoqQ examples. These numbers should be reconciled.
  5. [§7.2] The phrase 'syntactically complete' is used to mean the existence of unique normal forms, which is likely to be confused with the later 'relative completeness' conjecture. A different term, such as 'confluent and terminating', would be clearer.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the derivation chain is self-contained; the identified gaps are completeness overclaims, not circular derivations.

full rationale

The paper's mathematical results are not circular. The decidability reduction (Theorem 6.2) takes an arbitrary DN formula and reduces it to a formula in the first-order theory of complex numbers, whose decidability is imported from Tarski's theorem as an external benchmark; the reduction is a direct semantic argument using the basis decomposition axioms, not an encoding of the target claim. The rewrite system R_DN is proved sound in Coq against an explicit denotational semantics (Lemma 7.1), and termination and local confluence are established by the external tools AProVE and CiME2 (Lemmas 7.2-7.3); none of these steps assumes the equality problem it is meant to decide. The only substantial limitation is that completeness of the rewrite decision procedure is left open (Conjecture 7.5: 'we failed to prove the general theorem because it is difficult to express the normal form using an inductive language'), and the extended-language algorithm is explicitly not proved terminating or confluent ('we do not prove the confluence or termination of R_DNE'), so the abstract's claim that 'validity of equations can be decided efficiently' is stronger than what is proven. These are correctness/completeness caveats, not circular derivations: no parameter is fitted to data and then renamed as a prediction, and no load-bearing premise is justified solely by the authors' own prior work; CoqQ [75] is used as a formalization library whose soundness theorems are machine-checked, which counts as independent evidence under the review rules.

Assumptions & free parameters 0 free parameters · 7 assumptions · 0 invented entities

The central results rest on standard mathematical facts (Tarski, Newman) and on the paper's own semantic model for DN. The main unproven assumptions are the completeness conjecture for R_DN and the termination/confluence of the extended big-sum algorithm, both of which are acknowledged by the authors. No new physical entities are postulated; the invented 'dynamic typing' operator is a technical device in the formalization, not an empirical entity.

assumptions (7)
  • domain assumption Finite-dimensional Hilbert spaces are isomorphic to C^n; the theory DN is restricted to such spaces and the decidability proof fixes the dimensions.
    The decidability result Theorem 6.2 and the whole semantic model are built on finite-dimensional Hilbert spaces. The abstract omits the 'fixed finite dimension' caveat, which is a real limitation.
  • standard math Tarski's theorem: the first-order theory of real closed fields is decidable.
    Used in the proof of Theorem 6.2 to conclude decidability after reducing DN to the theory of complex numbers.
  • standard math Newman's lemma: for a terminating abstract rewrite system, local confluence implies confluence.
    Invoked in Section 4.1 and used to derive unique normal forms from the AProVE/CiME2 results.
  • domain assumption The outputs of the automated tools AProVE (termination) and CiME2 (local confluence) are correct.
    The paper states the tools confirmed termination and that all 1501 critical pairs are joinable, but the correctness of these tool runs is not machine-checked inside the paper's own formal development.
  • ad hoc to paper Relative completeness of R_DN, stated as Conjecture 7.5.
    The paper's claim to decide equalities efficiently depends on this conjecture for the core language. The authors prove only a weaker completeness result (Appendix D) and explicitly state they failed to prove the general theorem.
  • ad hoc to paper The extended rewrite system R_DNE is terminating and confluent enough for the algorithm of Definition 8.3 to produce a decision procedure.
    The paper explicitly does not prove termination or confluence for R_DNE, so the extended algorithm is a heuristic. Its correctness as a decision procedure is therefore an unproven assumption.
  • domain assumption The atomic basis signature is finite, avoiding problems of infinite-dimensional Hilbert spaces.
    Used throughout to justify the basis decomposition axioms and to make index sets for big sums finite.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Automating Equational Proofs in Dirac Notation." pith.science (2026). https://pith.science/paper/YYT2YVHI

@misc{pith2026241111617,
  author       = {Pith},
  title        = {Pith review of: Automating Equational Proofs in Dirac Notation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/YYT2YVHI}},
  note         = {Machine review of arXiv:2411.11617}
}
read the original abstract

Dirac notation is widely used in quantum physics and quantum programming languages to define, compute and reason about quantum states. This paper considers Dirac notation from the perspective of automated reasoning. We prove two main results: first, the first-order theory of Dirac notation is decidable, by a reduction to the theory of real closed fields and Tarski's theorem. Then, we prove that validity of equations can be decided efficiently, using term-rewriting techniques. We implement our equivalence checking algorithm in Mathematica, and showcase its efficiency across more than 100 examples from the literature.

Figures

Figures reproduced from arXiv: 2411.11617 by the authors.

Figure 1

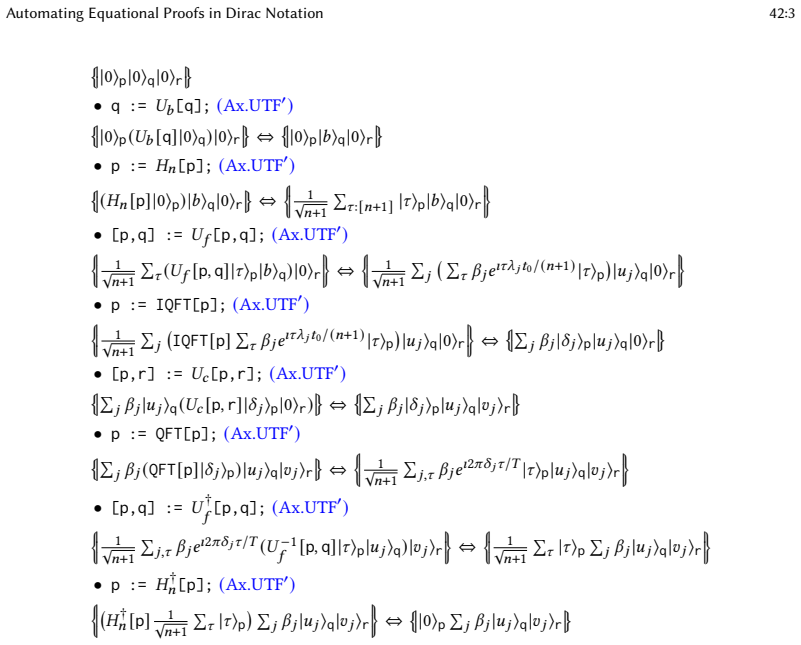

Figure 1. Proof snippet of HHL algorithm in Quantum Hoare Logic. The snippet is taken from [ [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Screenshot from [14] (left) and [75] (right). The left one is the formalization of the no-cloning theorem in Isabelle, while the right one contains Hoare triples for the correctness of programs in Coq. These shortcomings are overcome by Dirac notation [23], which provides an expressive syntax for quantum states and operators. The syntax of Dirac critically exploits the algebraic structure of quantum states and linea… view at source ↗
Figure 3
Figure 3. The inference rules of equational logic. [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figures from the paper (11 more)
Figure 4
Figure 4. Figure 4: Typing rules for DN. of operators can be understood as the conjugate transpose in the matrix view, which swaps the domain and codomain. 5.3 Denotational Semantics Types and expressions of DN can be given denotational semantics using Hilbert spaces. Definition 5.4 (Inte…
Figure 5
Figure 5. Figure 5: Denotational semantics of DN expressions. Symbol [PITH_FULL_IMAGE:figures/full_fig_p012_5.png]
Figure 6

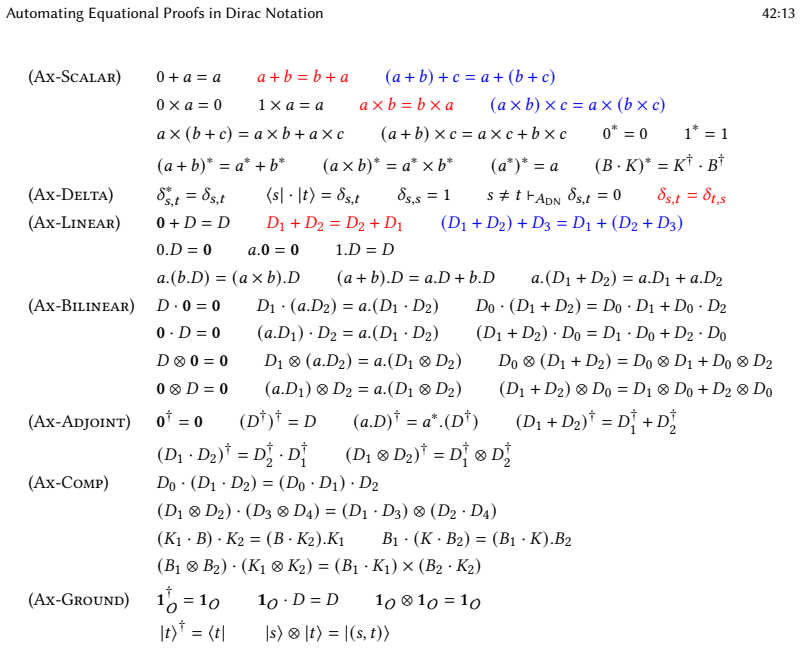

Figure 6. Figure 6: Axiomatic semantics of DN. Associativity is marked in blue, and commutativity is marked in red. [PITH_FULL_IMAGE:figures/full_fig_p013_6.png]
Figure 7
Figure 7. Figure 7: A selection of representative rules from [PITH_FULL_IMAGE:figures/full_fig_p016_7.png]
Figure 8
Figure 8. Figure 8: Extra typing rules for DNE. The denotational semantics of DNE is defined in [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
Figure 9

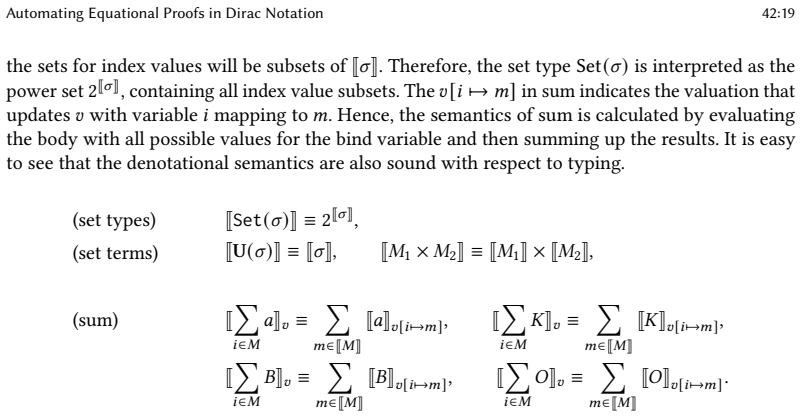

Figure 9. Figure 9: Denotational semantics of DNE symbols. 8.1 Equivalence Checking Algorithm Checking the equivalence of expressions with big operators requires more advanced techniques. The equivalence checking algorithm of DNE is a combination of conditional rewriting rules, one￾pass e…
Figure 10
Figure 10. Figure 10: A selection of representative rules from [PITH_FULL_IMAGE:figures/full_fig_p020_10.png]
Figure 11
Figure 11. Figure 11: Axioms beyong 𝑅DNE. 𝑋 represents terms from scalar, ket, bra, or operator sorts. All bind variables 𝑖, 𝑗 are different. Finally, the overall algorithm for deciding the equivalence of extended language expressions is described below. Definition 8.3. Let 𝑒1 and 𝑒2 be tw…
Figure 12
Figure 12. Figure 12: The code for Example 3.1 is given on the left. Variables are marked in blue, symbols introduced in DiracDec are marked in brown, and definitions in the field are marked in purple. The explanations for each command are given on the right. corresponding to 𝐴 𝑇 ≜ Í 𝑖 Í 𝑗…
Figure 13
Figure 13. Figure 13: An example of two equivalent parametrised quantum circuits and their Dirac notation representations. [PITH_FULL_IMAGE:figures/full_fig_p026_13.png]
Figure 14
Figure 14. Figure 14: An illustration of Theorem C.9 proof. Solid, dashed and dotted lines represent rewritings in 𝑅DN, 𝑅 ′ DN and the type erasure respectively. Blue, red, yellow and green surfaces represent the application of Lemma C.5, Lemma C.6, Lemma C.4 and Lemma C.7 respectively. Pr…
