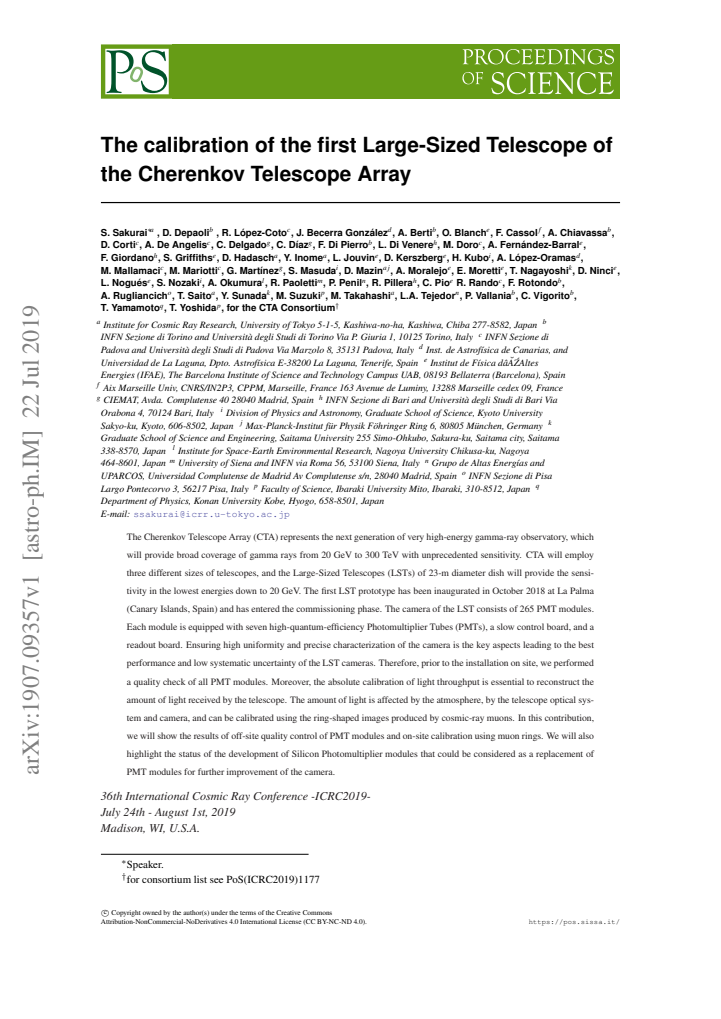

The calibration of the first Large-Sized Telescope of the Cherenkov Telescope Array
Pith reviewed 2026-05-24 17:56 UTC · model grok-4.3
The pith
The LST camera achieves precise calibration through PMT module quality checks and cosmic-ray muon ring analysis.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Ensuring high uniformity and precise characterization of the camera through quality checks and muon ring calibration leads to the best performance and low systematic uncertainty of the LST cameras.
What carries the argument
Ring-shaped images produced by cosmic-ray muons, used to calibrate the absolute light throughput after corrections for atmosphere, telescope optics, and camera response.
If this is right
- High uniformity in PMT modules reduces systematic errors in gamma-ray energy reconstruction.
- Muon-based calibration provides a method independent of external light sources for absolute throughput measurement.
- SiPM modules may offer further improvements in quantum efficiency for future camera upgrades.
Where Pith is reading between the lines
- These calibration techniques could be applied to other Cherenkov telescopes to standardize performance.
- Precise calibration down to 20 GeV sensitivity requires ongoing monitoring of camera response over time.
Load-bearing premise
The ring-shaped images from cosmic-ray muons accurately represent the light throughput after accounting for atmospheric and optical effects.
What would settle it
A direct comparison between muon ring calibration results and an independent calibration method, such as using a calibrated light source, that shows significant discrepancy would falsify the accuracy claim.
read the original abstract
The Cherenkov Telescope Array (CTA) represents the next generation of very high-energy gamma-ray observatory, which will provide broad coverage of gamma rays from 20 GeV to 300 TeV with unprecedented sensitivity. CTA will employ three different sizes of telescopes, and the Large-Sized Telescopes (LSTs) of 23-m diameter dish will provide the sensitivity in the lowest energies down to 20 GeV. The first LST prototype has been inaugurated in October 2018 at La Palma (Canary Islands, Spain) and has entered the commissioning phase. The camera of the LST consists of 265 PMT modules. Each module is equipped with seven high-quantum-efficiency Photomultiplier Tubes (PMTs), a slow control board, and a readout board. Ensuring high uniformity and precise characterization of the camera is the key aspects leading to the best performance and low systematic uncertainty of the LST cameras. Therefore, prior to the installation on site, we performed a quality check of all PMT modules. Moreover, the absolute calibration of light throughput is essential to reconstruct the amount of light received by the telescope. The amount of light is affected by the atmosphere, by the telescope optical system and camera, and can be calibrated using the ring-shaped images produced by cosmic-ray muons. In this contribution, we will show the results of off-site quality control of PMT modules and on-site calibration using muon rings. We will also highlight the status of the development of Silicon Photomultiplier modules that could be considered as a replacement of PMT modules for further improvement of the camera.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript is a technical report on the commissioning of the first LST prototype for CTA. It describes off-site quality control procedures applied to all 265 PMT modules (each containing seven high-QE PMTs plus readout and slow-control boards) and on-site absolute calibration of light throughput via ring images produced by cosmic-ray muons, after corrections for atmosphere, optics, and camera response. It also notes ongoing work on SiPM modules as a possible future replacement.
Significance. If the procedures were accompanied by quantitative uniformity metrics, error budgets, and validation results, the work would be a useful contribution to the CTA instrument papers by documenting standard but essential calibration steps for the LST camera. The muon-ring method is a recognized technique in the field, and clear documentation of its application to the 23 m LST would aid reproducibility of the low-energy performance claims.
major comments (2)
- [Abstract] Abstract: the central claim that the described QC and muon-ring procedures ensure 'high uniformity' and 'low systematic uncertainty' is not supported by any quantitative results, measured uniformity values, calibration precision, or error budgets.
- [Muon calibration description] Muon calibration paragraph: the statement that ring images 'can be calibrated' after accounting for atmosphere, optical system, and camera effects provides no concrete correction methods, fitting procedures, or achieved throughput accuracy, which is load-bearing for the absolute-calibration claim.
minor comments (2)
- [Abstract] The abstract promises to 'show the results' of QC and calibration but the manuscript supplies only procedural descriptions; adding a results subsection with tables or figures of measured quantities would improve clarity.
- [PMT module description] Terminology such as 'slow control board' and 'readout board' is used without reference to prior LST camera papers; a brief citation or definition would aid readers outside the collaboration.
Simulated Author's Rebuttal
We thank the referee for the detailed review and for highlighting the need for stronger quantitative support in the abstract and muon-calibration section. We agree that these elements are important for a technical commissioning paper and will revise the manuscript to address both points.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central claim that the described QC and muon-ring procedures ensure 'high uniformity' and 'low systematic uncertainty' is not supported by any quantitative results, measured uniformity values, calibration precision, or error budgets.
Authors: We accept this criticism. The current abstract is too qualitative. In the revised version we will insert the key measured values already obtained from the 265-module QC campaign (gain and QE uniformity, failure rates) and from the muon-ring analysis (achieved throughput precision after corrections). This will make the claims of uniformity and low systematic uncertainty directly traceable to the results presented later in the paper. revision: yes
-
Referee: [Muon calibration description] Muon calibration paragraph: the statement that ring images 'can be calibrated' after accounting for atmosphere, optical system, and camera effects provides no concrete correction methods, fitting procedures, or achieved throughput accuracy, which is load-bearing for the absolute-calibration claim.
Authors: We agree that the paragraph is too terse. The full manuscript already contains the correction chain (atmospheric transmission from LIDAR, mirror reflectivity and point-spread function, PMT QE and gain maps) and the ring-fitting algorithm, together with the final throughput accuracy. We will expand the relevant paragraph with these explicit steps and the numerical accuracy achieved, so that the absolute-calibration claim is properly substantiated. revision: yes
Circularity Check
No significant circularity
full rationale
The paper is a technical commissioning report describing off-site PMT module quality control procedures and on-site muon-ring throughput calibration after standard atmospheric/optical/camera corrections. No derivation chain, fitted parameters renamed as predictions, self-citation load-bearing premises, or ansatz smuggling is present. Central statements report experimental methods and results without reducing any claimed result to its own inputs by construction.
