When Absolute State Fails: Evaluating Proprioceptive Encodings for Robust Manipulation

Maxime Alvarez , Ryo Watanabe , Paul Crook , Afshin Zeinaddini Meymand , Suvin Kurian , Pablo Ferreiro , Genki Sano This is my paper

Pith reviewed 2026-05-14 19:03 UTC · model grok-4.3

classification 💻 cs.RO cs.AI
keywords proprioceptive encodingsrobotic manipulationrelative framesrobustnessgeneralizationreal-robot experimentsstate representation
0
0 comments X

The pith

A simple episode-wise relative frame for proprioceptive encoding delivers better performance and robustness than absolute state representations in real robotic manipulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper studies how to represent a robot's own joint positions and movements so that learned policies work well even when the robot's position or orientation changes between training and testing. It compares several encoding strategies and finds that resetting the reference frame at the start of each episode gives the strongest combination of accurate task completion and resistance to new conditions. Experiments on real robots in varied setups confirm this simple method beats common absolute encodings and other relative approaches. The results open a straightforward route to training on mixed data from different robot frames and deploying without adjustment.

Core claim

An episode-wise relative frame, in which proprioceptive observations are expressed relative to the configuration at the start of the current episode, yields superior task success and robustness to frame shifts compared with absolute joint states or other relative schemes.

What carries the argument

Episode-wise relative proprioceptive encoding, which normalizes joint angles and velocities against the initial pose of each episode to remove dependence on the absolute reference frame.

If this is right

  • Training data collected across robots with different base positions can be combined effectively using this encoding.
  • Deployment in environments where the robot base moves or is placed differently becomes feasible without policy retraining.
  • Real-robot performance improves in realistic test conditions that include frame variations.
  • Simpler encodings can outperform more complex learned representations for proprioception in this setting.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Applying the same relative reset idea to other state variables such as camera poses might further reduce sensitivity to setup changes.
  • Tasks with long horizons could benefit from periodic re-zeroing of the relative frame rather than a single episode start.
  • The finding highlights that absolute coordinate systems in state spaces are often a hidden source of brittleness in deployed policies.

Load-bearing premise

The test tasks and environment variations adequately represent the kinds of frame changes that occur in actual deployments.

What would settle it

Running the same policies on a robot whose base is translated or rotated by an amount larger than any variation tested in the paper, and measuring whether the episode-wise relative method still outperforms the absolute baseline.

Figures

Figures reproduced from arXiv: 2605.13067 by Afshin Zeinaddini Meymand, Genki Sano, Maxime Alvarez, Pablo Ferreiro, Paul Crook, Ryo Watanabe, Suvin Kurian.

Figure 1
Figure 1. Figure 1: Comparison of the three state-action representations. Absolute [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

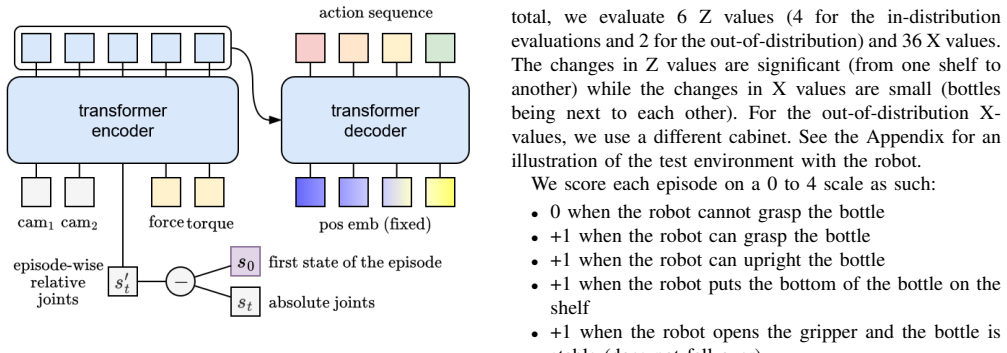

Figure 2. Figure 2: Illustration of the proposed episode-wise relative state and actions [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

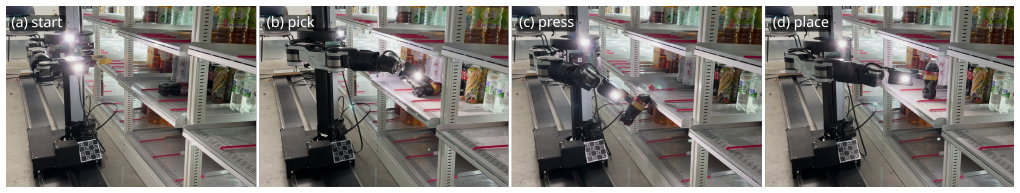

Figure 3. Figure 3: Bottle-recovery task decomposed into four stages: (a) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

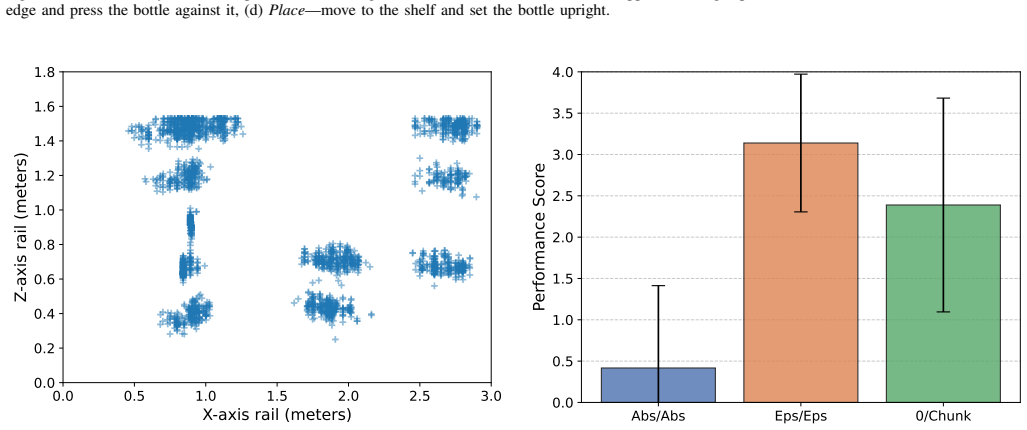

Figure 4. Figure 4: Distribution of the starting values for each episode in the dataset [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 7

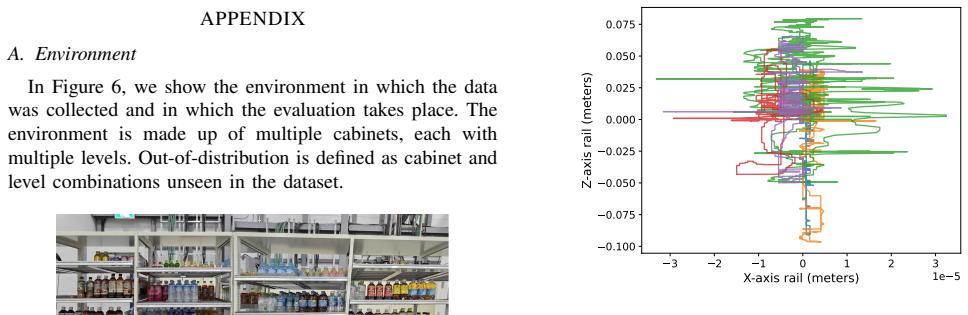

Figure 7. Figure 7: X and Z values for 5 random episodes from the training dataset, [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
read the original abstract

As end-to-end robotic policies are progressively deployed in the real world to solve real tasks, they face a gap between the training and inference conditions. Scaling the amount and diversity of the training data has shown some success in improving zero-shot generalization, yet robots still fail when faced with new, unseen test conditions. For instance, while robots with fixed frames of reference are common, those with moving frames pose a greater challenge for deployment. To address this specific instance of the issue, we present a study of strategies for encoding the robot's proprioceptive state to improve both in- and out-of-distribution performance at test time. Through a systematic study of joint representations, we find that a simple episode-wise relative frame provides the best trade-off between task performance and robustness, outperforming the baselines in extensive real-robot experiments conducted in a realistic test environment. The results suggest a practical path to leveraging data collected by robots with varying frames of reference and deployment to unseen test configurations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper evaluates proprioceptive state encodings for end-to-end robotic manipulation policies to address performance degradation when the robot's frame of reference changes between training and test time. Through a systematic comparison, it claims that a simple episode-wise relative encoding achieves the best trade-off, outperforming absolute-state and other baselines in both in-distribution and out-of-distribution settings, as demonstrated by real-robot experiments in a realistic test environment.

Significance. If the experimental results hold under scrutiny, the finding offers a lightweight, data-efficient approach to improving policy robustness to frame variations without architectural changes or additional data collection, which could meaningfully aid deployment of manipulation policies in unstructured real-world settings where absolute frames are impractical.

major comments (2)
  1. [§4] §4 (Real-robot experiments): The central claim of outperformance rests on real-robot trials, yet the text provides no quantitative metrics (e.g., success rates, trajectory errors), number of trials, statistical tests, or implementation details for baselines, rendering the reported superiority unverifiable and the robustness conclusion unsupported.
  2. [§4.3] §4.3 (Test variations): The evaluation uses only discrete frame shifts in a fixed test environment; no experiments address continuous drifts, compounding errors, or multi-axis movements, so the claim that the encoding generalizes to broader real-world frame changes lacks direct evidence.
minor comments (2)
  1. [Abstract] Abstract: The phrase 'extensive real-robot experiments' would be strengthened by a parenthetical note on the number of tasks or trials performed.
  2. [§3.2] Notation: The distinction between 'episode-wise relative frame' and other joint representations could be clarified with a short equation or pseudocode in §3.2.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on the real-robot experiments. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [§4] §4 (Real-robot experiments): The central claim of outperformance rests on real-robot trials, yet the text provides no quantitative metrics (e.g., success rates, trajectory errors), number of trials, statistical tests, or implementation details for baselines, rendering the reported superiority unverifiable and the robustness conclusion unsupported.

    Authors: We agree that the manuscript currently lacks the requested quantitative details. In the revised version we will add a results table reporting success rates (with standard errors) for each encoding, the exact number of trials per condition (20 trials), and statistical comparisons (paired t-tests with p-values) against baselines. We will also expand the implementation details subsection to describe baseline adaptations, sensor calibration, and trial protocol on the real robot. revision: yes

  2. Referee: [§4.3] §4.3 (Test variations): The evaluation uses only discrete frame shifts in a fixed test environment; no experiments address continuous drifts, compounding errors, or multi-axis movements, so the claim that the encoding generalizes to broader real-world frame changes lacks direct evidence.

    Authors: The study deliberately used controlled discrete frame shifts to isolate the effect of reference-frame mismatch, which is the core practical problem addressed by the paper. We will revise the text to clarify that the reported robustness applies to the tested discrete shifts and will add an explicit limitations paragraph acknowledging that continuous drifts, compounding errors, and multi-axis variations remain untested. We will also suggest these as directions for future work rather than claiming broader generalization. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical comparison with no derivations or self-referential fits

full rationale

The paper conducts a direct experimental evaluation of proprioceptive state encodings on real robots, comparing task performance and robustness across in- and out-of-distribution conditions. The central result—that an episode-wise relative frame yields the best trade-off—is obtained by measuring outcomes on held-out test configurations rather than by any equation, parameter fit, or uniqueness theorem that reduces to the inputs by construction. No self-citations are invoked to justify load-bearing premises, no ansatzes are smuggled, and no known empirical patterns are merely renamed. The derivation chain is therefore empty; the claim rests on observable experimental differences and is self-contained against the reported benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Work is purely empirical; no free parameters, axioms, or invented entities are invoked in the abstract.

pith-pipeline@v0.9.0 · 5488 in / 882 out tokens · 35420 ms · 2026-05-14T19:03:32.513350+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages · 1 internal anchor

  1. [1]

    Airoa moma dataset: A large-scale hierarchical dataset for mobile manipulation,

    R. Takanami, P. Khrapchenkov, S. Morikuni, J. Arima, Y . Takaba, S. Maeda, T. Okubo, G. Sano, S. Sekioka, A. Kadoya, M. Kambara, N. Nishiura, H. Suzuki, T. Yoshimoto, K. Sakamoto, S. Ono, Y . Ko, D. Yashima, A. Horo, T. Motoda, K. Chiyoma, H. Ito, K. Fukuda, A. Goto, K. Morinaga, Y . Ikeda, R. Kawada, M. Yoshikawa, N. Ko- suge, Y . Noguchi, K. Ota, T. Mat...

    work page 2025

  2. [2]

    Tidybot++: An open-source holonomic mobile manipulator for robot learning,

    J. Wu, W. Chong, R. Holmberg, A. Prasad, Y . Gao, O. Khatib, S. Song, S. Rusinkiewicz, and J. Bohg, “Tidybot++: An open-source holonomic mobile manipulator for robot learning,” inConference on Robot Learning, 2024

    work page 2024

  3. [3]

    An autonomous mobile robot navigation architecture for dynamic intralogistics,

    D. Taranta, F. Marques, A. Lourenc ¸o, P. A. Prates, A. Souto, E. Pinto, and J. Barata, “An autonomous mobile robot navigation architecture for dynamic intralogistics,” in2021 IEEE 19th International Confer- ence on Industrial Informatics (INDIN), 2021, pp. 1–6

    work page 2021

  4. [4]

    The design of stretch: A compact, lightweight mobile manipulator for indoor human environments,

    C. C. Kemp, A. Edsinger, H. M. Clever, and B. Matulevich, “The design of stretch: A compact, lightweight mobile manipulator for indoor human environments,” in2022 International Conference on Robotics and Automation (ICRA). IEEE Press, 2022, p. 3150–3157. [Online]. Available: https://doi.org/10.1109/ICRA46639. 2022.9811922

    work page doi:10.1109/icra46639 2022

  5. [5]

    Telexistence, “Ghost,” https://tx-inc.com/en/technology/, online; ac- cessed 13-Apr-2026

    work page 2026

  6. [6]

    End-to-end training of deep visuomotor policies,

    S. Levine, C. Finn, T. Darrell, and P. Abbeel, “End-to-end training of deep visuomotor policies,”J. Mach. Learn. Res., vol. 17, no. 1, p. 1334–1373, Jan. 2016

    work page 2016

  7. [7]

    Vision- language-action models for robotics: A review towards real-world applications,

    K. Kawaharazuka, J. Oh, J. Yamada, I. Posner, and Y . Zhu, “Vision- language-action models for robotics: A review towards real-world applications,”IEEE Access, vol. 13, pp. 162 467–162 504, 2025

    work page 2025

  8. [8]

    A comprehensive review of vision- based robotic applications: Current state, components, approaches, barriers, and potential solutions,

    M. T. Shahria, M. S. H. Sunny, M. I. I. Zarif, J. Ghommam, S. I. Ahamed, and M. H. Rahman, “A comprehensive review of vision- based robotic applications: Current state, components, approaches, barriers, and potential solutions,”Robotics, vol. 11, no. 6, 2022. [Online]. Available: https://www.mdpi.com/2218-6581/11/6/139

    work page 2022

  9. [9]

    Universal manipulation interface: In-the-wild robot teaching without in-the-wild robots,

    C. Chi, Z. Xu, C. Pan, E. Cousineau, B. Burchfiel, S. Feng, R. Tedrake, and S. Song, “Universal manipulation interface: In-the-wild robot teaching without in-the-wild robots,” inProceedings of Robotics: Science and Systems (RSS), 2024

    work page 2024

  10. [10]

    Tax-pose: Task- specific cross-pose estimation for robot manipulation,

    C. Pan, B. Okorn, H. Zhang, B. Eisner, and D. Held, “Tax-pose: Task- specific cross-pose estimation for robot manipulation,” inProceedings of The 6th Conference on Robot Learning, ser. Proceedings of Machine Learning Research, K. Liu, D. Kulic, and J. Ichnowski, Eds., vol. 205. PMLR, 14–18 Dec 2023, pp. 1783–1792. [Online]. Available: https://proceedings....

    work page 2023

  11. [11]

    Viola: Imitation learning for vision-based manipulation with object proposal priors,

    Y . Zhu, A. Joshi, P. Stone, and Y . Zhu, “Viola: Imitation learning for vision-based manipulation with object proposal priors,”6th Annual Conference on Robot Learning (CoRL), 2022

    work page 2022

  12. [12]

    Learning Fine-Grained Bimanual Manipulation with Low-Cost Hardware

    T. Z. Zhao, V . Kumar, S. Levine, and C. Finn, “Learning fine-grained bimanual manipulation with low-cost hardware,”arXiv preprint arXiv:2304.13705, 2023

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  13. [13]

    When would vision- proprioception policies fail in robotic manipulation?

    J. Lu, W. Xia, Y . Wu, Z. Lu, and D. Hu, “When would vision- proprioception policies fail in robotic manipulation?” 2026. [Online]. Available: https://arxiv.org/abs/2602.12032

    work page arXiv 2026

  14. [14]

    Multi-agent actor-critic for mixed cooperative-competitive environ- ments,

    R. Lowe, Y . Wu, A. Tamar, J. Harb, P. Abbeel, and I. Mordatch, “Multi-agent actor-critic for mixed cooperative-competitive environ- ments,” inProceedings of the 31st International Conference on Neural Information Processing Systems, ser. NIPS’17. Red Hook, NY , USA: Curran Associates Inc., 2017, p. 6382–6393

    work page 2017

  15. [15]

    Learning task space actions for bipedal locomotion,

    H. Duan, J. Dao, K. Green, T. Apgar, A. Fern, and J. Hurst, “Learning task space actions for bipedal locomotion,” in2021 IEEE International Conference on Robotics and Automation (ICRA), 2021, pp. 1276– 1282

    work page 2021

  16. [16]

    Zeromimic: Distilling robotic manipulation skills from web videos,

    J. Shi, Z. Zhao, T. Wang, I. Pedroza, A. Luo, J. Wang, J. Ma, and D. Jayaraman, “Zeromimic: Distilling robotic manipulation skills from web videos,” inInternational Conference on Robotics and Automation (ICRA), 2025

    work page 2025

  17. [17]

    Dreamvla: a vision-language-action model dreamed with comprehen- sive world knowledge

    J. Zhao, W. Lu, D. Zhang, Y . Liu, Y . Liang, T. Zhang, Y . Cao, J. Xie, Y . Hu, S. Wang, J. Guo, D. Wang, and Y . Gao, “Do you need proprioceptive states in visuomotor policies?” 2025. [Online]. Available: https://arxiv.org/abs/2509.18644

    work page arXiv 2025

  18. [18]

    Ftact: Force torque aware action chunking transformer for pick-and-reorient bottle task,

    R. Watanabe, M. Alvarez, P. Ferreiro, P. Savkin, and G. Sano, “Ftact: Force torque aware action chunking transformer for pick-and-reorient bottle task,” 2025. [Online]. Available: https: //arxiv.org/abs/2509.23112

    work page arXiv 2025

  19. [19]

    Dinov2: Learning robust visual features without supervision,

    M. Oquab, T. Darcet, T. Moutakanni, H. V . V o, M. Szafraniec, V . Khalidov, P. Fernandez, D. Haziza, F. Massa, A. El-Nouby, R. Howes, P.-Y . Huang, H. Xu, V . Sharma, S.-W. Li, W. Galuba, M. Rabbat, M. Assran, N. Ballas, G. Synnaeve, I. Misra, H. Jegou, J. Mairal, P. Labatut, A. Joulin, and P. Bojanowski, “Dinov2: Learning robust visual features without ...

    work page 2023
