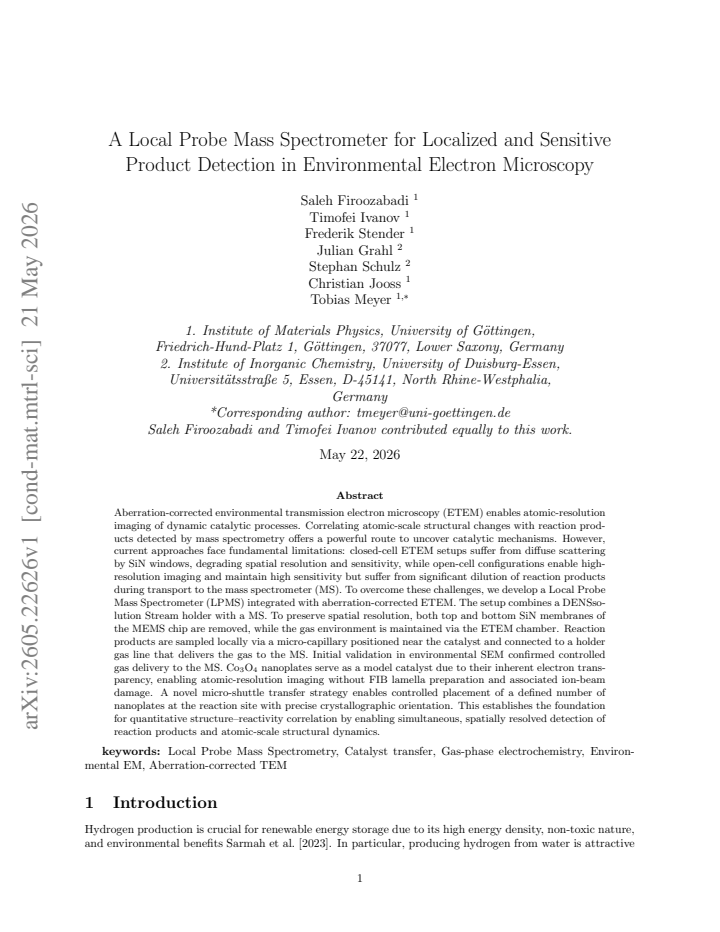

A Local Probe Mass Spectrometer for Localized and Sensitive Product Detection in Environmental Electron Microscopy

Christian Jooss; Frederik Stender; Julian Grahl; Saleh Firoozabadi; Stephan Schulz; Timofei Ivanov; Tobias Meyer

arxiv: 2605.22626 · v2 · pith:ZBZIHX6Qnew · submitted 2026-05-21 · ❄️ cond-mat.mtrl-sci

A Local Probe Mass Spectrometer for Localized and Sensitive Product Detection in Environmental Electron Microscopy

Saleh Firoozabadi , Timofei Ivanov , Frederik Stender , Julian Grahl , Stephan Schulz , Christian Jooss , Tobias Meyer This is my paper

Pith reviewed 2026-05-22 03:54 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords environmental transmission electron microscopymass spectrometrylocal probecatalysisSiN membranesmicro-capillarynanoplatesCo3O4

0 comments

The pith

A local probe mass spectrometer samples reaction products near the catalyst while removing SiN membranes to enable atomic-resolution imaging and sensitive detection in ETEM.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a Local Probe Mass Spectrometer (LPMS) integrated with aberration-corrected environmental transmission electron microscopy. Existing closed-cell ETEM degrades resolution through diffuse scattering by SiN windows, while open-cell setups suffer from product dilution before reaching the mass spectrometer. The LPMS removes both SiN membranes to preserve imaging quality, maintains the gas environment in the ETEM chamber, and uses a micro-capillary positioned near the catalyst to deliver reaction products directly to the mass spectrometer via the holder gas line. Validation in environmental SEM confirms controlled delivery, and Co3O4 nanoplates are placed with a micro-shuttle for oriented, damage-free samples. This enables simultaneous spatially resolved product detection and atomic-scale structural observations to support quantitative structure-reactivity correlations in catalysis.

Core claim

The Local Probe Mass Spectrometer (LPMS) integrated with aberration-corrected ETEM combines local micro-capillary sampling of reaction products with removal of both top and bottom SiN membranes from the MEMS chip, preserving atomic-resolution imaging while delivering gases to the mass spectrometer for high-sensitivity detection and establishing the foundation for quantitative structure-reactivity correlations through simultaneous spatially resolved product detection and atomic-scale structural dynamics.

What carries the argument

Local Probe Mass Spectrometer (LPMS) that samples reaction products locally via a micro-capillary positioned near the catalyst and connected to a holder gas line for delivery to the mass spectrometer, integrated with a DENSsolution Stream holder and a MEMS chip with both SiN membranes removed.

If this is right

Atomic-resolution imaging of dynamic catalytic processes is achieved without diffuse scattering from SiN windows.
High sensitivity for reaction products is maintained by avoiding dilution during transport to the mass spectrometer.
Spatially resolved detection of reaction products can be correlated directly with local catalyst structural changes.
Oriented nanoplates can be placed without FIB-induced damage to serve as clean model catalysts for Co3O4 studies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The local sampling approach could extend to other in-situ microscopy methods to achieve spatially resolved chemical detection.
Variations in product distribution across different regions or particles on the sample might become observable in real time.
The micro-shuttle placement method could generalize to additional electron-transparent catalyst materials beyond Co3O4.

Load-bearing premise

The micro-capillary positioned near the catalyst and the removal of both SiN membranes will not introduce significant perturbations to the local gas environment, electron beam path, or imaging resolution.

What would settle it

Experiments showing no gain in atomic resolution or mass spectrometer sensitivity compared to standard open-cell ETEM, or unexpected alterations in detected gas composition attributable to the capillary or membrane removal.

Figures

Figures reproduced from arXiv: 2605.22626 by Christian Jooss, Frederik Stender, Julian Grahl, Saleh Firoozabadi, Stephan Schulz, Timofei Ivanov, Tobias Meyer.

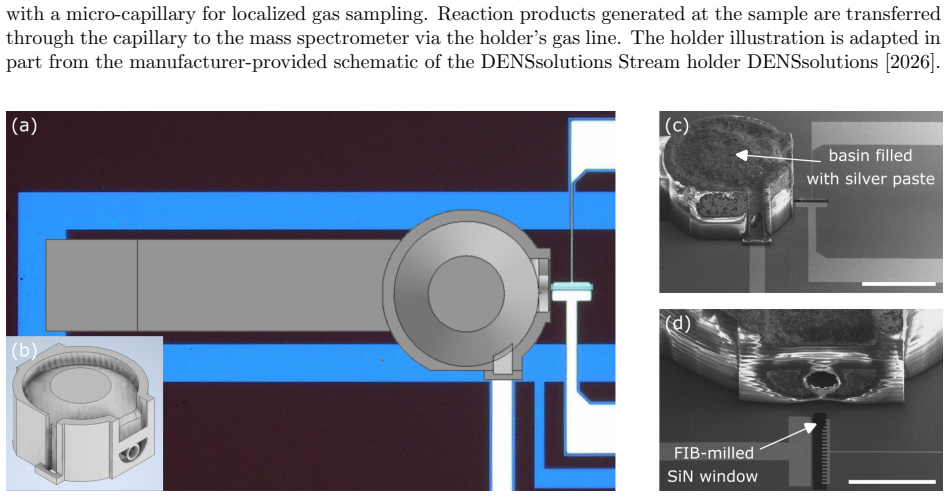

**Figure 2.** Figure 2: Geometry, positioning, and electrical design of the micro-capillary on the MEMS chip. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

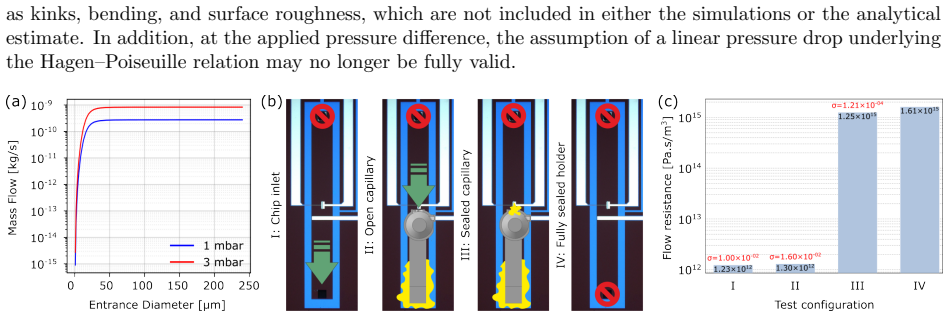

**Figure 3.** Figure 3: Gas transport and flow characterization of the capillary. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
