BYOT-CPS: A Hybrid Cyber-Physical Systems Testbed for IoT Security Assessment and Platform Evaluation

Yan Lin Aung , Nelson Che Neba This is my paper

Pith reviewed 2026-05-25 05:22 UTC · model grok-4.3

classification 💻 cs.CR
keywords IoT securityhybrid testbedcyber-physical systemsGNS3security experimentationpenetration testingMirai attack
0
0 comments X

The pith

BYOT-CPS links real IoT devices to virtual GNS3 networks to enable realistic security experiments without full physical labs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

IoT security research faces a gap where simulations lack real device behaviors and physical testbeds are expensive and hard to replicate. The paper introduces BYOT-CPS as a hybrid system that connects actual smart devices to emulated network zones built on GNS3. It defines six requirements for an effective testbed—fidelity to hardware, support for varied devices, scalability, reproducibility, extensibility, and independence from vendors—and shows a prototype using bulbs, plugs, switches, and cameras alongside virtual attack and monitoring areas. Demonstrations include penetration testing, traffic monitoring, and a Mirai-style denial-of-service attack. A sympathetic reader would see this as a way to make controlled, repeatable IoT security work more accessible across institutions.

Core claim

The paper presents BYOT-CPS, a hybrid cyber-physical testbed that integrates real IoT devices with virtualised network infrastructure on GNS3 to support security experimentation while preserving authentic device behaviour. It defines six requirements (fidelity, heterogeneity, scalability, reproducibility, extensibility, and independence) and uses a prototype deployment with smart bulbs, plugs, switches, and IP cameras connected to virtual enterprise, server, attack, and monitoring zones to demonstrate hybrid connectivity, penetration testing workflows, a Mirai-style attack, traffic monitoring, and controlled device manipulation. The evidence is framed as feasibility validation rather than a

What carries the argument

The hybrid connectivity layer that joins physical IoT devices to GNS3 virtual networks, allowing real firmware and hardware responses to interact with controlled virtual attack and monitoring environments.

If this is right

  • Security experiments such as penetration testing and denial-of-service attacks become reproducible with authentic device responses.
  • Vendor-neutral evaluation of commercial IoT security platforms can occur inside a controlled hybrid environment.
  • Smaller research groups gain access to realistic IoT testing without assembling costly dedicated physical laboratories.
  • Experiments can scale by adding more virtual infrastructure while keeping a small number of real devices for fidelity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could lower the cost barrier for educational institutions to run IoT security courses with hands-on device interaction.
  • Extending the testbed to include additional device categories would test the heterogeneity requirement more broadly.
  • Direct comparisons between BYOT-CPS results and pure physical testbeds could measure any fidelity gaps introduced by the virtual network layer.

Load-bearing premise

The limited prototype deployment with specific devices and GNS3 sufficiently validates the six requirements for broader use in security experimentation.

What would settle it

An experiment showing that swapping the physical devices or reconfiguring the virtual zones produces inconsistent attack outcomes or device responses compared to the reported prototype.

Figures

Figures reproduced from arXiv: 2605.23059 by Nelson Che Neba, Yan Lin Aung.

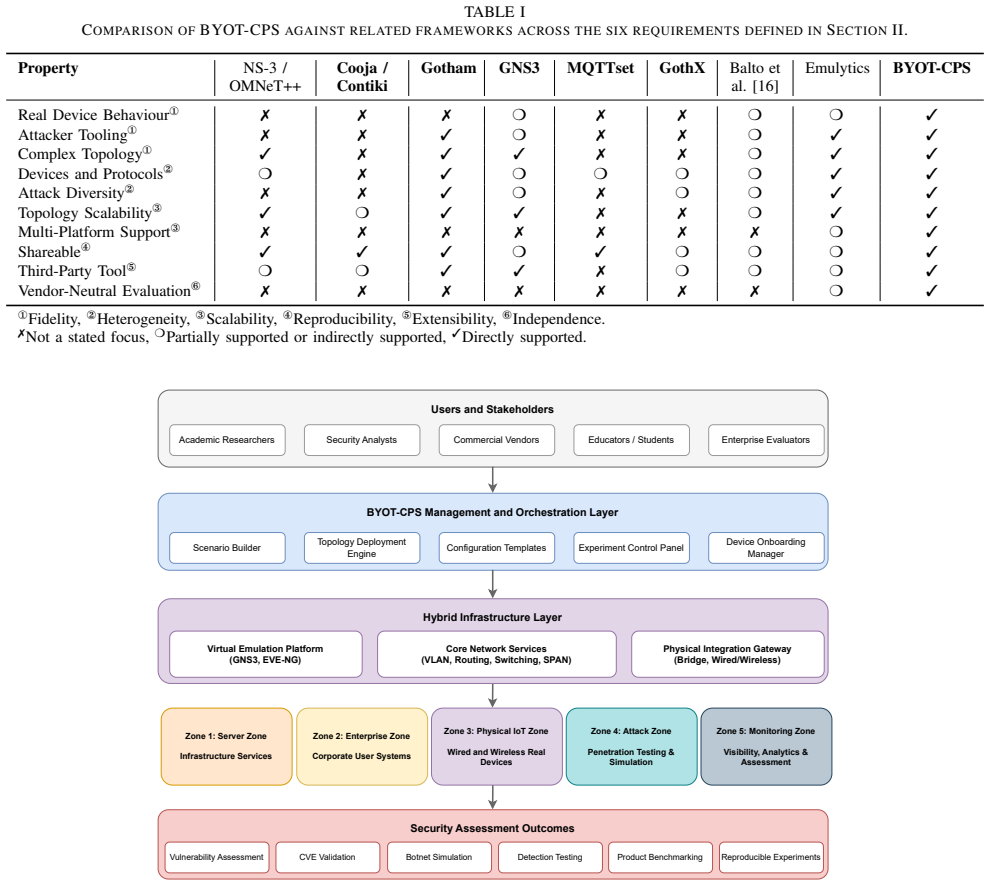

Figure 1
Figure 1. Figure 1: Layered architecture of the BYOT-CPS framework. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

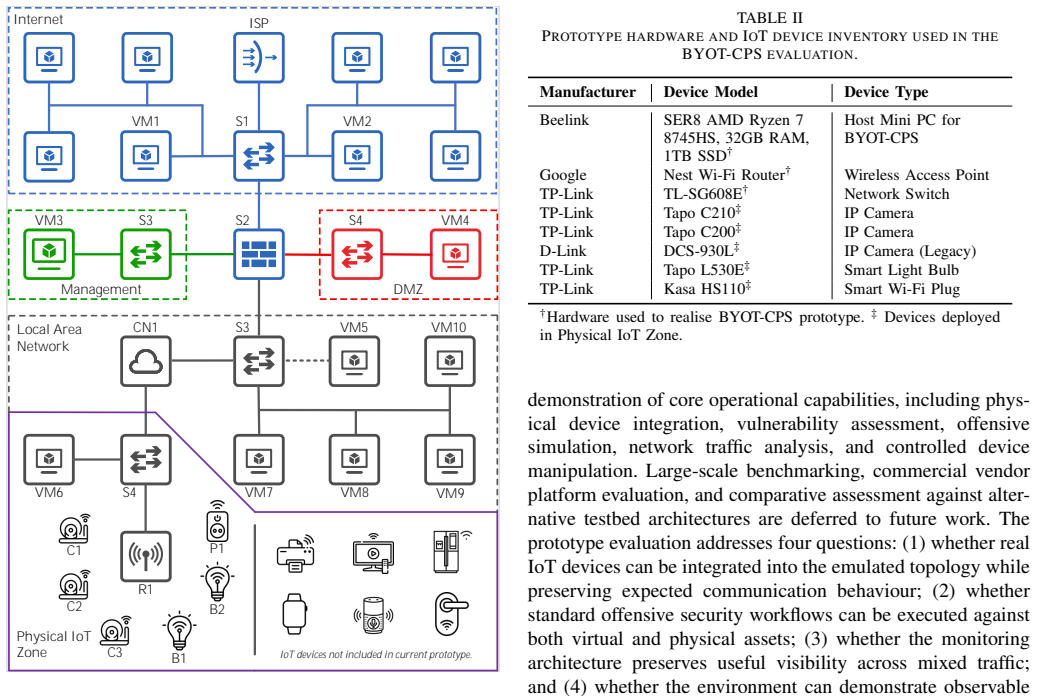

Figure 2
Figure 2. Figure 2: Reference topology of the BYOT-CPS testbed. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

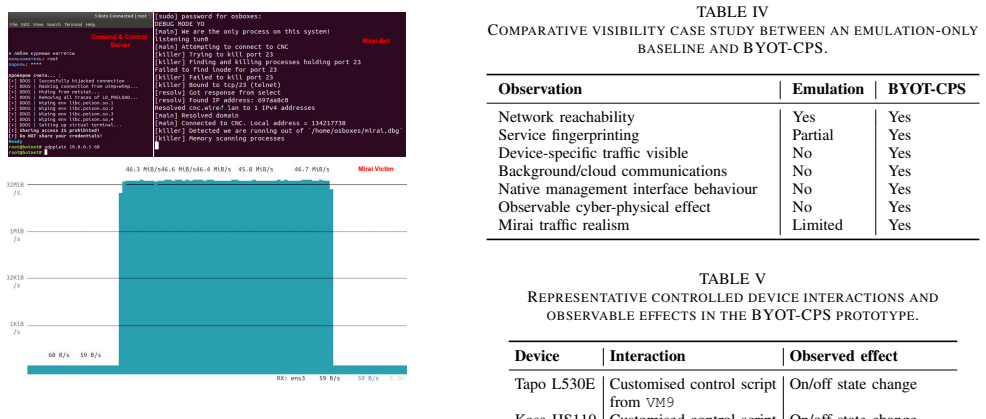

Figure 3
Figure 3. Figure 3: Mirai-style denial-of-service scenario in BYOT-CPS [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
read the original abstract

Internet of Things (IoT) security research continues to face a methodological gap between scalable virtual experimentation and realistic device behaviour. While pure simulation and emulation platforms provide control, repeatability, and scale, they do not fully reproduce firmware-specific behaviours, hardware characteristics, and vendor implementation weaknesses that frequently determine real-world exploitability. Conversely, physicalonly testbeds provide realism but are costly to assemble, difficult to reconfigure, and hard to replicate across institutions. This paper presents Build Your Own Cyber-Physical Systems Testbed (BYOT-CPS), a hybrid cyber-physical testbed that connects real IoT devices to virtualised network infrastructure built on GNS3. BYOT-CPS is designed to support security experimentation, education, and independent evaluation of commercial IoT security platforms within a controlled environment that preserves authentic device behaviour. Six requirements for such a testbed are defined: fidelity, heterogeneity, scalability, reproducibility, extensibility, and independence. A prototype deployment integrating smart bulbs, smart plugs, switches, and IP cameras with virtual enterprise, server, attack, and monitoring zones is used to demonstrate hybrid connectivity, penetration testing workflows, a Mirai-style denial-of-service attack, traffic monitoring, and controlled device manipulation. The evidence presented constitutes a feasibility validation of the framework rather than a largescale comparative benchmark. Within that scope, BYOT-CPS offers a practical middle ground between emulation-only research environments and costly physical laboratories while positioning vendor-neutral platform evaluation as a forward-looking design objective.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper presents BYOT-CPS, a hybrid cyber-physical testbed that connects real IoT devices (smart bulbs, plugs, switches, IP cameras) to virtualized network infrastructure via GNS3. It defines six requirements (fidelity, heterogeneity, scalability, reproducibility, extensibility, independence) for IoT security testbeds and uses a prototype deployment with enterprise, server, attack, and monitoring zones to demonstrate hybrid connectivity, penetration testing, a Mirai-style DoS attack, traffic monitoring, and device manipulation. The central claim is scoped as a feasibility demonstration rather than large-scale validation or comparative benchmarks.

Significance. If the feasibility demonstration holds, BYOT-CPS would offer a practical, lower-cost middle ground between emulation-only platforms and physical laboratories for IoT security experimentation and vendor-neutral platform evaluation, while preserving authentic device behaviors. The work is a concrete system construction with working prototype examples of connectivity and attacks; this construction approach is a strength, though the absence of quantitative benchmarks or cross-institution replication limits broader claims.

minor comments (2)
  1. [Prototype deployment section] The prototype description (real devices + GNS3) illustrates the six requirements but does not include explicit metrics or tests showing how scalability and reproducibility are achieved beyond the small deployment; a table or subsection mapping each requirement to concrete prototype features would strengthen the feasibility claim.
  2. [Abstract and Introduction] The abstract states the evidence is a 'feasibility validation' rather than large-scale benchmark; this scoping is appropriate but could be reinforced in the introduction and conclusion to prevent readers from overgeneralizing the single-deployment results.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their constructive summary and positive assessment of BYOT-CPS as a practical hybrid testbed. We appreciate the recommendation for minor revision and the recognition that the work constitutes a feasibility demonstration rather than large-scale validation.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper describes the construction and prototype demonstration of a hybrid IoT testbed (BYOT-CPS) using real devices connected to GNS3 virtual networks. It defines six requirements (fidelity, heterogeneity, scalability, reproducibility, extensibility, independence) and illustrates them via a small-scale setup with smart bulbs, plugs, cameras, and attack scenarios. No mathematical derivations, equations, fitted parameters, predictions, or uniqueness theorems appear in the text. The central claim is explicitly scoped as a feasibility demonstration rather than generalizability or benchmark validation, with no self-citation chains or ansatzes that reduce the contribution to its own inputs. The work is self-contained as an engineering artifact with independent content.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced; the paper describes an engineering construction relying on existing tools (GNS3) and standard IoT devices without postulating new entities or fitting parameters.
