Depth Peeling for High-Fidelity Gaussian-Enhanced Surfel Rendering

Keyang Ye , Hongzhi Wu , Kun Zhou This is my paper

Pith reviewed 2026-06-29 20:02 UTC · model grok-4.3

classification 💻 cs.GR cs.CV
keywords depth peelingGaussian-enhanced surfelssort-free renderingtransmittance modulationnovel view synthesisaliasing artifacts3D Gaussian splattingsurfels
0
0 comments X

The pith

Augmenting Gaussian-enhanced surfels with semi-transparent boundaries and applying depth peeling yields correct per-pixel ordering for sort-free rendering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces DP-GES by adding semi-transparent boundaries to the opaque surfels of Gaussian-Enhanced Surfels. Depth peeling then determines the precise order of these boundaries at each pixel to support accurate color blending. This produces sort-free Gaussian splatting that applies correct transmittance modulation. The changes remove aliasing and popping while allowing fully differentiable optimization of the full representation. Experiments across scenes show improved reconstruction quality over prior methods.

Core claim

DP-GES augments opaque surfels with semi-transparent boundaries and leverages Depth Peeling to establish accurate per-pixel ordering. This design enables sort-free Gaussian splatting with correct transmittance modulation, effectively eliminating aliasing and popping artifacts while facilitating a fully differentiable joint optimization.

What carries the argument

Depth Peeling applied to semi-transparent surfel boundaries to compute per-pixel ordering and transmittance

If this is right

  • Correct transmittance modulation without sorting primitives
  • Removal of aliasing and popping artifacts in rendered views
  • Support for fully differentiable joint optimization of the representation
  • Higher reconstruction quality than previous sort-free approaches across tested scenes

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The per-pixel ordering step could be adapted to other point or surfel representations that currently rely on approximate blending.
  • Differentiability may allow tighter coupling with gradient-based reconstruction pipelines that optimize both geometry and appearance.
  • Reduced popping could improve temporal stability when the method is applied to video or dynamic scene capture.

Load-bearing premise

Depth peeling on semi-transparent surfel boundaries will produce accurate per-pixel ordering and transmittance modulation without new artifacts or costs that offset the sort-free advantage.

What would settle it

Side-by-side renders of the same scene showing visible aliasing or popping artifacts in DP-GES output, or quantitative metrics such as PSNR no higher than the baseline GES method.

Figures

Figures reproduced from arXiv: 2605.25345 by Hongzhi Wu, Keyang Ye, Kun Zhou.

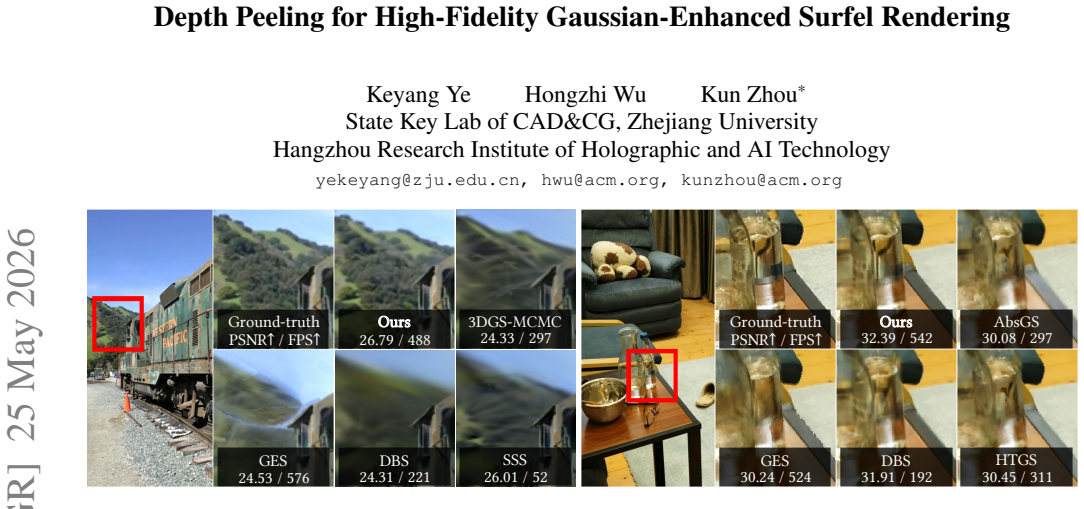

Figure 1
Figure 1. Figure 1: Our novel representation achieves fast, high-fidelity and popping-free rendering, outperforming state-of-the-art techniques: [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

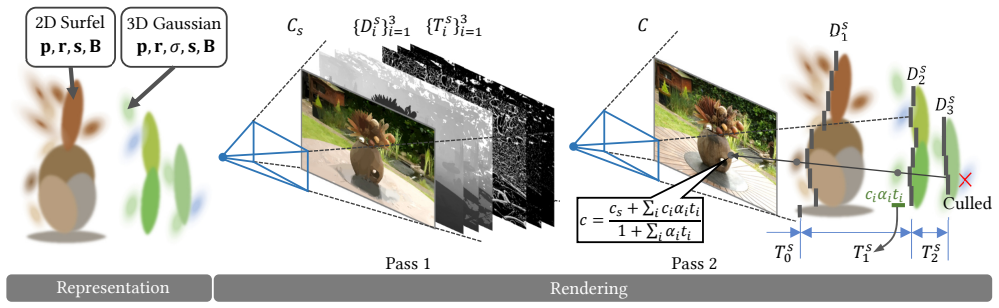

Figure 2
Figure 2. Figure 2: Representation and rendering pipeline of DP-GES. The DP-GES representation is composed of a set of 2D opaque surfels with [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

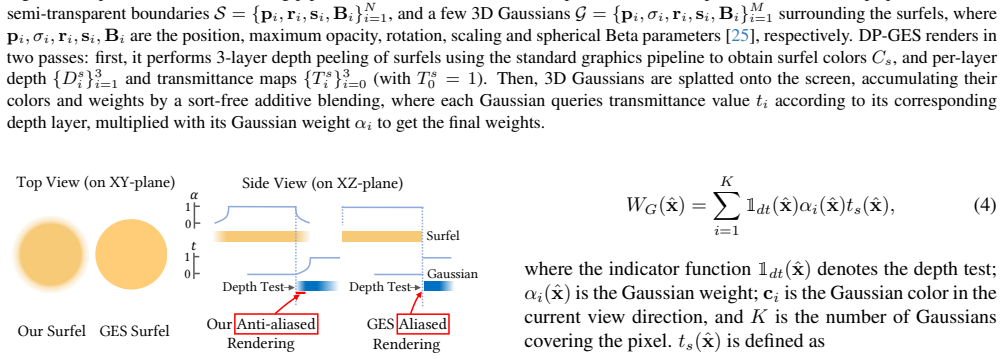

Figure 3
Figure 3. Figure 3: Comparison of our surfel representation and the sur [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

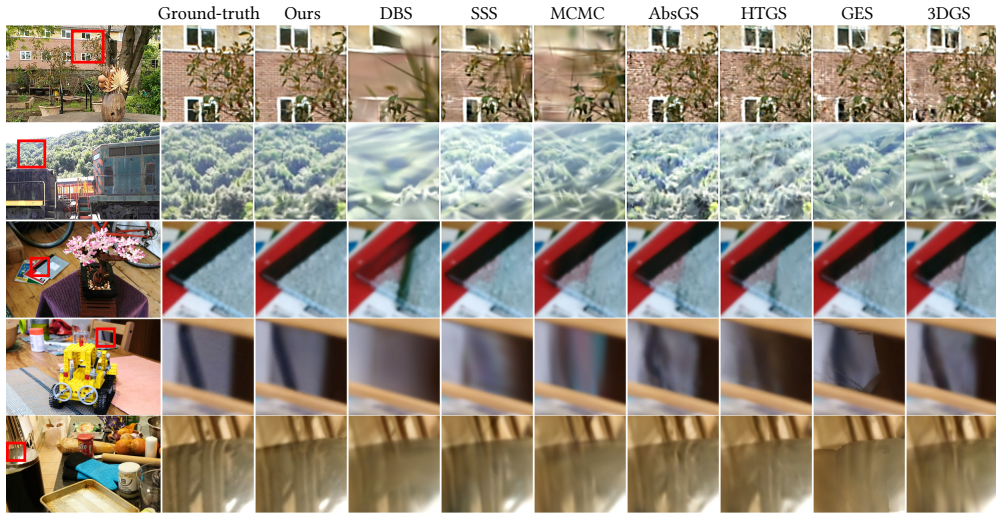

Figure 4. Figure 4: Qualitative comparisons on image quality. From top to bottom: [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

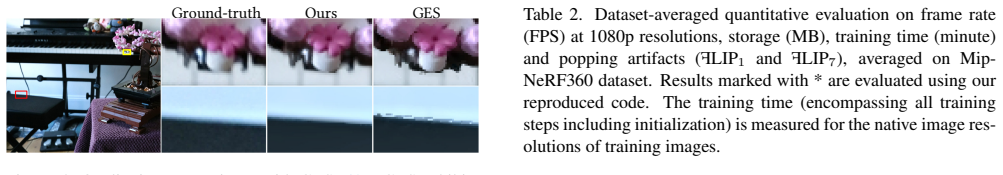

Figure 5. Figure 5: Qualitative comparisons with GES [42]. GES exhibits noticeable aliasing artifacts due to its depth test. Ground-truth Ours GES [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

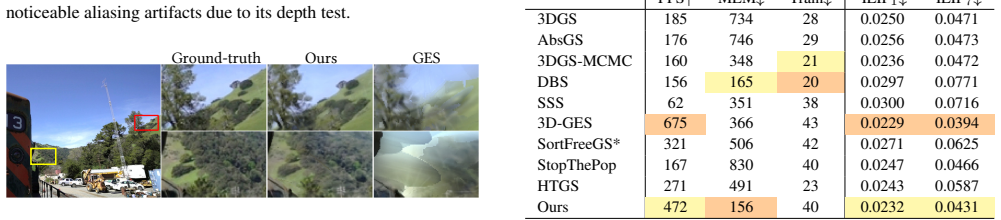

Figure 6. Figure 6: Qualitative comparisons with GES [ [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 8

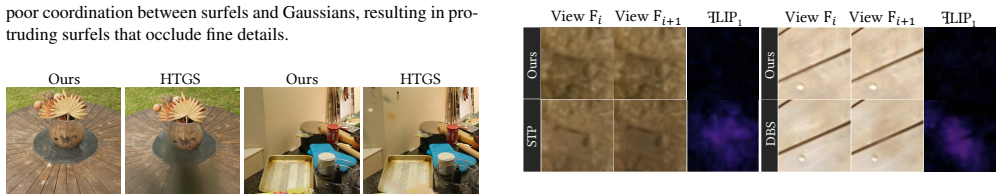

Figure 8. Figure 8: Qualitative comparisons of “popping” artifacts. The [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9

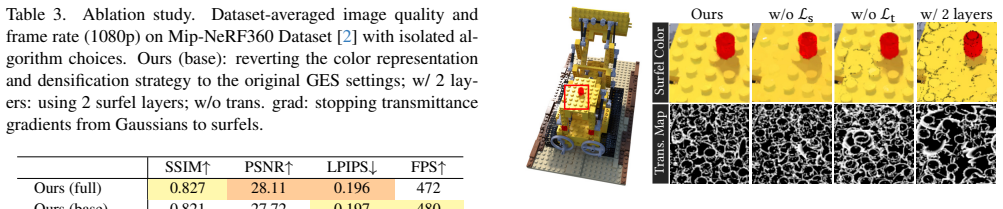

Figure 9. Figure 9: Qualitative comparisons of rendered surfel colors with [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10

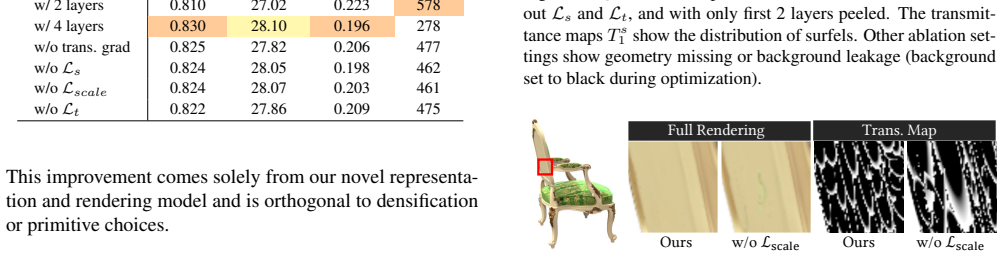

Figure 10. Figure 10: Qualitative comparisons of images rendered without [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 11

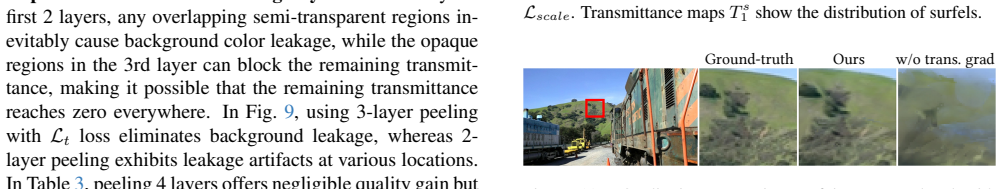

Figure 11. Figure 11: Qualitative comparisons of images rendered with [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗

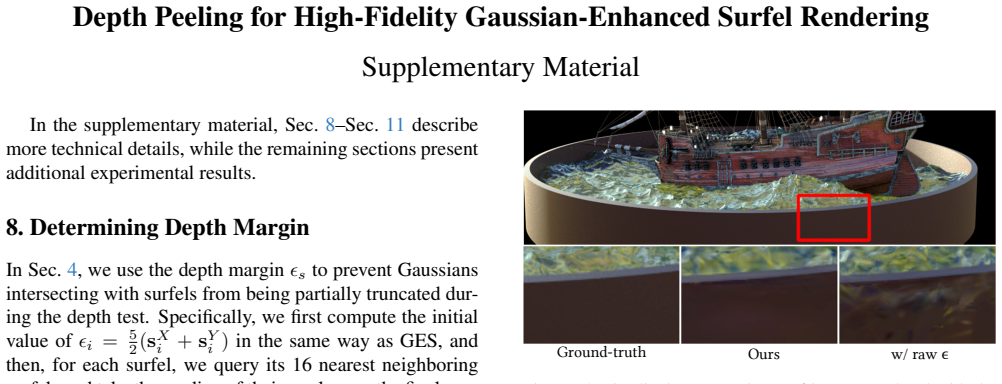

Figure 12
Figure 12. Figure 12: Qualitative comparisons of images rendered with the [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
Figure 13

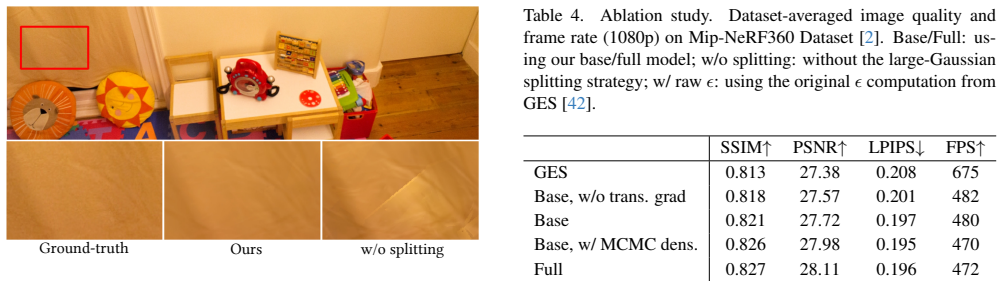

Figure 13. Figure 13: Qualitative comparisons of images rendered without [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗

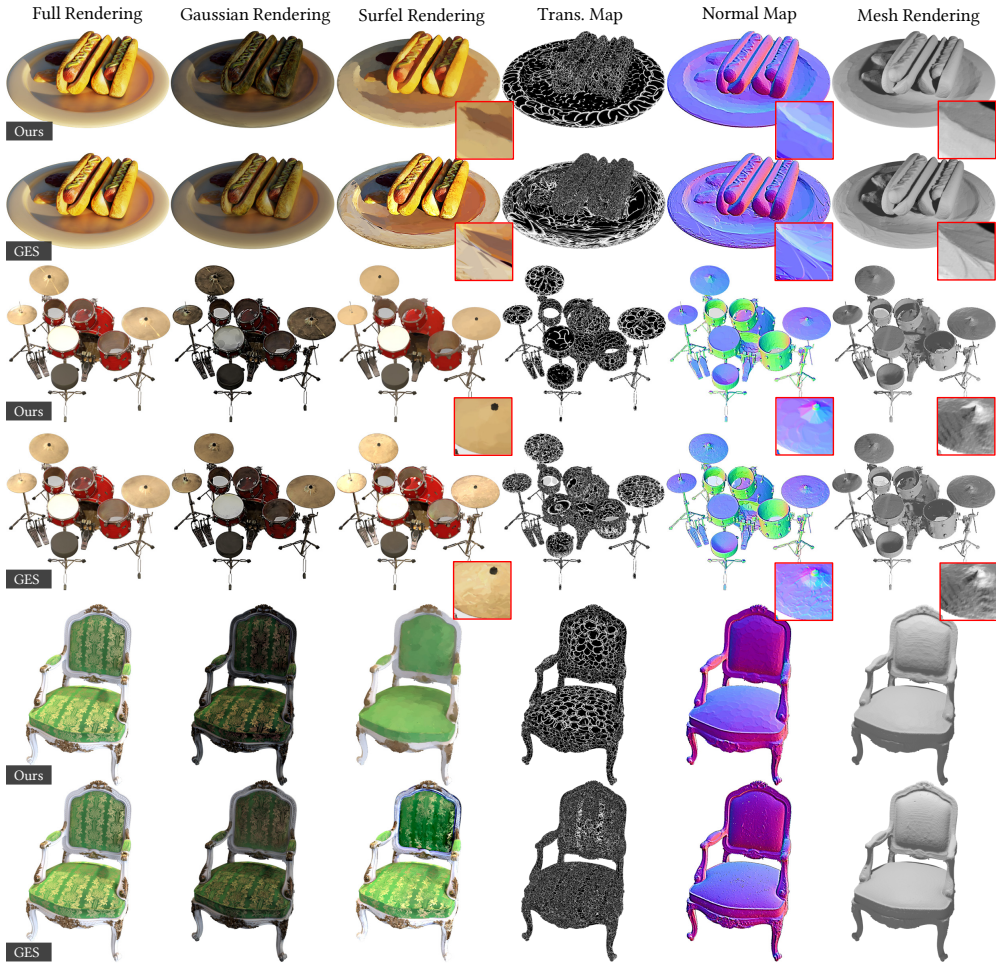

Figure 14
Figure 14. Figure 14: Qualitative comparisons between our DP-GES and GES [ [PITH_FULL_IMAGE:figures/full_fig_p013_14.png] view at source ↗
read the original abstract

Novel view synthesis has been significantly advanced by NeRFs and 3D Gaussian Splatting (3DGS), which require ordering volumetric samples or primitives for correct color blending. While the recent Gaussian-Enhanced Surfels (GES) enable high-performance, sort-free rendering, they suffer from aliasing artifacts and suboptimal reconstruction. To address these limitations, we propose DP-GES, a novel representation that augments opaque surfels with semi-transparent boundaries and leverages Depth Peeling to establish accurate per-pixel ordering. This design enables sort-free Gaussian splatting with correct transmittance modulation, effectively eliminating aliasing and popping artifacts while facilitating a fully differentiable joint optimization. Extensive experiments demonstrate that our method achieves superior reconstruction quality and compares favorably against state-of-the-art techniques across a wide range of scenes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 0 minor

Summary. The paper proposes DP-GES, a novel representation that augments Gaussian-Enhanced Surfels (GES) with semi-transparent boundaries and applies depth peeling to obtain accurate per-pixel ordering. This enables sort-free Gaussian splatting with correct transmittance modulation, claimed to eliminate aliasing and popping artifacts while supporting fully differentiable joint optimization. Extensive experiments are said to show superior reconstruction quality relative to state-of-the-art methods across diverse scenes.

Significance. If the depth-peeling construction delivers the claimed ordering and transmittance accuracy without offsetting costs, the work would meaningfully advance high-performance novel-view synthesis by reconciling the performance benefits of sort-free surfel methods with the blending correctness previously requiring explicit sorting or volumetric ordering.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their review of our manuscript on DP-GES. We appreciate the positive framing of the work's potential significance in reconciling sort-free rendering with correct blending. No specific major comments were listed in the report, so we provide no point-by-point responses below.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The abstract and description contain no equations, derivations, self-citations, or load-bearing steps that reduce predictions or results to fitted inputs by construction. The method is presented at a conceptual level without any claimed derivation chain, uniqueness theorems, or ansatzes that could be inspected for circularity. This matches the default case of a self-contained high-level description with no identifiable reduction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no identifiable free parameters, axioms, or invented entities.
