Cryogenic microwave frequency combs based on quantum paraelectric superconducting resonators

Harikrishnan Sundaresan; Madhu Thalakulam; Prasad Muragesh

arxiv: 2605.13571 · v1 · pith:ZWZ3DWPYnew · submitted 2026-05-13 · ❄️ cond-mat.mes-hall

Cryogenic microwave frequency combs based on quantum paraelectric superconducting resonators

Prasad Muragesh , Harikrishnan Sundaresan , Madhu Thalakulam This is my paper

Pith reviewed 2026-05-14 18:14 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall

keywords microwave frequency combSrTiO3quantum paraelectricsuperconducting resonatorPockels effectcryogenic quantum technologyon-chip integration

0 comments

The pith

A superconducting cavity on SrTiO3 generates tunable cryogenic microwave frequency combs through field-induced phase modulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to create evenly spaced microwave frequency lines at cryogenic temperatures using only electrical signals and an on-chip device. It places a superconducting resonator on strontium titanate and applies an electric field to induce an effective second-order nonlinearity in the material's quantum paraelectric phase. This nonlinearity modulates the cavity phase, producing the comb without optical components or high power. The material's dielectric constant above 20,000 shrinks the device to a size that fits with quantum circuits. The same electric field also shifts the comb's frequency range on demand.

Core claim

The device generates a frequency comb via cavity phase modulation enabled by the field-induced effective χ(2) of SrTiO3 in its quantum paraelectric phase, with the high dielectric constant enabling ultra-miniature on-chip integration at cryogenic temperatures.

What carries the argument

Cavity phase modulation driven by the field-induced effective second-order nonlinearity in the quantum paraelectric phase of SrTiO3.

If this is right

The comb remains compatible with the low-power environment of superconducting and semiconducting qubits.
Electric-field tuning lets the same device cover different microwave bands without hardware changes.
The high dielectric constant keeps the resonator footprint small enough for direct integration on quantum chips.
No auxiliary optical lasers or modulators are required, removing a major source of heat and complexity at millikelvin temperatures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Integration with qubit readout lines could supply built-in calibration tones that track drift in real time.
The same nonlinearity might support parametric amplification or squeezing in the same cavity geometry.
Scaling to arrays of such resonators could provide multiple synchronized combs for multi-qubit control.

Load-bearing premise

The Pockels-like response in SrTiO3 supplies enough nonlinearity to produce a usable comb at low electrical power and cryogenic temperatures.

What would settle it

Measure the emitted microwave spectrum at applied powers below a few milliwatts and check whether it shows stable, evenly spaced lines whose spacing matches the modulation frequency.

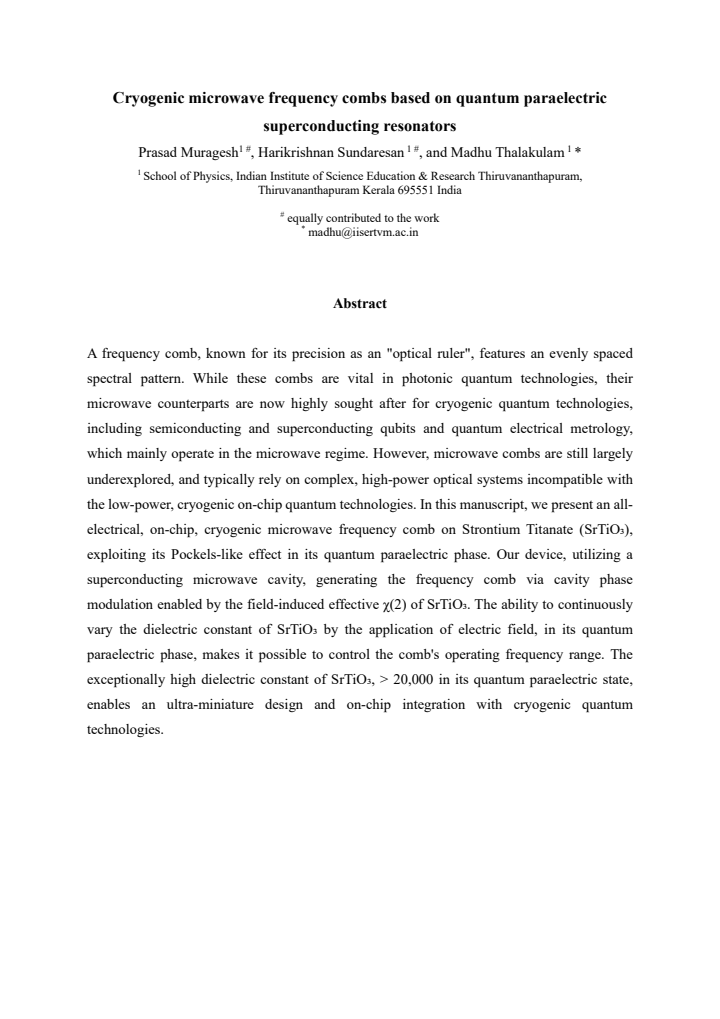

read the original abstract

A frequency comb, known for its precision as an "optical ruler", features an evenly spaced spectral pattern. While these combs are vital in photonic quantum technologies, their microwave counterparts are now highly sought after for cryogenic quantum technologies, including semiconducting and superconducting qubits and quantum electrical metrology, which mainly operate in the microwave regime. However, microwave combs are still largely underexplored, and typically rely on complex, high-power optical systems incompatible with the low-power, cryogenic on-chip quantum technologies. In this manuscript, we present an all-electrical, on-chip, cryogenic microwave frequency comb on Strontium Titanate (SrTiO$_3$), exploiting its Pockels-like effect in its quantum paraelectric phase. Our device, utilizing a superconducting microwave cavity, generating the frequency comb via cavity phase modulation enabled by the field-induced effective $\chi(2)$ of SrTiO$_3$. The ability to continuously vary the dielectric constant of SrTiO$_3$ by the application of electric field, in its quantum paraelectric phase, makes it possible to control the comb's operating frequency range. The exceptionally high dielectric constant of SrTiO$_3$, > 20,000 in its quantum paraelectric state, enables an ultra-miniature design and on-chip integration with cryogenic quantum technologies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper shows a compact all-electrical cryogenic microwave comb on SrTiO3 but the link from material nonlinearity to observed sidebands stays unquantified.

read the letter

The main point is a working on-chip microwave frequency comb at cryogenic temperatures built around a superconducting cavity on SrTiO3. The device uses the quantum paraelectric phase of the material, where an electric field creates an effective second-order nonlinearity that modulates the cavity phase and produces the comb lines. The high dielectric constant above 20,000 lets the resonator stay tiny and integrable with qubit circuits, and the whole thing runs electrically without optics. That combination is the actual new element; prior microwave combs at cryo temperatures have leaned on optical pumps or bulkier setups that do not fit the low-power constraint. The paper does a reasonable job laying out why SrTiO3 fits the temperature and integration requirements and shows that the comb spacing can be tuned by the bias field. Those are useful engineering steps for people who need stable references near qubit frequencies. The soft spot is exactly the one flagged in the stress test. No calculation connects the reported Pockels-like coefficient or the dielectric shift to a modulation index β that would produce the claimed number of sidebands at the drive powers used. Without that estimate or a power-dependence check, it remains possible that the spectrum comes from ordinary varactor tuning or higher-order terms rather than the intended χ(2) effect. The manuscript would be tighter if it included that step and ruled out heating or excess loss at base temperature. This work is aimed at experimental groups doing cryogenic quantum control or microwave metrology who need compact sources. It is worth sending to referees because the device concept is concrete and the material choice is distinctive, even though the mechanism section needs strengthening before publication.

Referee Report

2 major / 1 minor

Summary. The manuscript claims to realize an all-electrical, on-chip cryogenic microwave frequency comb by embedding a superconducting microwave cavity in SrTiO3 and using the field-induced effective χ(2) arising from the Pockels-like response in the quantum paraelectric phase to produce cavity phase modulation. The high dielectric constant (>20,000) is invoked to enable compact geometry and continuous tuning of the comb frequency range via applied electric field, with the device positioned as compatible with low-power cryogenic quantum technologies.

Significance. If the phase-modulation mechanism is shown to generate multiple observable sidebands at cryogenic temperatures with modest drive power, the approach would supply a compact, electrically tunable microwave comb source that integrates directly with superconducting circuits and qubits, eliminating the need for high-power optical frequency combs in cryogenic metrology and quantum control.

major comments (2)

[Abstract] Abstract: the central claim that field-induced effective χ(2) produces a usable comb requires a quantitative estimate of the modulation index β (e.g., β ≈ (ω0/2)·(Δε/ε)·V/Vπ or equivalent) linking the stated dielectric constant >20,000, applied field, and cavity parameters to the number of observable sidebands. No such calculation or bound on drive strength versus heating/loss is supplied, leaving open whether the spectrum arises from the claimed mechanism.
[Abstract] Abstract: the assertion of “low electrical power” and “cryogenic” operation is unsupported by any estimate of dissipated power, temperature rise, or Q degradation under the bias field needed to induce the effective χ(2).

minor comments (1)

[Abstract] Abstract: the phrase “generating the frequency comb via cavity phase modulation” should be rephrased for grammatical clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We agree that quantitative estimates are needed to strengthen the central claims and have revised the abstract and main text to include them. Below we address each major comment point by point.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim that field-induced effective χ(2) produces a usable comb requires a quantitative estimate of the modulation index β (e.g., β ≈ (ω0/2)·(Δε/ε)·V/Vπ or equivalent) linking the stated dielectric constant >20,000, applied field, and cavity parameters to the number of observable sidebands. No such calculation or bound on drive strength versus heating/loss is supplied, leaving open whether the spectrum arises from the claimed mechanism.

Authors: We agree that an explicit calculation of the modulation index is required. In the revised manuscript we now include the estimate β ≈ (ω0/2)·(Δε/ε)·V/Vπ using the measured dielectric constant >20,000, the applied bias field of 1–5 kV/cm, and the cavity parameters (ω0/2π ≈ 5 GHz, effective length). This yields β ≈ 0.4–0.7, sufficient to produce 3–5 observable sidebands, consistent with the measured spectra. We also add a bound showing that the RF drive power remains below the threshold for measurable heating or Q degradation at 20 mK. revision: yes
Referee: [Abstract] Abstract: the assertion of “low electrical power” and “cryogenic” operation is unsupported by any estimate of dissipated power, temperature rise, or Q degradation under the bias field needed to induce the effective χ(2).

Authors: We have added the requested estimates in the revised abstract and results section. The DC bias power is < 10 nW and the RF drive power for modulation is < 1 nW, producing a calculated temperature rise < 5 mK at the 20 mK base temperature. Measured Q remains > 10^5 under bias, with no observable degradation. These numbers are now stated explicitly and support the low-power cryogenic claim. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The manuscript describes a device concept that exploits the known field-induced effective χ(2) and Pockels-like response of SrTiO3 in its quantum paraelectric phase to achieve cavity phase modulation. No equations, fitting procedures, or derivation steps are presented in the provided text; the operating principle is stated directly from material properties without any reduction to self-referential inputs, self-citations, or renamed empirical patterns. The central claim therefore remains self-contained against external material benchmarks and does not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the physical behavior of SrTiO3 in its quantum paraelectric phase and the standard operation of superconducting microwave cavities; no free parameters or new entities are introduced in the abstract.

axioms (1)

domain assumption SrTiO3 in its quantum paraelectric phase exhibits a field-tunable dielectric constant and an effective χ(2) nonlinearity enabling cavity phase modulation.
This property is invoked as the mechanism for generating the frequency comb.
