Attentive CT Lesion Detection Using Deep Pyramid Inference with Multi-Scale Booster

Qingbin Shao , Lijun Gong , Kai Ma , Hualuo Liu , Yefeng Zheng This is my paper

Pith reviewed 2026-05-25 00:57 UTC · model grok-4.3

classification 💻 cs.CV
keywords CT lesion detectionmulti-scale boosterattention mechanismfeature pyramid networkhierarchically dilated convolutionsDeepLesion datasetobject detectiondeep learning
0
0 comments X

The pith

A multi-scale booster with channel and spatial attention in a feature pyramid network improves CT lesion detection across scales.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes to overcome the limitation of standard CNNs in detecting lesions of vastly different sizes in CT images. It adds a Multi-Scale Booster using hierarchically dilated convolutions at each level of a Feature Pyramid Network, plus channel and spatial attention modules to focus on relevant features. Experiments on the DeepLesion dataset show the resulting detector outperforms prior state-of-the-art methods. Readers would care because higher detection accuracy supports more reliable pathologic organ analysis in medical diagnosis. The approach directly targets scale variation and feature selection as the bottlenecks.

Core claim

The paper establishes that the Multi-Scale Booster (MSB) with channel and spatial attention integrated into the backbone Feature Pyramid Network (FPN) captures fine-grained scale variations by using Hierarchically Dilated Convolutions (HDC) in each pyramid level, while the attention modules increase the network's capability of selecting relevant feature responses for lesion detection, yielding superior performance against state-of-the-art approaches on the DeepLesion benchmark dataset.

What carries the argument

The Multi-Scale Booster (MSB) with channel and spatial attention modules, which applies Hierarchically Dilated Convolutions (HDC) inside each level of the Feature Pyramid Network (FPN) to handle scale variations.

Load-bearing premise

The reported accuracy gains come from the MSB and attention modules rather than from any unreported differences in training protocol, data augmentation, or hyperparameter choices.

What would settle it

A side-by-side retraining of the baseline FPN models and the proposed model using identical training settings, augmentation, and hyperparameters, followed by checking whether the performance gap remains.

Figures

Figures reproduced from arXiv: 1907.03958 by Hualuo Liu, Kai Ma, Lijun Gong, Qingbin Shao, Yefeng Zheng.

Figure 1
Figure 1. Figure 1: Lesion detection results. The red bounding boxes represent ground truth [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

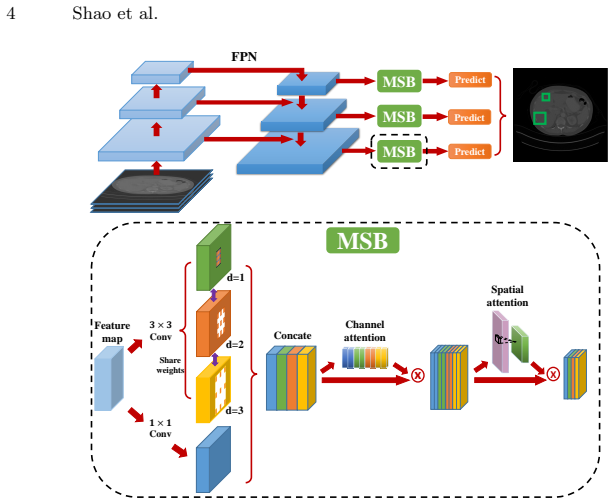

Figure 2. Figure 2: Frameworks of the proposed approach. The detailed architecture of the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
read the original abstract

Accurate lesion detection in computer tomography (CT) slices benefits pathologic organ analysis in the medical diagnosis process. More recently, it has been tackled as an object detection problem using the Convolutional Neural Networks (CNNs). Despite the achievements from off-the-shelf CNN models, the current detection accuracy is limited by the inability of CNNs on lesions at vastly different scales. In this paper, we propose a Multi-Scale Booster (MSB) with channel and spatial attention integrated into the backbone Feature Pyramid Network (FPN). In each pyramid level, the proposed MSB captures fine-grained scale variations by using Hierarchically Dilated Convolutions (HDC). Meanwhile, the proposed channel and spatial attention modules increase the network's capability of selecting relevant features response for lesion detection. Extensive experiments on the DeepLesion benchmark dataset demonstrate that the proposed method performs superiorly against state-of-the-art approaches.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes augmenting a Feature Pyramid Network (FPN) backbone for CT lesion detection with a Multi-Scale Booster (MSB) that applies Hierarchically Dilated Convolutions (HDC) at each pyramid level to capture fine-grained scale variations, together with dedicated channel and spatial attention modules to improve relevant feature selection. The central empirical claim is that the resulting architecture achieves superior detection performance on the DeepLesion benchmark relative to prior state-of-the-art detectors.

Significance. If the reported gains hold under the controlled conditions described, the MSB and attention components constitute a modular, reusable enhancement to FPN-style detectors that directly targets the multi-scale problem in medical lesion detection. The presence of ablation tables that isolate the contribution of HDC, channel attention, and spatial attention, together with comparisons against published FPN baselines under matched training settings, strengthens the attribution of improvements and increases the likelihood that the method can be adopted or extended in clinical CAD pipelines.

minor comments (3)
  1. The abstract asserts superiority without any quantitative metrics or baseline names; including at least the key mAP or sensitivity figures and the primary competing methods would make the claim immediately verifiable.
  2. Figure captions and the method diagram would benefit from explicit labels indicating which blocks correspond to the MSB, HDC, channel attention, and spatial attention so that readers can map the text description directly to the architecture.
  3. The notation used for the attention modules (e.g., how the channel and spatial weights are combined with the feature maps) should be formalized with a short equation or pseudocode to remove ambiguity in the implementation details.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript, accurate summary of the Multi-Scale Booster (MSB) with hierarchical dilated convolutions and attention modules, and the recommendation for minor revision. We appreciate the recognition that the ablation studies and comparisons strengthen the attribution of improvements.

read point-by-point responses

  1. Referee: MAJOR COMMENTS: (section header present but no specific comments listed)

    Authors: No specific major comments were provided in the report. We are pleased that the referee finds the method modular and reusable for FPN-style detectors in medical imaging. If any minor points arise in further review, we will address them accordingly. revision: no

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper proposes a CNN architecture (MSB with HDC and attention modules integrated into FPN) and evaluates it empirically on the external DeepLesion benchmark dataset. No mathematical derivations, equations, or predictions are present that could reduce to self-defined inputs, fitted parameters, or self-citation chains. The central claim of superior performance is tied to controlled experiments against published baselines, with no load-bearing steps that collapse by construction to the paper's own definitions or prior self-citations.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard convolutional neural network assumptions and the representativeness of the DeepLesion dataset. No new physical entities or ad-hoc axioms are introduced beyond the usual DL training assumptions.

axioms (2)
  • standard math Convolutional layers with dilation preserve translation equivariance and can capture multi-scale context.
    Invoked implicitly when describing Hierarchically Dilated Convolutions in each pyramid level.
  • domain assumption Attention modules can selectively emphasize relevant feature channels and spatial locations for the detection task.
    Stated as increasing the network's capability of selecting relevant features.

pith-pipeline@v0.9.0 · 5688 in / 1389 out tokens · 33072 ms · 2026-05-25T00:57:38.146071+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages · 2 internal anchors

  1. [1]

    IEEE Transactions on Pattern Analysis and Machine Intelli- gence (2017)

    Chen, L.C., Papandreou, G., Kokkinos, I., Murphy, K., Yuille, A.L.: Deeplab: Se- mantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. IEEE Transactions on Pattern Analysis and Machine Intelli- gence (2017)

    work page 2017

  2. [2]

    In: Interna- tional Conference on Medical Image Computing and Computer-Assisted Interven- tion (2017)

    Ding, J., Li, A., Hu, Z., Wang, L.: Accurate pulmonary nodule detection in com- puted tomography images using deep convolutional neural networks. In: Interna- tional Conference on Medical Image Computing and Computer-Assisted Interven- tion (2017)

    work page 2017

  3. [3]

    IEEE Transactions on Biomedical Engineering (2017)

    Dou, Q., Chen, H., Yu, L., Qin, J., Heng, P.A.: Multilevel contextual 3-d cnns for false positive reduction in pulmonary nodule detection. IEEE Transactions on Biomedical Engineering (2017)

    work page 2017

  4. [4]

    In: IEEE conference on computer vision and pattern recognition (2016)

    He, K., Zhang, X., Ren, S., Sun, J.: Deep residual learning for image recognition. In: IEEE conference on computer vision and pattern recognition (2016)

    work page 2016

  5. [5]

    In: IEEE Conference on Computer Vision and Pattern Recognition (2018)

    Hu, J., Shen, L., Sun, G.: Squeeze-and-excitation networks. In: IEEE Conference on Computer Vision and Pattern Recognition (2018)

    work page 2018

  6. [6]

    IEEE Transactions on Neural Networks and Learning Systems (2017)

    Liao, F., Liang, M., Li, Z., Hu, X., Song, S.: Evaluate the malignancy of pulmonary nodules using the 3-d deep leaky noisy-or network. IEEE Transactions on Neural Networks and Learning Systems (2017)

    work page 2017

  7. [7]

    In: International Conference on Computer Vision (2017)

    Lin, T.Y., Doll´ ar, P., Girshick, R., He, K., Hariharan, B., Belongie, S.: Feature pyramid networks for object detection. In: International Conference on Computer Vision (2017)

    work page 2017

  8. [8]

    In: Neural Information Processing Systems (2015)

    Ren, S., He, K., Girshick, R., Sun, J.: Faster r-cnn: Towards real-time object de- tection with region proposal networks. In: Neural Information Processing Systems (2015)

    work page 2015

  9. [9]

    In: International Conference on Medical Image Computing and Computer-Assisted Intervention (2018) CT Lesion Detection Using MSB 9

    Roy, A.G., Navab, N., Wachinger, C.: Concurrent spatial and channel squeeze excitation in fully convolutional networks. In: International Conference on Medical Image Computing and Computer-Assisted Intervention (2018) CT Lesion Detection Using MSB 9

    work page 2018

  10. [10]

    International Journal of Computer Vision (2015)

    Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein, M., et al.: Imagenet large scale visual recog- nition challenge. International Journal of Computer Vision (2015)

    work page 2015

  11. [11]

    In: International Joint Conference on Artificial Intelligence (2017)

    Song, Y., Zhang, J., Bao, L., Yang, Q.: Fast preprocessing for robust face sketch synthesis. In: International Joint Conference on Artificial Intelligence (2017)

    work page 2017

  12. [12]

    International Journal of Computer Vision (2018)

    Song, Y., Zhang, J., Gong, L., He, S., Bao, L., Pan, J., Yang, Q., Yang, M.H.: Joint face hallucination and deblurring via structure generation and detail enhancement. International Journal of Computer Vision (2018)

    work page 2018

  13. [13]

    In: International Conference on Medical Image Computing and Computer-Assisted Intervention (2018)

    Yan, K., Bagheri, M., Summers, R.M.: 3d context enhanced region-based convolu- tional neural network for end-to-end lesion detection. In: International Conference on Medical Image Computing and Computer-Assisted Intervention (2018)

    work page 2018

  14. [14]

    DeepLesion: Automated Deep Mining, Categorization and Detection of Significant Radiology Image Findings using Large-Scale Clinical Lesion Annotations

    Yan, K., Wang, X., Lu, L., Summers, R.M.: Deeplesion: Automated deep mining, categorization and detection of significant radiology image findings using large- scale clinical lesion annotations. arXiv:1710.01766 (2017)

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  15. [15]

    Multi-Scale Context Aggregation by Dilated Convolutions

    Yu, F., Koltun, V.: Multi-scale context aggregation by dilated convolutions. In: arXiv:1511.07122 (2015)

    work page internal anchor Pith review Pith/arXiv arXiv 2015
