INTENTAS -- An entanglement-enhanced atomic sensor for microgravity

O. Anton , I. Br\"ockel , D. Derr , A. Fieguth , M. Franzke , M. G\"artner , E. Giese , J. S. Haase
show 16 more authors
J. Hamann A. Heidt S. Kanthak C. Klempt J. Kruse M. Krutzik S. Kubitza C. Lotz K. M\"uller J. Pahl E. M. Rasel M. Schiemangk W. P. Schleich S. Schwertfeger A. Wicht L. W\"orner
This is my paper

Pith reviewed 2026-05-23 21:26 UTC · model grok-4.3

classification ⚛️ physics.ins-det cond-mat.quant-gasphysics.atom-phphysics.space-phquant-ph
keywords atomic sensorentangled Bose-Einstein condensatesmicrogravityquantum sensingEinstein-Elevatorall-optical BEC creationSWaP constraintslow-noise environment
0
0 comments X

The pith

INTENTAS designs an atomic sensor that uses entangled Bose-Einstein condensates in microgravity to combine entanglement-enhanced sensitivity with longer interrogation times.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the INTENTAS project, which develops an atomic sensor based on entangled Bose-Einstein condensates for a microgravity environment. The design targets measurements that gain from both the sensitivity boost of entanglement and the extended free-fall times available away from Earth gravity. It solves size-weight-power limits and noise requirements specific to the Einstein-Elevator platform while using an all-optical method to form the condensates. This approach keeps the system flexible across configurations and supports fast experiment cycles. The authors state that a working demonstration on the elevator is the required step before moving the technology to space for high-precision quantum sensing.

Core claim

The central claim is that a compact apparatus can be engineered to create and detect entangled BECs inside the low-noise, SWaP-constrained Einstein-Elevator environment through all-optical methods, thereby enabling entanglement-enhanced atomic sensing with extended interrogation times as a direct path to space-based operation.

What carries the argument

All-optical creation of Bose-Einstein condensates, which supplies the flexibility needed for varied configurations and rapid turnaround while fitting the platform constraints.

If this is right

  • A successful Einstein-Elevator run will establish the technology readiness for space deployment.
  • Microgravity will allow interrogation times long enough to exploit the full sensitivity gain from entanglement.
  • The same all-optical architecture can support multiple sensor configurations without hardware redesign.
  • Rapid turnaround times will enable repeated tests under varying conditions on the elevator platform.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same low-SWaP entangled-BEC source could be adapted for ground-based portable sensors if vibration isolation improves.
  • Success would motivate similar entanglement upgrades in other microgravity atom interferometers such as gravimeters or clocks.
  • The flexible all-optical design might shorten development cycles for future space missions that require custom BEC geometries.

Load-bearing premise

The apparatus can deliver the low-noise conditions and successful all-optical production of entangled BECs inside the size, weight, and power envelope of the Einstein-Elevator.

What would settle it

Direct measurement during an Einstein-Elevator run showing either noise levels high enough to destroy observable entanglement or failure to produce and detect the condensates within the allotted power and time budget.

Figures

Figures reproduced from arXiv: 2409.01051 by A. Fieguth, A. Heidt, A. Wicht, C. Klempt, C. Lotz, D. Derr, E. Giese, E. M. Rasel, I. Br\"ockel, J. Hamann, J. Kruse, J. Pahl, J. S. Haase, K. M\"uller, L. W\"orner, M. Franzke, M. G\"artner, M. Krutzik, M. Schiemangk, O. Anton, S. Kanthak, S. Kubitza, S. Schwertfeger, W. P. Schleich.

Figure 1
Figure 1. Figure 1: FIG. 1: Sketch of the optical ports of the vacuum chamber (left: [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: The INTENTAS setup with its three chambers within the magnetic shielding on [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: The CAD representation of the magnetic shield with a sectional view from a [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

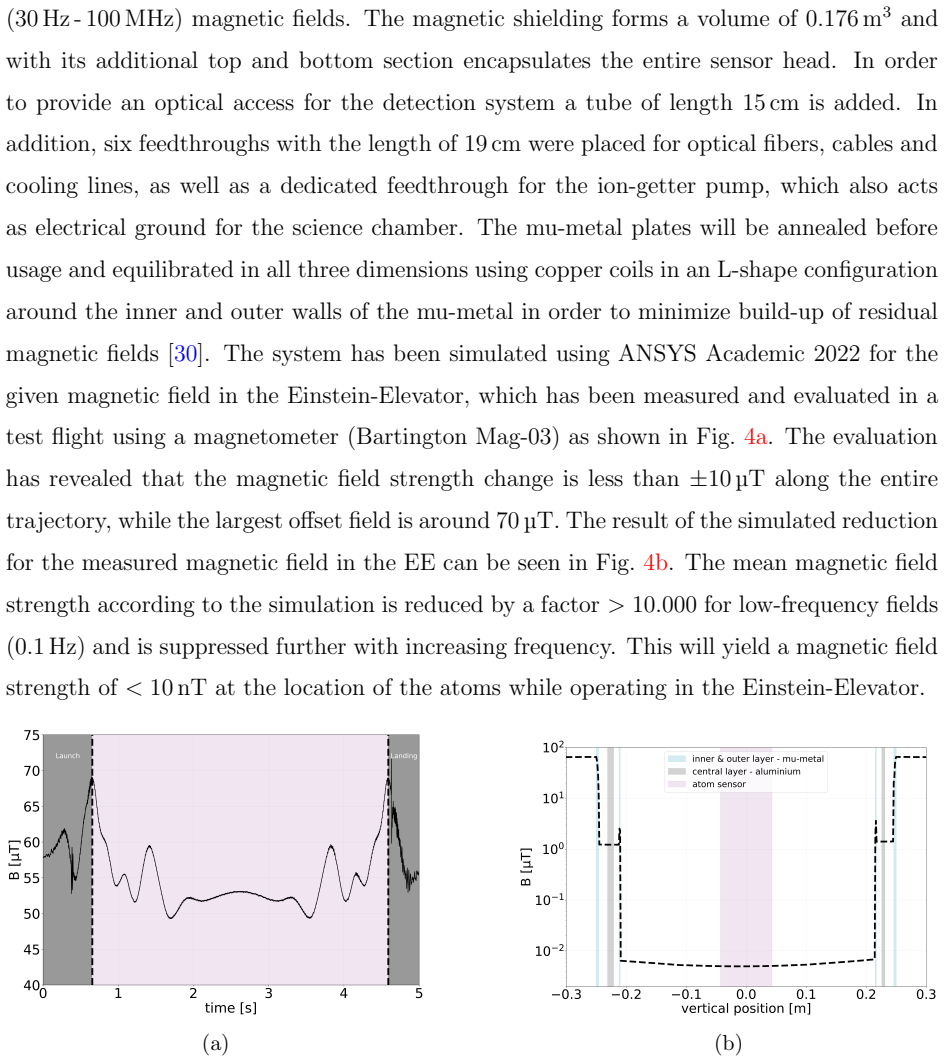

Figure 4. Figure 4: FIG. 4: (a) Measurement of the magnetic field during flight. (b) Simulated magnetic field [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Schematic of the laser system. The system consists out of four subsystems: a) [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: Photograph of a science laser module. [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: (a) Fiber-coupled optical output power of a science laser vs. injection current into [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8

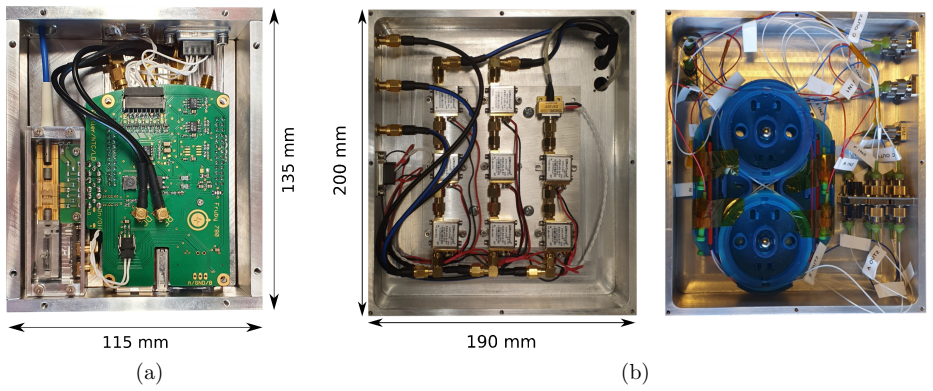

Figure 8. Figure 8: FIG. 8: (a) Photograph of the reference laser module with the micro-integrated bench [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9: Photograph of the distribution system used for the INTENTAS flight system. [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10: Schematic overview of the microwave source. Modified with permission from [ [PITH_FULL_IMAGE:figures/full_fig_p021_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11: Schematic overview of the experimental sequence. [PITH_FULL_IMAGE:figures/full_fig_p023_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12: Expected theoretical squeezing parameter [PITH_FULL_IMAGE:figures/full_fig_p024_12.png] view at source ↗
Figure 13

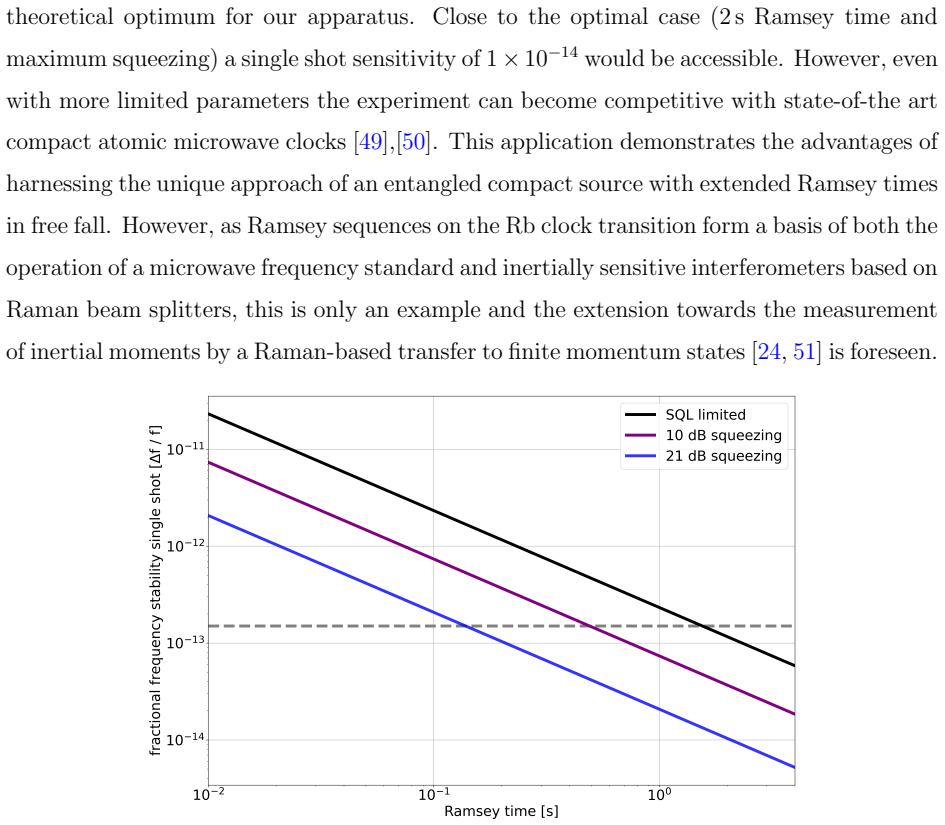

Figure 13. Figure 13: FIG. 13: Single shot fractional frequency sensitivity as a function of Ramsey time for a [PITH_FULL_IMAGE:figures/full_fig_p025_13.png] view at source ↗
read the original abstract

The INTENTAS project aims to develop an atomic sensor utilizing entangled Bose-Einstein condensates (BECs) in a microgravity environment. This key achievement is necessary to advance the capability for measurements that benefit from both entanglement-enhanced sensitivities and extended interrogation times. The project addresses significant challenges related to size, weight, and power management (SWaP) specific to the experimental platform at the Einstein-Elevator in Hannover. The design ensures a low-noise environment essential for the creation and detection of entanglement. Additionally, the apparatus features an innovative approach to the all-optical creation of BECs, providing a flexible system for various configurations and meeting the requirements for rapid turnaround times. Successful demonstration of this technology in the Einstein-Elevator will pave the way for a future deployment in space, where its potential applications will unlock high-precision quantum sensing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript outlines the INTENTAS project, which aims to develop an atomic sensor utilizing entangled Bose-Einstein condensates (BECs) in microgravity. It focuses on addressing size, weight, and power (SWaP) constraints for the Einstein-Elevator platform in Hannover, ensuring a low-noise environment for entanglement creation and detection, and implementing an all-optical approach to BEC creation for flexibility and rapid turnaround. The paper states that successful demonstration will pave the way for space deployment and high-precision quantum sensing applications.

Significance. If the proposed design proves feasible and is successfully demonstrated, the work could contribute to advancing entanglement-enhanced quantum sensors by enabling longer interrogation times in microgravity. However, the manuscript provides no supporting data, simulations, or analysis, so any significance remains entirely prospective and conditional on future unverified engineering outcomes.

major comments (1)
  1. [Abstract] Abstract: The statements that the design 'ensures a low-noise environment essential for the creation and detection of entanglement' and meets 'requirements for rapid turnaround times' via all-optical BEC creation constitute the central engineering claims, yet they are presented without any quantitative estimates, noise budgets, SWaP calculations, or references to prior validation that would allow assessment of feasibility.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for their review. The manuscript is a design proposal for the INTENTAS sensor, and we address the concern about the abstract below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The statements that the design 'ensures a low-noise environment essential for the creation and detection of entanglement' and meets 'requirements for rapid turnaround times' via all-optical BEC creation constitute the central engineering claims, yet they are presented without any quantitative estimates, noise budgets, SWaP calculations, or references to prior validation that would allow assessment of feasibility.

    Authors: We agree this comment is valid. The abstract uses definitive phrasing for design goals that are elaborated conceptually in the manuscript body but without new quantitative analysis here. As this is a proposal paper, we will revise the abstract to use more precise language (e.g., 'is designed to ensure' and 'aims to meet') and add citations to prior literature on low-noise environments and all-optical BEC production. Detailed budgets remain outside the current scope. revision: yes

standing simulated objections not resolved
  • The manuscript contains no supporting data, simulations, or quantitative analysis, which is inherent to its nature as a forward-looking design proposal rather than a completed experiment report.

Circularity Check

0 steps flagged

No significant circularity; descriptive project proposal

full rationale

The manuscript is a project proposal describing planned development and design features for an atomic sensor rather than reporting completed measurements, derivations, equations, or proofs. No load-bearing steps exist that reduce by the paper's own equations or self-citation to its inputs; the central claim is conditional on future successful demonstration and does not rest on any specific unverified technical assertion or hidden assumption within the text itself.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced because the paper is a high-level project description without mathematical derivations or new physical postulates.
