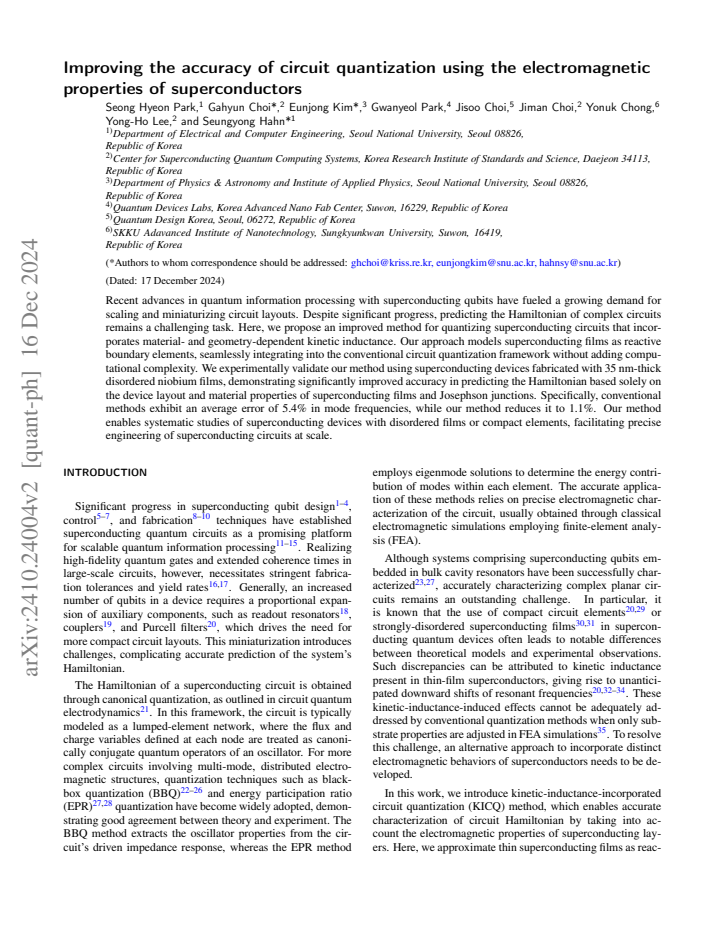

Improving the accuracy of circuit quantization using the electromagnetic properties of superconductors
Pith reviewed 2026-05-23 18:39 UTC · model grok-4.3
The pith
Modeling superconducting films as reactive boundary elements reduces mode frequency errors from 5.4% to 1.1% in circuit quantization.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Representing superconducting films as reactive boundary elements incorporates the kinetic inductance that depends on both material disorder and film geometry into the circuit quantization process. When applied to devices fabricated with 35 nm disordered niobium, this yields mode-frequency predictions whose average error falls from 5.4% (standard methods) to 1.1%, using only the physical layout and tabulated properties of the films and junctions.
What carries the argument
Reactive boundary element representation of superconducting films that injects material- and geometry-dependent kinetic inductance into the quantization equations.
If this is right
- Predictions of the circuit Hamiltonian become possible from layout and material data alone, without empirical fitting.
- Devices that use disordered films or very compact elements can be studied systematically.
- The same computational cost as conventional quantization yields higher accuracy for scaled circuits.
- Engineering of multi-element superconducting circuits can proceed directly from geometry and film properties.
Where Pith is reading between the lines
- The boundary-element approach could be tested on other disordered superconductors to check whether the same error reduction appears without new parameters.
- If frequency accuracy improves, designs that require precise detuning between qubits and resonators may become more reliable at smaller feature sizes.
- Extending the model to include temperature dependence of the kinetic inductance would allow predictions across operating conditions.
Load-bearing premise
The reactive-boundary-element model of the niobium film captures every electromagnetic effect that matters for the circuit frequencies without needing separate corrections for current crowding or vortex motion.
What would settle it
Measure the lowest few mode frequencies of a new compact niobium device whose layout is known; if the reactive-boundary-element predictions deviate by more than 3% on average while the conventional method stays within 5%, the claimed accuracy gain is falsified.
read the original abstract
Recent advances in quantum information processing with superconducting qubits have fueled a growing demand for scaling and miniaturizing circuit layouts. Despite significant progress, predicting the Hamiltonian of complex circuits remains a challenging task. Here, we propose an improved method for quantizing superconducting circuits that incorporates material- and geometry-dependent kinetic inductance. Our approach models superconducting films as reactive boundary elements, seamlessly integrating into the conventional circuit quantization framework without adding computational complexity. We experimentally validate our method using superconducting devices fabricated with 35 nm-thick disordered niobium films, demonstrating significantly improved accuracy in predicting the Hamiltonian based solely on the device layout and material properties of superconducting films and Josephson junctions. Specifically, conventional methods exhibit an average error of 5.4% in mode frequencies, while our method reduces it to 1.1%. Our method enables systematic studies of superconducting devices with disordered films or compact elements, facilitating precise engineering of superconducting circuits at scale.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes an improved circuit quantization method that models superconducting films as reactive boundary elements to incorporate material- and geometry-dependent kinetic inductance without added computational cost. It reports experimental validation on devices fabricated with 35 nm disordered niobium films, claiming that conventional methods yield 5.4% average error in mode frequencies while the new approach reduces this to 1.1%, using only device layout and material parameters as inputs.
Significance. If the accuracy improvement holds under the stated conditions, the work would provide a practical route to parameter-free Hamiltonian prediction for compact or disordered-film superconducting circuits, supporting scaling efforts in quantum information processing. The direct experimental comparison on fabricated devices against measured frequencies is a clear strength.
major comments (1)
- [Methods / Experimental validation section] The central accuracy claim (5.4% → 1.1%) rests on the reactive-boundary-element representation fully encoding the kinetic inductance of the 35 nm disordered Nb films. No explicit check is provided that geometry-induced current crowding or local vortex motion remain negligible across the tested layouts, which could introduce unaccounted frequency shifts not captured by a purely reactive, geometry-independent boundary condition.
minor comments (2)
- [Abstract] Clarify in the abstract and results whether the reported 1.1% error includes all measured modes or involves any post-selection of devices.
- [Methods] Ensure all material parameters (e.g., London penetration depth, resistivity) used in the boundary-element model are stated with their sources and uncertainties.
Simulated Author's Rebuttal
We thank the referee for their constructive review and for identifying a point that merits clarification in the experimental validation section. We address the major comment below.
read point-by-point responses
-
Referee: [Methods / Experimental validation section] The central accuracy claim (5.4% → 1.1%) rests on the reactive-boundary-element representation fully encoding the kinetic inductance of the 35 nm disordered Nb films. No explicit check is provided that geometry-induced current crowding or local vortex motion remain negligible across the tested layouts, which could introduce unaccounted frequency shifts not captured by a purely reactive, geometry-independent boundary condition.
Authors: We appreciate the referee drawing attention to the assumptions underlying our accuracy claims. The reactive-boundary-element formulation is geometry-dependent by construction: the boundary-element discretization is performed directly on the device layout, and the resulting integral equations are solved for the non-uniform current distribution that arises from the specific geometry. This procedure therefore incorporates current crowding effects without requiring an additional ad-hoc correction. Regarding local vortex motion, the 35 nm disordered Nb films were operated at low magnetic fields and in compact layouts where the films remain in the Meissner state; the measured frequency data show no signatures of vortex-induced shifts. We nevertheless agree that an explicit discussion of these assumptions was absent. In the revised manuscript we will add a short subsection in the Methods/Experimental validation section that (i) states the conditions under which vortex motion is expected to be negligible and (ii) notes that the boundary-element solution already accounts for geometry-induced current non-uniformity. revision: yes
Circularity Check
No circularity: accuracy gain from experimental comparison of independent models against measured frequencies
full rationale
The paper introduces a reactive-boundary-element model for kinetic inductance in disordered Nb films and compares its predictions to conventional methods using measured resonator frequencies on fabricated devices. The reported error reduction (5.4% to 1.1%) is obtained by direct comparison to external experimental data rather than by fitting parameters to the target quantities or by self-referential definitions. No equations or cited results are shown to reduce the central claim to its own inputs by construction. The derivation remains self-contained against the provided device measurements.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The electromagnetic response of the superconducting film can be represented by a reactive boundary condition whose impedance is determined solely by film thickness, disorder, and geometry.
