arxiv: 2504.01896 · v2 · submitted 2025-04-02 · ❄️ cond-mat.mtrl-sci · physics.data-an

Composition Design of Shape Memory Ceramics based on Gaussian Processes

Ashutosh Pandey , Justin Jetter , Hanlin Gu , Eckhard Quandt , Richard D. James This is my paper

Pith reviewed 2026-05-22 21:39 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.data-an
keywords shape memory ceramicsZrO2Gaussian processesthermal hysteresiscofactor conditionsmartensitic transformationmachine learninglattice parameters
0
0 comments X

The pith

Gaussian process model identifies a ZrO2 ceramic composition meeting metal-alloy design criteria, yet experiments measure 137°C thermal hysteresis.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper trains a Gaussian process machine learning model on data for ZrO2-based ceramics to predict transformation temperatures and lattice parameters. It uses this model to screen synthetic compositions against five design criteria borrowed from metal alloys: lambda2 equal to one, minimized max|q(f)|, high transformation temperature, low volume change, and solid solubility. A candidate composition 31.75Zr-37.75Hf-14.5Y-14.5Ta-1.5Er is selected as closely satisfying these criteria according to the predictions. Differential thermal analysis on the synthesized material instead reveals 137°C hysteresis, showing the criteria do not guarantee low hysteresis in these ceramics. The authors also test Er2O3 additions to reduce austenite tetragonality and increase variant flexibility but observe only weak effects from limited solubility.

Core claim

We present a Gaussian process machine learning model to predict the transformation temperature and lattice parameters of ZrO2-based ceramics. Our overall goal is to search for a shape memory ceramic with a reversible transformation and low hysteresis. The identification of a new low hysteresis composition is based on design criteria that have been successful in metal alloys. We generate many synthetic compositions, and identify a promising composition, 31.75Zr-37.75Hf-14.5Y-14.5Ta-1.5Er, which closely satisfies all the design criteria based on predictions from machine learning. However, differential thermal analysis reveals a relatively high thermal hysteresis of 137°C for this composition,

What carries the argument

Gaussian process regression model trained to predict transformation temperature and lattice parameters from composition in ZrO2-based ceramics

If this is right

  • The Gaussian process model enables efficient screening of many synthetic compositions against the five design criteria without exhaustive experiments.
  • A composition satisfying all five metal-derived criteria can still exhibit 137°C thermal hysteresis in ZrO2 ceramics.
  • Addition of Er2O3 produces only weak reduction in austenite tetragonality because of limited solubility.
  • A more effective dopant than Er2O3 is required to achieve significant tetragonality reduction and increase martensite variant flexibility.
  • Discovery of low-hysteresis shape memory ceramics requires additional factors beyond those governing phase transformations in metals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Interface energy or nucleation barriers specific to ceramics may dominate hysteresis even when geometric compatibility conditions are met.
  • Training similar models on larger datasets that include measured hysteresis values could identify ceramic-specific predictors.
  • Testing other rare-earth or transition-metal dopants at higher concentrations might reveal routes to cubic austenite and lower hysteresis.
  • The same Gaussian process approach could be repurposed to optimize mechanical properties or fatigue life once more data become available.

Load-bearing premise

Design criteria that produce low hysteresis in metal alloys, such as lambda2 equal to one and minimized max|q(f)|, will also produce low hysteresis when applied to ZrO2-based ceramics.

What would settle it

Fabrication and differential thermal analysis of the composition 31.75Zr-37.75Hf-14.5Y-14.5Ta-1.5Er, which measured 137°C hysteresis.

Figures

Figures reproduced from arXiv: 2504.01896 by Ashutosh Pandey, Eckhard Quandt, Hanlin Gu, Justin Jetter, Richard D. James.

Figure 1

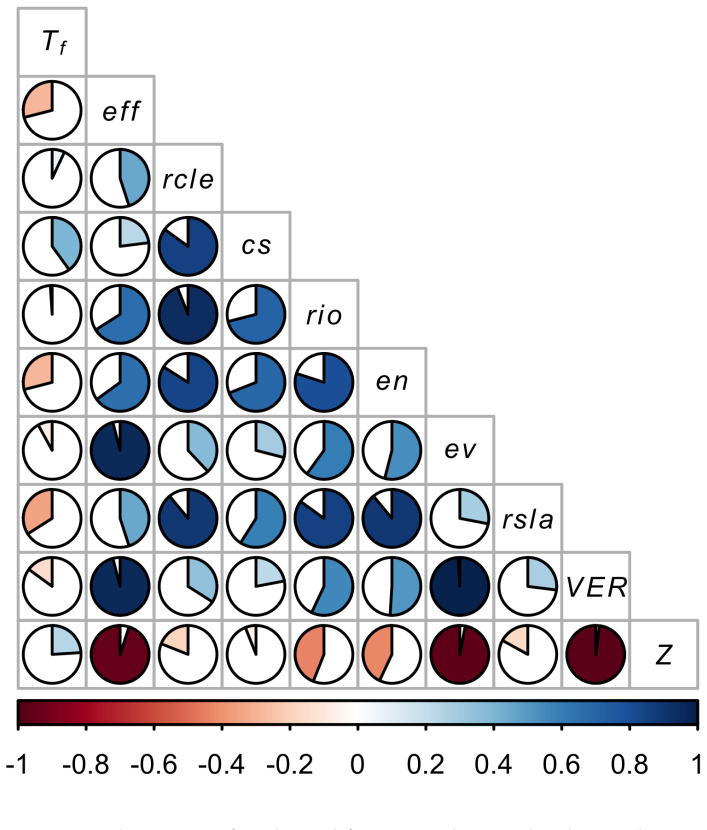

Figure 1. Figure 1: Pearson correlation map for physical features: This graphical map shows Pearson [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2

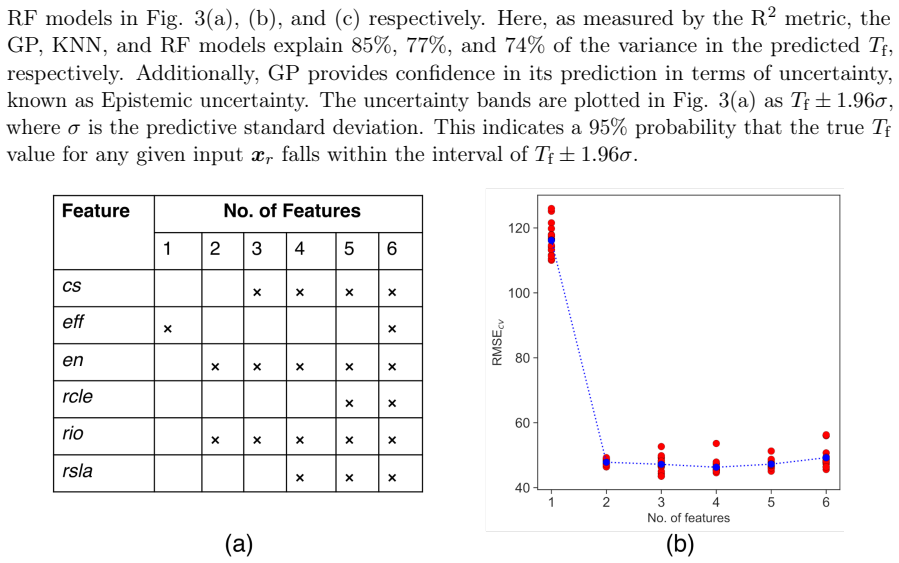

Figure 2. Figure 2: Effect of number of input parameters on RMSE of testing data obtained by Gaussian [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3

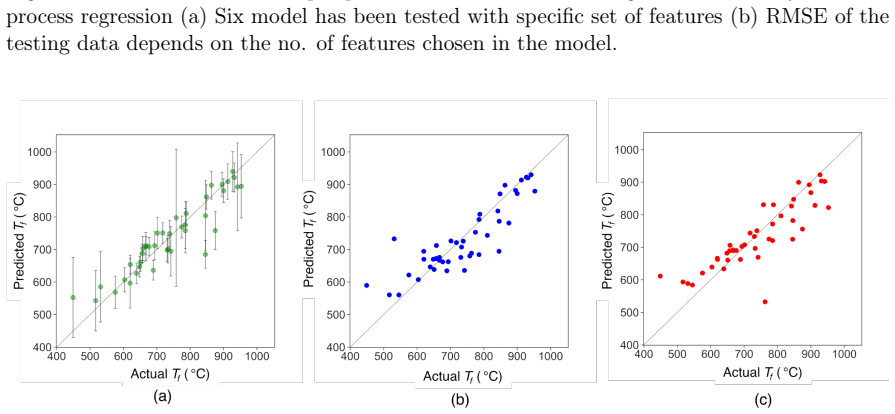

Figure 3. Figure 3: Performance of ML models on all test subsets: Comparison of Actual vs. Predicted [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

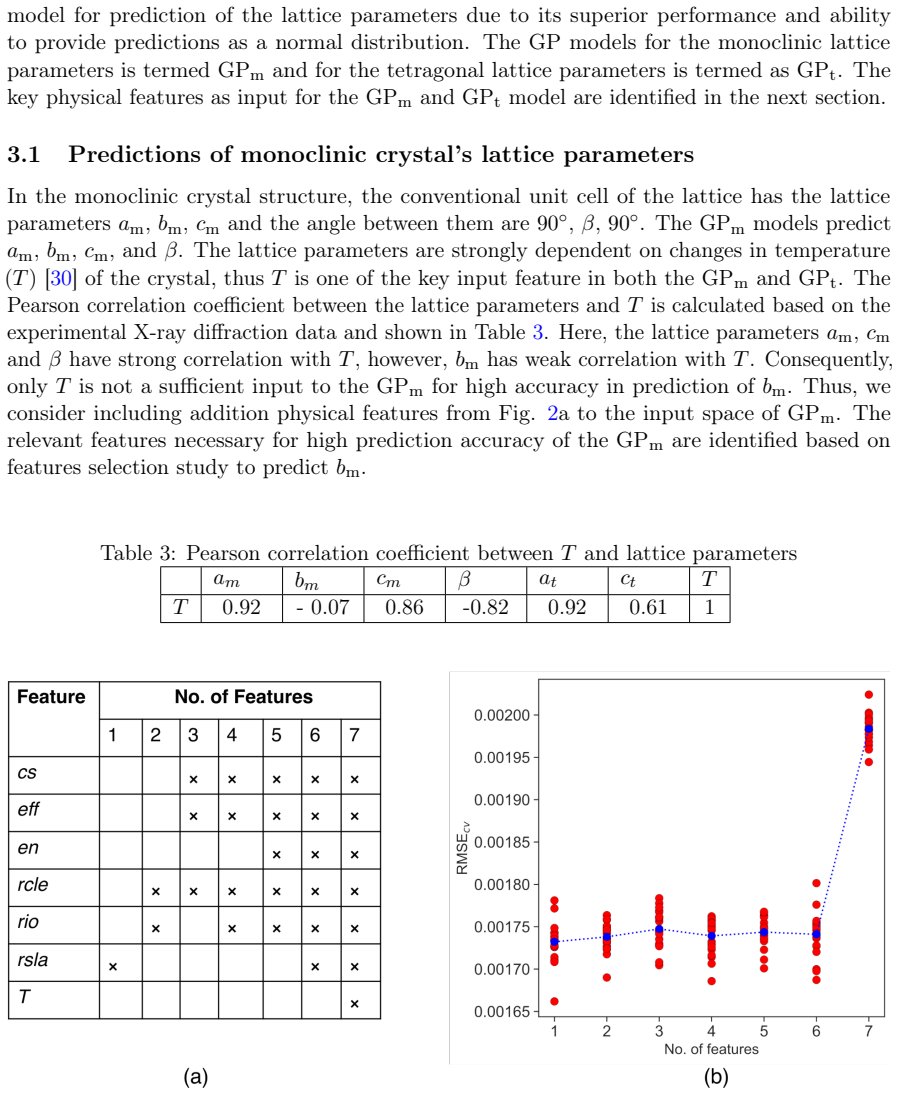

Figure 4. Figure 4: Effect of no. of input parameters on RMSE of testing data obtained by GP regression [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Predicted vs. actual values of monoclinic crystal’s lattice parameters: (a) [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

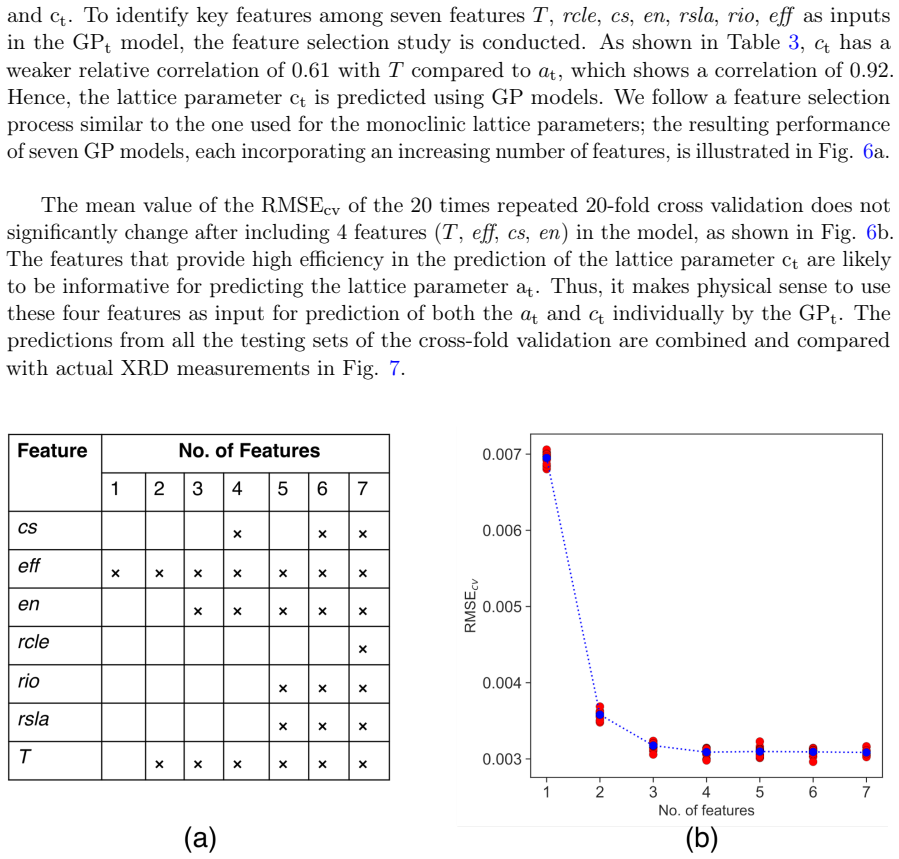

Figure 6. Figure 6: Study of feature selection for the tetragonal lattice parameters: (a) Seven GP models, [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7

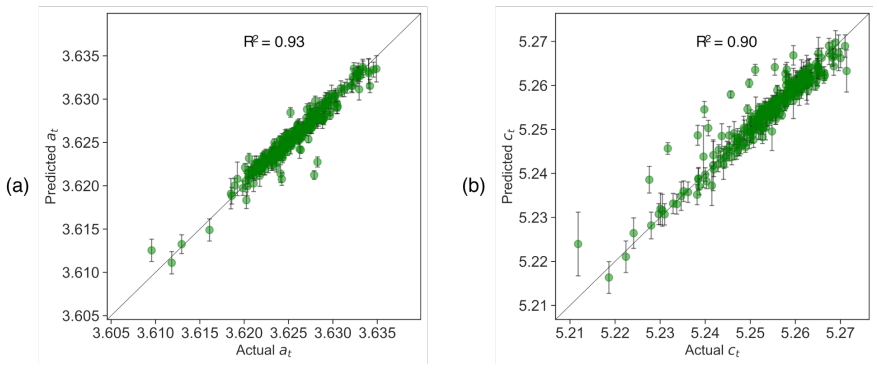

Figure 7. Figure 7: Predicted vs. actual values of tetragonal crystal’s lattice parameter (a) [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8

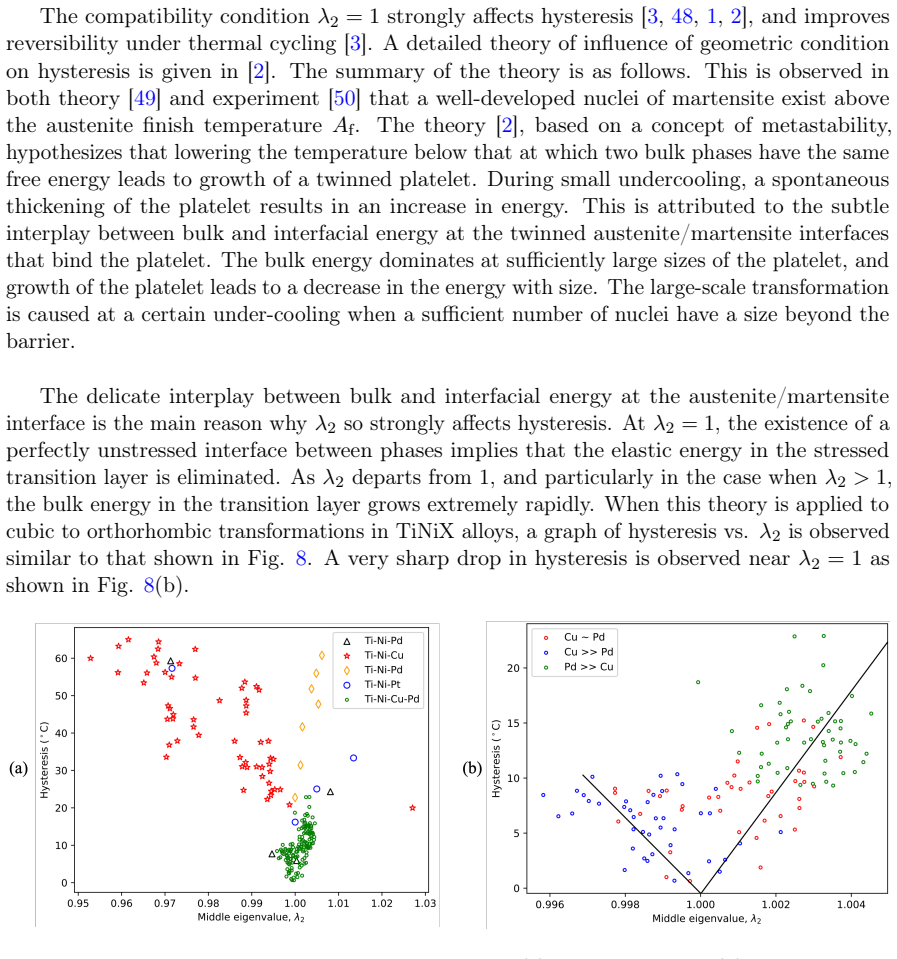

Figure 8. Figure 8: Measurements for alloys in Ti-Ni-X system (a) Hysteresis vs [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9

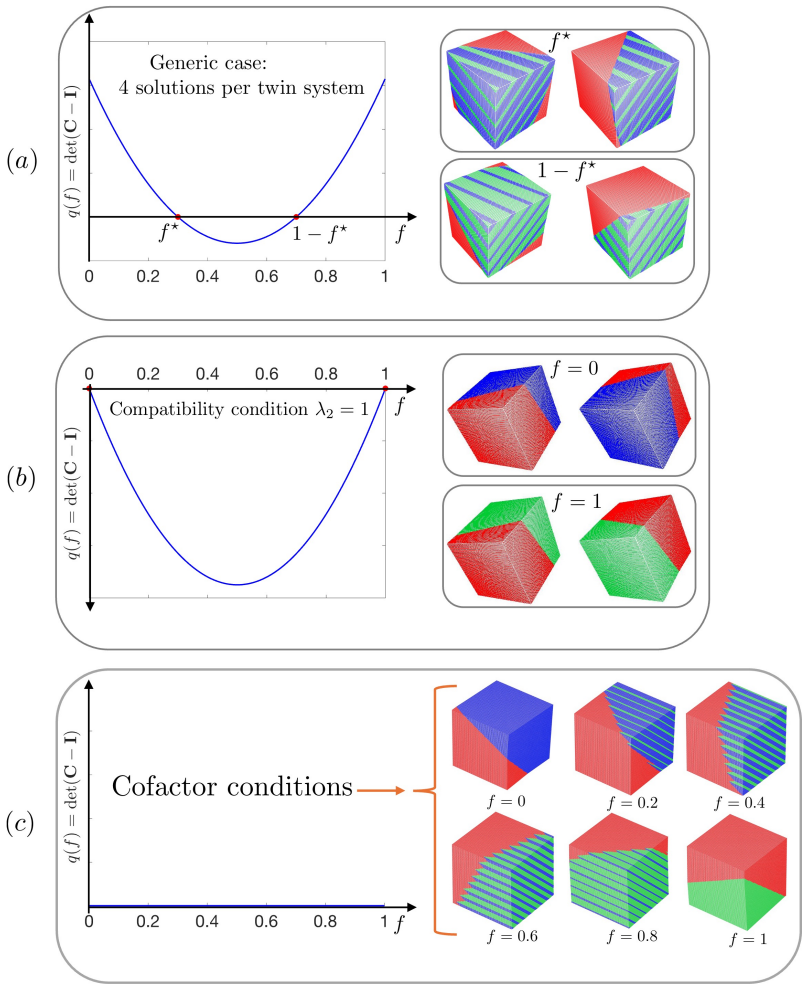

Figure 9. Figure 9: In the context of the crystallographic theory of martensite, the meaning of cofactor [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗
Figure 10

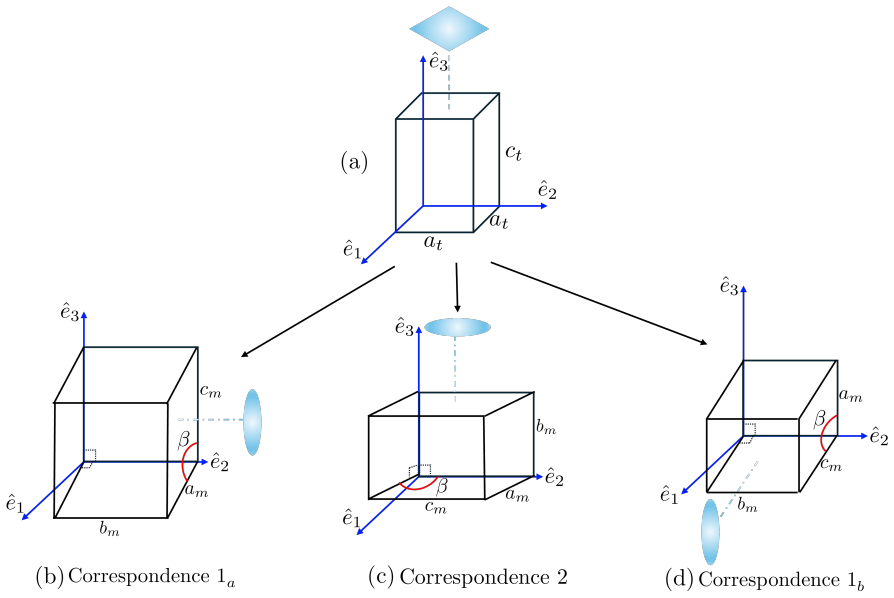

Figure 10. Figure 10: The tetragonal crystal in (a) transforms to a monoclinic crystal so that the [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Correlation between λ (1a) 2 , λ (1b) 2 , λ (2) 2 and max |q(f)| for lattice parameters of: (a) synthetic compositions predicted by the ML model (b) actual compositions measured by XRD-experiment. The highlighted data point in yellow color is selected based on predicted λ (2) 2 closest to 1 while satisfying the equidistant condition |λ (1a,1b) 2 − 1| = |λ (2) 2 − 1|. exclude data calculated from minority … view at source ↗
read the original abstract

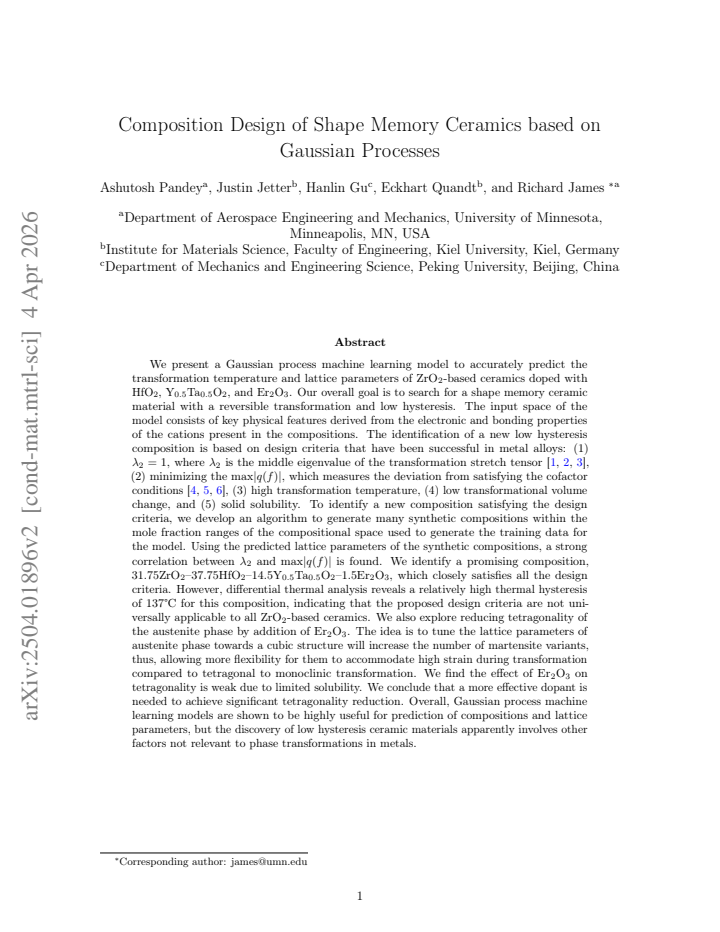

We present a Gaussian process machine learning model to predict the transformation temperature and lattice parameters of ZrO$_2$-based ceramics. Our overall goal is to search for a shape memory ceramic with a reversible transformation and low hysteresis. The identification of a new low hysteresis composition is based on design criteria that have been successful in metal alloys: (1) $\lambda_2 = 1$, where $\lambda_2$ is the middle eigenvalue of the transformation stretch tensor, (2) minimizing the max$|q(f)|$, which measures the deviation from satisfying the cofactor conditions, (3) high transformation temperature, (4) low transformational volume change, and (5) solid solubility. We generate many synthetic compositions, and identify a promising composition, 31.75Zr-37.75Hf-14.5Y-14.5Ta-1.5Er, which closely satisfies all the design criteria based on predictions from machine learning. However, differential thermal analysis reveals a relatively high thermal hysteresis of 137{\deg}C for this composition, indicating that the proposed design criteria are not universally applicable to all ZrO$_2$-based ceramics. We also explore reducing tetragonality of the austenite phase by addition of Er$_2$O$_3$. The idea is to tune the lattice parameters of austenite phase towards a cubic structure will increase the number of martensite variants, thus, allowing more flexibility for them to accommodate high strain during transformation. We find the effect of Er$_2$O$_3$ on tetragonality is weak due to limited solubility. We conclude that a more effective dopant is needed to achieve significant tetragonality reduction. Overall, Gaussian process machine learning models are shown to be highly useful for prediction of compositions and lattice parameters, but the discovery of low hysteresis ceramic materials apparently involves other factors not relevant to phase transformations in metals.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript develops Gaussian process models to predict transformation temperatures and lattice parameters for ZrO2-based ceramics. These predictions are used to screen synthetic compositions against five design criteria transferred from metal alloys: λ2 = 1, minimized max|q(f)|, high transformation temperature, low volume change, and solid solubility. The composition 31.75Zr-37.75Hf-14.5Y-14.5Ta-1.5Er is identified as satisfying the criteria based on model outputs and is synthesized; differential thermal analysis shows a thermal hysteresis of 137°C. The authors conclude that the metal-alloy design criteria are not universally applicable to ZrO2-based ceramics. They additionally test Er2O3 additions to reduce austenite tetragonality but find limited solubility and weak effects.

Significance. If substantiated, the result would be significant for shape-memory materials research by demonstrating that cofactor conditions successful in metals do not guarantee low hysteresis in ceramics, highlighting the need for ceramic-specific design principles. The application of Gaussian processes to screen multi-component oxide compositions for lattice parameters and transformation temperatures is a constructive example of machine learning in materials discovery. The direct experimental test of the criteria, even as a negative outcome, provides a falsifiable data point.

major comments (2)
  1. [Abstract] Abstract: The conclusion that the design criteria are not universally applicable is supported by the experimental hysteresis measurement only if the synthesized composition actually satisfies λ2 ≈ 1 and low max|q(f)|. These quantities are computed from GP-predicted lattice parameters for 31.75Zr-37.75Hf-14.5Y-14.5Ta-1.5Er; no experimental lattice parameters or X-ray diffraction data are reported for the synthesized sample to confirm that the real material meets the cofactor conditions. Without this verification, the high hysteresis does not falsify the criteria.
  2. [Abstract] Abstract: The reliability of the composition selection depends on the GP model's accuracy, yet no quantitative validation metrics (e.g., cross-validation error or test-set MAE for lattice constants or transformation temperature) are stated. This information is required to assess whether the selected composition is a valid test of the design criteria.
minor comments (1)
  1. [Abstract] The abstract phrasing 'The identification of a new low hysteresis composition is based on design criteria' is potentially misleading given the subsequent experimental result; rephrasing to clarify that the composition was predicted to be low-hysteresis would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight important limitations in how our conclusions are supported. We address each major comment below and will revise the manuscript accordingly to improve clarity without misrepresenting the work performed.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The conclusion that the design criteria are not universally applicable is supported by the experimental hysteresis measurement only if the synthesized composition actually satisfies λ2 ≈ 1 and low max|q(f)|. These quantities are computed from GP-predicted lattice parameters for 31.75Zr-37.75Hf-14.5Y-14.5Ta-1.5Er; no experimental lattice parameters or X-ray diffraction data are reported for the synthesized sample to confirm that the real material meets the cofactor conditions. Without this verification, the high hysteresis does not falsify the criteria.

    Authors: We agree that the absence of experimental lattice parameters for the synthesized sample limits the strength of the claim that the design criteria are falsified. The composition was selected and evaluated using GP predictions, and the observed high hysteresis (137°C) indicates that the criteria did not yield low hysteresis even when the model suggested they were satisfied. In the revised manuscript we will update the abstract and add a dedicated limitations paragraph in the discussion to state explicitly that λ2 and max|q(f)| values are model-derived predictions, that no post-synthesis XRD data are reported to confirm the real material meets the cofactor conditions, and that direct experimental verification would be required for a definitive test. This change clarifies the evidential basis without altering the reported experimental result or the overall conclusion that metal-derived criteria may not be sufficient for ceramics. revision: yes

  2. Referee: [Abstract] Abstract: The reliability of the composition selection depends on the GP model's accuracy, yet no quantitative validation metrics (e.g., cross-validation error or test-set MAE for lattice constants or transformation temperature) are stated. This information is required to assess whether the selected composition is a valid test of the design criteria.

    Authors: We acknowledge that the quantitative validation metrics were not stated with sufficient prominence in the main text. The GP models were trained and evaluated with cross-validation; we will revise the manuscript to include a concise summary (or table) of the relevant performance numbers—specifically the cross-validation error and any held-out test-set MAE for both lattice parameters and transformation temperature—placed in the methods or results section. This addition will allow readers to directly evaluate model accuracy and the reliability of the composition screening step. revision: yes

Circularity Check

0 steps flagged

No circularity: ML predictions guide selection while experiment provides independent benchmark

full rationale

The paper trains a Gaussian process on existing data to predict transformation temperature and lattice parameters for new synthetic compositions, then selects 31.75Zr-37.75Hf-14.5Y-14.5Ta-1.5Er because the model outputs indicate it meets the five design criteria. Differential thermal analysis is performed on the synthesized sample and directly measures 137 °C hysteresis. This experimental datum is not derived from or equivalent to the GP outputs by construction; it is an external observation. The conclusion that the cofactor conditions plus the other criteria are not universally applicable therefore rests on new measured data rather than on any self-definitional loop, fitted-input-renamed-as-prediction, or self-citation chain. No equations or steps in the provided text reduce the central claim to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the predictive power of the GP model and the transferability of metal design criteria, both of which are challenged by the experimental outcome.

axioms (2)
  • domain assumption Gaussian process models trained on existing data can accurately predict transformation temperatures and lattice parameters for new compositions in ZrO2-based systems.
    The paper uses the model to generate and select compositions without detailing validation.
  • domain assumption The design criteria (lambda2=1, min max|q(f)|, high trans temp, low vol change, solid solubility) from metal alloys are relevant for ceramics.
    Used to identify the promising composition.
