Pump-Threshold-Free Frequency Comb via Cavity Floquet Engineering

Sihan Wang , Cheng Wang , Matthijs H. J. de Jong , Laure Mercier de L\'epinay , Jingwei Zhou , Mika A. Sillanp\"a\"a , Yulong Liu This is my paper

Pith reviewed 2026-05-22 20:30 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mes-hallphysics.optics
keywords frequency combFloquet engineeringcavity optomechanicsmicrowave cavitylow power consumptionsideband couplingphase-locked sidebands
0
0 comments X

The pith

Mechanical modulation of cavity resonance generates a frequency comb without any pump threshold.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how driving a mechanical oscillator to periodically shift a cavity resonance frequency creates multiple equally spaced sidebands that lock in phase to the drive. These sidebands then interact with a weak injected pump tone to produce the frequency comb output. The process requires no nonlinear threshold crossing and tolerates large pump detuning. A sympathetic reader cares because the method reaches stable comb operation at nanowatt total power in an on-chip device, sidestepping the power and detuning constraints of conventional Kerr or Pockels combs.

Core claim

By periodically modulating the cavity resonance frequency through a driven mechanical oscillator, a Floquet cavity with multiple equally spaced frequency components is created. These sidebands exhibit nearest-neighbor coupling and are phase-locked to the external modulation drive. A pump tone interacts with the pre-modulated cavity to generate the output frequency comb, which operates independently of a pumping threshold and is insensitive to pump detuning, enabling comb generation under far-sideband pumping with nanowatt-scale total power consumption in an on-chip microwave cavity optomechanical system.

What carries the argument

The Floquet cavity formed by mechanical periodic modulation of the resonance frequency, which produces phase-locked sidebands that couple to a pump tone and yield the comb output without crossing a nonlinear threshold.

If this is right

  • Comb generation proceeds at nanowatt-scale total power consumption.
  • The comb forms under far-sideband pumping conditions.
  • Output remains stable across a wide range of pump detunings.
  • The approach works in on-chip microwave cavity optomechanical devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same pre-modulation principle could be tested in optical cavities if mechanical or electro-optic modulation reaches comparable sideband strength.
  • Nanowatt operation may allow frequency combs inside power-limited cryogenic or portable quantum sensors.
  • Phase locking to an external drive could enable synchronization between multiple such combs or with external references.

Load-bearing premise

The driven sidebands must stay phase-locked to the modulation and exhibit nearest-neighbor coupling so the pump can produce a stable comb without needing a nonlinear threshold.

What would settle it

Observing that the comb spectrum fails to appear at any pump power when the mechanical drive is removed or its phase is unlocked, while appearing only when the drive is active and locked, would test the central claim.

Figures

Figures reproduced from arXiv: 2504.05877 by Cheng Wang, Jingwei Zhou, Laure Mercier de L\'epinay, Matthijs H. J. de Jong, Mika A. Sillanp\"a\"a, Sihan Wang, Yulong Liu.

Figure 1
Figure 1. Figure 1: FIG. 1. Floquet cavity and frequency comb. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

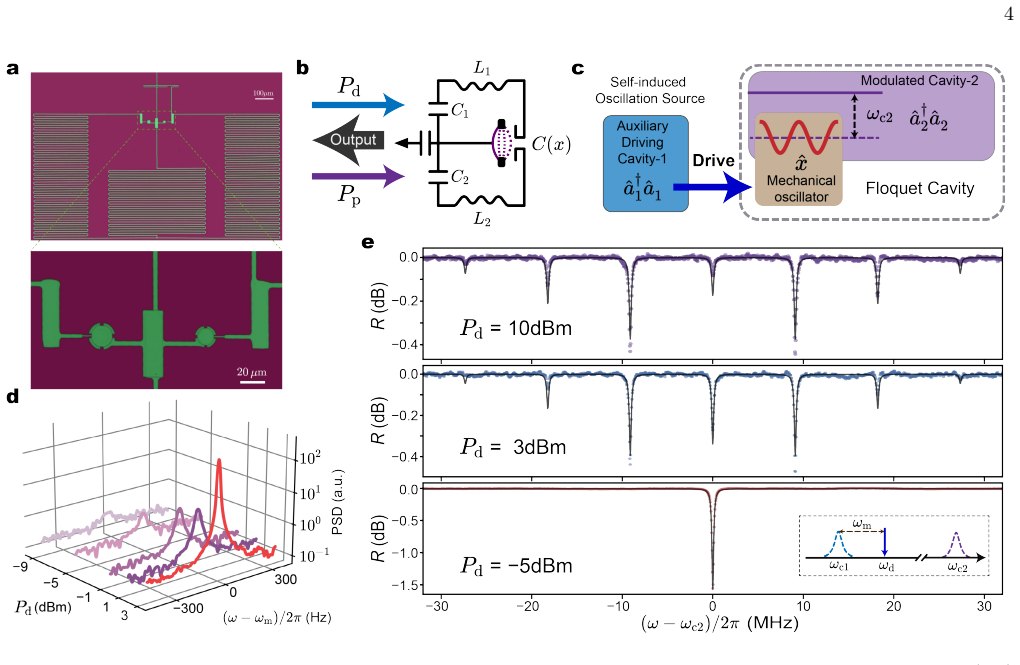

Figure 2. Figure 2: FIG. 2. Construct the Floquet cavity in optomechanical systems. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Emergence and evolution of Floquet comb. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Frequency combs have revolutionized communication, metrology, and spectroscopy. Considerable efforts have been devoted to developing integrated combs, primarily leveraging Pockels or Kerr nonlinearities. Here, we demonstrate an alternative frequency comb generated via cavity Floquet engineering. By periodically modulating the cavity resonance frequency through a driven mechanical oscillator, a Floquet cavity with multiple equally spaced frequency components is created. These sidebands exhibit nearest-neighbor coupling and are phase-locked to the external modulation drive. A pump tone interacts with the pre-modulated cavity to generate the output frequency comb, which we implement in an on-chip microwave cavity optomechanical system. This approach operates independently of a pumping threshold and is insensitive to pump detuning. Consequently, it enables comb generation under far-sideband pumping with nanowatt-scale total power consumption, providing an ultra-low-power platform for integrated frequency comb synthesis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript claims to demonstrate a pump-threshold-free frequency comb in an on-chip microwave cavity optomechanical system. Periodic mechanical modulation of the cavity resonance creates a Floquet cavity whose sidebands exhibit nearest-neighbor coupling and remain phase-locked to the drive; a subsequent pump tone then generates the comb output. The approach is asserted to be insensitive to pump detuning, to operate under far-sideband conditions, and to require only nanowatt-scale total power.

Significance. If the experimental implementation and supporting measurements hold, the result supplies a concrete route to threshold-independent comb generation that avoids reliance on Kerr or Pockels nonlinearities. The mechanical Floquet engineering step supplies an explicit, externally controlled mechanism for sideband creation and phase locking, which is a substantive technical contribution for low-power integrated frequency-comb platforms.

minor comments (3)
  1. [Abstract, §1] Abstract and §1: the central claim of 'nearest-neighbor coupling' and 'phase-locking to the external modulation drive' is stated without an accompanying equation or diagram showing the coupling matrix or the Floquet Hamiltonian; a short derivation or reference to the standard optomechanical Floquet model would clarify the mechanism.
  2. [Results section (assumed)] The manuscript reports nanowatt-scale power but does not tabulate the precise total power, the number of comb lines, the measured linewidths, or the sideband spacing; inclusion of these quantitative metrics (with error bars) in a results table or figure caption would strengthen the experimental claim.
  3. [Methods/Figures] Figure captions and methods: the description of the on-chip device geometry and the mechanical drive amplitude used to achieve the Floquet sidebands should be expanded to allow reproduction; current text leaves the modulation depth and cavity Q unspecified.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of our manuscript on pump-threshold-free frequency comb generation via cavity Floquet engineering and for recommending minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

Experimental demonstration; no derivation chain reduces to inputs

full rationale

The paper frames its contribution as an experimental realization of a frequency comb in an on-chip microwave cavity optomechanical system, achieved by mechanical modulation creating Floquet sidebands followed by a pump tone. No equations, fitted parameters, or derivation steps are presented that would allow reduction to self-defined quantities or self-citations. The nearest-neighbor coupling and phase-locking are stated as physical consequences of the periodic modulation, not as fitted or renamed results. The threshold-free operation is the explicit design outcome rather than a prediction derived from prior fitted data. This is a standard experimental report with independent physical content.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that mechanical modulation produces a set of phase-locked, nearest-neighbor-coupled sidebands that then interact with a pump tone to yield a comb; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Periodic mechanical modulation of cavity resonance frequency produces multiple equally spaced sidebands with nearest-neighbor coupling that phase-lock to the drive.
    This premise is invoked to explain why the subsequent pump tone generates a comb without a threshold.
