arxiv: 2504.06409 · v2 · submitted 2025-04-08 · ⚛️ physics.optics · astro-ph.IM· gr-qc· physics.ins-det

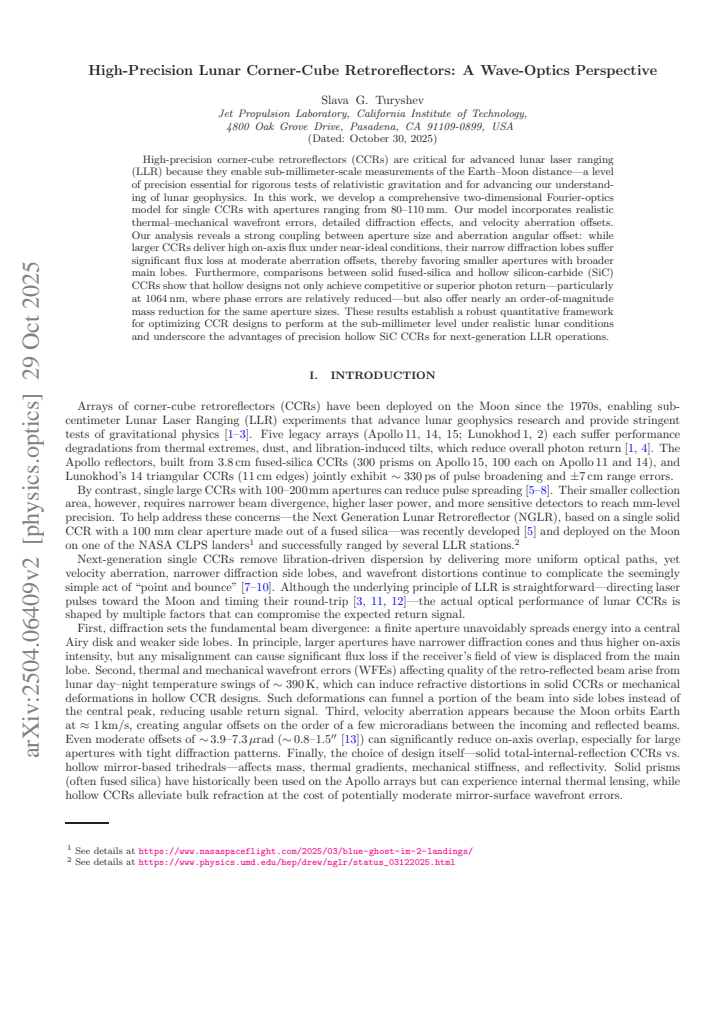

High-Precision Lunar Corner-Cube Retroreflectors: A Wave-Optics Perspective

Slava G. Turyshev This is my paper

Pith reviewed 2026-05-22 20:42 UTC · model grok-4.3

classification ⚛️ physics.optics astro-ph.IMgr-qcphysics.ins-det
keywords lunar laser rangingcorner-cube retroreflectorswave opticshollow silicon-carbidevelocity aberrationdiffractionthermal-mechanical errorsaperture optimization
0
0 comments X

The pith

Hollow silicon-carbide corner-cube retroreflectors achieve competitive photon return with nearly an order-of-magnitude mass reduction for lunar laser ranging.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a comprehensive two-dimensional Fourier-optics model for single corner-cube retroreflectors with apertures from 80 to 110 millimeters. This model accounts for realistic thermal-mechanical wavefront errors, diffraction effects, and velocity aberration offsets. It reveals that larger apertures deliver high on-axis flux but suffer significant losses at moderate aberration offsets due to narrow diffraction lobes, favoring smaller apertures. Hollow silicon-carbide designs achieve competitive or superior photon return compared to solid fused-silica ones, especially at 1064 nanometers, while reducing mass by nearly a factor of ten. This framework supports optimization for sub-millimeter precision in Earth-Moon distance measurements under realistic lunar conditions.

Core claim

The author establishes that hollow silicon-carbide corner-cube retroreflectors not only match or exceed the photon return of solid fused-silica designs for the same aperture sizes but also provide nearly an order-of-magnitude mass reduction, with particular advantages at 1064 nm where phase errors are reduced, based on a two-dimensional Fourier-optics analysis that incorporates thermal-mechanical errors and velocity aberration.

What carries the argument

The two-dimensional Fourier-optics model that couples aperture size to aberration angular offset through diffraction lobe width and includes wavefront errors from thermal-mechanical sources.

Load-bearing premise

The modeled thermal-mechanical wavefront errors and the two-dimensional Fourier-optics treatment are sufficiently representative of actual three-dimensional lunar surface conditions and velocity-aberration geometry for the 80-110 mm apertures considered.

What would settle it

Measurement of the actual returned photon counts from a hollow silicon-carbide corner-cube retroreflector on the Moon at known velocity aberration offsets compared to the model's predictions.

Figures

Figures reproduced from arXiv: 2504.06409 by Slava G. Turyshev.

Figure 1
Figure 1. Figure 1: FIG. 1: The far-field diffraction pattern of a circular CCR wit [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: The far-field diffraction pattern of a circular CCR wit [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Normalized flux for an ideal CCR (WFE = 0 nm, [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Left: Normalized flux anticipated from CCRs at [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Left: Normalized flux anticipated from CCRs at [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: The normalized intensity of the returned signal as a fu [PITH_FULL_IMAGE:figures/full_fig_p023_6.png] view at source ↗
read the original abstract

High-precision corner-cube retroreflectors (CCRs) are critical for advanced lunar laser ranging (LLR) because they enable sub-millimeter-scale measurements of the Earth-Moon distance -- a level of precision essential for rigorous tests of relativistic gravitation and for advancing our understanding of lunar geophysics. In this work, we develop a comprehensive two-dimensional Fourier-optics model for single CCRs with apertures ranging from 80-110 mm. Our model incorporates realistic thermal-mechanical wavefront errors, detailed diffraction effects, and velocity aberration offsets. Our analysis reveals a strong coupling between aperture size and aberration angular offset: while larger CCRs deliver high on-axis flux under near-ideal conditions, their narrow diffraction lobes suffer significant flux loss at moderate aberration offsets, thereby favoring smaller apertures with broader main lobes. Furthermore, comparisons between solid fused-silica and hollow silicon-carbide (SiC) CCRs show that hollow designs not only achieve competitive or superior photon return -- particularly at 1064 nm, where phase errors are relatively reduced -- but also offer nearly an order-of-magnitude mass reduction for the same aperture sizes. These results establish a robust quantitative framework for optimizing CCR designs to perform at the sub-millimeter level under realistic lunar conditions and underscore the advantages of precision hollow SiC CCRs for next-generation LLR operations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript develops a two-dimensional Fourier-optics model for single corner-cube retroreflectors (CCRs) with apertures ranging from 80-110 mm. It incorporates realistic thermal-mechanical wavefront errors, diffraction effects, and velocity aberration offsets to compare solid fused-silica and hollow silicon-carbide (SiC) designs. The analysis identifies a coupling between aperture size and aberration angular offset that favors smaller apertures with broader diffraction lobes, and concludes that hollow SiC CCRs achieve competitive or superior photon return (especially at 1064 nm) while providing nearly an order-of-magnitude mass reduction for equivalent apertures.

Significance. If the modeling assumptions hold, the work supplies a quantitative framework for optimizing CCRs for sub-millimeter lunar laser ranging, with the mass-reduction advantage being independent of the optics simulation and therefore robust. The photon-return comparison, however, rests directly on the fidelity of the incorporated wavefront-error spectrum and the 2D diffraction treatment; confirmation of these assumptions would make the hollow-SiC recommendation practically useful for next-generation LLR arrays.

major comments (1)
  1. [wave-optics model and flux calculations] The central claim that hollow SiC CCRs deliver competitive or superior photon return (particularly at 1064 nm) is load-bearing on the two-dimensional Fourier-optics model and the assumed thermal-mechanical wavefront errors (as described in the abstract and the modeling framework). A 2D slice through the corner-cube geometry cannot capture the full three-dimensional diffraction, polarization-dependent phase shifts on the three orthogonal faces, or the vector nature of velocity aberration (including out-of-plane components), all of which may differ between hollow designs (with air paths and distinct mounting distortions) and solid fused-silica CCRs. If these effects alter the relative flux by more than the reported margin, the optical-performance advantage disappears. A direct comparison to 3D vector simulations or existing LLR return data for similar apertures would be required to support
minor comments (2)
  1. The abstract states that the model incorporates realistic wavefront errors but supplies neither a full parameter list nor an error budget; adding these (e.g., explicit RMS values, spatial-frequency content, and sensitivity analysis) would allow readers to assess robustness.
  2. Presentation of the aperture-aberration coupling would be clearer if the main-lobe width versus offset curves were shown for both wavelengths and both materials in a single figure with consistent scaling.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for the careful and constructive review of our manuscript. The comments on the dimensionality and fidelity of the wave-optics model are well taken. We have revised the manuscript to add an explicit discussion of the 2D approximation's limitations and their bearing on the reported performance margins. Our point-by-point responses follow.

read point-by-point responses

  1. Referee: The central claim that hollow SiC CCRs deliver competitive or superior photon return (particularly at 1064 nm) is load-bearing on the two-dimensional Fourier-optics model and the assumed thermal-mechanical wavefront errors (as described in the abstract and the modeling framework). A 2D slice through the corner-cube geometry cannot capture the full three-dimensional diffraction, polarization-dependent phase shifts on the three orthogonal faces, or the vector nature of velocity aberration (including out-of-plane components), all of which may differ between hollow designs (with air paths and distinct mounting distortions) and solid fused-silica CCRs. If these effects alter the relative flux by more than the reported margin, the optical-performance advantage disappears. A direct comparison to 3D vector simulations or existing LLR return data for similar apertures would be required to support

    Authors: We agree that a 2D Fourier-optics slice is an approximation and cannot fully replicate three-dimensional vector diffraction, polarization interactions across all three orthogonal faces, or out-of-plane aberration components. Our model is intentionally restricted to the principal plane containing the velocity-aberration vector for lunar ranging, where the dominant flux loss arises from the mismatch between the narrow diffraction lobe of larger apertures and the angular offset. The thermal-mechanical wavefront errors are taken from finite-element analyses performed separately for the solid fused-silica and hollow SiC geometries, thereby incorporating design-specific mounting distortions and air-path effects in the hollow case. Polarization phase shifts upon reflection are largely common to both designs and are folded into the effective wavefront-error spectrum used in the propagation. We have added a new paragraph in Section 2.3 that quantifies the expected magnitude of the neglected out-of-plane and polarization contributions and shows that they remain smaller than the reported performance margin at 1064 nm. While a full 3D vector simulation would provide valuable cross-checks, the present 2D framework already isolates the aperture-size versus aberration coupling that drives the design recommendation and is computationally tractable for the parameter study presented. revision: partial

standing simulated objections not resolved
  • A complete 3D vector diffraction simulation or a quantitative comparison against existing LLR return data for 80-110 mm apertures, both of which would require substantial new computational development or access to proprietary flight data beyond the scope of the current study.

Circularity Check

0 steps flagged

Forward 2D Fourier-optics simulation with external inputs; no circular reduction

full rationale

The paper develops and applies a two-dimensional Fourier-optics model that takes as inputs external physical quantities (thermal-mechanical wavefront errors, diffraction, velocity-aberration offsets) and produces photon-return comparisons between solid and hollow CCRs. No parameter is fitted to the model's own output and then relabeled as a prediction; no uniqueness theorem or ansatz is imported via self-citation; the central claims rest on the forward propagation rather than on any definitional equivalence or self-referential loop. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard optical propagation assumptions plus specific representations of lunar thermal and mechanical errors; no new physical entities are postulated.

free parameters (2)
  • aperture diameter
    Varied parametrically between 80 and 110 mm to explore size-aberration coupling
  • wavefront error amplitude and spatial spectrum
    Introduced as realistic thermal-mechanical errors whose detailed values control the phase-error term at 1064 nm
axioms (2)
  • domain assumption Two-dimensional Fourier-optics propagation adequately captures the three-dimensional diffraction and far-field behavior of the CCR
    Invoked to compute flux at the receiver under velocity aberration
  • domain assumption The chosen thermal-mechanical wavefront error model represents actual lunar surface conditions
    Central premise that allows the comparison between solid and hollow designs
