arxiv: 2505.12863 · v1 · submitted 2025-05-19 · 💻 cs.SD · cs.AI· cs.CV· eess.AS

Unified Cross-modal Translation of Score Images, Symbolic Music, and Performance Audio

Jongmin Jung , Dongmin Kim , Sihun Lee , Seola Cho , Hyungjoon Soh , Irmak Bukey , Chris Donahue , Dasaem Jeong This is my paper

Pith reviewed 2026-05-22 14:57 UTC · model grok-4.3

classification 💻 cs.SD cs.AIcs.CVeess.AS
keywords cross-modal music translationoptical music recognitionscore to audio generationunified tokenizationmultitask transformermusic information retrievalYouTube music datasetaudio-symbolic alignment
0
0 comments X

The pith

A single Transformer trained jointly on music translations outperforms separate models for each task and generates audio from score images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that one general-purpose encoder-decoder Transformer can handle translations among score images, symbolic scores, MIDI, and audio when all modalities are turned into token sequences and the model is trained on every task at once. A new dataset of more than 1,300 hours of paired audio and score images collected from YouTube supplies the scale needed for this joint training. The approach improves optical music recognition symbol error rate from 24.58 percent to 13.67 percent and produces the first working examples of generating audio directly from a score image. A sympathetic reader would care because the method collapses several separate music-information-retrieval pipelines into one model while opening new cross-modal generation capabilities.

Core claim

The central claim is that a unified multitask model, built on a shared tokenization of score images, symbolic scores, MIDI, and audio into discrete sequences, outperforms single-task baselines across translation directions. The model is trained on a newly collected dataset of over 1,300 hours of aligned audio-score pairs from YouTube videos. This joint training yields a symbol error rate of 13.67 percent on optical music recognition and achieves the first successful score-image-conditioned audio generation.

What carries the argument

The unified tokenization framework that discretizes score images, audio waveforms, MIDI events, and MusicXML into a single sequence of tokens so one encoder-decoder Transformer can perform every cross-modal translation as a sequence-to-sequence task.

If this is right

  • Optical music recognition reaches a symbol error rate of 13.67 percent rather than the prior 24.58 percent baseline.
  • Audio-to-MIDI and other modality translations show comparable error reductions.
  • Score images become a viable conditioning input for direct audio generation.
  • A single set of model parameters serves all translation directions instead of requiring separate models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same tokenization strategy could be tested on other paired multimodal datasets to see whether unified training generalizes beyond music.
  • The 1,300-hour YouTube collection might support pre-training for downstream tasks such as music style transfer or alignment without additional labels.
  • Adding explicit timing tokens or hierarchical structures could further reduce synchronization errors in audio generation.
  • Zero-shot translation between modalities never seen together during training becomes a natural next experiment.

Load-bearing premise

The YouTube video pairs supply sufficiently accurate alignments and labels across audio, images, and symbols so that joint training does not suffer from noise or synchronization errors.

What would settle it

Retraining the model on a controlled dataset that introduces measurable synchronization offsets or label noise and observing that the reported error reductions disappear would falsify the claim that the unified approach is robust.

Figures

Figures reproduced from arXiv: 2505.12863 by Chris Donahue, Dasaem Jeong, Dongmin Kim, Hyungjoon Soh, Irmak Bukey, Jongmin Jung, Seola Cho, Sihun Lee.

Figure 1
Figure 1. Figure 1: Conventional cross-modal conversion tasks in music information [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of our proposed unified multimodal translation framework. We employ a single Transformer encoder-decoder model for each direction— [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The four modalities of music representation used in this paper. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: An example from one of the videos collected for the YouTube Score [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 7
Figure 7. Figure 7: One example from audio-to-image translation. [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Piano roll visualizations of MIDI representations from (a): Ground [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Token distribution histograms used for Earth Mover’s Distance [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Example of a poor-quality scan that necessitates our video-level [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Example patches showing the 16×16 pixel resolution of individual tokens [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗
Figure 12

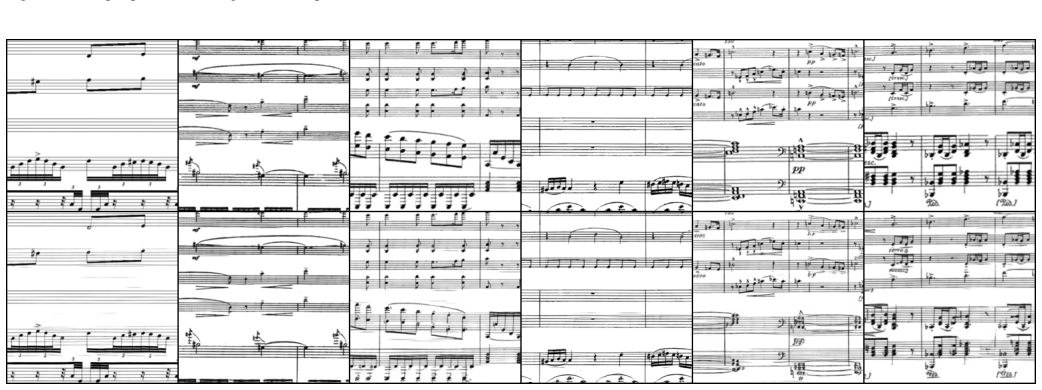

Figure 12. Figure 12: Comparison between input sheet music (top) and model reconstruction (bottom), demonstrating reconstruction artifacts in staff lines when a model [PITH_FULL_IMAGE:figures/full_fig_p017_12.png] view at source ↗
read the original abstract

Music exists in various modalities, such as score images, symbolic scores, MIDI, and audio. Translations between each modality are established as core tasks of music information retrieval, such as automatic music transcription (audio-to-MIDI) and optical music recognition (score image to symbolic score). However, most past work on multimodal translation trains specialized models on individual translation tasks. In this paper, we propose a unified approach, where we train a general-purpose model on many translation tasks simultaneously. Two key factors make this unified approach viable: a new large-scale dataset and the tokenization of each modality. Firstly, we propose a new dataset that consists of more than 1,300 hours of paired audio-score image data collected from YouTube videos, which is an order of magnitude larger than any existing music modal translation datasets. Secondly, our unified tokenization framework discretizes score images, audio, MIDI, and MusicXML into a sequence of tokens, enabling a single encoder-decoder Transformer to tackle multiple cross-modal translation as one coherent sequence-to-sequence task. Experimental results confirm that our unified multitask model improves upon single-task baselines in several key areas, notably reducing the symbol error rate for optical music recognition from 24.58% to a state-of-the-art 13.67%, while similarly substantial improvements are observed across the other translation tasks. Notably, our approach achieves the first successful score-image-conditioned audio generation, marking a significant breakthrough in cross-modal music generation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes a unified encoder-decoder Transformer model for cross-modal music translations among score images, symbolic scores (MusicXML), MIDI, and performance audio. It introduces a new 1,300-hour paired dataset collected from YouTube videos and a shared tokenization scheme that casts all tasks as sequence-to-sequence problems. The multitask model is shown to outperform single-task baselines, with the optical music recognition symbol error rate dropping from 24.58% to 13.67%, comparable gains on other translation directions, and the first reported success on score-image-conditioned audio generation.

Significance. If the collected YouTube pairs supply sufficiently clean and temporally aligned supervision, the work would be significant for multimodal music information retrieval. The combination of an order-of-magnitude larger dataset with a single tokenization framework enables joint training that yields concrete metric improvements and unlocks a previously unreported task (image-to-audio). The explicit comparison against independently implemented single-task baselines on held-out data and the provision of a large public-scale resource are clear strengths that could shape future unified modeling efforts in the field.

major comments (2)
  1. [Section 3] Section 3 (Dataset Construction): the description of pairing YouTube videos with score images does not include any quantitative assessment of synchronization accuracy (e.g., measured temporal offsets, manual verification statistics, or filtering criteria for alignment quality). Because every reported result—including the OMR SER reduction and the novel image-to-audio generation—relies on the same set of pairs for multitask training, unquantified label noise or offsets would directly undermine the claim that unification itself drives the gains rather than simply larger data volume.
  2. [Section 5] Section 5 (Experiments): while single-task baselines are compared on held-out test sets, the manuscript provides limited ablation detail on whether the observed improvements persist when single-task models are trained on the identical 1,300-hour corpus, and no error analysis or exact train/validation/test split statistics are reported. This leaves open the possibility that post-hoc selection or data-scale effects, rather than the unified architecture, explain the state-of-the-art numbers.
minor comments (1)
  1. [Abstract] The abstract states that 'similarly substantial improvements are observed across the other translation tasks' without naming the concrete metrics or numerical values; adding these figures would allow readers to gauge the breadth of the gains immediately.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive report. We address each major comment below and outline the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Section 3] Section 3 (Dataset Construction): the description of pairing YouTube videos with score images does not include any quantitative assessment of synchronization accuracy (e.g., measured temporal offsets, manual verification statistics, or filtering criteria for alignment quality). Because every reported result—including the OMR SER reduction and the novel image-to-audio generation—relies on the same set of pairs for multitask training, unquantified label noise or offsets would directly undermine the claim that unification itself drives the gains rather than simply larger data volume.

    Authors: We agree that a quantitative assessment of synchronization accuracy is important for validating the dataset quality and isolating the benefits of unification. In the revised manuscript we will expand Section 3 with details on the alignment procedure, including the filtering criteria applied to YouTube pairs, any manual verification statistics collected, and measured temporal offset statistics for a sampled subset of the data. These additions will clarify that the reported gains are supported by reasonably aligned supervision. revision: yes

  2. Referee: [Section 5] Section 5 (Experiments): while single-task baselines are compared on held-out test sets, the manuscript provides limited ablation detail on whether the observed improvements persist when single-task models are trained on the identical 1,300-hour corpus, and no error analysis or exact train/validation/test split statistics are reported. This leaves open the possibility that post-hoc selection or data-scale effects, rather than the unified architecture, explain the state-of-the-art numbers.

    Authors: We acknowledge that the current manuscript does not include an explicit ablation of single-task models trained on the full 1,300-hour corpus nor detailed split statistics or error analysis. To address this directly, the revised version will add (i) an ablation study retraining the single-task baselines on the identical full corpus, (ii) exact train/validation/test split sizes and construction details, and (iii) a concise error analysis for the primary tasks (OMR and image-to-audio) to help attribute performance differences to the unified modeling approach rather than data scale alone. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical gains measured on held-out test data against independent baselines

full rationale

The paper presents an empirical multitask Transformer trained on a newly collected 1,300-hour YouTube-sourced dataset of paired audio and score images, with a proposed tokenization scheme that converts each modality into sequences. All reported metrics (e.g., OMR SER reduction from 24.58% to 13.67%, gains on other translation tasks, and first score-to-audio generation) are measured on external test splits against single-task baselines that the authors implement independently. No derivation step reduces by the paper's own equations or self-citations to a quantity defined solely by its inputs; the sequence-to-sequence objective and evaluation protocol supply independent grounding outside any fitted parameter or prior author result.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard Transformer seq2seq assumptions and the quality of the newly collected paired data; no new physical entities or ad-hoc mathematical constants are introduced.

axioms (1)
  • domain assumption A single encoder-decoder Transformer can learn effective shared representations when all modalities are discretized into compatible token sequences.
    Invoked when framing all translation tasks as one coherent sequence-to-sequence problem.

pith-pipeline@v0.9.0 · 5827 in / 1512 out tokens · 46133 ms · 2026-05-22T14:57:48.597785+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
