Robust and compact single-lens crossed-beam optical dipole trap for Bose-Einstein condensation in microgravity

Jan Simon Haase , Alexander Fieguth , Igor Br\"ockel , Janina Hamann , Jens Kruse , Carsten Klempt This is my paper

Pith reviewed 2026-05-22 14:22 UTC · model grok-4.3

classification 🪐 quant-ph physics.ins-detphysics.opticsphysics.space-ph
keywords optical dipole trapBose-Einstein condensatemicrogravityacousto-optical deflectorcrossed-beam trapevaporative coolingquantum sensing
0
0 comments X

The pith

A single lens with two acousto-optical deflectors forms a stable crossed-beam trap for Bose-Einstein condensates in microgravity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a crossed-beam optical dipole trap that relies on a single high-numerical-aperture lens and two independent two-dimensional acousto-optical deflectors to achieve three-dimensional control of the trap geometry. This configuration is intended to eliminate the misalignments that arise in conventional multi-lens crossed-beam designs and to deliver long-term stability under changing conditions. Time-averaged potentials generated by the deflectors support rapid evaporative cooling sequences that reach Bose-Einstein condensation. The setup has been shown to keep the beam intersection fixed during microgravity intervals, opening a route to all-optical condensates in mobile or space environments for quantum sensing.

Core claim

The paper establishes that a single high-numerical-aperture lens paired with two independent two-dimensional acousto-optical deflectors supplies three-dimensional trap control, minimizes misalignments, and maintains stable beam intersection throughout microgravity phases while enabling efficient evaporative cooling to Bose-Einstein condensates. The same hardware also permits dynamic shaping that produces one- and two-dimensional arrays of condensates. This combination is presented as a compact, robust platform for generating all-optical condensates under dynamic conditions.

What carries the argument

The single high-numerical-aperture lens together with two independent two-dimensional acousto-optical deflectors that create time-averaged potentials for three-dimensional trap geometry control.

If this is right

  • Rapid evaporative cooling sequences produce Bose-Einstein condensates on short time scales.
  • Three-dimensional trap control is achieved without the alignment drift typical of multi-lens systems.
  • One- and two-dimensional arrays of condensates can be created by dynamic trap shaping.
  • The compact layout supports all-optical condensate generation for quantum sensing in mobile platforms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Fewer optical elements could ease integration into portable or satellite instruments that must survive launch vibrations.
  • Dynamic array control might be used to perform simultaneous measurements on multiple condensates for differential sensing.
  • The same single-lens approach could be adapted to other atomic species or to hybrid trap geometries without redesigning the entire optical train.

Load-bearing premise

The single lens and deflectors continue to produce a precise, unchanging beam intersection and trap depth even when the apparatus experiences the accelerations and vibrations of microgravity.

What would settle it

A recorded shift in the location of the beam crossing or loss of trapped atoms during the microgravity segment of a drop-tower flight would show that the claimed stability does not hold.

Figures

Figures reproduced from arXiv: 2505.15302 by Alexander Fieguth, Carsten Klempt, Igor Br\"ockel, Janina Hamann, Jan Simon Haase, Jens Kruse.

Figure 1
Figure 1. Figure 1: FIG. 1. System sketch of the novel crossed optical dipole trap. The key concept is the use [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

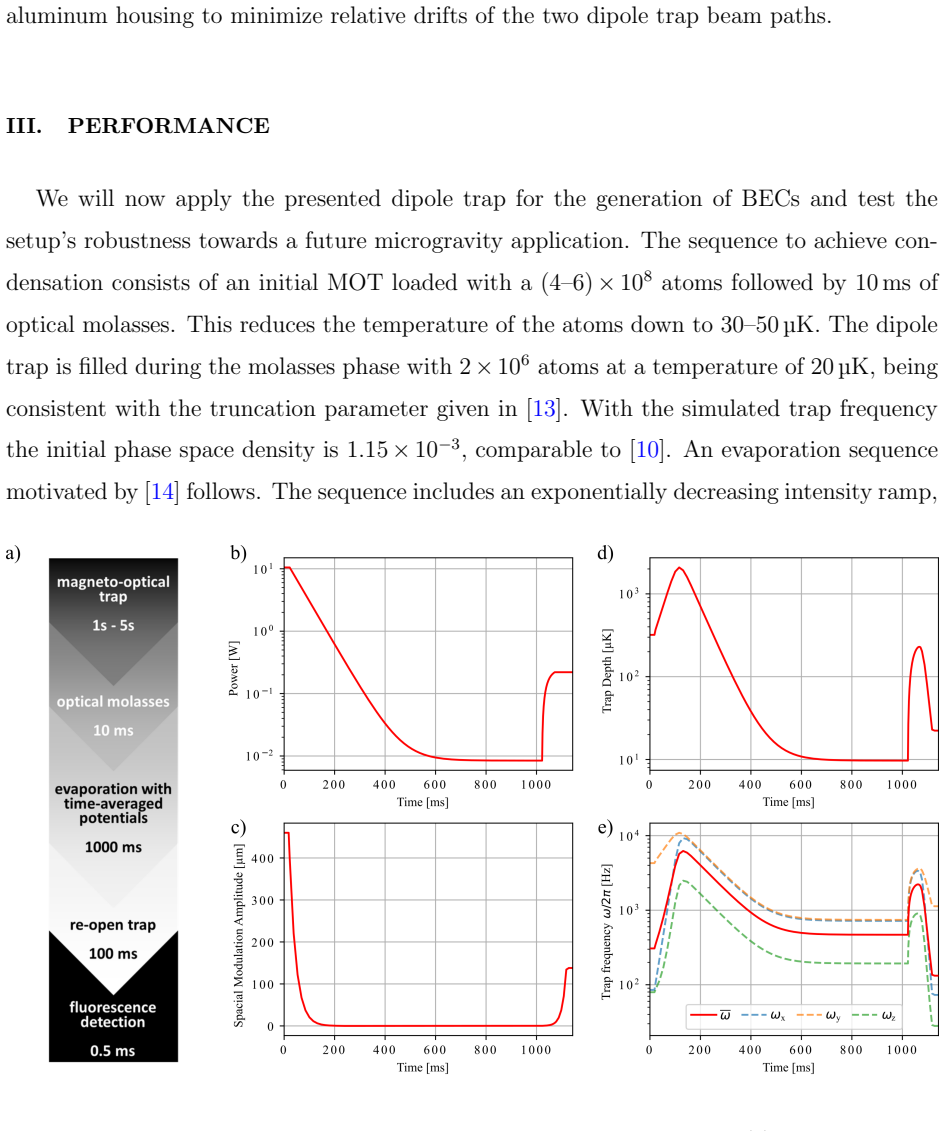

Figure 2. Figure 2: FIG. 2. Experimental sequence and trap parameters of a BEC sequence. (a) Overview of the [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Non-thermal behavior of the atom cloud as proof of Bose-Einstein condensation. On the [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Exemplary results of a single test flight of the dipole trap setup in the Einstein-Elevator. [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. 3 [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
read the original abstract

We present a novel concept for a compact and robust crossed-beam optical dipole trap (cODT) based on a single lens, designed for the efficient generation of Bose-Einstein condensates (BECs) under dynamic conditions. The system employs two independent two-dimensional acousto-optical deflectors (AODs) in combination with a single high-numerical-aperture lens to provide three-dimensional control over the trap geometry, minimizing potential misalignments and ensuring long-term operational stability. By leveraging time-averaged potentials, rapid and efficient evaporative cooling sequences toward BECs are enabled. The functionality of the cODT under microgravity conditions has been successfully demonstrated in the Einstein-Elevator in Hannover, Germany, where the beam intersection was shown to remain stable throughout the microgravity phase of the flight. In addition, the system has been implemented in the sensor head of the INTENTAS project to verify BEC generation. Additional realization of one- and two-dimensional control of arrays of condensates through dynamic trap shaping was achieved. This versatile approach allows for advanced quantum sensing applications in mobile and space-based environments based on all-optical BECs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a compact single-lens crossed-beam optical dipole trap (cODT) that combines two independent 2D acousto-optical deflectors with a high-numerical-aperture lens to achieve three-dimensional trap control and time-averaged potentials. The central claims are that this design minimizes misalignments relative to conventional multi-lens setups, enables efficient evaporative cooling sequences to Bose-Einstein condensates, and maintains beam-intersection stability under microgravity. The authors report a successful demonstration of intersection stability throughout the microgravity phase of flights in the Einstein-Elevator facility in Hannover, implementation of the system in the INTENTAS sensor head for BEC generation, and additional realization of one- and two-dimensional arrays of condensates via dynamic trap shaping.

Significance. If the quantitative stability metrics hold, the single-lens cODT architecture would represent a meaningful advance for all-optical BEC sources in space-borne or mobile quantum-sensing platforms by reducing mechanical complexity and alignment drift. The experimental demonstration in a microgravity facility and the dynamic array control are concrete strengths that could support applications in inertial sensing or atom interferometry.

major comments (2)
  1. Abstract and Einstein-Elevator results section: the claim that beam intersection 'remained stable throughout the microgravity phase' is load-bearing for the headline robustness result, yet the manuscript provides only qualitative images or short excerpts rather than time-resolved position traces with RMS fluctuations (target <1 µm) or trap-depth variation over the full ~4–5 s free-fall window, including residual vibrations. Without these data and a direct comparison to multi-lens drift, the evidence does not yet rule out slow drifts that would compromise evaporative cooling to BEC.
  2. Section describing the INTENTAS implementation and BEC generation: the manuscript states that the system 'has been implemented ... to verify BEC generation,' but does not report atom numbers, temperatures, or phase-space densities with error bars, nor does it show that the single-lens geometry actually reaches the required trap depths and lifetimes for condensation under the reported conditions.
minor comments (2)
  1. Notation for the AOD deflection angles and time-averaging protocol should be defined explicitly in the methods section to allow reproduction of the three-dimensional control.
  2. Figure captions for the microgravity flight data should include the exact flight duration, sampling rate, and any filtering applied to the beam-position images.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback on our manuscript. We have prepared point-by-point responses to the major comments and will make revisions to incorporate additional quantitative information where possible to address the concerns raised.

read point-by-point responses

  1. Referee: Abstract and Einstein-Elevator results section: the claim that beam intersection 'remained stable throughout the microgravity phase' is load-bearing for the headline robustness result, yet the manuscript provides only qualitative images or short excerpts rather than time-resolved position traces with RMS fluctuations (target <1 µm) or trap-depth variation over the full ~4–5 s free-fall window, including residual vibrations. Without these data and a direct comparison to multi-lens drift, the evidence does not yet rule out slow drifts that would compromise evaporative cooling to BEC.

    Authors: We appreciate the referee pointing out the need for more rigorous quantitative evidence. The current manuscript demonstrates the stability primarily through images and excerpts showing the beam intersection remaining intact during the microgravity phase of the Einstein-Elevator flights. We agree that time-resolved traces would provide stronger support for the claim and help rule out slow drifts. In the revised manuscript, we will add time-resolved position data with calculated RMS fluctuations (targeting values below 1 µm) and trap-depth variations over the full free-fall duration, including any effects from residual vibrations. We will also include a comparison to multi-lens drift based on typical values reported in the literature for similar systems. This revision will better substantiate the robustness of the single-lens design. revision: yes

  2. Referee: Section describing the INTENTAS implementation and BEC generation: the manuscript states that the system 'has been implemented ... to verify BEC generation,' but does not report atom numbers, temperatures, or phase-space densities with error bars, nor does it show that the single-lens geometry actually reaches the required trap depths and lifetimes for condensation under the reported conditions.

    Authors: We thank the referee for this observation. The manuscript mentions the implementation in the INTENTAS sensor head for verifying BEC generation but indeed lacks the detailed quantitative metrics. We will revise this section to include the measured atom numbers, temperatures, and phase-space densities with error bars from the experiments performed. Furthermore, we will provide data or estimates demonstrating that the trap depths and lifetimes achieved with the single-lens cODT are sufficient for reaching the conditions necessary for Bose-Einstein condensation. These additions will clarify the performance and support the claims regarding efficient evaporative cooling in this geometry. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration without derivations or self-referential claims

full rationale

The paper is a purely experimental report on a compact single-lens cODT setup for BEC generation, with the central claim resting on physical demonstration of beam-intersection stability during microgravity flights in the Einstein-Elevator. No equations, derivations, fitted parameters, or theoretical predictions appear in the provided text. Claims of robustness and 3D control are justified by hardware description and direct observation rather than any reduction to self-citations, ansatzes, or input-output equivalence. This is self-contained empirical work with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an experimental hardware paper. No free parameters, mathematical axioms, or invented physical entities are introduced in the abstract.

pith-pipeline@v0.9.0 · 5759 in / 1090 out tokens · 62489 ms · 2026-05-22T14:22:01.673958+00:00 · methodology
