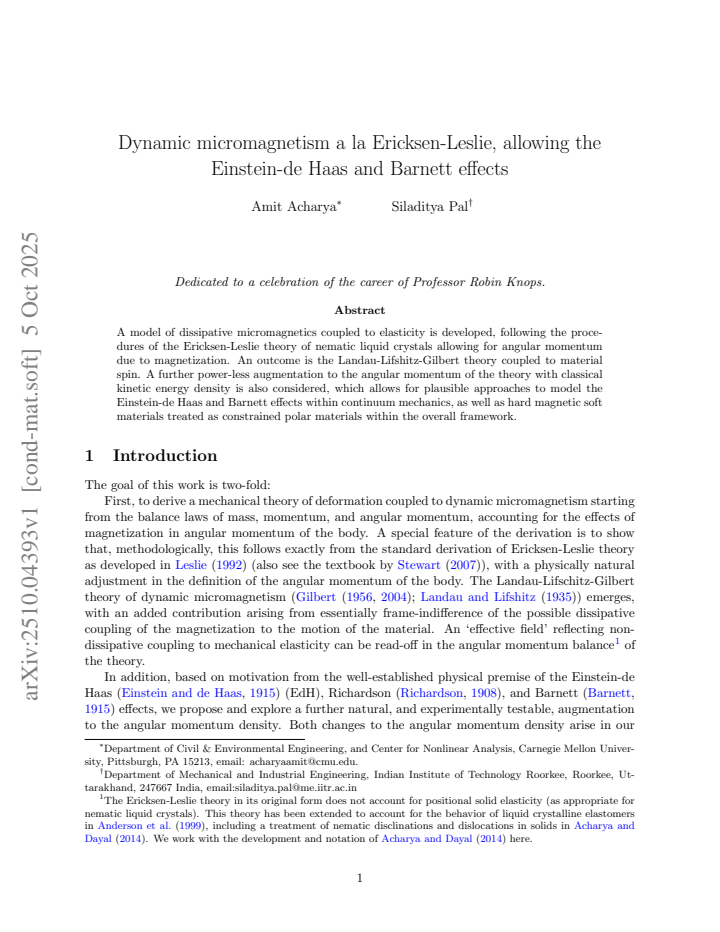

Dynamic micromagnetism a la Ericksen-Leslie, and the constrained polar continuum mechanics of hard magnetic soft materials
Pith reviewed 2026-05-18 10:07 UTC · model grok-4.3
The pith
A continuum model for dynamic micromagnetics in soft materials adapts Ericksen-Leslie procedures from liquid crystals to include magnetization angular momentum, producing the Landau-Lifshitz-Gilbert theory coupled to material spin.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Following the procedures of the Ericksen-Leslie theory of nematic liquid crystals while allowing for angular momentum due to magnetization leads to the Landau-Lifshitz-Gilbert theory coupled to material spin in a model of dissipative micromagnetics coupled to (visco-)elasticity. A further power-less augmentation to the angular momentum with classical kinetic energy density is considered for representing the Einstein-de Haas and Barnett effects. The continuum mechanics of hard magnetic soft materials is presented as a constrained polar material, encompassing the models of DeSimone and James and Zhao et al. as energetically and kinematically constrained cases.
What carries the argument
Adaptation of Ericksen-Leslie balance laws and constitutive procedures to micromagnetics with angular momentum from magnetization, which couples magnetic dynamics directly to material spin and deformation.
If this is right
- The Landau-Lifshitz-Gilbert equations become part of a larger system that includes elastic deformation and material angular momentum balance.
- The framework can represent magnetic contributions to overall angular momentum in deforming continua.
- Hard magnetic soft materials are unified as constrained polar continua.
- Earlier magnetoelastic models appear as special cases of energetic or kinematic constraints.
Where Pith is reading between the lines
- The same adaptation could be tested for consistency when dissipation is present in both magnetic and mechanical fields simultaneously.
- Numerical implementations of the coupled equations might reveal new regimes of magneto-mechanical resonance in soft actuators.
- The polar continuum view may suggest similar constrained treatments for other field-coupled smart materials such as dielectric elastomers.
Load-bearing premise
The procedures of the Ericksen-Leslie theory of nematic liquid crystals can be followed for dissipative micromagnetics coupled to visco-elasticity while allowing for angular momentum due to magnetization.
What would settle it
A laboratory measurement of magnetization precession or reversal rates in a thin film of ferromagnetic elastomer subjected to controlled mechanical vibration, compared against predictions from the coupled Landau-Lifshitz-Gilbert plus material-spin equations.
read the original abstract
A model of dissipative micromagnetics coupled to (visco-)elasticity is explored, following the procedures of the Ericksen-Leslie theory of nematic liquid crystals allowing for angular momentum due to magnetization. An outcome is the Landau-Lifshitz-Gilbert theory coupled to material spin. A further power-less augmentation to the angular momentum of the theory with classical kinetic energy density is also considered, with a preliminary exploration of its potential in representing the Einstein-de Haas and Barnett effects within continuum mechanics. A treatment of the continuum mechanics of hard magnetic soft materials as a constrained polar material is presented. The models of DeSimone and James (2002) and Zhao et al. (2019) are discussed as two different, namely energetically and kinematically, constrained models of magnetoelasticity encompassed within the overall framework.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper develops a continuum model of dissipative micromagnetics coupled to (visco-)elasticity by adapting the Ericksen-Leslie framework for nematic liquid crystals while allowing angular momentum due to magnetization. This construction is claimed to recover the Landau-Lifshitz-Gilbert (LLG) equation coupled to material spin. A power-less augmentation of the angular momentum balance with classical kinetic energy density is introduced to capture Einstein-de Haas and Barnett effects. The work further treats hard magnetic soft materials as constrained polar continua and shows that the models of DeSimone and James (2002) and Zhao et al. (2019) arise as energetically and kinematically constrained special cases within the same framework.
Significance. If the central mapping from Ericksen-Leslie balance laws and dissipation to the LLG form is rigorously established, the manuscript supplies a unified polar-continuum setting that links liquid-crystal hydrodynamics to dynamic micromagnetism and magnetoelasticity. The explicit inclusion of intrinsic spin density and the discussion of both energetic and kinematic constraints on magnetization offer a coherent route to modeling gyromagnetic phenomena in soft magnetic materials, with potential for new predictions in actuator design and dynamic response.
major comments (2)
- [§4] §4 (Angular-momentum balance and dissipation): the derivation must explicitly demonstrate how the Leslie-type viscous couple stress, quadratic in the corotational rate, produces the Gilbert damping term linear in dM/dt together with the gyromagnetic precession cross-product structure; the identification M ↔ n alone does not automatically fix the gyromagnetic ratio γ or guarantee the required torque form without an additional constitutive postulate on the spin density.
- [§6] §6 (Constrained polar models): the claim that both the DeSimone-James energetic constraint and the Zhao et al. kinematic constraint are recovered as special cases of the same polar continuum requires a direct verification that the constraint reactions do not modify the dynamic LLG coupling or the angular-momentum balance derived earlier; this step is load-bearing for the unification statement.
minor comments (2)
- Clarify the precise relation between the magnetization vector M and the Ericksen-Leslie director n when the analogy is invoked; a short table comparing the two sets of balance laws would improve readability.
- [§5] The preliminary exploration of Einstein-de Haas and Barnett effects would benefit from a single numerical example or order-of-magnitude estimate showing the magnitude of the added kinetic-energy term relative to the magnetic torque.
Simulated Author's Rebuttal
We thank the referee for the careful and constructive report. The comments identify places where the derivations can be made more explicit, and we agree that revisions will strengthen the manuscript. We respond to each major comment below.
read point-by-point responses
-
Referee: [§4] §4 (Angular-momentum balance and dissipation): the derivation must explicitly demonstrate how the Leslie-type viscous couple stress, quadratic in the corotational rate, produces the Gilbert damping term linear in dM/dt together with the gyromagnetic precession cross-product structure; the identification M ↔ n alone does not automatically fix the gyromagnetic ratio γ or guarantee the required torque form without an additional constitutive postulate on the spin density.
Authors: We agree that an expanded derivation is warranted. The manuscript obtains the LLG form by substituting the constitutive expression for the dissipative couple stress (quadratic in the corotational rate of the magnetization, identified with the director) into the angular-momentum balance and combining it with the constitutive relation for intrinsic spin density. The gyromagnetic ratio γ is fixed by the linear relation between spin density and magnetization. To make this transparent, we will insert a new subsection in §4 that carries out the algebra step by step, explicitly recovering both the precessional cross-product term and the Gilbert damping linear in dM/dt, together with the required constitutive postulate on the spin density. revision: yes
-
Referee: [§6] §6 (Constrained polar models): the claim that both the DeSimone-James energetic constraint and the Zhao et al. kinematic constraint are recovered as special cases of the same polar continuum requires a direct verification that the constraint reactions do not modify the dynamic LLG coupling or the angular-momentum balance derived earlier; this step is load-bearing for the unification statement.
Authors: The referee correctly notes that this verification is essential. The general balance laws and the LLG-type evolution equation are derived before any constraint is imposed. Both the energetic constraint (DeSimone-James) and the kinematic constraint (Zhao et al.) introduce reactions that are workless: they lie in the orthogonal complement of the admissible virtual variations and therefore contribute neither to the dissipation nor to the torque balance. We will add a short paragraph in §6 that explicitly substitutes the reaction terms into the angular-momentum balance and the dissipation inequality, confirming that the dynamic LLG coupling remains unchanged in both constrained cases. revision: yes
Circularity Check
Derivation applies established Ericksen-Leslie balance laws to micromagnetics without reducing LLG to self-referential inputs
full rationale
The paper states that it follows the procedures of the Ericksen-Leslie theory of nematic liquid crystals while allowing for angular momentum due to magnetization, yielding the Landau-Lifshitz-Gilbert theory coupled to material spin. This starts from independent, externally established balance laws and dissipation structures rather than defining the target LLG form in terms of itself or fitting parameters to recover it by construction. The abstract and described framework treat the Einstein-de Haas and Barnett effects as a preliminary augmentation and encompass prior models of DeSimone-James and Zhao et al. as special cases of constrained polar magnetoelasticity, without load-bearing self-citations or ansatzes that presuppose the outcome. The derivation chain therefore remains self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Procedures of the Ericksen-Leslie theory of nematic liquid crystals apply to dissipative micromagnetics coupled to (visco-)elasticity
- domain assumption Angular momentum due to magnetization is permitted in the continuum description
