ToolPRM: Fine-Grained Inference Scaling of Structured Outputs for Function Calling
Pith reviewed 2026-05-18 06:27 UTC · model grok-4.3
The pith
ToolPRM scores each intra-call decision to scale inference for structured function calling better than outcome or coarse rewards.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We propose ToolPRM, a process reward model scoring each intra-call decision (function name and argument filling). We build the first fine-grained intra-call supervision dataset via function masking, rollout collection, and step-level annotation. ToolPRM outperforms outcome and coarse-grained reward models in predictive accuracy and yields consistent test-time gains on multiple function-calling benchmarks. We further show that structured generation follows 'explore more but retain less', since early JSON errors are unrecoverable.
What carries the argument
ToolPRM, the process reward model that scores every intra-call decision to guide fine-grained beam search over structured outputs.
If this is right
- ToolPRM delivers higher predictive accuracy for good intra-call paths than either final-outcome or coarse-grained reward models.
- The same model produces steady performance lifts when used for test-time scaling on existing function-calling benchmarks.
- Structured function outputs obey an explore-more-retain-less rule because an early JSON formatting error cannot be corrected downstream.
Where Pith is reading between the lines
- The same fine-grained supervision approach could be applied to other structured generation settings such as code completion where early syntax mistakes also compound.
- Increasing the beam width further while using ToolPRM might reduce the performance gap to much larger base models without additional training.
- The masking-plus-rollout data pipeline offers a template for creating step-level signals in broader tool-use or API-calling scenarios.
Load-bearing premise
The dataset built by masking functions, collecting rollouts, and adding step-level labels supplies rewards that remain accurate and transfer to new test distributions.
What would settle it
Running ToolPRM-guided beam search on a new function-calling benchmark with unseen function schemas and finding no accuracy gain over greedy decoding or an outcome reward model would disprove the consistent test-time improvement claim.

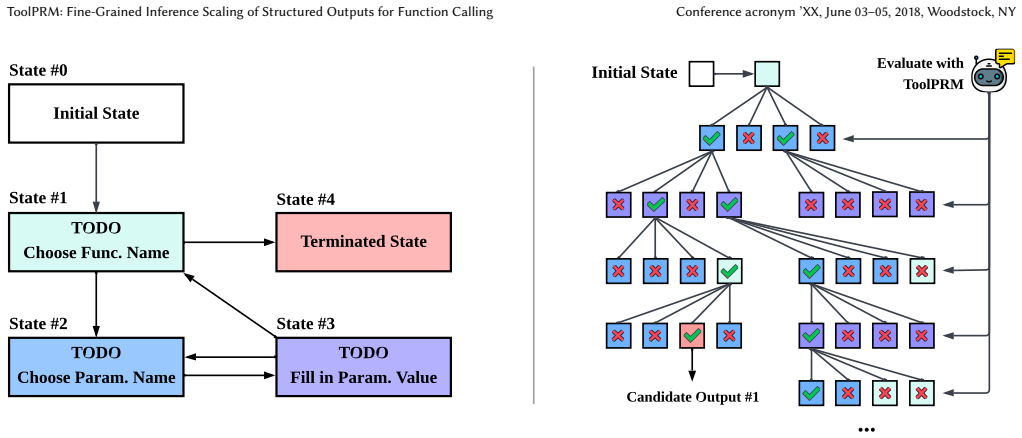

Figures
read the original abstract
Large language models (LLMs) excel at function calling, but inference scaling has been explored mainly for unstructured generation. We propose an inference-scaling framework for structured outputs that combines fine-grained beam search with \textbf{ToolPRM}, a process reward model scoring each intra-call decision (function name and argument filling). We build the first fine-grained intra-call supervision dataset via function masking, rollout collection, and step-level annotation. ToolPRM outperforms outcome and coarse-grained reward models in predictive accuracy and yields consistent test-time gains on multiple function-calling benchmarks. We further show that structured generation follows ``\textbf{explore more but retain less}'', since early JSON errors are unrecoverable.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes ToolPRM, a process reward model for fine-grained inference scaling of structured outputs in LLM function calling. It constructs the first intra-call supervision dataset through function masking, rollout collection, and step-level annotation, then uses ToolPRM to score individual decisions (function name and argument filling) within calls. The central claims are that ToolPRM outperforms outcome and coarse-grained reward models on predictive accuracy and delivers consistent gains under test-time beam search on function-calling benchmarks; the work also reports that structured generation obeys an “explore more but retain less” pattern because early JSON errors are unrecoverable.
Significance. If the fine-grained rewards prove accurate and transferable, the framework would advance inference-time scaling for tool-use and structured generation tasks by enabling more precise process-level guidance. The new dataset construction pipeline and the empirical observation on exploration/retention trade-offs in JSON-structured outputs are concrete contributions that could inform future work on process supervision.
major comments (1)
- Dataset construction section: the step-level annotation procedure (function masking + rollout collection) is not shown to assign labels independently of final rollout outcome. If annotations rely on outcome proxies or simple heuristics, early correct function-name/argument decisions can be mislabeled when later steps fail, directly threatening both the reported predictive-accuracy advantage over outcome/coarse-grained baselines and the claimed generalization to unseen test distributions.
minor comments (1)
- Abstract and §4: the slogan “explore more but retain less” is introduced without a forward reference to the section or figure that quantifies the exploration/retention trade-off; a brief parenthetical or citation would improve readability.
Simulated Author's Rebuttal
We thank the referee for the careful reading and constructive feedback. We address the single major comment below.
read point-by-point responses
-
Referee: Dataset construction section: the step-level annotation procedure (function masking + rollout collection) is not shown to assign labels independently of final rollout outcome. If annotations rely on outcome proxies or simple heuristics, early correct function-name/argument decisions can be mislabeled when later steps fail, directly threatening both the reported predictive-accuracy advantage over outcome/coarse-grained baselines and the claimed generalization to unseen test distributions.
Authors: We appreciate the referee highlighting this critical requirement for true process supervision. In our pipeline, function masking generates partial structured outputs and rollouts produce candidate completions, but the subsequent step-level annotation is performed by human experts who judge each intra-call decision (function-name selection or argument filling) solely on its correctness given the query and prior context. Annotators are explicitly instructed to ignore the remainder of the rollout and the final success or failure; a correct early decision receives a positive label even if a later step introduces an error. This protocol was designed to avoid the exact contamination the referee describes. We acknowledge, however, that the current manuscript does not provide sufficient detail on the annotation guidelines or inter-annotator agreement statistics to make this independence fully transparent. In the revised version we will expand the Dataset Construction section with the precise annotation rubric, example decisions, and confirmation that labels were assigned without reference to rollout outcomes. These additions will directly support the validity of the reported predictive-accuracy gains and the generalization claims. revision: yes
Circularity Check
No significant circularity; derivation relies on independent dataset construction and external evaluation
full rationale
The paper constructs a new fine-grained intra-call supervision dataset via function masking, rollout collection, and step-level annotation, trains ToolPRM on this data to score individual decisions, and evaluates predictive accuracy plus test-time gains on multiple external function-calling benchmarks. No quoted equations, self-citations, or claims reduce the reported outperformance or the 'explore more but retain less' observation to fitted parameters by construction, self-referential definitions, or load-bearing prior work by the same authors. The central results rest on standard supervised training and benchmark comparison rather than any reduction of outputs to inputs.
Axiom & Free-Parameter Ledger
invented entities (1)
-
ToolPRM
no independent evidence
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We construct the first fine-grained intra-call supervision dataset via function masking, rollout collection, and step-level annotation... ToolPRM outperforms outcome and coarse-grained reward models
-
IndisputableMonolith/Foundation/ArithmeticFromLogic.leanembed_strictMono_of_one_lt unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
explore more but retain less... due to the unrecoverability characteristics of structured function calling generation
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
