AVOID-JACK: Avoidance of Jackknifing for Swarms of Long Heavy Articulated Vehicles

Adrian Sch\"onnagel , Michael Dub\'e , Christoph Steup , Felix Keppler , Sanaz Mostaghim This is my paper

Pith reviewed 2026-05-18 00:01 UTC · model grok-4.3

classification 💻 cs.RO cs.AIcs.MA
keywords jackknifing avoidanceswarm roboticsarticulated vehiclesdecentralized controlheavy vehiclescollision avoidancemulti-robot systems
0
0 comments X

The pith

A reaction-based decentralized strategy avoids jackknifing in swarms of long heavy articulated vehicles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper seeks to establish that a purely reaction-based decentralized swarm intelligence approach, customized for the elongated kinematics of heavy articulated vehicles, can prevent jackknifing and support collision avoidance while permitting progress toward goals. A sympathetic reader would care because current swarm methods focus on simple point robots and leave unaddressed the practical needs of logistics, mining, and agriculture fleets that use long trailers and trucks. The work introduces local rules that respond only to immediate neighbors and vehicle state to keep articulation angles safe. Simulation trials with one and two vehicles report avoidance rates above 98 percent alongside usable goal-reaching performance.

Core claim

The paper claims that a novel purely reaction-based, decentralized swarm intelligence strategy tailored to elongated articulated heavy vehicles prioritizes jackknifing avoidance and lays groundwork for mutual collision avoidance. This is shown through extensive simulation experiments in which a single vehicle avoids jackknifing in 99.8 percent of cases and reaches its first and second goals in 86.7 percent and 83.4 percent of cases respectively, while two interacting vehicles achieve 98.9 percent jackknifing avoidance, 79.4 percent first-goal success, 65.1 percent second-goal success, and 99.7 percent collision-free operation.

What carries the argument

the reaction-based decentralized swarm intelligence strategy that uses only local sensory data and vehicle articulation state to adjust steering and speed and keep the vehicle within safe folding angles.

If this is right

  • Jackknifing avoidance becomes feasible for elongated vehicles without requiring centralized planning or global state.
  • The same local rules can keep mutual collision rates under 1 percent when two vehicles operate together.
  • Goal-reaching performance above 65 percent remains achievable even when vehicles must interact to avoid each other.
  • The method supplies a starting point for scaling swarm automation to fleets of long vehicles in logistics and agriculture.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If local reaction rules remain stable, the approach could extend to swarms larger than two vehicles without redesign.
  • Integration with existing vehicle dynamics controllers would be needed to handle real inertia and latency.
  • Similar decentralized folding-angle limits might apply to other non-point robots such as snake-like or multi-trailer systems.

Load-bearing premise

That a purely reaction-based decentralized strategy tailored to elongated articulated kinematics will generalize from simulation to real-world conditions with sensor noise, dynamics, and more than two vehicles.

What would settle it

Physical trials on real heavy articulated vehicles that produce jackknifing events in more than 5 percent of runs under realistic sensor noise would falsify the effectiveness claim.

Figures

Figures reproduced from arXiv: 2511.08016 by Adrian Sch\"onnagel, Christoph Steup, Felix Keppler, Michael Dub\'e, Sanaz Mostaghim.

Figure 1
Figure 1. Figure 1: Ackermann Truck-Trailer Model for HAV i. The truck (blue) and first trailer (black) are shown at the bottom right, while the final trailer Ni is depicted at the top left. Intermediate trailers are omitted for clarity and indicated by a thick dashed line. For simplicity, the subscript i is omitted from the variables. arXiv:2511.08016v1 [cs.RO] 11 Nov 2025 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Note that ϕi is clipped into the HAVs’ steering limits [−ϕ max i , ϕmax i ] [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

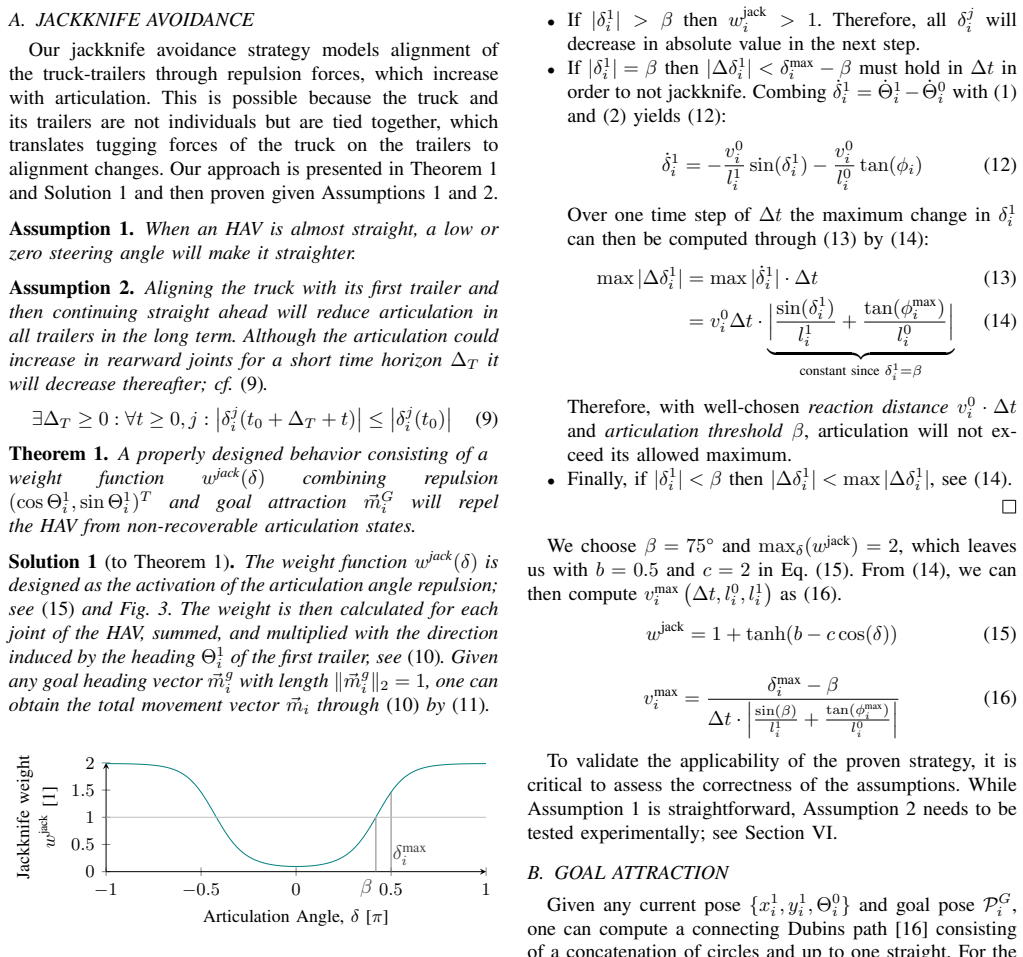

Figure 3
Figure 3. Figure 3: Function for Jackknife Weight over Articulation Angle, see (15). [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

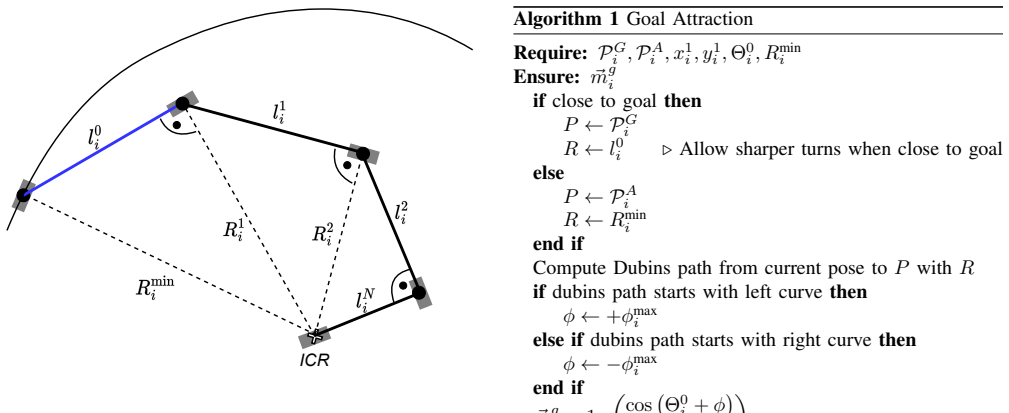

Figure 4
Figure 4. Figure 4: Minimum stable circle of an example HAV. (blue: truck, black [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

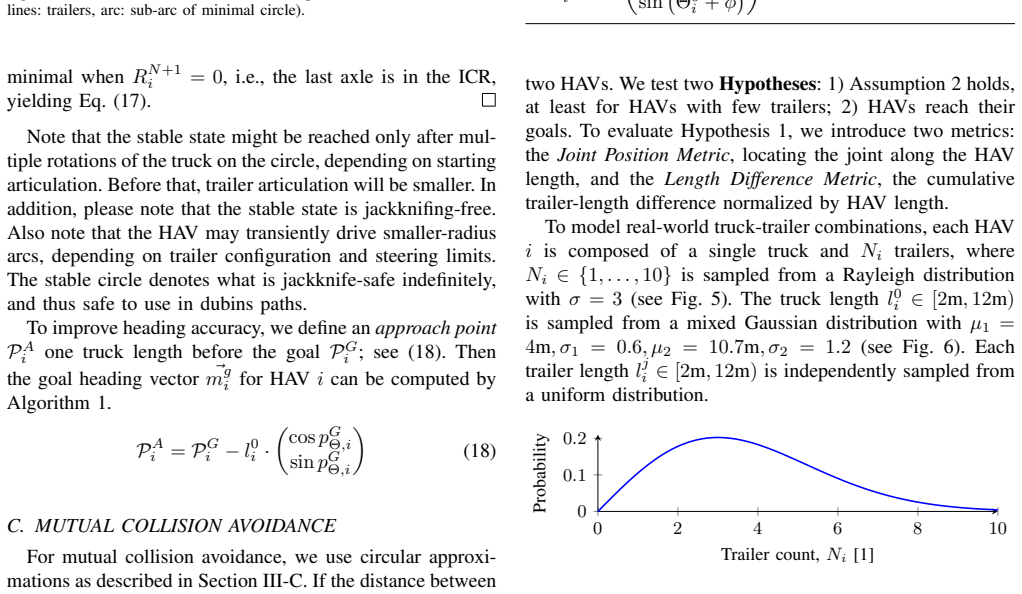

Figure 5
Figure 5. Figure 5: Trailer Count Distribution. 2 4 6 8 10 12 0 0.1 0.2 0.3 Truck length, l 0 i [m] Probability [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

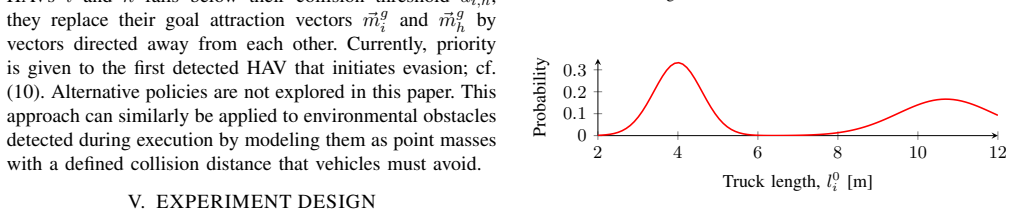

Figure 6
Figure 6. Figure 6: Truck Length Distribution. We then sequentially assign a start pose to each HAV. The pose is randomly sampled from a uniform distribution in 2D space plus heading such that 0 ≤ x ≤ A, 0 ≤ y ≤ A and [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗

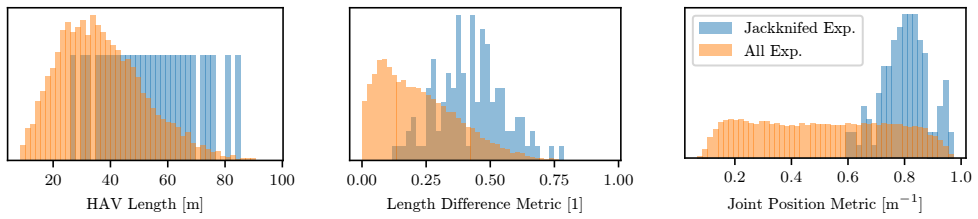

Figure 7
Figure 7. Figure 7: Probability Distribution of Experimental Results for Two HAV Experiments. Y-axis scaled differently between subplots for maximum clarity. [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗

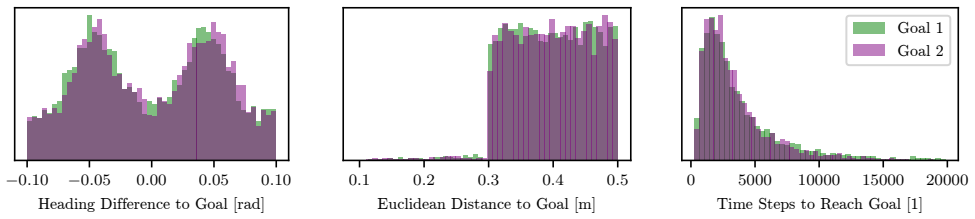

Figure 8
Figure 8. Figure 8: Probability Distribution on Goal States for Two HAV Experiments. Y-Axis scaled differently between subplots for maximum clarity. [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗

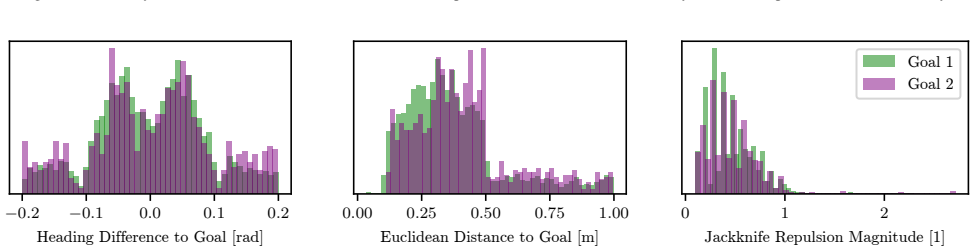

Figure 9
Figure 9. Figure 9: Probability Distribution on Close Misses for Two HAV Experiments. Y-Axis scaled differently between subplots for maximum clarity. [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
read the original abstract

This paper presents a novel approach to avoiding jackknifing and mutual collisions in Heavy Articulated Vehicles (HAVs) by leveraging decentralized swarm intelligence. In contrast to typical swarm robotics research, our robots are elongated and exhibit complex kinematics, introducing unique challenges. Despite its relevance to real-world applications such as logistics automation, remote mining, airport baggage transport, and agricultural operations, this problem has not been addressed in the existing literature. To tackle this new class of swarm robotics problems, we propose a purely reaction-based, decentralized swarm intelligence strategy tailored to automate elongated, articulated vehicles. The method presented in this paper prioritizes jackknifing avoidance and establishes a foundation for mutual collision avoidance. We validate our approach through extensive simulation experiments and provide a comprehensive analysis of its performance. For the experiments with a single HAV, we observe that for 99.8% jackknifing was successfully avoided and that 86.7% and 83.4% reach their first and second goals, respectively. With two HAVs interacting, we observe 98.9%, 79.4%, and 65.1%, respectively, while 99.7% of the HAVs do not experience mutual collisions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper claims to introduce a novel purely reaction-based decentralized swarm intelligence strategy for jackknifing avoidance and mutual collision avoidance in swarms of long heavy articulated vehicles. It validates this through simulation experiments, reporting success rates of 99.8% jackknifing avoidance for single HAVs (86.7% and 83.4% goal achievement) and 98.9% for two HAVs (79.4%, 65.1% goals, 99.7% no collisions). The work highlights the unique challenges of elongated articulated kinematics not addressed in prior swarm robotics literature.

Significance. Should the proposed strategy demonstrate robustness beyond idealized simulations, it would represent a meaningful contribution to swarm robotics by addressing a practical gap for heavy articulated vehicles in real-world applications like logistics and agriculture. The decentralized nature is promising for scalability. However, the current evidence from limited simulation scenarios without noise or dynamics modeling tempers the significance.

major comments (3)
  1. [Abstract] The performance figures (e.g., 99.8% jackknifing avoidance) are presented without error bars, statistical significance tests, or baseline comparisons, making it difficult to evaluate the effectiveness of the strategy relative to existing methods or random behavior.
  2. [Method and Experiments] There is no explicit description or equations detailing the reaction-based control rules, nor any analysis of how the strategy handles the jackknife singularity in the vehicle kinematics. This absence hinders assessment of the approach's novelty and correctness.
  3. [Validation] The simulations do not incorporate sensor noise, actuator delays, or friction variations, despite the known sensitivity of articulated vehicle dynamics to small perturbations. This is a load-bearing issue for claims of practical applicability, as the reported high success rates may not generalize.
minor comments (1)
  1. [Abstract] Grammatical phrasing in 'for 99.8% jackknifing was successfully avoided' should be corrected to improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments. We address each of the major comments below and indicate the changes we will make to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] The performance figures (e.g., 99.8% jackknifing avoidance) are presented without error bars, statistical significance tests, or baseline comparisons, making it difficult to evaluate the effectiveness of the strategy relative to existing methods or random behavior.

    Authors: We agree that the presentation of results would benefit from additional statistical analysis and comparisons. In the revised manuscript, we will report results with error bars (standard deviation over 100 independent simulation runs), include p-values from statistical tests comparing to baseline conditions, and add a random steering baseline as well as a simple proportional control baseline for context. revision: yes

  2. Referee: [Method and Experiments] There is no explicit description or equations detailing the reaction-based control rules, nor any analysis of how the strategy handles the jackknife singularity in the vehicle kinematics. This absence hinders assessment of the approach's novelty and correctness.

    Authors: The manuscript includes a description of the reaction-based rules in Section III, but we acknowledge that explicit equations and singularity analysis are not sufficiently detailed. We will revise the methods section to include the full mathematical formulation of the decentralized control laws and add a dedicated subsection analyzing the behavior near the jackknife singularity, explaining how the reaction terms prevent the articulation angle from reaching unstable configurations. revision: yes

  3. Referee: [Validation] The simulations do not incorporate sensor noise, actuator delays, or friction variations, despite the known sensitivity of articulated vehicle dynamics to small perturbations. This is a load-bearing issue for claims of practical applicability, as the reported high success rates may not generalize.

    Authors: This is a valid concern. Our current simulations are performed in an idealized kinematic model to isolate the effectiveness of the proposed strategy. We will expand the validation section to include a robustness analysis with added sensor noise (e.g., Gaussian noise on position and angle measurements) and discuss the potential effects of actuator delays and friction. Full dynamic simulations with variable friction will be noted as an important direction for future work, as they require more complex modeling beyond the scope of this initial study. revision: partial

Circularity Check

0 steps flagged

No circularity; novel reaction-based strategy introduced and validated in simulation.

full rationale

The paper introduces a new purely reaction-based decentralized swarm intelligence strategy for jackknifing avoidance in elongated articulated vehicles, explicitly stating the problem has not been addressed in existing literature. Performance figures (e.g., 99.8% avoidance for single HAV) are reported directly from simulation experiments rather than derived from any fitted parameters, self-citations, or prior equations by the authors. No load-bearing steps reduce by construction to inputs; the derivation chain is self-contained as an original proposal.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the unproven assumption that local reaction rules suffice for complex articulated kinematics without global planning or learning; no free parameters or invented physical entities are described in the abstract.

axioms (1)
  • domain assumption Decentralized reaction-based rules can prevent jackknifing and mutual collisions in swarms of long heavy articulated vehicles
    Invoked as the core of the proposed strategy without further justification or proof in the abstract
