pith. sign in

arxiv: 2512.18944 · v3 · submitted 2025-12-22 · ❄️ cond-mat.supr-con · cond-mat.mtrl-sci

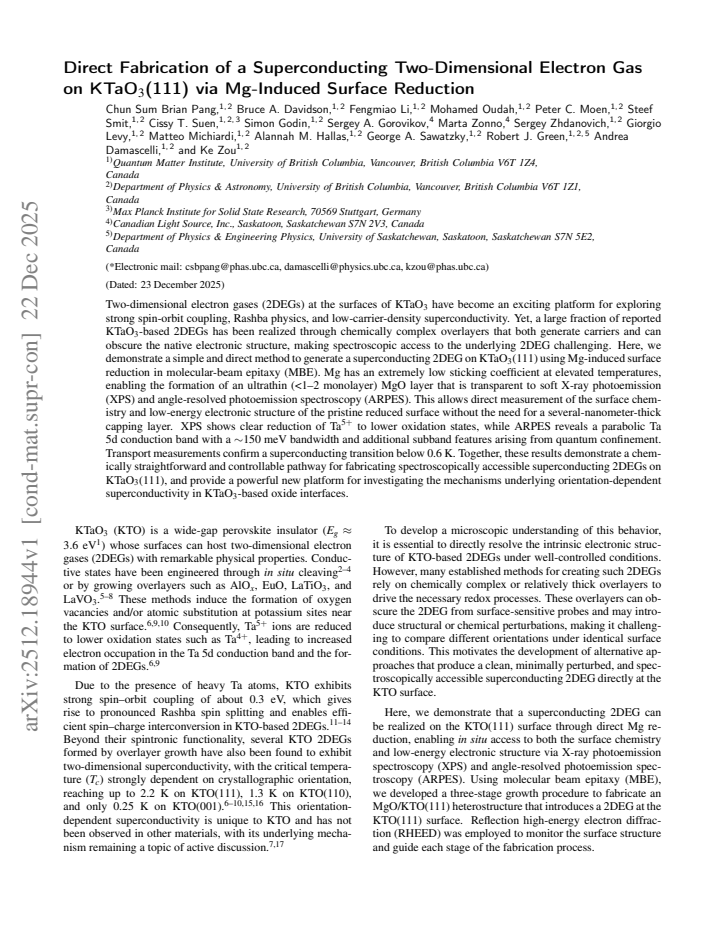

Direct Fabrication of a Superconducting Two-Dimensional Electron Gas on KTaO3(111) via Mg-Induced Surface Reduction

Chun Sum Brian Pang (1 , 2) , Bruce A. Davidson (1 , Fengmiao Li (1 , Mohamed Oudah (1 , Peter C. Moen (1 , Steef Smit (1 , Cissy T. Suen (1
show 28 more authors
2 3) Simon Godin (1 Sergey A. Gorovikov (4) Marta Zonno (4) Pinder Dosanjh (1 Sergey Zhdanovich (1 Giorgio Levy (1 Matteo Michiardi (1 Alannah M. Hallas (1 George A. Sawatzky (1 Robert J. Green (1 5) Andrea Damascelli (1 Ke Zou (1 2) ((1) Quantum Matter Institute University of British Columbia Vancouver Canada (2) Department of Physics & Astronomy (3) Max Planck Institute for Solid State Research Stuttgart Germany (4) Canadian Light Source Saskatoon (5) Department of Physics & Engineering Physics University of Saskatchewan Canada)
This is my paper

Pith reviewed 2026-05-16 20:55 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con cond-mat.mtrl-sci
keywords superconducting 2DEGKTaO3(111)Mg-induced reductionmolecular beam epitaxyARPESXPSoxide interfacessurface reduction
0
0 comments X p. Extension

The pith

Mg-induced surface reduction in MBE creates a superconducting 2DEG on KTaO3(111) accessible to direct ARPES and XPS.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that depositing magnesium during molecular-beam epitaxy reduces the KTaO3(111) surface enough to form a two-dimensional electron gas whose carriers come from lowered oxidation states of tantalum. Because magnesium has a very low sticking coefficient at growth temperature, the resulting MgO stays thinner than one or two monolayers and remains transparent to soft-x-ray photoemission, so the electronic bands can be measured without a thick capping layer. Transport measurements then confirm that this 2DEG becomes superconducting below 0.7 K. A reader would care because earlier routes to KTaO3 2DEGs relied on chemically complex overlayers that both generated carriers and hid the native surface structure, making clean spectroscopy difficult.

Core claim

Mg deposition at elevated temperature reduces surface Ta5+ ions, generating a confined Ta 5d electron gas whose parabolic band has a 150 meV bandwidth and shows quantum-confinement subbands; the same surface exhibits superconductivity below 0.7 K while the ultrathin MgO layer permits direct XPS and ARPES access to the pristine reduced interface.

What carries the argument

Mg-induced surface reduction, which lowers the oxidation state of surface tantalum atoms and confines the resulting electrons to the topmost layers without requiring a thick overlayer.

If this is right

  • The Ta 5d conduction band is parabolic with approximately 150 meV bandwidth and additional subbands due to quantum confinement.
  • Superconductivity appears below 0.7 K in the absence of any thick capping layer.
  • The method supplies a chemically simple route to orientation-dependent superconductivity studies on KTaO3 surfaces.
  • Direct spectroscopic access to the reduced surface becomes possible without several-nanometer overlayers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Varying the Mg flux or substrate temperature during growth should allow systematic tuning of carrier density and transition temperature.
  • The same reduction approach may extend to other orientations or related perovskite surfaces where clean 2DEG formation has been hard to achieve.
  • Device fabrication could become simpler because the ultrathin MgO may serve as a natural dielectric without additional processing steps.

Load-bearing premise

The MgO layer formed during growth remains only one or two monolayers thick and does not change or obscure the electronic states of the reduced KTaO3 surface.

What would settle it

Observation of a thick MgO layer that blocks the Ta 5d photoemission signal or absence of a superconducting transition in transport measurements on identically prepared samples.

Figures

Figures reproduced from arXiv: 2512.18944 by 2, 2), 2) ((1) Quantum Matter Institute, (2) Department of Physics & Astronomy, 3), (3) Max Planck Institute for Solid State Research, (4) Canadian Light Source, 5), (5) Department of Physics & Engineering Physics, Alannah M. Hallas (1, Andrea Damascelli (1, Bruce A. Davidson (1, Canada, Canada), Chun Sum Brian Pang (1, Cissy T. Suen (1, Fengmiao Li (1, George A. Sawatzky (1, Germany, Giorgio Levy (1, Ke Zou (1, Marta Zonno (4), Matteo Michiardi (1, Mohamed Oudah (1, Peter C. Moen (1, Pinder Dosanjh (1, Robert J. Green (1, Saskatoon, Sergey A. Gorovikov (4), Sergey Zhdanovich (1, Simon Godin (1, Steef Smit (1, Stuttgart, University of British Columbia, University of Saskatchewan, Vancouver.

Figure 1
Figure 1. Figure 1: FIG. 1. Fabrication of the MgO/KTO(111) sample. Schematic diagrams of (a) Stage 1, substrate degassing; (b) Stage 2, high-temperature [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. XPS spectra of an MgO/KTO(111) sample around the 4f [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Low-temperature transport measurements. Resistance as a [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. ARPES data of the Mg-reduced KTO(111) surface. (a) Fermi [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

Two-dimensional electron gases (2DEGs) at the surfaces of KTaO3 have become an exciting platform for exploring strong spin-orbit coupling, Rashba physics, and low-carrier-density superconductivity. Yet, a large fraction of reported KTaO3-based 2DEGs has been realized through chemically complex overlayers that both generate carriers and can obscure the native electronic structure, making spectroscopic access to the underlying 2DEG challenging. Here, we demonstrate a simple and direct method to generate a superconducting 2DEG on KTaO3(111) using Mg-induced surface reduction in molecular-beam epitaxy (MBE). Mg has an extremely low sticking coefficient at elevated temperatures, enabling the formation of an ultrathin (less than 1-2 monolayers) MgO layer that is transparent to soft x-ray photoemission spectroscopy (XPS) and angle-resolved photoemission spectroscopy (ARPES). This allows direct measurement of the surface chemistry and low-energy electronic structure of the pristine reduced surface without the need for a several-nanometer-thick capping layer. XPS shows clear reduction of Ta5+ to lower oxidation states, while ARPES reveals a parabolic Ta 5d conduction band with an approximately 150 meV bandwidth and additional subband features arising from quantum confinement. Transport measurements confirm a superconducting transition below 0.7 K. Together, these results demonstrate a chemically straightforward and controllable pathway for fabricating spectroscopically accessible superconducting 2DEGs on KTaO3(111), and provide a powerful new platform for investigating the mechanisms underlying orientation-dependent superconductivity in KTaO3-based oxide interfaces.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript demonstrates a direct method for fabricating a superconducting 2DEG on KTaO3(111) using Mg-induced surface reduction in MBE, forming an ultrathin MgO layer that enables XPS and ARPES measurements of the pristine reduced surface, showing Ta5+ reduction, a parabolic Ta 5d band with ~150 meV bandwidth and subbands, and superconductivity below 0.7 K.

Significance. This approach offers a chemically simple and controllable pathway to spectroscopically accessible superconducting 2DEGs on KTaO3, which could advance investigations into strong spin-orbit coupling, Rashba physics, and orientation-dependent superconductivity mechanisms in oxide interfaces without the interference of thick capping layers.

major comments (1)
  1. [Abstract and Results] The central claim that the MgO layer is ultrathin (<1-2 ML) and transparent to soft x-ray XPS and ARPES lacks quantitative support, such as Mg 2p intensity ratios or attenuation-length modeling. This is load-bearing for the assertions of 'direct' measurement and 'pristine' reduced surface.
minor comments (1)
  1. [Transport measurements] Include error bars and details on the number of samples measured to support the superconducting transition below 0.7 K.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of our work and for recommending minor revision. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract and Results] The central claim that the MgO layer is ultrathin (<1-2 ML) and transparent to soft x-ray XPS and ARPES lacks quantitative support, such as Mg 2p intensity ratios or attenuation-length modeling. This is load-bearing for the assertions of 'direct' measurement and 'pristine' reduced surface.

    Authors: We agree that quantitative support would strengthen the central claim. In the revised manuscript we will add (i) Mg 2p / K 2p and Mg 2p / Ta 4f intensity ratios extracted from the same soft-x-ray spectra and (ii) a simple attenuation-length calculation using the inelastic mean free path at the relevant photon energies. These additions will explicitly confirm that the MgO coverage remains below 1–2 monolayers and that the layer does not appreciably attenuate the substrate photoelectrons, thereby supporting the assertions of direct spectroscopic access to the pristine reduced surface. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental demonstration with no derivation chain

full rationale

The manuscript reports an experimental fabrication method (Mg-induced surface reduction in MBE) and direct characterization via XPS, ARPES, and transport measurements. No equations, fitted parameters, predictions, or theoretical derivations appear in the provided text. Claims about the ultrathin MgO layer and spectroscopic transparency are stated as experimental outcomes based on low sticking coefficient and observed spectral features, without reduction to self-referential inputs or self-citations. The central result (superconducting 2DEG) rests on independent measurements rather than any load-bearing self-definition or imported uniqueness theorem.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on established experimental techniques and domain knowledge of surface reduction in perovskites; no free parameters, new axioms, or invented entities are introduced.

axioms (1)
  • domain assumption Standard knowledge that oxygen reduction at KTaO3 surfaces generates 2DEGs with Ta 5d character.
    Invoked implicitly when linking Mg reduction to observed Ta valence change and parabolic conduction band.

pith-pipeline@v0.9.0 · 5812 in / 1278 out tokens · 29925 ms · 2026-05-16T20:55:36.620510+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

2 extracted references · 2 canonical work pages · 1 internal anchor

  1. [1]

    1G. E. Jellison, I. Paulauskas, L. A. Boatner, and D. J. Singh, Phys. Rev. B 74, 155130 (2006). 2P. D. C. King, R. H. He, T. Eknapakul, P. Buaphet, S.-K. Mo, Y . Kaneko, S. Harashima, Y . Hikita, M. S. Bahramy, C. Bell, Z. Hussain, Y . Tokura, Z.-X. Shen, H. Y . Hwang, F. Baumberger, and W. Meevasana, Phys. Rev. Lett.108, 117602 (2012). 5 3A. F. Santander...

    work page 2006

  2. [2]

    Two-Dimensional Superconductivity at the CaZrO3/KTaO3 (001) Heterointerfaces

    Fong, J. Sun, H. Zhou, and A. Bhattacharya, Science371, 716 (2021). 11L. F. Mattheiss, Phys. Rev. B6, 4718 (1972). 12L. M. Vicente-Arche, J. Bréhin, S. Varotto, M. Cosset-Cheneau, S. Mallik, R. Salazar, P. Noël, D. C. Vaz, F. Trier, S. Bhattacharya, A. Sander, P. Le Fèvre, F. Bertran, G. Saiz, G. Ménard, N. Bergeal, A. Barthélémy, H. Li, C.-C. Lin, D. E. ...

    work page internal anchor Pith review Pith/arXiv arXiv 2021
