arxiv: 2512.20288 · v2 · submitted 2025-12-23 · 💻 cs.CV · cs.AI

UbiQVision: Quantifying Uncertainty in XAI for Image Recognition

Akshat Dubey , Aleksandar An\v{z}el , Bahar \.Ilgen , Georges Hattab This is my paper

Pith reviewed 2026-05-16 20:07 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords uncertainty quantificationSHAP explanationsmedical imagingXAIDempster-Shafer theoryDirichlet samplingimage recognitionepistemic uncertainty
0
0 comments X

The pith

Dirichlet posterior sampling and Dempster-Shafer theory can quantify instability in SHAP explanations for medical image classifiers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a method to measure how unreliable SHAP explanations become when models face uncertainty in medical imaging. It combines Dirichlet sampling to model posterior distributions with Dempster-Shafer theory to assign belief and plausibility values to explanation features. This matters because doctors rely on these explanations to trust AI predictions, yet unstable ones can lead to wrong decisions. The approach generates fusion maps that highlight uncertain regions in the explanation. Evaluation on pathology, ophthalmology, and radiology datasets shows it can track uncertainty arising from image noise and varying resolutions.

Core claim

The central discovery is a framework called UbiQVision that uses Dirichlet posterior sampling to capture epistemic and aleatoric uncertainty in SHAP values, then applies Dempster-Shafer theory to compute belief maps, plausibility maps, and fusion maps, providing a quantitative measure of explanation uncertainty without requiring ground-truth labels.

What carries the argument

Dirichlet posterior sampling fused with Dempster-Shafer belief and plausibility functions to produce uncertainty maps from SHAP explanations.

If this is right

  • Clinicians can identify which parts of a SHAP explanation are trustworthy in noisy medical scans.
  • The method allows statistical comparison of uncertainty levels across different imaging modalities.
  • It provides a way to fuse multiple uncertain explanations into a single reliable visualization.
  • Models with high uncertainty in explanations can be flagged for further review before clinical use.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This could extend to other XAI methods beyond SHAP, such as LIME, by applying the same sampling and fusion process.
  • In non-medical domains like autonomous driving, it might help quantify trust in visual explanations under sensor noise.
  • Future work could test if these uncertainty scores correlate with actual model error rates on held-out test sets.

Load-bearing premise

The assumption that Dirichlet sampling combined with Dempster-Shafer theory yields a faithful measure of SHAP instability without adding new biases or needing separate validation data.

What would settle it

Run the framework on a dataset where SHAP explanations are known to be stable, such as synthetic images with no noise, and check if the uncertainty scores remain near zero.

Figures

Figures reproduced from arXiv: 2512.20288 by Akshat Dubey, Aleksandar An\v{z}el, Bahar \.Ilgen, Georges Hattab.

Figure 1
Figure 1. Figure 1: On the left, the plot demonstrates the impact of the temperature parameter (T) on the model weights for Models A, B, and C, as evaluated on the test dataset using a specific metric on a logarithmic scale. A low T value means that a model with even a slightly higher F1 score receives the highest weight, while a high T value means that the models will be allotted equal weight, irrespective of their performan… view at source ↗
Figure 2

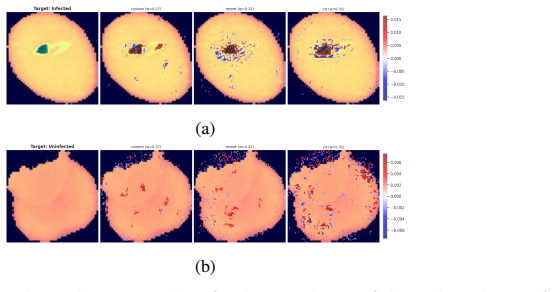

Figure 2. Figure 2: The visualization shows the SHAP values for the two classes of the malaria dataset from the predictions of three models: a custom CNN model, a ResNet model, and a ViT model, with weights of 0.37, 0.32, and 0.31, respectively. The "uninfected" class receives positive attribution (𝜙 > 0) from the models for the erythrocyte’s interior regions with low-frequency spatial variation. Specifically, the smooth, hom… view at source ↗
Figure 3

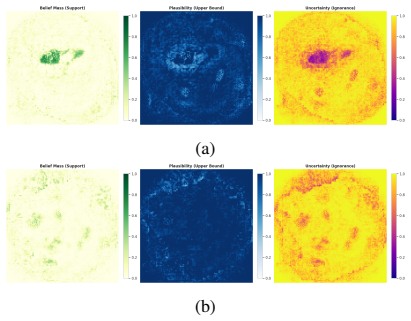

Figure 3. Figure 3: This figure shows the fusion of SHAP explanations from the weighted model ensemble (Custom CNN, ResNet, and ViT) for a malaria-infected and uninfected sample. The figure (a) is of the parasitized sample. The belief mass (support) map shows a concentrated area of high belief (dark green), which precisely localizes the parasite. This indicates that the models found strong, consistent evidence at this locatio… view at source ↗
Figure 4

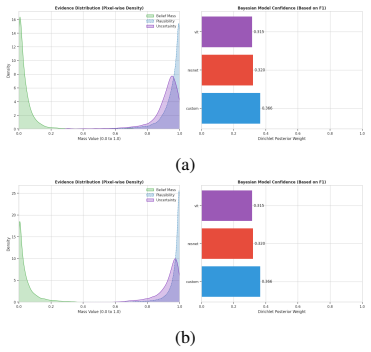

Figure 4. Figure 4: Figure (a) shows the distribution of evidence and model confidence for the parasitized sample. It presents the statistical analysis of the fusion process for the infected erythrocyte. The left panel shows the kernel density estimation (KDE) of pixel-wise mass values. The belief mass (green) is heavily skewed toward zero, but it has a noticeable tail that extends into higher values. This statistically confi… view at source ↗
Figure 5
Figure 5. Figure 5: This visualization shows the SHAP attribution maps (𝜙) for each dementia stage. It details the additive feature attribution scores for the ensemble members, where the color intensity corresponds to the impact on the model’s log-odds output. Red pixels denote positive SHAP values (phi > 0), indicating morphological regions, such as enlarged ventricles or cortical atrophy, that drive classification toward a … view at source ↗
Figure 6
Figure 6. Figure 6: This figure illustrates the correlation between feature distinctness and model confidence by presenting the pixel-wise fusion of SHAP explanations from the weighted model ensemble (Custom CNN, ResNet, and ViT) across four stages of dementia. (a) Mild Dementia: The belief mass (support) map shows localized clusters of evidence (green) that correspond to emerging pathological features. The uncertainty map sh… view at source ↗
Figure 7

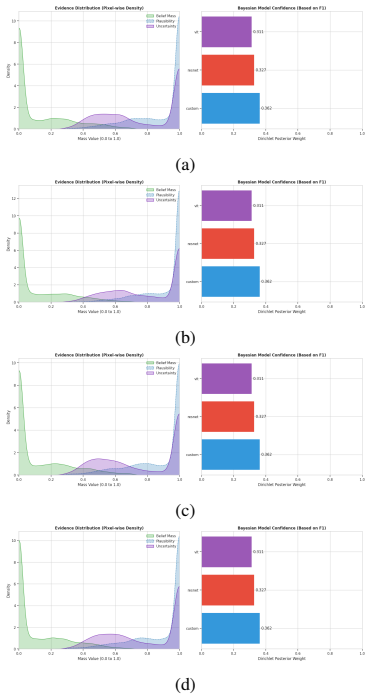

Figure 7. Figure 7: This figure shows the quantitative analytics of the fusion engine by contrasting the statistical evidence distribution on the left with the assigned Bayesian model confidence on the right. The bar charts confirm that Custom CNN (𝑤 = 0.362) has the greatest influence on the ensemble, followed closely by ResNet and ViT. This indicates a preference for local texture features over global dependencies. The kern… view at source ↗
Figure 8
Figure 8. Figure 8: This figure illustrates the fused SHAP explanations and quantitative analytics for the diabetic retinopathy (DR) classification ensemble at different severity levels. The attribution maps in the top rows visualize the pixel-wise contribution of each model (Custom CNN, ResNet, and ViT). Red indicates positive evidence for the target class, and blue indicates suppression. In advanced stages, such as Prolifer… view at source ↗
Figure 9
Figure 9. Figure 9: This figure illustrates the Dempster-Shafer fusion of model explanations for classifying diabetic retinopathy (DR), tracking the evolution of evidential support across five distinct severity levels. (a) Healthy: The fusion maps for healthy retinas exhibit minimal belief mass (pale/empty) and high, uniform uncertainty (bright yellow). This indicates that the ensemble’s decision is driven by the absence of p… view at source ↗
Figure 10
Figure 10. Figure 10: This figure shows the fusion maps of SHAP explanations produced by a Bayesian-weighted model ensemble (Custom CNN, ResNet, and ViT) at different levels of diabetic retinopathy (DR) severity. The individual attribution maps demonstrate that advanced disease states, such as severe and proliferative DR, result in dense, widespread positive contributions (red pixels) across the various architectures. In contr… view at source ↗
read the original abstract

Recent advances in deep learning have led to its widespread adoption across diverse domains, including medical imaging. This progress is driven by increasingly sophisticated model architectures, such as ResNets, Vision Transformers, and Hybrid Convolutional Neural Networks, that offer enhanced performance at the cost of greater complexity. This complexity often compromises model explainability and interpretability. SHAP has emerged as a prominent method for providing interpretable visualizations that aid domain experts in understanding model predictions. However, SHAP explanations can be unstable and unreliable in the presence of epistemic and aleatoric uncertainty. In this study, we address this challenge by using Dirichlet posterior sampling and Dempster-Shafer theory to quantify the uncertainty that arises from these unstable explanations in medical imaging applications. The framework uses a belief, plausible, and fusion map approach alongside statistical quantitative analysis to produce quantification of uncertainty in SHAP. Furthermore, we evaluated our framework on three medical imaging datasets with varying class distributions, image qualities, and modality types which introduces noise due to varying image resolutions and modality-specific aspect covering the examples from pathology, ophthalmology, and radiology, introducing significant epistemic uncertainty.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces UbiQVision, a framework that applies Dirichlet posterior sampling combined with Dempster-Shafer theory to quantify uncertainty arising from unstable SHAP explanations in deep learning models for medical image recognition. It generates belief, plausibility, and fusion maps, performs statistical quantitative analysis, and evaluates the approach on three medical imaging datasets spanning pathology, ophthalmology, and radiology that vary in class distribution, image quality, and modality.

Significance. If the method can be shown to produce maps that reliably track actual SHAP instability, the work would address a practical gap in deploying XAI for high-stakes medical decisions where explanation variance can undermine trust. The use of DST belief/plausibility constructs on top of Dirichlet sampling is a plausible direction, but the current manuscript supplies no equations, implementation details, or validation experiments, so the significance cannot yet be assessed.

major comments (2)
  1. [Abstract/Methods] Abstract and Methods: the central claim that Dirichlet posterior sampling plus Dempster-Shafer theory yields a faithful quantification of SHAP instability is unsupported because no equations, sampling procedure, or fusion rule are provided; without these it is impossible to determine whether the belief/plausibility maps reflect epistemic instability in the explanations or merely modeling artifacts.
  2. [Results] Results/Evaluation: no empirical check is reported that the produced belief or fusion maps correlate with observable SHAP variance (e.g., across random seeds, input perturbations, or repeated explanations on identical images), leaving open the possibility that the maps capture aleatoric noise rather than the targeted explanation instability.
minor comments (2)
  1. [Abstract] The abstract refers to 'statistical quantitative analysis' without naming the specific metrics, confidence intervals, or hypothesis tests employed.
  2. [Experiments] Dataset descriptions mention 'varying image resolutions and modality-specific aspect' but do not report exact image sizes, preprocessing steps, or how these factors were controlled in the uncertainty quantification.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. We address each major comment below and will revise the manuscript to incorporate the suggested improvements.

read point-by-point responses

  1. Referee: [Abstract/Methods] Abstract and Methods: the central claim that Dirichlet posterior sampling plus Dempster-Shafer theory yields a faithful quantification of SHAP instability is unsupported because no equations, sampling procedure, or fusion rule are provided; without these it is impossible to determine whether the belief/plausibility maps reflect epistemic instability in the explanations or merely modeling artifacts.

    Authors: We agree that the current manuscript lacks explicit equations and procedural details for the Dirichlet posterior sampling and the Dempster-Shafer fusion rules. This omission makes it difficult for readers to fully assess the method. In the revised version, we will expand the Methods section to include the full mathematical formulation: the Dirichlet distribution used for posterior sampling of explanation weights, the Monte Carlo sampling procedure to generate an ensemble of SHAP maps, and the specific combination rules for computing belief and plausibility from the sampled explanations. These additions will demonstrate that the resulting maps specifically capture the variance due to SHAP instability. revision: yes

  2. Referee: [Results] Results/Evaluation: no empirical check is reported that the produced belief or fusion maps correlate with observable SHAP variance (e.g., across random seeds, input perturbations, or repeated explanations on identical images), leaving open the possibility that the maps capture aleatoric noise rather than the targeted explanation instability.

    Authors: We acknowledge the importance of empirical validation to confirm that the uncertainty maps track SHAP instability rather than other sources of noise. The current evaluation focuses on qualitative and statistical analysis across datasets, but does not include direct correlation studies. We will add new experiments in the revised manuscript: for a subset of images, we will generate multiple SHAP explanations under controlled variations (different seeds, slight input perturbations), compute the variance in the explanation values, and show that the belief and fusion maps have high correlation with these variance measures, supported by quantitative metrics such as Pearson correlation coefficients. revision: yes

Circularity Check

0 steps flagged

No circularity detected in the derivation chain

full rationale

The abstract describes a framework that applies Dirichlet posterior sampling and Dempster-Shafer theory to produce belief, plausibility, and fusion maps for quantifying SHAP instability. No equations, parameter-fitting steps, or self-citations are shown that would reduce any claimed output to an input by construction. The approach introduces new constructs (belief/plausibility maps plus statistical analysis) rather than re-labeling fitted quantities or importing uniqueness results from prior self-work. Without load-bearing reductions visible in the provided text, the derivation chain is self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only access prevents identification of any concrete free parameters, axioms, or invented entities; full text would be required to audit these elements.

pith-pipeline@v0.9.0 · 5507 in / 1205 out tokens · 33298 ms · 2026-05-16T20:07:24.305629+00:00 · methodology
