Magneto-optical Kerr effect measurements under bipolar pulsed magnetic fields

Soichiro Yamane , Sota Nakamura , Atsutoshi Ikeda , Kosuke Noda , Akihiko Ikeda , Shingo Yonezawa This is my paper

Pith reviewed 2026-05-16 15:11 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mtrl-scicond-mat.supr-con
keywords magneto-optical Kerr effectpulsed magnetic fieldsbipolar pulsesFe3O4hysteresispermanent magnetshigh magnetic fields
0
0 comments X

The pith

MOKE measurements succeed under bipolar pulsed magnetic fields up to 13.1 T

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes a method for performing magneto-optical Kerr effect measurements using bipolar pulsed magnetic fields reaching 13.1 tesla. Validation comes from matching results on the (001) face of an Fe3O4 crystal to those obtained with static fields. The setup also records full hysteresis loops for several commercial permanent magnets. Such rapid measurements suit both basic studies of magnetic materials and engineering tests of magnet performance.

Core claim

We have established MOKE measurements under bipolar pulsed magnetic fields up to 13.1 T. Accuracy is shown by excellent agreement with static-field results on the (001) surface of a Fe3O4 single crystal. Clear hysteresis loops were observed in various commercial permanent magnets, enabling rapid characterization of hysteretic properties for materials science and engineering applications.

What carries the argument

The optical Kerr rotation detection integrated with a bipolar pulsed magnet system that generates fields up to 13.1 T without introducing significant artifacts.

If this is right

  • The technique permits magnetic measurements in field strengths difficult to sustain continuously.
  • Hysteresis loops of permanent magnets can be obtained rapidly in a single pulse sequence.
  • Contact-free probing makes it suitable for a wide range of samples in high-field research.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending this to other compounds could reveal magnetic transitions only stable in pulsed high fields.
  • Time-resolved versions might track how magnetization evolves during the field pulse itself.
  • Laboratories with pulsed magnets could perform routine high-field MOKE without dedicated static high-field facilities.

Load-bearing premise

Rapid bipolar pulsing does not produce eddy currents or heating that change the Kerr signal away from its static-field value.

What would settle it

Measuring the same Fe3O4 sample under both pulsed and static conditions and finding a significant mismatch in the Kerr rotation values beyond experimental error.

Figures

Figures reproduced from arXiv: 2601.09221 by Akihiko Ikeda, Atsutoshi Ikeda, Kosuke Noda, Shingo Yonezawa, Soichiro Yamane, Sota Nakamura.

Figure 1

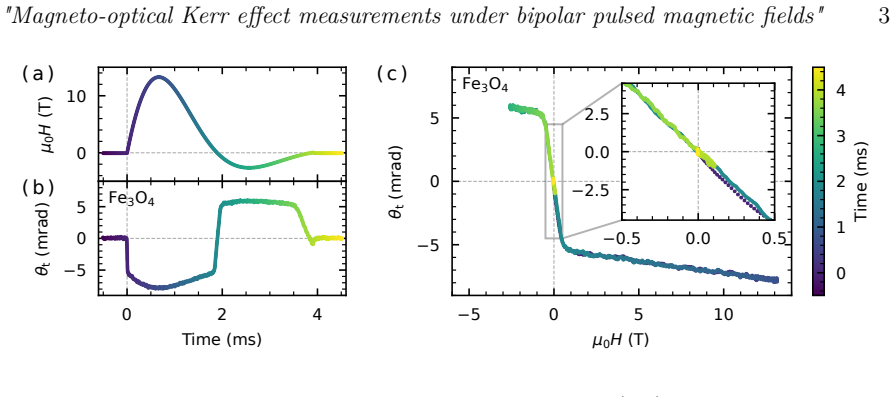

Figure 1. Figure 1: Results of MOKE measurements on the (001) surface of a Fe3O4 single crystal under a bipolar pulsed magnetic field up to 13.1 T at room temperature. Time dependence of (a) the magnetic field and (b) the total magneto-optical (MO) angle. (c) θt as a function of magnetic field. The inset shows a magnified view around zero magnetic field. For all panels, the color of data points indicate the time evolution fro… view at source ↗
Figure 3
Figure 3. Figure 3: Results of MOKE measurements on various permanent magnets under bipolar pulsed magnetic fields at room temperature. Hysteresis loops of (a) alnico5, (b) Nd2Fe14B with a Ni/Cu/Ni protective coating, and (c) Sm2Co17. Because details of the starting trajectories vary depending on the magnetic history, we here plot representative data exhibiting largest hysteresises. We note that the overall hysteresis loop sh… view at source ↗
read the original abstract

The magneto-optical Kerr effect (MOKE) is a powerful probe of magnetism. Its contact-free optical nature makes it potentially well suitable for measurements under pulsed magnetic fields if various difficulties are overcome. In this paper, we report the establishment of MOKE measurements under bipolar pulsed magnetic fields up to 13.1 T. The accuracy of the setup was demonstrated by the excellent agreement with static-field results on the (001) surface of a Fe3O4 single crystal. Furthermore, clear hysteresis loops of various commercial permanent magnets were successfully observed. The capability for rapid characterization of hysteretic properties highlights the versatility of our pulsed-field MOKE setup for both fundamental materials science and engineering applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports the development of a MOKE setup for measurements under bipolar pulsed magnetic fields up to 13.1 T. Accuracy is demonstrated via excellent agreement between pulsed and static-field data on the (001) surface of a Fe3O4 single crystal, with additional demonstration of hysteresis loops on commercial permanent magnets to highlight rapid characterization capability.

Significance. If the pulsed data are shown to be free of artifacts, the work would enable high-field MOKE studies without requiring large static magnets, offering practical advantages for rapid screening of hysteretic magnetic materials in both fundamental and applied contexts.

major comments (2)
  1. [§4] §4 (Fe3O4 validation): The central accuracy claim rests on 'excellent agreement' with static-field results, yet the text provides no error bars, quantitative metrics (e.g., RMS deviation or field-by-field residuals), or explicit discussion of probe-pulse synchronization timing. Without these, it is impossible to rule out that eddy-current or heating effects coincidentally cancel in this single sample and orientation.
  2. [§5] §5 (permanent-magnet hysteresis): The reported loops lack any direct static-field benchmark curves or uncertainty estimates linked to pulse rise time and peak timing. This leaves open whether the observed coercivity and remanence values reflect equilibrium behavior or transient distortions, which is load-bearing for the claim of versatility for engineering applications.
minor comments (1)
  1. [Abstract and Methods] The abstract and methods would benefit from a concise statement of the optical wavelength, incidence angle, and any active measures (e.g., sample mounting or shielding) used to suppress eddy currents.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive overall assessment. We address each major point below and will revise the manuscript to incorporate quantitative metrics and additional discussion.

read point-by-point responses

  1. Referee: §4 (Fe3O4 validation): The central accuracy claim rests on 'excellent agreement' with static-field results, yet the text provides no error bars, quantitative metrics (e.g., RMS deviation or field-by-field residuals), or explicit discussion of probe-pulse synchronization timing. Without these, it is impossible to rule out that eddy-current or heating effects coincidentally cancel in this single sample and orientation.

    Authors: We agree that quantitative support is needed. In the revised manuscript we will add error bars to the pulsed and static MOKE curves, report the RMS deviation between the two datasets, and include an explicit discussion of probe-pulse synchronization timing together with estimates of possible eddy-current and heating contributions for the Fe3O4 (001) geometry. revision: yes

  2. Referee: §5 (permanent-magnet hysteresis): The reported loops lack any direct static-field benchmark curves or uncertainty estimates linked to pulse rise time and peak timing. This leaves open whether the observed coercivity and remanence values reflect equilibrium behavior or transient distortions, which is load-bearing for the claim of versatility for engineering applications.

    Authors: We acknowledge the value of static benchmarks. While new static measurements on the identical commercial samples are not available, the revised text will add uncertainty estimates tied to the measured pulse rise time and peak-timing jitter, together with a short discussion of possible transient effects on coercivity and remanence. These additions will qualify the rapid-characterization claim for engineering use. revision: partial

Circularity Check

0 steps flagged

Purely experimental report with direct empirical validation

full rationale

This is an experimental methods paper establishing a pulsed-field MOKE setup. The central claim rests on hardware description plus direct comparison of pulsed-field Kerr signals to independent static-field measurements on the same Fe3O4 (001) sample. No equations, fitted parameters, predictions, or self-citations are invoked to derive results; the validation is external and falsifiable by repeating the static comparison. No load-bearing step reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental methods paper. No free parameters, axioms, or invented entities are introduced; the claim rests on the physical setup and direct comparison to static-field data.
