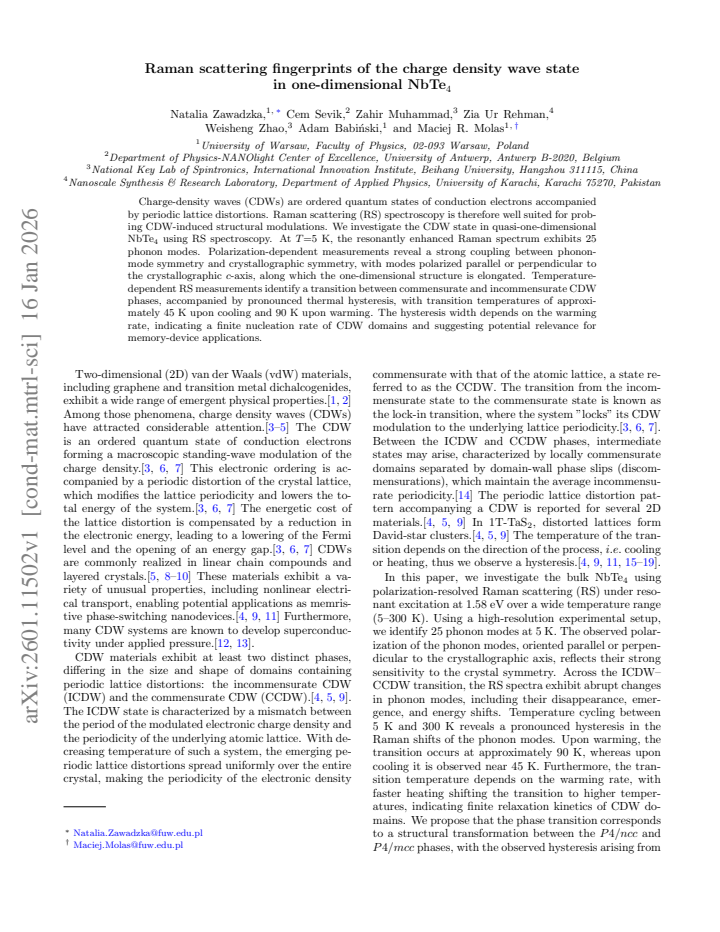

Raman scattering fingerprints of the charge density wave state in one-dimensional NbTe₄

Natalia Zawadzka , Cem Sevik , Zahir Muhammad , Zia Ur Rehman , Weisheng Zhao , Adam Babi\'nski , Maciej R. Molas This is my paper

Pith reviewed 2026-05-16 13:14 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords Raman scatteringcharge density waveNbTe4phonon modesthermal hysteresiscommensurate incommensurate transitionone-dimensional materialspolarization dependence
0
0 comments X

The pith

Raman scattering detects 25 phonon modes and a hysteretic commensurate-incommensurate CDW transition in NbTe4.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses Raman spectroscopy to identify the structural signatures of the charge-density-wave state in the quasi-one-dimensional crystal NbTe4. At 5 K the resonantly enhanced spectrum contains 25 phonon modes whose polarization follows the crystal symmetry. Temperature scans reveal that the spectrum changes at different temperatures on cooling and heating, marking a transition between commensurate and incommensurate CDW phases with a thermal hysteresis whose width varies with the warming rate.

Core claim

Resonant Raman scattering at low temperature resolves 25 phonon modes in NbTe4 that arise from the lattice modulation imposed by the charge density wave. The modes are strictly polarized along or perpendicular to the chain direction. Upon temperature variation the Raman spectrum undergoes abrupt changes at approximately 45 K on cooling and 90 K on warming, with the interval between these points depending on the rate of temperature change and indicating a first-order transition between commensurate and incommensurate CDW phases.

What carries the argument

Resonant Raman scattering that couples to the additional phonon modes activated by the CDW-induced supercell.

If this is right

  • The 25 observed modes confirm that the CDW multiplies the unit cell along the chain axis.
  • The observed thermal hysteresis demonstrates that the transition between commensurate and incommensurate CDW states is first-order.
  • Rate dependence of the hysteresis width shows that nucleation of CDW domains occurs at a finite rate.
  • These features open the possibility of using thermal history to control the CDW phase for information storage.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Analogous Raman measurements on related chain compounds could reveal whether similar hysteresis is universal in incommensurate CDW systems.
  • Device concepts might exploit the rate-dependent switching by designing thermal pulses that reliably set the phase state.
  • Mapping the polarization selection rules in more detail could link specific phonons to the anisotropic electronic properties of the CDW.

Load-bearing premise

The large number of phonon modes and their temperature-dependent evolution are caused by the periodic lattice distortions of the CDW and not by surface contamination or experimental artifacts.

What would settle it

Observation of the same 25 modes and hysteretic temperature evolution in a NbTe4 sample whose CDW order has been independently suppressed by pressure or doping would falsify the claim that the features are CDW fingerprints.

Figures

Figures reproduced from arXiv: 2601.11502 by Adam Babi\'nski, Cem Sevik, Maciej R. Molas, Natalia Zawadzka, Weisheng Zhao, Zahir Muhammad, Zia Ur Rehman.

Figure 1
Figure 1. Figure 1: FIG. 1. The crystal structures of NbTe [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

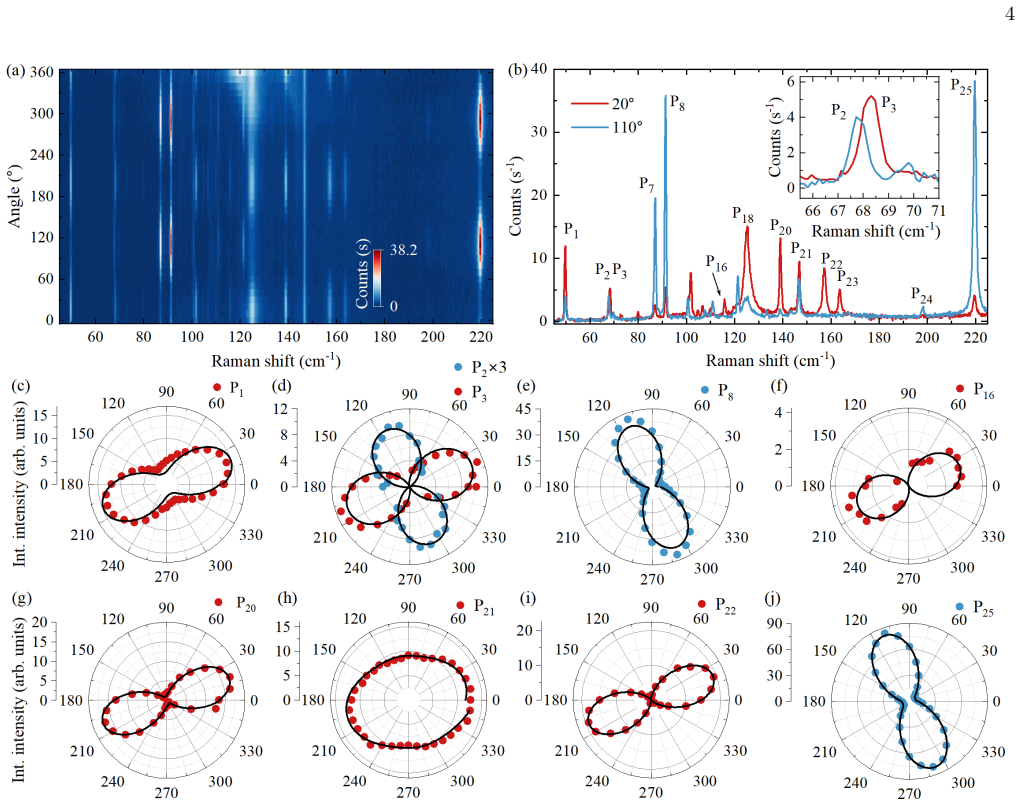

Figure 2. Figure 2: FIG. 2. (a) False-color map of low-temperature ( [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

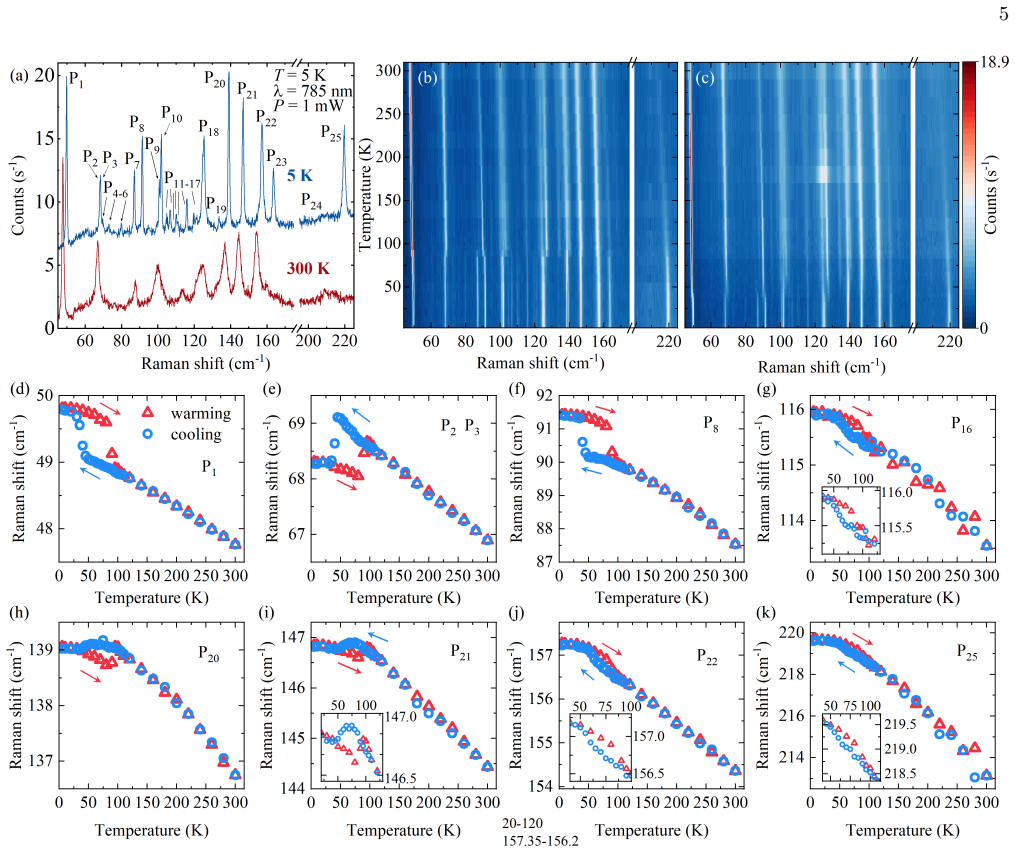

Figure 3. Figure 3: FIG. 3. (a) RS spectra of NbTe [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

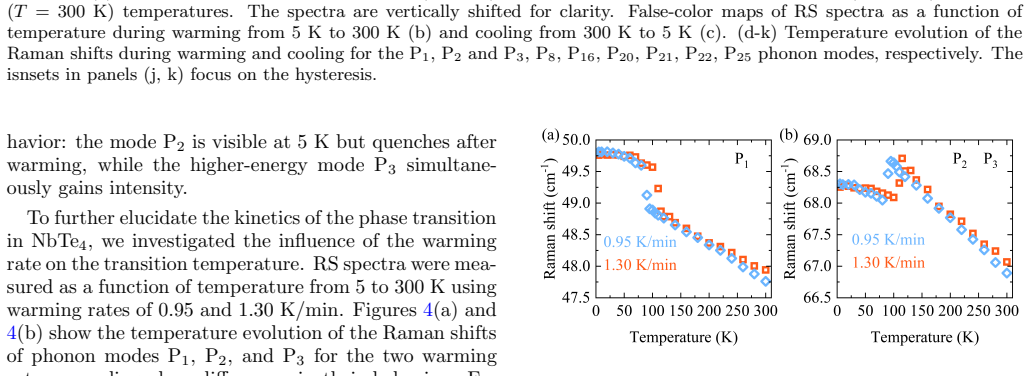

Figure 4. Figure 4: FIG. 4. Temperature evolution of the Raman shifts with [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
