DuFal: Dual-Frequency-Aware Learning for High-Fidelity Extremely Sparse-view CBCT Reconstruction

Authors on Pith no claims yet

Pith reviewed 2026-05-16 11:58 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords sparse-view reconstructioncone-beam CThigh-frequency learningFourier neural operatormedical image reconstructiondual-path architecturecross-attention fusion
0
0 comments X

The pith

DuFal recovers fine anatomical details in CT scans from extremely few X-ray projections using dual frequency processing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes DuFal, a framework for reconstructing high-fidelity cone-beam CT images from very limited X-ray projections. It addresses the issue that conventional methods lose high-frequency details due to bias toward low frequencies. By using a dual-path architecture with global and local high-frequency Fourier neural operators, plus cross-attention fusion, it integrates frequency and spatial information. Experiments show superior performance on lung and dental datasets in sparse-view settings. This matters because it could enable lower radiation doses in medical imaging while maintaining diagnostic quality.

Core claim

DuFal integrates frequency-domain and spatial-domain processing through a High-Local Factorized Fourier Neural Operator consisting of global and local high-frequency enhanced branches, combined via cross-attention, to recover high-frequency anatomical features from undersampled projections and reconstruct accurate CT volumes.

What carries the argument

The High-Local Factorized Fourier Neural Operator, which uses global frequency pattern capture and local patch processing to preserve spatial details lost in global analysis.

Load-bearing premise

The global and local high-frequency branches combined with cross-attention will recover fine details from limited projections without creating artifacts on unseen clinical scans.

What would settle it

Running DuFal on a new clinical dataset with ground-truth dense projections and checking if fine structures like small vessels or tooth details match the full-view reconstruction without extra blurring or false features.

Figures

Figures reproduced from arXiv: 2601.15416 by Cuong Tran Van, Duy Minh Ho Nguyen, Ngan Le, Ngoc-Son Nguyen, Trong-Thang Pham.

Figure 1
Figure 1. Figure 1: Illustration of DuFal for CT image reconstruction from multiple projection views. Our proposed [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the proposed HiLocFFNO block within the Frequency Encoder. Each HiLocFFNO block comprises two major branches: The gHiF is illustrated at the top using solid blue line (—) and arrows (→), and the lHiF is depicted at the bottom using dashed blue line (- - -) and arrows (99K). Both branches employ SCF to replace the full complex weight with separate channel-mixing and spectral-weighting kernels. A… view at source ↗
Figure 3
Figure 3. Figure 3: The CAFF flowchart. This diagram shows the fusion process between spatial features [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Visualization of 10-view reconstructed chest CT (from top to bottom: axial, coronal, and sagittal [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5

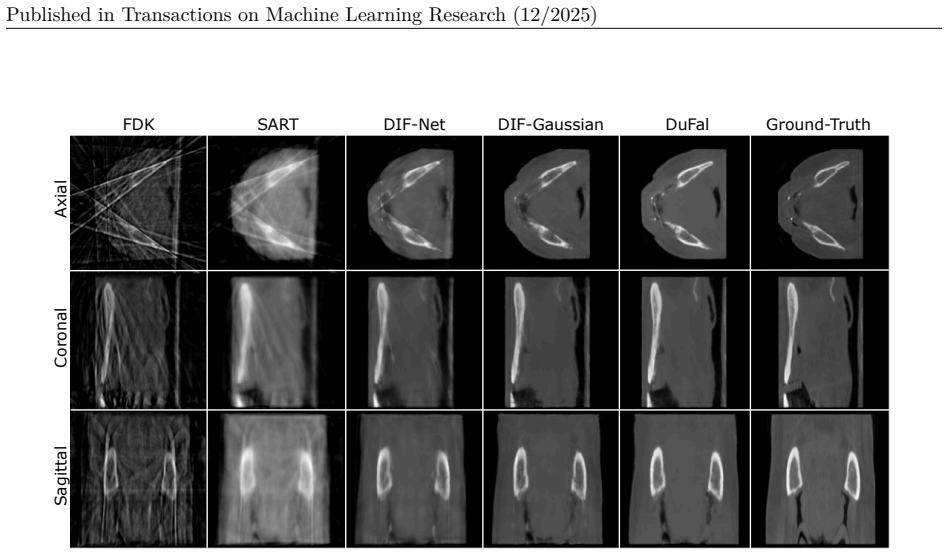

Figure 5. Figure 5: Visualization of 10-view reconstructed dental CT (from top to bottom: axial, coronal, and sagittal [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

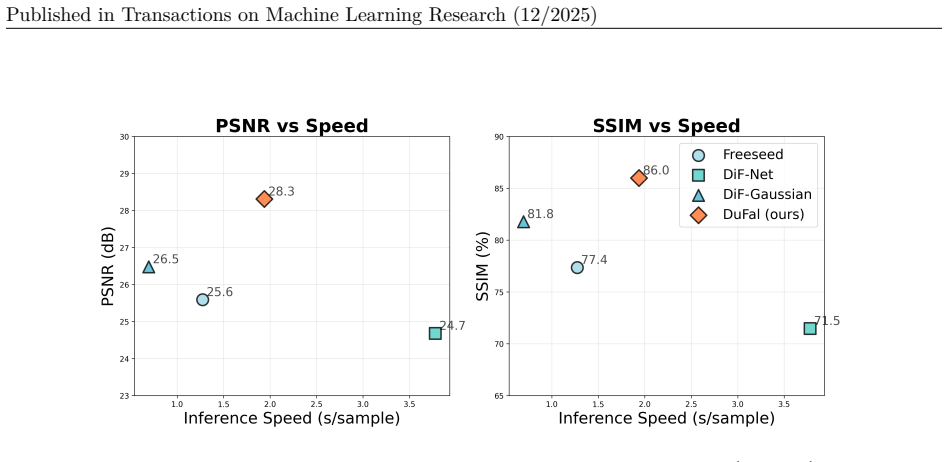

Figure 6. Figure 6: Performance vs. Inference Speed Trade-off on LUNA16 Dataset (6-View). Scatter plots comparing reconstruction quality against computational efficiency for different methods. Left: PSNR vs. Inference speed. Right: SSIM vs. Inference speed. DuFal achieves the highest reconstruction quality in both metrics while maintaining good inference speed. PSNR: 12.12 W-PSNR: 12.12 PSNR: 11.78 W-PSNR: 38.15 PSNR: 10.59 W… view at source ↗
Figure 7

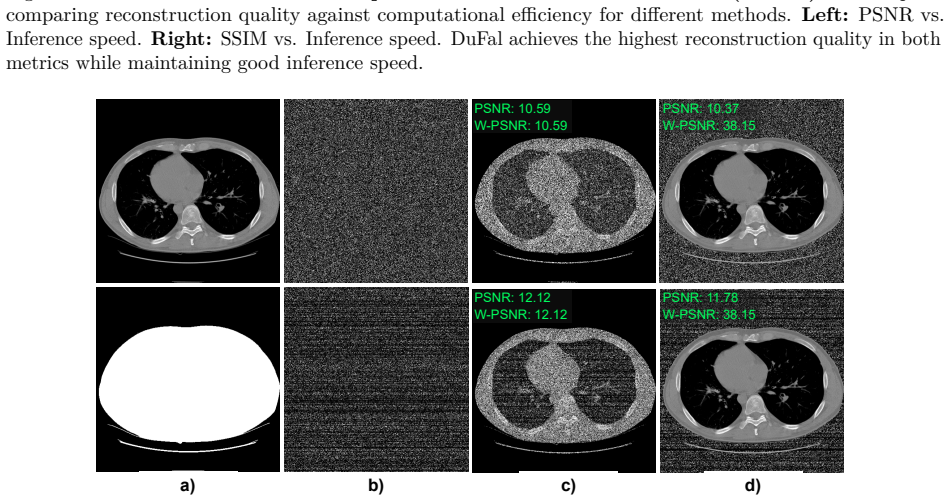

Figure 7. Figure 7: (a) Original image and region of interest in mask format; (b) Two types of noise: Gaussian noise [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8

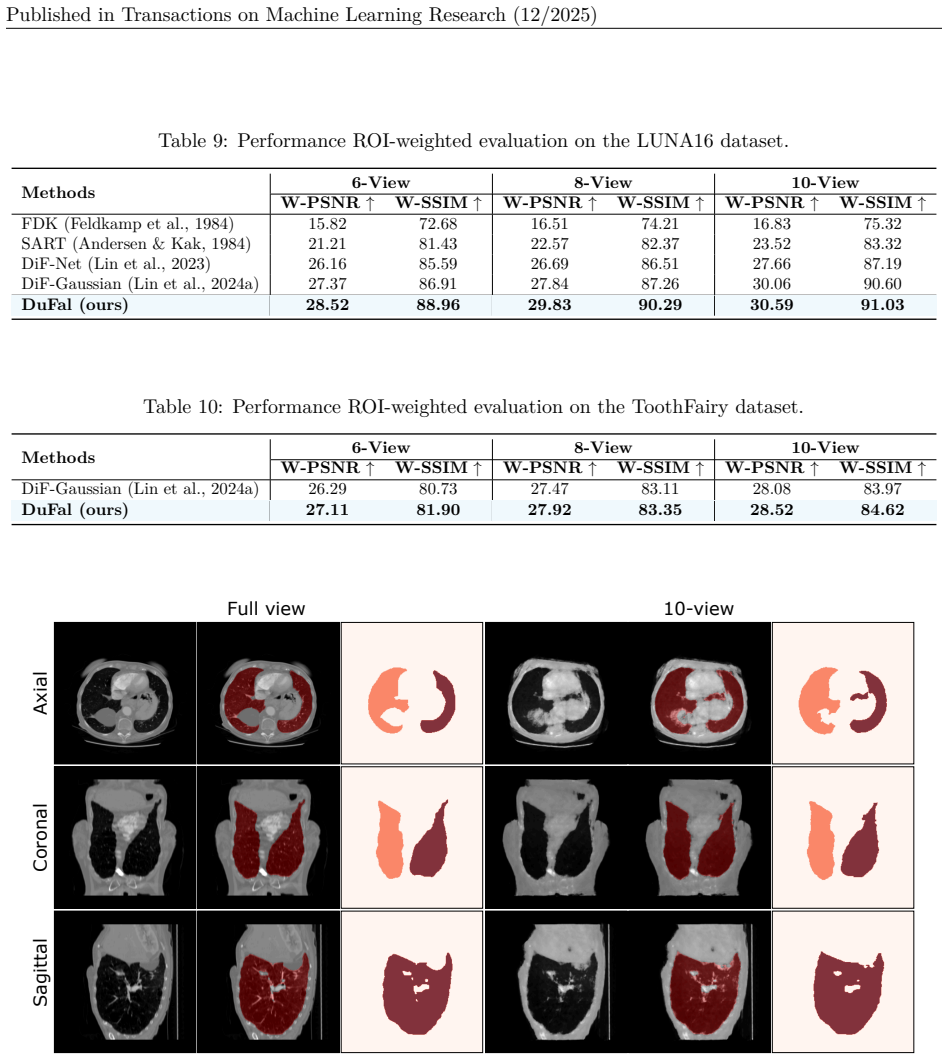

Figure 8. Figure 8: Comparison of LungMask segmentation performance on full-view versus 10-view reconstructed CT [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
read the original abstract

Sparse-view Cone-Beam Computed Tomography reconstruction from limited X-ray projections remains a challenging problem in medical imaging due to the inherent undersampling of fine-grained anatomical details, which correspond to high-frequency components. Conventional CNN-based methods often struggle to recover these fine structures, as they are typically biased toward learning low-frequency information. To address this challenge, this paper presents DuFal (Dual-Frequency-Aware Learning), a novel framework that integrates frequency-domain and spatial-domain processing via a dual-path architecture. The core innovation lies in our High-Local Factorized Fourier Neural Operator, which comprises two complementary branches: a Global High-Frequency Enhanced Fourier Neural Operator that captures global frequency patterns and a Local High-Frequency Enhanced Fourier Neural Operator that processes spatially partitioned patches to preserve spatial locality that might be lost in global frequency analysis. To improve efficiency, we design a Spectral-Channel Factorization scheme that reduces the Fourier Neural Operator parameter count. We also design a Cross-Attention Frequency Fusion module to integrate spatial and frequency features effectively. The fused features are then decoded through a Feature Decoder to produce projection representations, which are subsequently processed through an Intensity Field Decoding pipeline to reconstruct a final Computed Tomography volume. Experimental results on the LUNA16 and ToothFairy datasets demonstrate that DuFal significantly outperforms existing state-of-the-art methods in preserving high-frequency anatomical features, particularly under extremely sparse-view settings.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes DuFal, a dual-frequency-aware framework for extremely sparse-view CBCT reconstruction that combines a High-Local Factorized Fourier Neural Operator (with global and local high-frequency branches) and a Cross-Attention Frequency Fusion module to recover high-frequency anatomical details that CNNs typically miss, followed by an Intensity Field Decoding pipeline. Experiments on LUNA16 and ToothFairy datasets are claimed to show significant outperformance over SOTA methods in preserving fine structures under extreme undersampling.

Significance. If the quantitative results and ablations hold, the work would represent a meaningful advance in frequency-aware reconstruction for low-dose CBCT, potentially enabling reliable recovery of diagnostic high-frequency features with fewer projections and lower radiation dose.

major comments (2)
  1. [§4] §4 (Experiments) and Table 1: the central claim of significant outperformance lacks reported PSNR/SSIM values, error bars, ablation studies on the global vs. local branches, or training details; without these the magnitude and robustness of the improvement cannot be assessed.
  2. [§3.2] §3.2 (Cross-Attention Frequency Fusion) and §5 (Discussion): the assumption that the dual-branch FNO plus fusion recovers fine details without introducing hallucinations or new artifacts on unseen clinical data is load-bearing but untested; no cross-dataset evaluation or real-acquisition protocol results are provided despite known domain-shift risks in CBCT frequency content.
minor comments (2)
  1. [§3.1] Notation for the Spectral-Channel Factorization scheme is introduced without an explicit equation or complexity analysis; adding a parameter-count comparison table would clarify the efficiency claim.
  2. [Figure 3] Figure 3 caption and axis labels should explicitly state the number of views used in each sparse-view setting for reproducibility.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We have carefully reviewed the feedback and provide point-by-point responses below, outlining the revisions we will implement to address the concerns raised.

read point-by-point responses
  1. Referee: [§4] §4 (Experiments) and Table 1: the central claim of significant outperformance lacks reported PSNR/SSIM values, error bars, ablation studies on the global vs. local branches, or training details; without these the magnitude and robustness of the improvement cannot be assessed.

    Authors: We agree that the current presentation of results in §4 and Table 1 requires strengthening for full transparency. In the revised version, we will expand Table 1 to report mean PSNR and SSIM values accompanied by standard deviation error bars computed over multiple training runs with different random seeds. We will also insert a new ablation subsection that isolates the performance of the global high-frequency branch versus the local high-frequency branch (and their combination), including quantitative metrics and qualitative visualizations. Finally, we will add a dedicated paragraph (or supplementary section) detailing all training hyperparameters, including optimizer choice, learning-rate schedule, batch size, number of epochs, and data augmentation strategy. revision: yes

  2. Referee: [§3.2] §3.2 (Cross-Attention Frequency Fusion) and §5 (Discussion): the assumption that the dual-branch FNO plus fusion recovers fine details without introducing hallucinations or new artifacts on unseen clinical data is load-bearing but untested; no cross-dataset evaluation or real-acquisition protocol results are provided despite known domain-shift risks in CBCT frequency content.

    Authors: We acknowledge that explicit validation against domain shift and potential hallucinations is important. Although LUNA16 and ToothFairy already span distinct anatomical domains (pulmonary versus dental), we agree that dedicated cross-dataset experiments (training on one dataset and testing on the other) are missing. In the revision we will add these cross-dataset results together with frequency-domain residual analysis to check for spurious high-frequency content. We will also expand §5 with a more thorough discussion of hallucination risks and domain-shift mitigation strategies. However, because we do not currently possess raw real-acquisition CBCT projection data acquired under clinical protocols, we can only discuss this limitation rather than present new empirical results on such data. revision: partial

standing simulated objections not resolved
  • Absence of real clinical acquisition protocol results for final validation (we can discuss the limitation but cannot generate new empirical results on such data within the revision timeframe).

Circularity Check

0 steps flagged

No significant circularity in architectural proposal or claims

full rationale

The paper presents DuFal as a new dual-path neural architecture incorporating a High-Local Factorized Fourier Neural Operator (with global and local branches), Spectral-Channel Factorization, and Cross-Attention Frequency Fusion, followed by a Feature Decoder and Intensity Field Decoding pipeline. These elements are introduced as explicit design choices rather than mathematical derivations or fitted quantities. No equations or steps in the abstract reduce claimed performance gains to parameters tuned on the same data or to self-citations that bear the central load. Experimental results on LUNA16 and ToothFairy are presented as independent empirical validation of the architecture's ability to preserve high-frequency features, not as predictions forced by construction from the inputs. The derivation chain is therefore self-contained as an engineering proposal plus benchmark evaluation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The framework rests on the assumption that Fourier Neural Operators are suitable for modeling frequency content in projection data and that high-frequency anatomical features can be recovered by explicit dual-path processing; no new physical entities are postulated.

axioms (1)
  • domain assumption Fourier Neural Operators can capture frequency patterns in medical imaging data
    Invoked when the paper builds the Global and Local High-Frequency Enhanced Fourier Neural Operators on top of existing FNO literature.
invented entities (2)
  • High-Local Factorized Fourier Neural Operator no independent evidence
    purpose: To jointly model global frequency patterns and spatially local high-frequency details
    New architectural component introduced to address limitations of standard FNOs in sparse-view settings
  • Cross-Attention Frequency Fusion module no independent evidence
    purpose: To integrate spatial and frequency-domain features
    New fusion mechanism described in the abstract
