arxiv: 2601.19556 · v2 · submitted 2026-01-27 · ❄️ cond-mat.mes-hall · cond-mat.mtrl-sci

Dual-Switch Control of a Layer-Locked Anomalous Valley Hall Effect in a Sliding Ferroelectric Antiferromagnet

Quan Shen , Wenhu Liao , Degao Xu , Jiansheng Dong , Jianing Tan This is my paper

Pith reviewed 2026-05-16 11:02 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci
keywords bilayer VS2sliding ferroelectricityantiferromagnetismanomalous valley Hall effectvalley polarizationmagnetoelectric coupling2D multiferroicsspin-valleytronics
0
0 comments X

The pith

In bilayer VS2, interlayer sliding creates coexisting ferroelectric and antiferromagnetic orders that allow reversible switching of layer-locked valley Hall states by either electric polarization reversal or magnetic spin flip.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that bilayer vanadium disulfide forms a room-temperature ferroelectric antiferromagnet through controlled interlayer sliding. Sliding breaks inversion symmetry to produce an out-of-plane polarization that persists alongside antiferromagnetic order. A sympathetic reader would care because this single-material platform permits independent electrical or magnetic addressing of valley polarization and the associated anomalous Hall response. The Berry curvature is shown to be both valley-contrasting and locked to individual layers, enabling a switchable Hall conductivity. Electric and magnetic operations prove equivalent in controlling valley, layer, and spin degrees of freedom through strong magnetoelectric coupling.

Core claim

First-principles calculations show that interlayer sliding in bilayer VS2 breaks spatial inversion symmetry, inducing a switchable out-of-plane ferroelectric polarization that coexists with interlayer antiferromagnetism. The spin-orbit coupled valley polarization reverses either by flipping the ferroelectric polarization or by a magnetic-field-driven spin-flip transition. The Berry curvature exhibits valley-contrasting and layer-locked features that produce a switchable anomalous valley Hall effect. Electric and magnetic stimuli act as functionally equivalent controls over the valley, layer, and spin indices.

What carries the argument

The dual-switch mechanism in bilayer VS2, where ferroelectric polarization reversal and magnetic-field-induced spin-flip transition both modulate the layer-locked valley states through magnetoelectric coupling.

If this is right

  • Valley polarization and the anomalous valley Hall effect become addressable by either electric or magnetic stimuli.
  • Electric and magnetic operations modulate valley, layer, and spin indices equivalently due to magnetoelectric coupling.
  • The layer-locked Berry curvature produces a Hall response that switches with the chosen control stimulus.
  • This configuration supplies a design route to multi-state memory elements that store information in combined valley-layer-spin states.
  • The same material platform supports spin-valleytronic logic operations without requiring separate ferroelectric and magnetic layers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Device architectures could route control signals through electric gates for low-power valley switching or through magnetic fields for non-contact operation.
  • The layer-locking property may allow selective readout or writing to specific layers within thicker stacks by tuning the sliding registry.
  • Similar sliding-induced multiferroicity could be tested in other van der Waals transition-metal dichalcogenides to broaden the materials base for dual-control valleytronics.
  • Room-temperature operation would require experimental confirmation that thermal fluctuations do not destroy the polarization or the interlayer antiferromagnetic order under realistic device conditions.

Load-bearing premise

The calculations assume bilayer VS2 maintains stable room-temperature ferroelectric and antiferromagnetic orders during clean interlayer sliding without defects, thermal fluctuations, or substrate interactions that would suppress polarization or break spin-valley coupling.

What would settle it

Fabrication and measurement of a bilayer VS2 device showing reversible sign changes in the anomalous Hall conductivity when an out-of-plane electric field reverses the polarization and when an in-plane magnetic field induces a spin flip.

Figures

Figures reproduced from arXiv: 2601.19556 by Degao Xu, Jianing Tan, Jiansheng Dong, Quan Shen, Wenhu Liao.

Figure 1

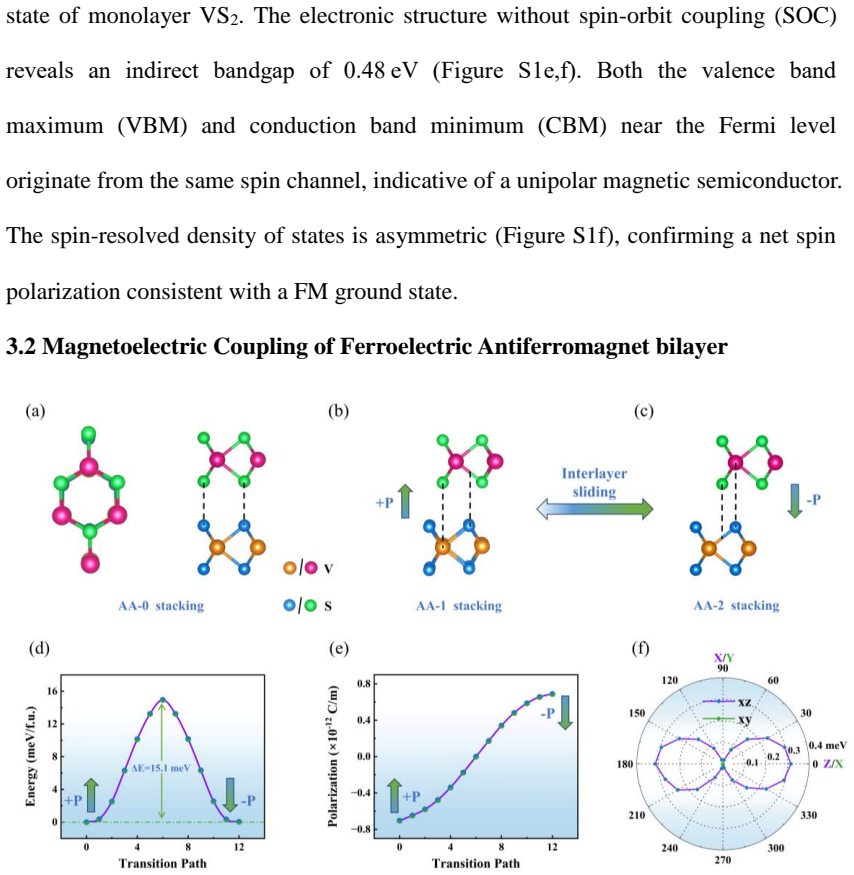

Figure 1. Figure 1: Atomic schematics of three distinct AA-stacking configurations: (a) AA￾0, (b) AA-1, (c) AA-2. V atoms in the upper and lower layers are represented by pink and orange spheres, respectively; S atoms are shown as green (upper) and blue (lower) spheres. (d) Sliding energy barrier for interlayer translation, corresponding to a switching pathway from the FE polarization-up (AA-1) to the FE polarization-down (AA… view at source ↗
Figure 2

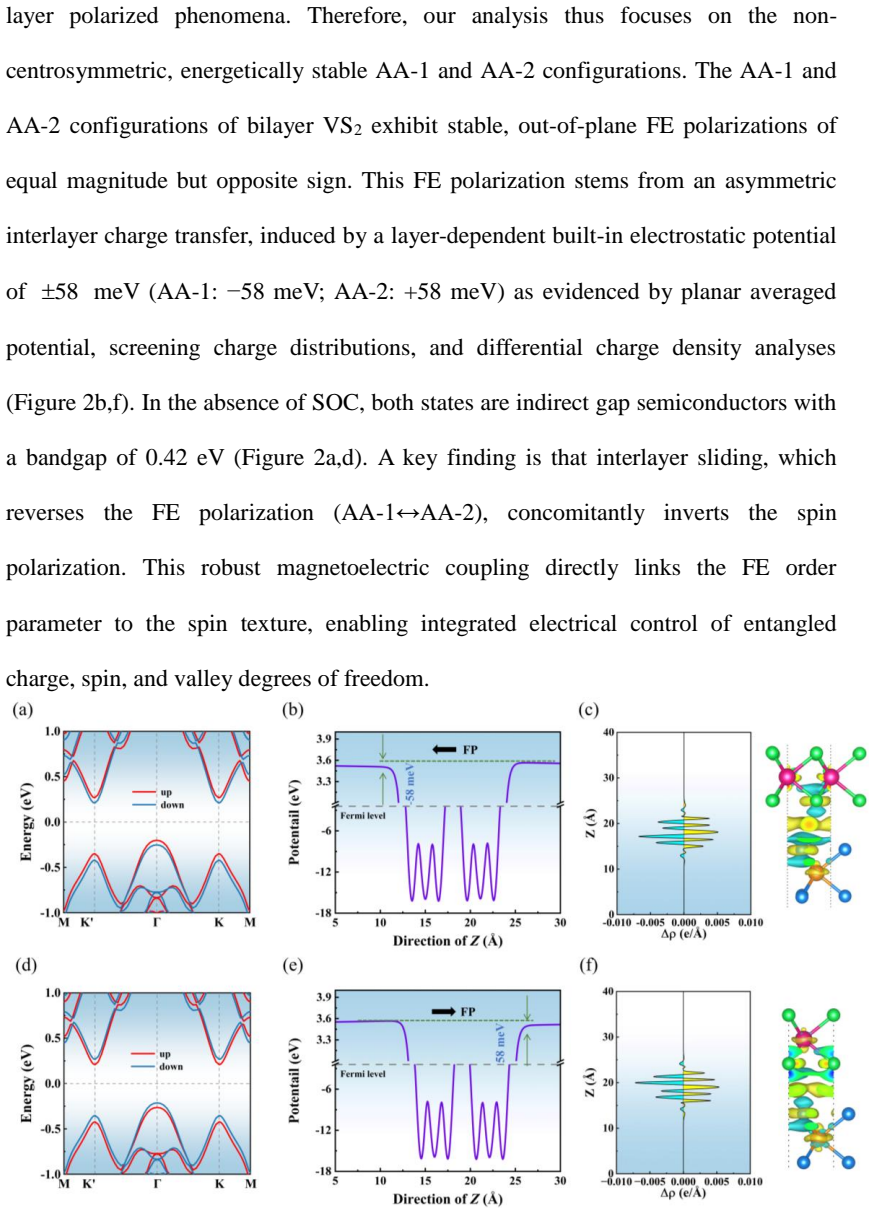

Figure 2. Figure 2: (a,d) Calculated band structures for the (a) AA-1 (P↑) and (d) AA-2 (P↓) configurations. (b,e) Corresponding averaged electrostatic potential along the z￾direction. (c,f) Screening charge distributions and differential charge density for the (c) AA-1 and (f) AA-2 states, illustrating the charge redistribution associated with FE switching. Yellow and cyan isosurfaces denote charge accumulation and depletion… view at source ↗
Figure 3
Figure 3. Figure 3: Projected band structures for configurations (a) P↑M↓↑ and (d) P↓M↓↑, with colour indicating the spin projection along z-direction (red, spin-up; blue, spin-down). (b,e) Corresponding layer-projected band structures, showing contributions from the top (red) and bottom (blue) layers, respectively. (c,f) Momentum-resolved Berry curvature, for the (c) P↑M↓↑ and (f) P↓M↓↑ states [PITH_FULL_IMAGE:figures/full_… view at source ↗
Figure 4

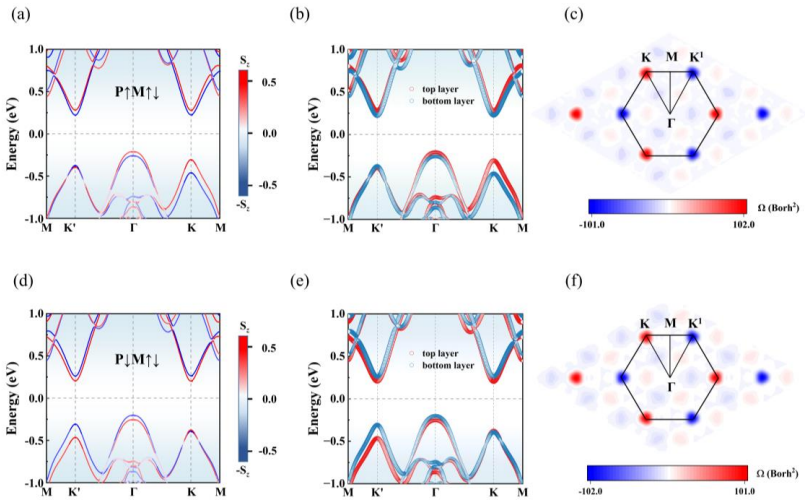

Figure 4. Figure 4: Projected band structures for configurations (a) P↑M↑↓ and (d) P↓M↑↓. (b,e) Corresponding layer-projected band structures. (c,f) Momentum-resolved Berry curvature, for the (c) P↑M↑↓ and (f) P↓M↑↓ states [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗

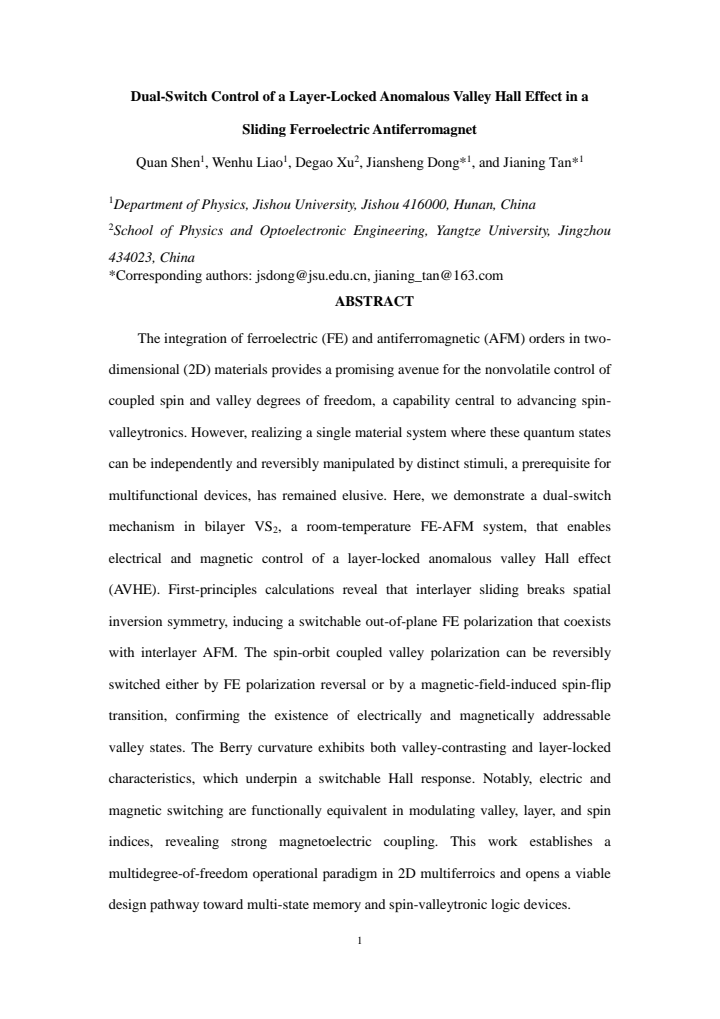

read the original abstract

The integration of ferroelectric (FE) and antiferromagnetic (AFM) orders in twodimensional (2D) materials provides a promising avenue for the nonvolatile control of coupled spin and valley degrees of freedom, a capability central to advancing spinvalleytronics. However, realizing a single material system where these quantum states can be independently and reversibly manipulated by distinct stimuli, a prerequisite for multifunctional devices, has remained elusive. Here, we demonstrate a dual-switch mechanism in bilayer VS2, a room-temperature FE-AFM system, that enables electrical and magnetic control of a layer-locked anomalous valley Hall effect (AVHE). First-principles calculations reveal that interlayer sliding breaks spatial inversion symmetry, inducing a switchable out-of-plane FE polarization that coexists with interlayer AFM. The spin-orbit coupled valley polarization can be reversibly switched either by FE polarization reversal or by a magnetic-field-induced spin-flip transition, confirming the existence of electrically and magnetically addressable valley states. The Berry curvature exhibits both valley-contrasting and layer-locked characteristics, which underpin a switchable Hall response. Notably, electric and magnetic switching are functionally equivalent in modulating valley, layer, and spin indices, revealing strong magnetoelectric coupling. This work establishes a multidegree-of-freedom operational paradigm in 2D multiferroics and opens a viable design pathway toward multi-state memory and spin-valleytronic logic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that interlayer sliding in bilayer VS2 breaks inversion symmetry to produce a switchable out-of-plane ferroelectric polarization coexisting with interlayer antiferromagnetism, enabling dual electrical (via FE reversal) and magnetic (via spin-flip) control of a layer-locked anomalous valley Hall effect. First-principles calculations demonstrate that the spin-orbit-coupled valley polarization and Berry curvature (valley-contrasting and layer-locked) support reversible switching of valley, layer, and spin indices, with strong magnetoelectric coupling.

Significance. If the computational results hold, the work identifies a concrete 2D multiferroic platform with independent, reversible electrical and magnetic addressability of valley states, which is a notable advance for spin-valleytronics. The explicit demonstration that electric and magnetic switching are functionally equivalent in modulating the same indices, together with the layer-locked Berry curvature, provides a clear design principle for multi-state devices. The first-principles mapping of the sliding-induced mechanism is a strength.

major comments (2)
  1. [Results and Discussion] The central claim that bilayer VS2 realizes a room-temperature FE-AFM system enabling practical dual-switch control rests on 0 K DFT results; no Monte Carlo simulations on a fitted spin model, AIMD runs at 300 K, or estimates of FE and AFM transition temperatures are reported to confirm stability against thermal fluctuations, defects, or substrate effects. This directly affects whether the layer-locked AVHE remains operative under realistic conditions (§ on computational results and discussion of room-temperature properties).
  2. [Methods] The quantitative support for the Berry curvature, valley polarization, and Hall response lacks reported convergence tests with respect to k-point mesh density, plane-wave cutoff, or choice of exchange-correlation functional (including any DFT+U parameters for V 3d states). Without these, the magnitude and sign of the layer-locked AVHE cannot be assessed for robustness (Methods section and figures showing Berry curvature).
minor comments (2)
  1. [Abstract] The abstract contains a typographical error ('twodimensional' should be 'two-dimensional').
  2. [Figures] Notation for the sliding vectors and layer indices in the structural figures could be made more explicit by adding directional arrows and consistent labeling across panels.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive assessment of the significance of our work and for the constructive comments on stability and computational robustness. We address each point below and have revised the manuscript to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: [Results and Discussion] The central claim that bilayer VS2 realizes a room-temperature FE-AFM system enabling practical dual-switch control rests on 0 K DFT results; no Monte Carlo simulations on a fitted spin model, AIMD runs at 300 K, or estimates of FE and AFM transition temperatures are reported to confirm stability against thermal fluctuations, defects, or substrate effects. This directly affects whether the layer-locked AVHE remains operative under realistic conditions (§ on computational results and discussion of room-temperature properties).

    Authors: We agree that finite-temperature stability is important for assessing practical applicability. Our work focuses on the zero-temperature ground-state mechanism and the dual electrical/magnetic switching of the layer-locked AVHE. In the revised manuscript we have added a dedicated paragraph in the Results and Discussion section that cites experimental reports of ferromagnetic ordering in VS2 above room temperature together with theoretical estimates of sliding-ferroelectric transition temperatures in related bilayer systems. We also discuss the expected robustness of the valley and layer indices against thermal fluctuations by reference to analogous 2D multiferroic platforms. This revision provides context for the room-temperature claim without performing new Monte Carlo or AIMD simulations, which lie outside the scope of the present study. revision: partial

  2. Referee: [Methods] The quantitative support for the Berry curvature, valley polarization, and Hall response lacks reported convergence tests with respect to k-point mesh density, plane-wave cutoff, or choice of exchange-correlation functional (including any DFT+U parameters for V 3d states). Without these, the magnitude and sign of the layer-locked AVHE cannot be assessed for robustness (Methods section and figures showing Berry curvature).

    Authors: We thank the referee for this suggestion. In the revised manuscript we have added a new subsection 'Convergence Tests' to the Methods section. We report explicit tests showing that the valley polarization and integrated Berry curvature converge to within 2 % for k-point meshes denser than 12×12×1, plane-wave cutoffs above 450 eV, and U values between 2.5 and 3.5 eV on the V 3d states (PBE+U functional). The sign and layer-locked character of the anomalous valley Hall response remain unchanged across this range. A supplementary figure displaying the convergence data has also been included. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper's claims rest on standard first-principles DFT computations of structural, electronic, and topological properties (polarization, AFM order, valley splitting, Berry curvature) for slid bilayer VS2 configurations. These quantities are obtained directly from the input atomic positions and Hamiltonian without any parameter fitting, self-definition, or reduction of a 'prediction' to a prior fit. No load-bearing step invokes a self-citation chain, uniqueness theorem from the same authors, or ansatz smuggled via prior work; the results are externally verifiable against independent DFT codes and benchmarks. The derivation is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard density-functional-theory approximations for electronic structure and the assumption that the bilayer maintains clean FE-AFM order at room temperature.

axioms (2)
  • standard math Standard density functional theory approximations for electronic structure calculations
    First-principles calculations rely on DFT exchange-correlation functionals and pseudopotentials whose accuracy is taken from prior literature.
  • domain assumption Room-temperature stability of ferroelectric-antiferromagnetic order in ideal bilayer VS2
    The abstract states the system is room-temperature FE-AFM but provides no explicit thermal or defect analysis.

pith-pipeline@v0.9.0 · 5572 in / 1431 out tokens · 29705 ms · 2026-05-16T11:02:41.674769+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

56 extracted references · 56 canonical work pages

  1. [1]

    Žutić, J

    I. Žutić, J. Fabian, S. Das Sarma, Rev. Mod. Phys. 2004, 76, 323

    work page 2004

  2. [2]

    Chappert, A

    C. Chappert, A. Fert, F. N. Van Dau, Nat. Mater. 2007, 6, 813

    work page 2007

  3. [3]

    H. Bai, Y. C. Zhang, Y. J. Zhou, P. Chen, C. H. Wan, L. Han, W. X. Zhu, S. X. Liang, Y. C. Su, X. F. Han, F. Pan, C. Song, Phys. Rev. Lett. 2023, 130, 216701

    work page 2023

  4. [4]

    D. F. Shao, S. H. Zhang, M. Li, C. B. Eom, E. Y. Tsymbal, Nat. Commun. 2021, 12, 7061

    work page 2021

  5. [5]

    Šmejkal, A

    L. Šmejkal, A. B. Hellenes, R. González -Herná ndez, J. Sinova, T. Jungwirth, Phys. Rev. X 2022, 12, 011028

    work page 2022

  6. [6]

    K. F. Mak, K. L. McGill, J. Park, P. L. McEuen, Science 2014, 344, 1489

    work page 2014

  7. [7]

    J. R. Schaibley, H. Yu, G. Clark, P. Rivera, J. S. Ross, K. L. Seyler, W. Yao, X. Xu, Nat. Rev. Mater. 2016, 1, 16055

    work page 2016

  8. [8]

    Zhang, S

    Q. Zhang, S. A. Yang, W. Mi, Y. Cheng, U. Schwingenschlö gl, Adv. Mater. 2016, 28, 959

    work page 2016

  9. [9]

    H. Zeng, J. Dai, W. Yao, D. Xiao, X. Cui, Nat. Nanotechnol. 2012, 7, 490

    work page 2012

  10. [10]

    Šmejkal, J

    L. Šmejkal, J. Sinova, T. Jungwirth, Phys. Rev. X 2022, 12, 031042

    work page 2022

  11. [11]

    Mazin, Phys

    I. Mazin, Phys. Rev. X 2022, 12, 040002

    work page 2022

  12. [12]

    Jungwirth, J

    T. Jungwirth, J. Sinova, A. Manchon, X. Marti, J. Wunderlich, C. Felser, Nat. Phys. 2018, 14, 200

    work page 2018

  13. [13]

    Baltz, A

    V. Baltz, A. Manchon, M. Tsoi, T. Moriyama, T. Ono, Y. Tserkovnyak, Rev. Mod. Phys. 2018, 90, 015005

    work page 2018

  14. [14]

    Zhang, X

    T. Zhang, X. Xu, B. Huang, Y. Dai, Y. Ma, npj Comput. Mater. 2022, 8, 64

    work page 2022

  15. [15]

    J. Feng, X. Zhou, J. Chen, M. Xu, X. Yang, Y. Li, Phys. Rev. B 2025, 111, 214446. 17

    work page 2025

  16. [16]

    L. Xie, X. Chen, J. Qi, Phys. Rev. B 2025, 112, 054420

    work page 2025

  17. [17]

    Y. Feng, Y. Dai, B. Huang, L. Kou, Y. Ma, Nano Lett. 2023, 23, 5367

    work page 2023

  18. [18]

    H. Sun, P. Dong, C. Wu, P. Li, Phys. Rev. B 2025, 111, 235431

    work page 2025

  19. [19]

    X. Liu, A. P. Pyatakov, W. Ren, Phys. Rev. Lett. 2020, 125, 247601

    work page 2020

  20. [20]

    X. C. Jiang, M. M. Li, Y. Z. Zhang, Nano Lett. 2025, 25, 12668

    work page 2025

  21. [21]

    Nagaosa, J

    N. Nagaosa, J. Sinova, S. Onoda, A. H. MacDonald, N. P. Ong, Rev. Mod. Phys. 2010, 82, 1539

    work page 2010

  22. [22]

    M. M. Otrokov, I. I. Klimovskikh, H. Bentmann, D. Estyunin, A. Zeugner, Z. S. Aliev, S. Gaß , A. U. B. Wolter, A. V. Koroleva, A. M. Shikin, M. Blanco -Rey, M. Hoffmann, I. P. Rusinov, A. Yu. Vyazovskaya, S. V. Eremeev, Yu. M. Koroteev, V. M. Kuznetsov, F. Freyse, J. Sá nchez-Barriga, I. R. Amiraslanov, M. B. Babanly, N. T. Mamedov, N. A. Abdullayev, V. N...

    work page 2019

  23. [23]

    Serlin, C

    M. Serlin, C. L. Tschirhart, H. Polshyn, Y. Z hang, J. Zhu, K. Watanabe, T. Taniguchi, L. Balents, A. F. Young, Science 2020, 367, 900

    work page 2020

  24. [24]

    Y. Deng, Y. Yu, M. Z. Shi, Z. Guo, Z. Xu, J. Wang, X. H. Chen, Y. Zhang, Science 2020, 367, 895

    work page 2020

  25. [25]

    R. Peng, Y. Ma, X. Xu, Z. He, B. Huang, Y. Dai, Phys. Rev. B 2020, 102, 035412

    work page 2020

  26. [26]

    Zhang, W

    H. Zhang, W. Yang, Y. Ning, X. Xu, Phys. Rev. B 2020, 101, 205404

    work page 2020

  27. [27]

    W. Du, R. Peng, Z. He, Y. Dai, B. Huang, Y. Ma, npj 2D Mater. Appl. 2022, 6, 11

    work page 2022

  28. [28]

    Sinova, S

    J. Sinova, S. O. Valenzuela, J. Wunderlich, C. H. Back, T. Jungwirth, Rev. Mod. Phys. 2015, 87, 1213

    work page 2015

  29. [29]

    B. A. Bernevig, T. L. Hughes, S.-C. Zhang, Science 2006, 314, 1757

    work page 2006

  30. [30]

    Z. Lian, Y. Wang, Y. Wang, W. -H. Dong, Y. Feng, Z. Dong, M. Ma, S. Yang, L. Xu, Y. Li, B. Fu, Y. Li, W. Jiang, Y. Xu, C. Liu, J. Zhang, Y. Wang, Nature 2025, 641, 70

    work page 2025

  31. [31]

    W. Y. Tong, C. G. Duan, npj Quantum Mater. 2017, 2, 47

    work page 2017

  32. [32]

    S. D. Guo, L. Zhang, Y. Zhang, P. Li, G. Wang, Phys. Rev. B 2024, 110, 024416

    work page 2024

  33. [33]

    Zhang, W

    D. Zhang, W. Zhou, G. Zheng, A. Li, Y. Chen, F. Ouyang, Chin. J. Phys. 2025, 94, 153

    work page 2025

  34. [34]

    Kresse, J

    G. Kresse, J. Hafner, Phys. Rev. B 1993, 47, 558

    work page 1993

  35. [35]

    Kresse, J

    G. Kresse, J. Hafner, Phys. Rev. B 1994, 49, 14251. 18

    work page 1994

  36. [36]

    J. P. Perdew, K. Burke, M. Ernzerhof, Phys. Rev. Lett. 1996, 77, 3865

    work page 1996

  37. [37]

    Grimme, S

    S. Grimme, S. Ehrlich, L. Goerigk, J. Comput. Chem. 2011, 32, 1456

    work page 2011

  38. [38]

    V. I. Anisimov, J. Zaanen, O. K. Andersen, Phys. Rev. B 1991, 44, 943

    work page 1991

  39. [39]

    A. I. Liechtenstein, V. I. Anisimov, J. Zaanen, Phys. Rev. B 1995, 52, R5467

    work page 1995

  40. [40]

    Nosé , J

    S. Nosé , J. Chem. Phys. 1984, 81, 511

    work page 1984

  41. [41]

    Alfè , Comput

    D. Alfè , Comput. Phys. Commun. 2009, 180, 2622

    work page 2009

  42. [42]

    A. A. Mostofi, J. R. Yates, Y. -S. Lee, I. Souza, D. Vanderbilt, N. Marzari, Comput. Phys. Commun. 2008, 178, 685

    work page 2008

  43. [43]

    Henkelman, B

    G. Henkelman, B. P. Uberuaga, H. Jó nsson, J. Chem. Phys. 2000, 113, 9901

    work page 2000

  44. [44]

    R. D. King-Smith, D. Vanderbilt, Phys. Rev. B 1993, 47, 1651

    work page 1993

  45. [45]

    Resta, M

    R. Resta, M. Posternak, A. Baldereschi, Phys. Rev. Lett. 1993, 70, 1010

    work page 1993

  46. [46]

    J. Li, Q. Wu, H. Weng, npj Comput. Mater. 2025, 11, 53

    work page 2025

  47. [47]

    W. Sun, C. Yang, W. Wang, Y. Liu, X. Wang, S. Huang, Z. Cheng, Adv. Mater. 2025, 37, 2502575

    work page 2025

  48. [48]

    Yasuda, X

    K. Yasuda, X. Wang, K. Watanabe, T. Taniguchi, P. Jarillo-Herrero, Science 2021, 372, 1458

    work page 2021

  49. [49]

    Q. Yang, S. Meng, Phys. Rev. Lett. 2024, 133, 136902

    work page 2024

  50. [50]

    H. Gao, Z. Liu, Y. Gong, C. Ke, N. Guo, J. Wu, X. Zeng, J. Guo, S. Li, Z. Cheng, J. Li, H. Zhu, L. Zhang, X. Liu, S. Liu, L. Xie, Q. Zheng, Adv. Mater. 2024, 36, 2404628

    work page 2024

  51. [51]

    F. Sui, M. Jin, Y. Zhang, R. Qi, Y.-N. Wu, R. Huang, F. Yue, J. Chu, Nat. Commun. 2023, 14, 36

    work page 2023

  52. [52]

    S. Yuan, X. Luo, H. L. Chan, C. Xiao, Y. Dai, M. Xie, J. Hao, Nat. Commun. 2019, 10, 1775

    work page 2019

  53. [53]

    Jindal, A

    A. Jindal, A. Saha, Z. Li, T. Taniguchi, K. Watanabe, J. C. Hone, T. Birol, R. M. Fernandes, C. R. Dean, A. N. Pasupathy, D. A. Rhodes, Nature 2023, 613, 48

    work page 2023

  54. [54]

    Y. Wu, J. Tong, L. Deng, F. Luo, F. Tian, G. Qin, X. Zhang, Nano Lett. 2023, 23, 6226

    work page 2023

  55. [55]

    D. J. Thouless, M. Kohmoto, M. P. Nightingale, M. Den Nijs, Phys. Rev. Lett. 1982, 49, 405

    work page 1982

  56. [56]

    D. Xiao, M. C. Chang, Q. Niu, Rev. Mod. Phys. 2010, 82, 1959

    work page 2010
