arxiv: 2601.19627 · v1 · submitted 2026-01-27 · 🌌 astro-ph.IM

Recognition: no theorem link

Silicon-based vacuum window for millimeter and submillimeter-wave astrophysics

Ryota Takaku , Scott Cray , Kosuke Aizawa , Akira Endo , Shaul Hanany , Kenichi Karatsu , J\"urgen Koch , Kuniaki Konishi
show 2 more authors
Tomotake Matsumura Haruyuki Sakurai
Authors on Pith no claims yet

Pith reviewed 2026-05-16 10:54 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords silicon vacuum windowanti-reflection coatingsub-wavelength structuresmillimeter-wave astrophysicssubmillimeter-wavetransmittanceDESHIMA
0
0 comments X

The pith

A silicon vacuum window with laser-ablated structures reaches 99% average transmittance and 1% reflectance over 67% bandwidth.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports the design, fabrication, and optical characterization of a silicon vacuum window for millimeter and submillimeter astrophysical instruments. The device has a 124 mm diameter, 68 mm optically active area, and 4 mm thickness, with anti-reflection provided by laser-ablated sub-wavelength structures. Laboratory measurements confirm 99% average transmittance, 1% reflectance, and undetectable absorptive loss across the 67% fractional bandwidth, matching predictions from the measured physical shapes. The window has been installed and operated in the DESHIMA v2.0 instrument during year-long observations at the Atacama Submillimeter Telescope Experiment.

Core claim

The silicon-based vacuum window, fabricated with laser-ablated sub-wavelength structures for anti-reflection, delivers an average transmittance of 99% and reflectance of 1% over a fractional bandwidth of 67%, with absorptive losses below the measurement detection limit. This performance was confirmed through characterization that matched modeling predictions derived from the measured physical shapes of the structures. The window, with a total diameter of 124 mm and active diameter of 68 mm at approximately 4 mm thickness, has been integrated into DESHIMA v2.0 and used for year-long astrophysical observations.

What carries the argument

Laser-ablated sub-wavelength structures that serve as the anti-reflection coating on the silicon substrate.

If this is right

  • The window can maintain vacuum integrity while transmitting millimeter-wave signals with negligible loss in operational telescopes.
  • Design predictions based on fabricated structure shapes are reliable enough to guide fabrication of similar windows at other sizes or frequencies.
  • The demonstrated integration into DESHIMA v2.0 shows the window supports year-long continuous observations without performance degradation.
  • Low absorptive loss reduces the thermal load on downstream detectors compared with conventional window materials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the structures prove stable over multiple years of field use, this fabrication approach could replace dielectric coatings in future large-format submillimeter arrays.
  • The same laser-ablation process might be adapted to other low-loss substrates for windows operating at different atmospheric windows.
  • Widespread adoption could simplify cryostat design by lowering the heat load that must be removed from the cold stage.

Load-bearing premise

The fabricated sub-wavelength structures retain their measured shapes and optical performance when exposed to the vacuum, thermal cycling, and mechanical loads of real astrophysical instruments.

What would settle it

A laboratory or on-telescope measurement showing transmittance falling significantly below 99% after the window experiences full vacuum, repeated thermal cycles between room temperature and cryogenic operation, and mechanical mounting stresses would falsify the claim of suitability for deployment.

Figures

Figures reproduced from arXiv: 2601.19627 by Akira Endo, Haruyuki Sakurai, J\"urgen Koch, Kenichi Karatsu, Kosuke Aizawa, Kuniaki Konishi, Ryota Takaku, Scott Cray, Shaul Hanany, Tomotake Matsumura.

Figure 1
Figure 1. Figure 1: The design shape of three elements in the periodic SWS (left) and the predicted [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Cross section of the vacuum window assembly. An aluminum ring (A, grey) [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

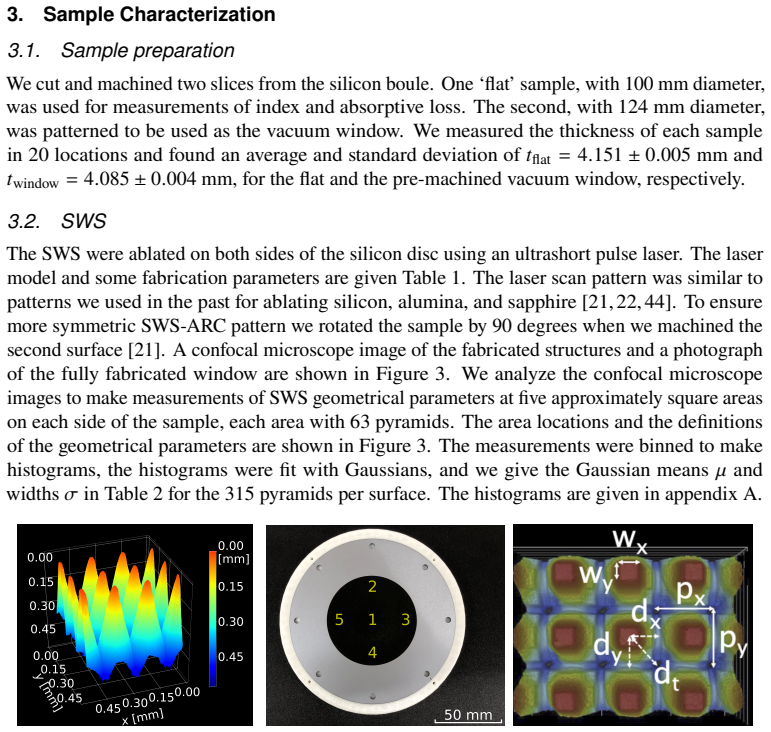

Figure 3. Figure 3: A small section of the fabricated SWS-ARC (left), a photograph of the window [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Sketch of the experimental setup used for the reflectance and transmittance [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

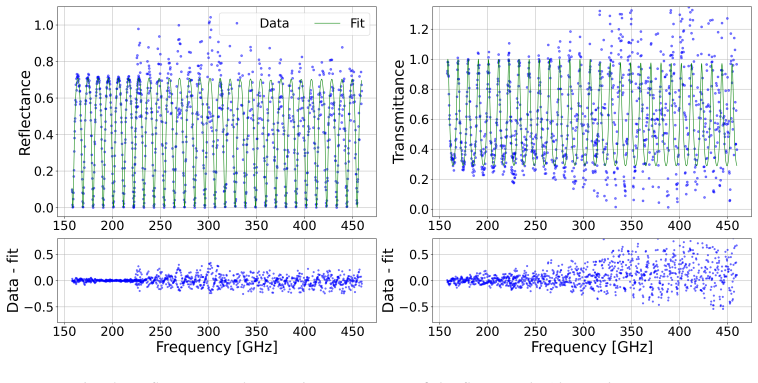

Figure 5. Figure 5: Reflectance and transmittance spectra of the flat sample (data points, upper [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

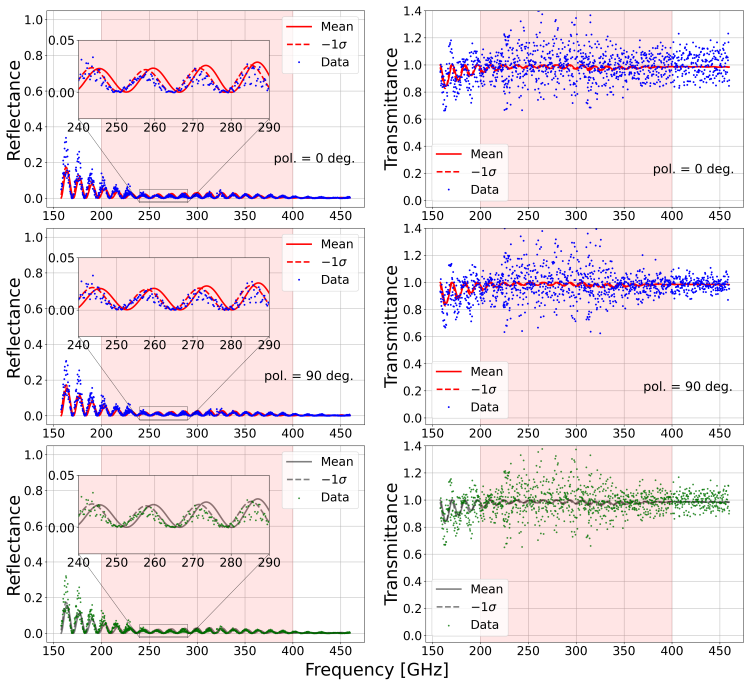

Figure 6. Figure 6: Reflectance (left panels) and transmittance (right panels) spectra (dots) of the [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Transmittance spectra of the patterned sample binned into 10 GHz bins for [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

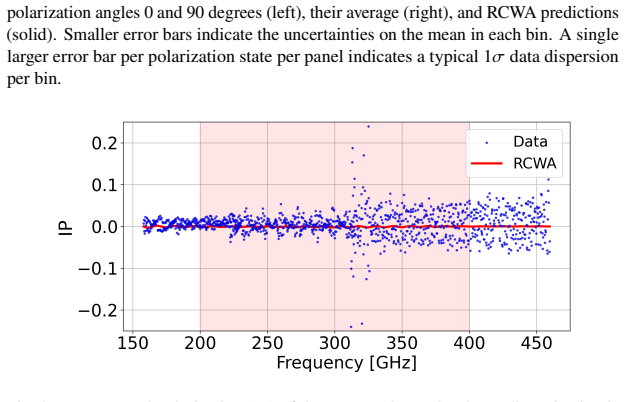

Figure 8. Figure 8: Instrumental polarization (IP) of the patterned sample.The outlier rejection is [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

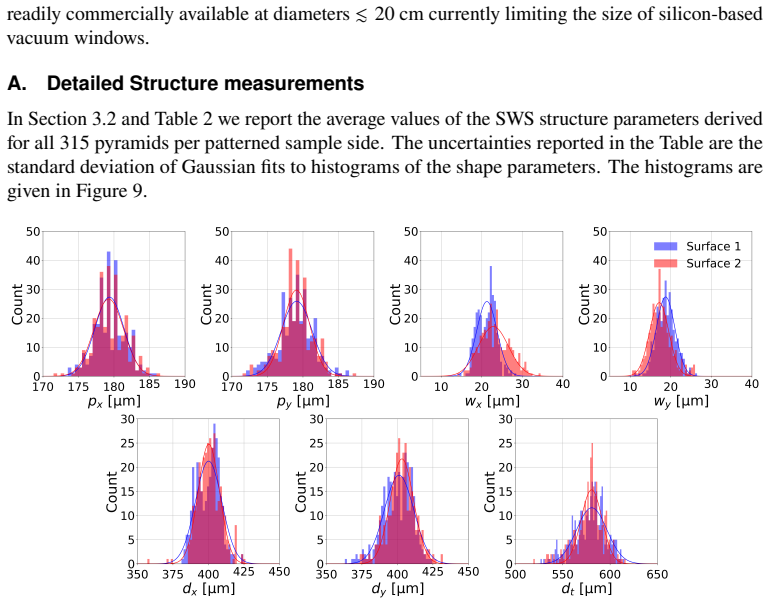

Figure 9. Figure 9: Histograms of the measured parameters for 315 pyramids for each of surface [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
read the original abstract

We designed, fabricated, and characterized the properties of a silicon-based vacuum window suitable for millimeter-wave astrophysical applications. The window, which has a diameter of 124 mm, optically active diameter of 68 mm, and thickness of about 4 mm, gives an average transmittance and reflectance of 99% and 1%, respectively, a fractional bandwidth of 67%. Absorptive loss is below the detection limit of our measurement. The anti-reflection coating is made with laser ablated sub-wavelength structures (SWS), and the measured transmittance and reflectance values agree with modeling based on the measured SWS shapes. The window has been integrated into DESHIMA v2.0, an astrophysics instrument that took year-long observations with the Atacama Submillimeter Telescope Experiment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript describes the design, fabrication, and optical characterization of a 124 mm diameter silicon vacuum window (68 mm optically active diameter, ~4 mm thick) for millimeter and submillimeter astrophysics. Laser-ablated sub-wavelength structures serve as the anti-reflection coating, yielding measured average transmittance of 99%, reflectance of 1%, and 67% fractional bandwidth with absorptive loss below the detection limit. These values agree with electromagnetic modeling that incorporates the actual measured SWS profiles. The window was integrated into the DESHIMA v2.0 instrument and operated successfully for year-long observations at the Atacama Submillimeter Telescope Experiment.

Significance. If the reported performance holds, the work supplies a practical, low-loss broadband vacuum window that can reduce systematic errors and improve sensitivity in mm/submm astrophysical receivers. The direct match between lab measurements and modeling based on fabricated SWS shapes, together with the independent validation from year-long telescope integration under vacuum, thermal cycling, and mechanical load, strengthens the result's applicability and reproducibility.

minor comments (2)
  1. [Abstract] Abstract: the thickness is stated as 'about 4 mm'; the main text should report the precise measured thickness, its uniformity across the aperture, and the measurement technique to support replication.
  2. [Methods/Fabrication] The description of the SWS fabrication would benefit from explicit listing of the laser ablation parameters (power, pulse rate, scan speed, and number of passes) in the methods section.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript and for recommending acceptance. The referee's summary accurately captures the design, fabrication, and performance of the silicon vacuum window, as well as its successful integration and operation in DESHIMA v2.0.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper reports direct fabrication of a silicon vacuum window with laser-ablated sub-wavelength structures, followed by independent laboratory measurements of transmittance (99%), reflectance (1%), and bandwidth (67%). These values are compared to electromagnetic modeling that takes the physically measured SWS geometry as input; the model is not fitted to the optical data. No load-bearing equation reduces the reported performance to a fitted parameter or to a self-citation chain. Integration into DESHIMA v2.0 and year-long telescope observations supply external validation under vacuum, thermal, and mechanical conditions. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on standard domain knowledge of silicon optical properties at millimeter wavelengths and established laser-ablation techniques without introducing new free parameters or postulated entities.

axioms (1)
  • domain assumption Optical properties of silicon in the millimeter-wave regime are well-known and stable enough for accurate modeling.
    Invoked when transmittance and reflectance are modeled from measured SWS shapes.
