arxiv: 2601.23065 · v2 · submitted 2026-01-30 · 💻 cs.GR · cs.CV

Recognition: no theorem link

EAG-PT: Emission-Aware Gaussians and Path Tracing for Diffuse Indoor Scene Reconstruction and Editing

Xijie Yang , Mulin Yu , Changjian Jiang , Kerui Ren , Tao Lu , Jiangmiao Pang , Dahua Lin , Bo Dai

show 1 more author

Linning Xu

Authors on Pith no claims yet

Pith reviewed 2026-05-16 09:28 UTC · model grok-4.3

classification 💻 cs.GR cs.CV

keywords indoor scene reconstruction2D Gaussianspath tracingglobal illuminationscene editingradiance fieldsinverse renderingdiffuse lighting

0 comments

The pith

EAG-PT reconstructs indoor scenes with emission-aware 2D Gaussians to support physically consistent lighting edits via path tracing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to establish that representing indoor scenes with 2D Gaussians, while separating emissive from non-emissive parts, yields a representation that supports accurate light transport simulation for editing. A reader would care because this sidesteps the baked-in lighting of radiance fields and the strict geometry demands of mesh-based inverse rendering, opening the door to believable changes in lights and materials inside captured rooms. The method optimizes the Gaussians with single-bounce paths only and then renders final images with full multi-bounce path tracing. Experiments on both synthetic and real data are presented to show the resulting edits look more natural and avoid mesh artifacts.

Core claim

The central claim is that a unified 2D Gaussian representation can serve as a transport-friendly geometric proxy for diffuse indoor scenes once emissive and non-emissive components are modeled separately. Reconstruction therefore uses efficient single-bounce optimization, while final rendering applies high-quality multi-bounce path tracing; the resulting edited images exhibit more natural global illumination than radiance-field baselines and retain finer detail than mesh-based inverse path tracing.

What carries the argument

Emission-aware 2D Gaussians used as a geometric proxy that separates emissive and non-emissive components to enable single-bounce reconstruction followed by multi-bounce path tracing.

If this is right

Changes to lights or surfaces produce believable global illumination effects in the edited renderings.
Geometric detail remains higher than in mesh-based inverse rendering methods.
Reconstruction succeeds on real indoor captures without requiring perfect mesh geometry.
The same representation supports downstream uses such as interior design visualization and XR content creation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The separation of emission could be generalized to handle view-dependent effects if the Gaussian representation is extended.
Combining the approach with dynamic object insertion would allow testing of real-time editing pipelines.
Quantitative error metrics on shadow boundaries in edited scenes would provide a direct test of the transport accuracy.

Load-bearing premise

That 2D Gaussians supply enough geometric information for accurate light transport calculations without an explicit mesh.

What would settle it

Render an edited scene with EAG-PT and compare it side-by-side with a ground-truth multi-bounce path-traced image computed from the original high-fidelity mesh; visible errors in shadows, inter-reflections, or color bleeding would falsify the consistency claim.

Figures

Figures reproduced from arXiv: 2601.23065 by Bo Dai, Changjian Jiang, Dahua Lin, Jiangmiao Pang, Kerui Ren, Linning Xu, Mulin Yu, Tao Lu, Xijie Yang.

**Figure 2.** Figure 2: Renders of F-CLASSROOM before and after editing. Radiant Scene: Most radiance field reconstruction works [23, 34, 35] regard the whole scene as radiant, which cannot produce light changes and shadow effects after scene editing. Radiant Reflection: Some reflection modeling works [27, 70] add a single bounce to produce more realistic results, while still suffering from the incorrect radiance after scene e… view at source ↗

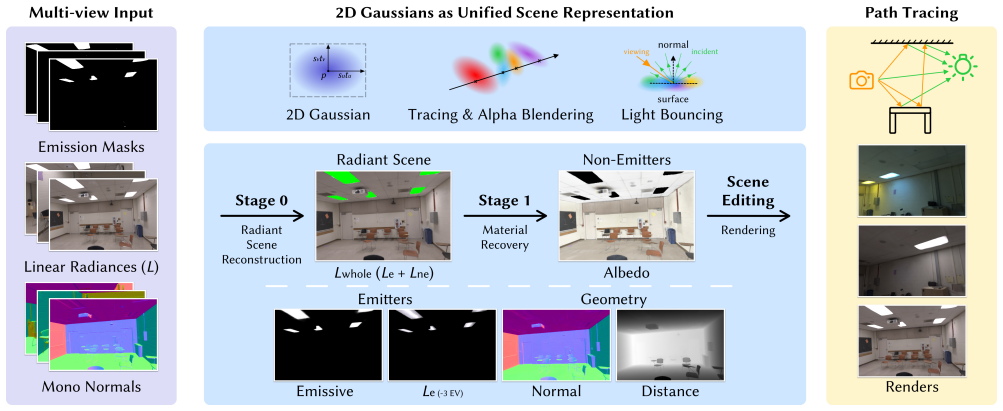

**Figure 3.** Figure 3: Pipeline of Emission-Aware Gaussians and Path Tracing. Given multi-view linear captures of an indoor scene with corresponding [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

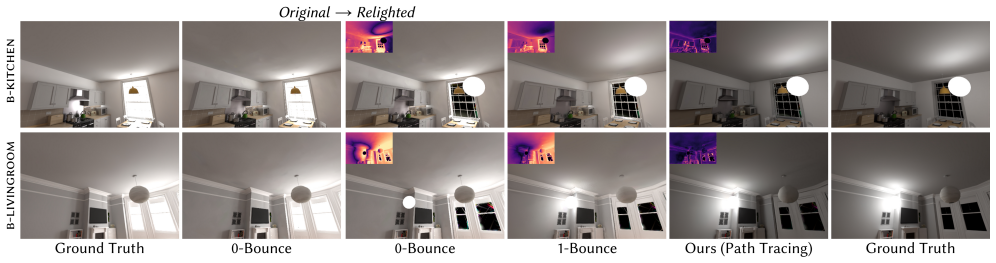

**Figure 4.** Figure 4: Relighting results with an inserted illuminated ball on synthetic scenes. Insets show FLIP error maps w.r.t. the relighting ground [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

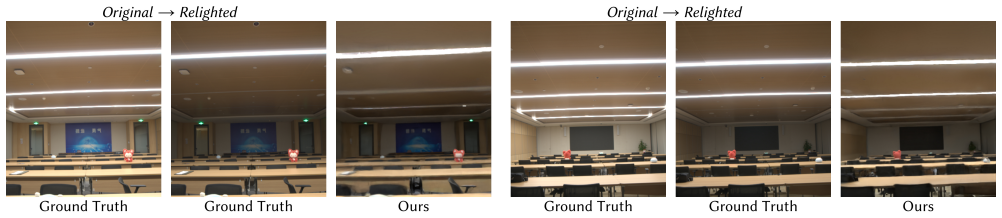

**Figure 5.** Figure 5: Relighting results on the captured real scene [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

**Figure 6.** Figure 6: Path-traced results for various scene-editing operations on Eyeful Tower scenes. After editing, our EAG-PT yields plausible ren [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

**Figure 7.** Figure 7: Path-traced novel views on real scenes compared with mesh-based FIPT. Zoomed regions highlight that our 2D Gaussians better [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗

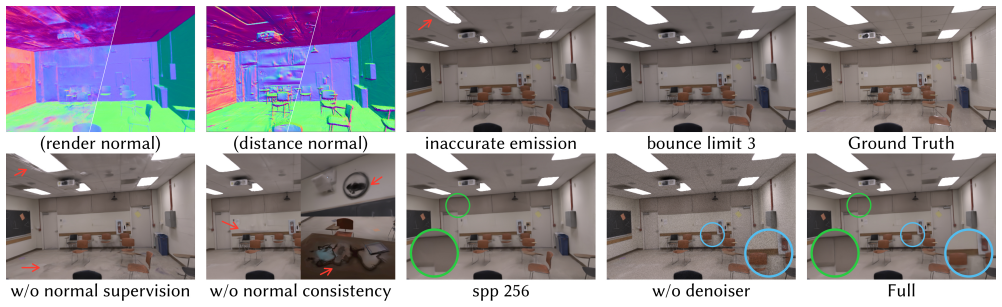

**Figure 8.** Figure 8: Ablation study on F-CLASSROOM. The comparisons show that accurate normals, proper emission masks, sufficient bounce limit and samples per pixel, and a denoiser are all necessary to avoid artifacts and to achieve our final high-quality path-traced result [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗

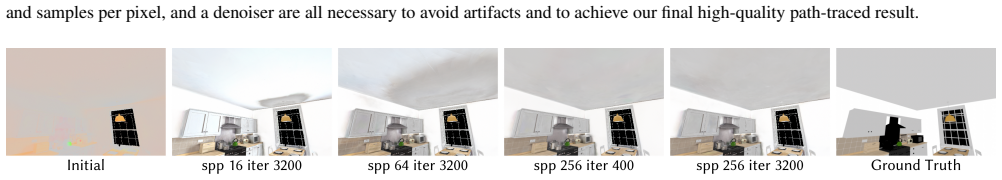

**Figure 9.** Figure 9: Albedo recovery on B-KITCHEN. Low samples per pixel make it difficult to accurately recover the ceiling albedo because of high sampling noise. 3 4 5 6 7 8 22 24 26 28 Albedo PSNR Optimization Duration (log2 ) nspp 16 nspp 64 nspp 256 nspp 1024 [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗

**Figure 10.** Figure 10: Albedo PSNR during material recovery on BKITCHEN: for a fixed optimization budget, higher nspp yields higher PSNR, showing that reducing sampling noise is more effective than increasing iterations at low nspp. creasing either the bounce limit or nspp further improves image quality but also increases rendering time, as reported in [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗

**Figure 11.** Figure 11: Exceptions of emission masks. (a) Reflection is [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗

**Figure 12.** Figure 12: Ray-Gaussian intersection count visualization on two [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗

read the original abstract

Recent radiance-field-based reconstruction methods, such as NeRF and 3DGS, achieve high visual fidelity for indoor scenes, but often break down under scene editing due to baked illumination and the lack of explicit light transport. In contrast, inverse path tracing methods based on mesh representations enforce correct light transport but require highly accurate geometry, making them difficult to apply robustly to real indoor scenes. We present Emission-Aware Gaussians and Path Tracing (EAG-PT), a method for physically based reconstruction and rendering of indoor scenes using a unified 2D Gaussian representation, targeting editable diffuse global illumination. Our approach consists of three key ideas: (1) representing indoor scenes with 2D Gaussians as a transport-friendly geometric proxy that avoids explicit mesh reconstruction; (2) explicitly separating emissive and non-emissive components during reconstruction to support editing; and (3) decoupling reconstruction from final rendering by using efficient single-bounce optimization and high-quality multi-bounce path tracing, respectively. Experiments on synthetic and real indoor scenes show that EAG-PT produces more natural and physically consistent edited renderings than radiance-field reconstructions, while preserving finer geometric detail and avoiding mesh-induced artifacts compared with mesh-based inverse path tracing. These results highlight the potential of our approach for applications such as interior design, XR content creation, and embodied AI.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

EAG-PT uses 2D Gaussians with explicit emission separation and decoupled single-bounce optimization plus multi-bounce path tracing to support editing of diffuse indoor scenes, but the abstract supplies no numbers to back the consistency claims.

read the letter

The main advance is a 2D Gaussian representation that keeps emissive and non-emissive components separate during single-bounce fitting, then hands the result to unbiased path tracing for final multi-bounce renderings. This sidesteps the baked lighting that ruins editing in standard 3DGS while avoiding the mesh accuracy demands that make inverse path tracing brittle on real rooms. The decoupling of reconstruction from rendering is a clean practical move and addresses a real pain point for indoor applications. Experiments on synthetic and real scenes are said to yield more natural edited images with preserved detail and no mesh artifacts, which aligns with the stated goals for design tools and embodied AI. The approach looks like a sensible hybrid that could be useful once the details are filled in. The clearest weakness is the lack of any quantitative metrics, error tables, or ablation results in the abstract. Without those, it is difficult to know whether the edited renderings are actually more physically consistent or simply look plausible in selected views. The stress-test worry about ray-Gaussian intersections supplying accurate hit points and normals for multi-bounce transport is worth checking in the full text, since indoor geometry is full of concavities where small proxy errors would compound. If the paper shows solid validation on those points, the method holds up; otherwise the central claim stays unproven. This work is aimed at graphics researchers who build reconstruction pipelines for editing rather than pure novel-view synthesis. A reader already familiar with 3DGS and inverse rendering would get the most out of it. I would bring it to a reading group for the representation idea alone. It deserves peer review because the problem is well-posed and the proposed separation step is a genuine addition, even if revisions will need stronger evidence.

Referee Report

2 major / 1 minor

Summary. The paper introduces EAG-PT for diffuse indoor scene reconstruction and editing. It represents scenes with Emission-Aware 2D Gaussians as a transport-friendly proxy, explicitly separates emissive and non-emissive components during single-bounce optimization, and decouples this from high-quality multi-bounce path tracing at render time. Experiments on synthetic and real scenes are claimed to yield more natural, physically consistent edited renderings than radiance-field methods while preserving detail and avoiding mesh artifacts.

Significance. If the core assumptions hold, the method offers a practical bridge between radiance-field approaches (high visual fidelity but baked lighting) and mesh-based inverse path tracing (correct transport but fragile geometry), enabling editable diffuse global illumination for applications like interior design and XR. The explicit emissive/non-emissive separation and single-bounce/multi-bounce decoupling are pragmatic strengths, though the absence of quantitative validation limits immediate impact.

major comments (2)

[Abstract] Abstract: the central claim that EAG-PT produces 'more natural and physically consistent edited renderings' than radiance-field reconstructions is unsupported by any quantitative metrics, error analysis, or tabulated comparisons (e.g., no PSNR/SSIM, shadow error, or energy conservation measures for edited views).
[Method] Method description (implied in abstract points 1-3): the assumption that 2D Gaussians optimized under single-bounce supervision yield accurate hit points, normals, and visibility for unbiased multi-bounce path tracing is not derived or stress-tested; in concave indoor geometry this risks incorrect shadowing and indirect illumination even if single-bounce visuals appear plausible.

minor comments (1)

[Abstract] Abstract: the phrase 'transport-friendly geometric proxy' is introduced without a reference to prior work on Gaussian-ray intersection or normal estimation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the recognition of EAG-PT's potential as a practical bridge between radiance-field and mesh-based methods. We address each major comment below and will incorporate revisions to strengthen the quantitative support and methodological justification.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim that EAG-PT produces 'more natural and physically consistent edited renderings' than radiance-field reconstructions is unsupported by any quantitative metrics, error analysis, or tabulated comparisons (e.g., no PSNR/SSIM, shadow error, or energy conservation measures for edited views).

Authors: We agree that the central claim in the abstract would be strengthened by quantitative metrics. The current manuscript presents qualitative comparisons demonstrating improved naturalness and physical consistency in edited renderings. In the revised version, we will add quantitative evaluations, such as PSNR and SSIM on edited views against ground-truth renders for synthetic scenes, and include a table with these metrics along with a brief analysis of energy conservation where applicable. revision: yes
Referee: [Method] Method description (implied in abstract points 1-3): the assumption that 2D Gaussians optimized under single-bounce supervision yield accurate hit points, normals, and visibility for unbiased multi-bounce path tracing is not derived or stress-tested; in concave indoor geometry this risks incorrect shadowing and indirect illumination even if single-bounce visuals appear plausible.

Authors: The single-bounce optimization is intended to recover a transport-friendly geometric proxy via 2D Gaussians, where matching the single-bounce images implicitly constrains the hit points, normals, and visibility. We will revise the method section to include a brief derivation explaining this assumption based on the optimization objective. Additionally, we will add stress tests or failure case analysis for concave indoor geometries to demonstrate the robustness of the proxy for multi-bounce path tracing. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper introduces EAG-PT by combining existing radiance-field and path-tracing techniques with a new emissive/non-emissive separation step and single-bounce optimization. No equations or claims reduce to fitted parameters by construction, no self-citations serve as load-bearing uniqueness theorems, and no ansatz is smuggled via prior author work. The central proxy claim (2D Gaussians as transport-friendly geometry) is presented as an assumption validated by experiments rather than derived tautologically from inputs. The method is self-contained against external benchmarks like NeRF/3DGS and mesh-based inverse PT.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the assumption that 2D Gaussians approximate geometry well enough for light transport and that emission separation during reconstruction transfers to editing; no free parameters or invented entities are explicitly quantified in the abstract.

axioms (1)

domain assumption 2D Gaussians serve as a transport-friendly geometric proxy without requiring explicit mesh reconstruction.
Core of the first key idea in the abstract.

invented entities (1)

Emission-Aware Gaussians no independent evidence
purpose: To explicitly separate emissive and non-emissive components for editing support.
Introduced as the unified representation in the method.

pith-pipeline@v0.9.0 · 5569 in / 1308 out tokens · 27765 ms · 2026-05-16T09:28:14.294961+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

78 extracted references · 78 canonical work pages · 1 internal anchor
