A cryogenic phased array feed on the Murriyang telescope delivers high-efficiency 21-cm observations and uses 3D singular value decomposition to separate neutral hydrogen signals from continuum and RFI more effectively than 2D methods.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The cryoPAF achieves system temperatures and efficiencies that support faster, wider surveys of neutral hydrogen, and robust higher-order SVD applied to the full data cube separates astronomical HI from foreground continuum and RFI while preserving faint extended emission better than traditional two-dimensional SVD techniques applied layer by layer.
What carries the argument
Higher-order singular value decomposition performed on the three-dimensional spectral-line data cube, which decomposes the volume into orthogonal components to isolate low-rank astronomical signals from higher-rank noise and interference.
If this is right
- HI surveys with the cryoPAF can cover larger sky areas at higher sensitivity per unit time than previous multibeam receivers.
- The same 3D SVD pipeline can be applied to intensity-mapping experiments that target faint cosmological HI signals.
- Observations of the LMC already indicate that earlier multibeam maps may have missed an extended low-column-density component.
- The method reduces signal loss in data sets with high RFI occupancy or strong sky continuum structure.
Where Pith is reading between the lines
- The technique could be tested on other phased-array-feed instruments to check whether the low-rank assumption holds across different telescope designs and frequency bands.
- If the 3D decomposition preserves extended emission reliably, it may allow joint analysis of single-dish and interferometer data without separate foreground-cleaning steps.
- Extending the method to time-domain or polarization dimensions could further suppress variable RFI while retaining transient astronomical signals.
Load-bearing premise
The data cube must possess a low-rank structure that lets higher-order SVD isolate the HI signal from continuum and RFI without removing a substantial fraction of faint extended emission.
What would settle it
A side-by-side comparison of the same field mapped with the cryoPAF using 3D SVD versus independent high-sensitivity single-dish or interferometer data that shows whether the low-column-density HI component at 8 times 10 to the 18 per square centimeter is retained or suppressed.
Figures
read the original abstract

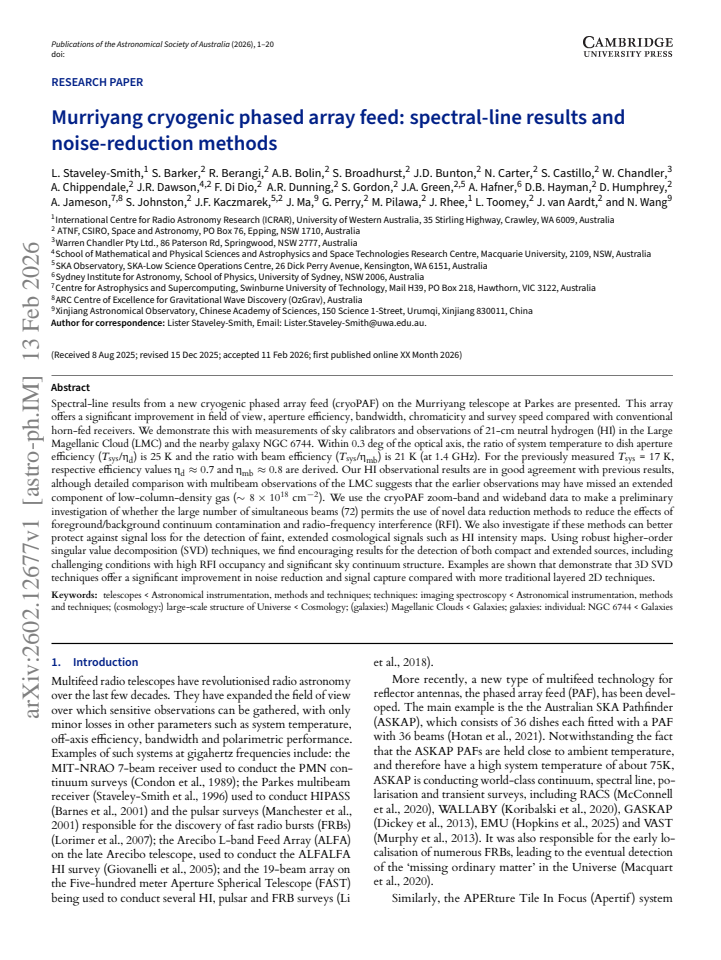

Spectral-line results from a new cryogenic phased array feed (cryoPAF) on the Murriyang telescope at Parkes are presented. This array offers a significant improvement in field of view, aperture efficiency, bandwidth, chromaticity and survey speed compared with conventional horn-fed receivers. We demonstrate this with measurements of sky calibrators and observations of 21-cm neutral hydrogen (HI) in the LMC and the nearby galaxy NGC 6744. Within 0.3 deg of the optical axis, the ratio of system temperature to dish aperture efficiency is 25 K and the ratio with beam efficiency is 21 K (at 1.4 GHz). For the previously measured $T_{sys} = 17$ K, respective efficiency values 0.7 and 0.8 are derived. Our HI observational results are in good agreement with previous results, although detailed comparison with multibeam observations of the LMC suggests that the earlier observations may have missed an extended component of low-column-density gas ($8\times 10^{18}$ cm$^{-2}$). We use the cryoPAF zoom-band and wideband data to make a preliminary investigation of whether the large number of simultaneous beams (72) permits the use of novel data reduction methods to reduce the effects of foreground/background continuum contamination and RFI. We also investigate if these methods can better protect against signal loss for the detection of faint, extended cosmological signals such as HI intensity maps. Using robust higher-order singular value decomposition (SVD) techniques, we find encouraging results for the detection of both compact and extended sources, including challenging conditions with high RFI occupancy and significant sky continuum structure. Examples are shown that demonstrate that 3D SVD techniques offer a significant improvement in noise reduction and signal capture compared with more traditional layered 2D techniques.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents spectral-line results from a new cryogenic phased array feed (cryoPAF) on the Murriyang telescope, including system performance metrics (Tsys/efficiency ratios of 25 K and 21 K at 1.4 GHz, with derived efficiencies of 0.7 and 0.8), HI observations of the LMC and NGC 6744 that agree with prior work while suggesting missed low-column-density gas, and a preliminary investigation of 3D higher-order SVD techniques for reducing continuum and RFI contamination, claiming significant improvements over layered 2D SVD in noise reduction and signal capture for both compact and extended sources.
Significance. If the central claims hold, the cryoPAF enables substantially higher survey speed and field of view for 21-cm observations, while the 3D SVD methods could provide a valuable tool for mitigating foregrounds without attenuating faint extended HI emission, with direct relevance to intensity mapping surveys.
major comments (2)
- [Abstract] Abstract and results discussion: The claim that 3D SVD offers significant improvement in noise reduction and signal capture over 2D methods rests on qualitative 'examples' without quantitative validation such as recovered integrated HI fluxes, spatial power spectra, or column-density histograms for the LMC and NGC 6744 cubes; this leaves open whether truncation attenuates low-column-density extended emission as noted in the skeptic analysis.
- [Performance metrics] Performance metrics section: The reported Tsys/efficiency ratios (25 K within 0.3 deg and 21 K) and derived efficiencies lack error bars, full data exclusion criteria, or details on the calibration and sky calibrator observations used to obtain them, undermining the quantitative comparison to prior Tsys=17 K measurements.
minor comments (1)
- [Methods] The manuscript should include explicit statements on the rank truncation thresholds chosen for the SVD decompositions and any tests for signal loss in simulated data cubes.
Simulated Author's Rebuttal
We thank the referee for their thorough review and positive evaluation of the significance of our work on the cryogenic phased array feed and 3D SVD methods. We address each major comment below and will revise the manuscript accordingly to strengthen the presentation.
read point-by-point responses
-
Referee: [Abstract] Abstract and results discussion: The claim that 3D SVD offers significant improvement in noise reduction and signal capture over 2D methods rests on qualitative 'examples' without quantitative validation such as recovered integrated HI fluxes, spatial power spectra, or column-density histograms for the LMC and NGC 6744 cubes; this leaves open whether truncation attenuates low-column-density extended emission as noted in the skeptic analysis.
Authors: We agree that the current demonstration relies primarily on qualitative examples, as noted in the preliminary nature of the investigation. In the revised manuscript we will add quantitative validations, including recovered integrated HI fluxes, spatial power spectra, and column-density histograms comparing the 2D and 3D SVD results for both the LMC and NGC 6744 cubes. These metrics will directly address potential attenuation of low-column-density extended emission and provide a more rigorous basis for the claimed improvements in noise reduction and signal capture. revision: yes
-
Referee: [Performance metrics] Performance metrics section: The reported Tsys/efficiency ratios (25 K within 0.3 deg and 21 K) and derived efficiencies lack error bars, full data exclusion criteria, or details on the calibration and sky calibrator observations used to obtain them, undermining the quantitative comparison to prior Tsys=17 K measurements.
Authors: We will expand the performance metrics section in the revised manuscript to include error bars on the Tsys/efficiency ratios, explicit data exclusion criteria, and additional details on the calibration procedures and sky calibrator observations. These changes will improve transparency and support a clearer quantitative comparison to the prior Tsys = 17 K measurements. revision: yes
Circularity Check
No significant circularity: empirical telescope data and SVD examples stand on direct measurements
full rationale
The paper reports direct measurements of cryoPAF performance (T_sys/efficiency ratios at 1.4 GHz) and HI spectral-line data from LMC and NGC 6744 observations. These are compared to independent prior observations, with the claim that earlier multibeam data may have missed low-column-density gas. The 3D SVD noise-reduction results are shown via examples on the acquired cubes, without any equations that define improvements via parameters fitted to the same data or that reduce the claimed signal capture to a self-referential low-rank decomposition. The low-rank assumption is stated as a premise for the method but is not used to force the outcome by construction; results are presented as empirical demonstrations. No self-citation chains or renamed known results appear in the load-bearing steps.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The observed data cube can be decomposed into low-rank signal, continuum, and noise components separable by higher-order SVD.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Using robust higher-order singular value decomposition (SVD) techniques, we find encouraging results... 3D SVD techniques offer a significant improvement in noise reduction and signal capture compared with more traditional layered 2D techniques.
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Examples are shown that demonstrate that 3D SVD techniques offer a significant improvement...
