Cold Neutron Imaging and Efficiency Measurements with a Boron-10 Coated Double-GEM Detector

WooJong Kim , Donghyun Kim , Minjae Kwon , Jason Sang Hun Lee , Hyupwoo Lee , Inkyu Park , Donghyun Song , Inseok Yoon

show 1 more author

Myeonghun Choi

Authors on Pith no claims yet

Pith reviewed 2026-05-15 20:33 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords neutron detectorboron-10GEMcold neutronsdetection efficiencyneutron imaginghelium-3 alternative

0 comments

The pith

A boron-10 coated double-GEM detector achieves 8.69 percent absolute efficiency for cold neutrons with 555 micrometer imaging resolution.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports development of a 10B-coated double-GEM neutron detector using a single B4C converter cathode and 512-channel APV25 strip readout over a 10 by 10 centimeter area. Tested at the HANARO beamline with a monochromatic 4.5 angstrom beam, the detector yielded an absolute efficiency of 8.69 percent with 0.20 percent statistical uncertainty relative to a 6Li-based Ce:LiCAF reference. Pulse-height data matched Geant4 simulations, and cadmium-mask imaging gave a Gaussian edge-spread width of 555 plus 102 micrometers. These measurements establish performance benchmarks for a helium-3 free cold-neutron beamline instrument.

Core claim

A 10B-coated double-GEM detector with single B4C converter and full-strip APV25 readout was exposed to a 4.5 angstrom cold neutron beam. Absolute detection efficiency reached 8.69 percent plus or minus 0.20 percent statistical uncertainty compared with a lithium reference detector. The pulse-height spectrum agreed qualitatively with Geant4 energy-deposition simulations, and cadmium-mask imaging produced a Gaussian-equivalent edge-spread width of 555 plus 102 micrometers.

What carries the argument

The double-GEM gas amplification structure paired with a thin boron-10 converter layer that captures neutrons and releases charged particles for readout.

If this is right

The detector supplies a practical 3He-free option for cold-neutron beam monitoring and profiling at research reactors.
The reported efficiency and resolution set quantitative benchmarks for single-converter GEM detectors in similar beamlines.
Agreement between measured pulse heights and Geant4 simulations supports use of the same modeling for design iterations.
The orthogonal-strip APV25 readout enables position-sensitive imaging suitable for neutron radiography or beam diagnostics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Larger active areas could extend the design to full-beam profiling at existing facilities.
Adjusting converter thickness or gas mixture might raise efficiency without degrading the observed spatial resolution.
The same architecture could be adapted for higher-flux environments by replacing the APV25 electronics with faster ASICs.

Load-bearing premise

The Ce:LiCAF reference detector provides an accurate absolute efficiency standard and the incident beam is purely monochromatic at 4.5 angstroms with negligible contamination or divergence effects.

What would settle it

An independent flux measurement using a fission chamber or activation foil that yields an efficiency value outside the reported 8.69 plus or minus 0.20 percent range would falsify the central efficiency claim.

Figures

Figures reproduced from arXiv: 2602.19468 by Donghyun Kim, Donghyun Song, Hyupwoo Lee, Inkyu Park, Inseok Yoon, Jason Sang Hun Lee, Minjae Kwon, Myeonghun Choi, WooJong Kim.

**Figure 1.** Figure 1: Photograph of the cathode foil coated with 1.5 µm of 10B4C. The distinct reflection of the photographer’s hand and camera on the surface serves as evidence of the mirror-like finish, confirming the high quality of the metallic coating and the absence of non-reflective impurities. pattern with a pitch of 140 µm. To verify that the detected signals originate from neutron capture reactions in the boron layer… view at source ↗

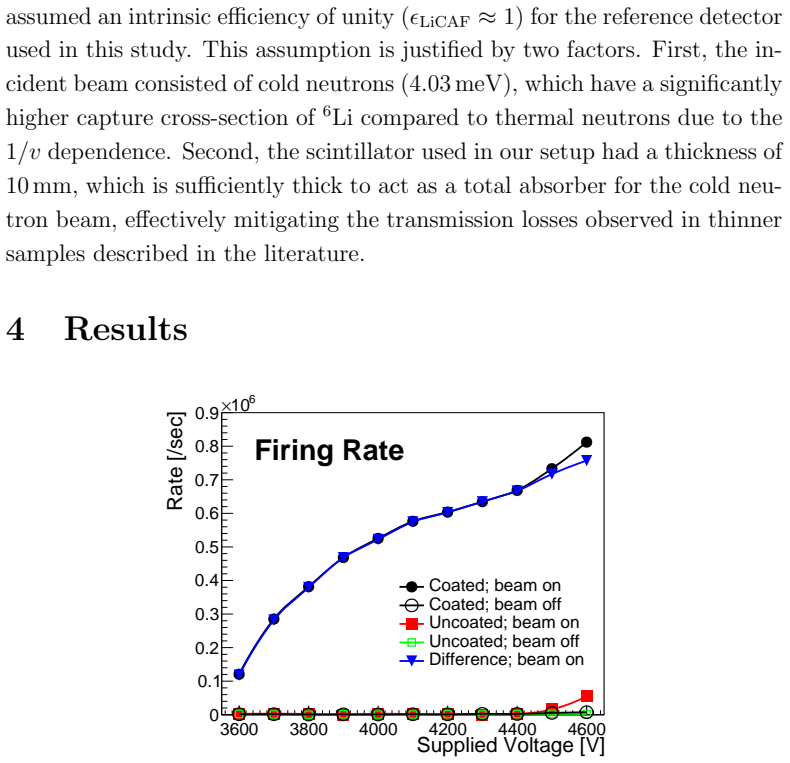

**Figure 2.** Figure 2: Measured event rates as a function of applied high voltage for both the boron-coated and uncoated detectors under beam-on and beamoff conditions. The curve labeled “Difference” represents the count rate of the coated detector minus that of the uncoated detector, illustrating the net neutron capture signal. The successful detection of neutrons was first confirmed by the event rate measurements [PITH_FULL_… view at source ↗

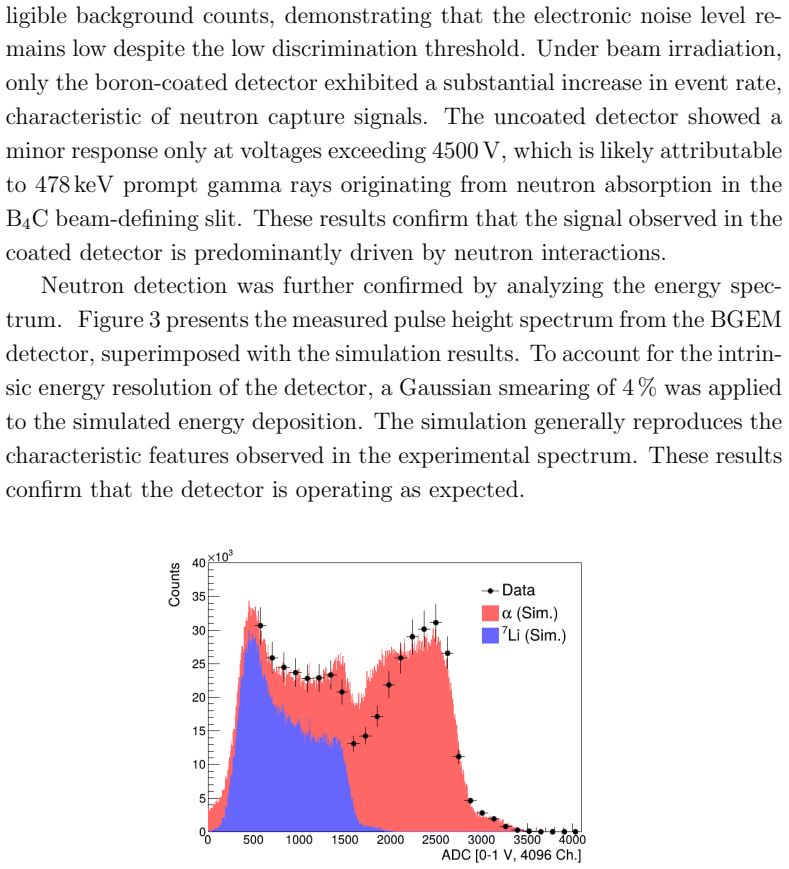

**Figure 3.** Figure 3: Pulse height spectrum measured with the BGEM detector. The simulation results corresponding to the energy deposition of 7Li ions and α particles are overlaid as stacked filled histograms. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

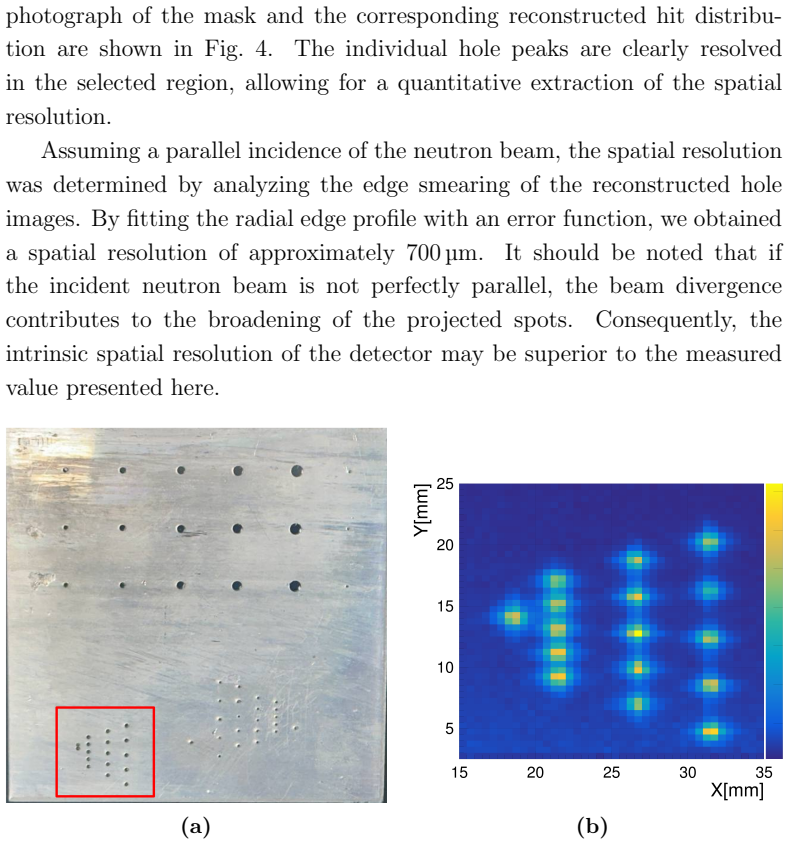

**Figure 4.** Figure 4: Cd-mask imaging used for the imaging and spatial-resolution measurement. (a) Photograph of the Cd hole mask with 1 mm diameter holes; the holes inside the red box were used for the spatial-resolution analysis. (b) Zoomed view of the reconstructed 2D hit-density map corresponding to the selected area. 10 [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

read the original abstract

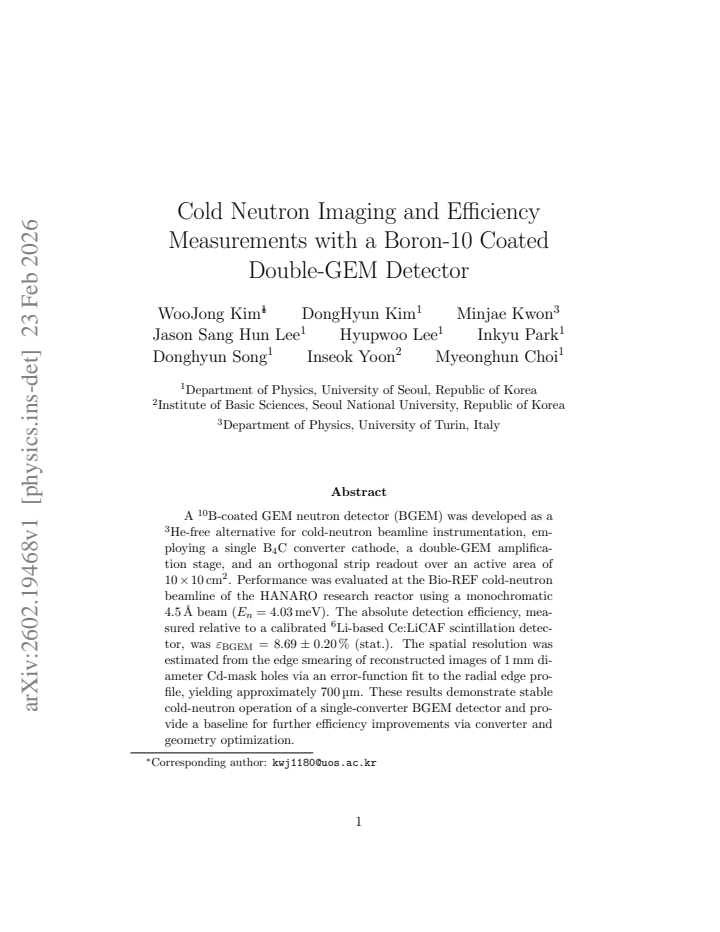

A ${}^{10}\mathrm{B}$-coated double-GEM neutron detector (BGEM) was developed as a ${}^{3}\mathrm{He}$-free cold-neutron beamline detector using a single $\mathrm{B}_{4}\mathrm{C}$ converter cathode and a 512-channel APV25 orthogonal-strip readout over an active area of $10 \times 10~\mathrm{cm}^{2}$. The detector was tested at the HANARO Bio-REF beamline with a monochromatic $4.5~\mathring{\mathrm{A}}$ beam ($E_{n}=4.03~\mathrm{meV}$). The absolute detection efficiency relative to a ${}^{6}\mathrm{Li}$-based Ce:LiCAF reference detector was $\varepsilon_{\mathrm{BGEM}}=(8.69 \pm 0.20)\%$ (stat.). The pulse-height spectrum was qualitatively consistent with Geant4 energy-deposition simulations, and Cd-mask imaging yielded a Gaussian-equivalent edge-spread width of $\sigma = 555 \oplus 102~\mu\mathrm{m}$. These results establish a cold-neutron beamline benchmark for a single-converter BGEM detector with full-strip APV25 readout.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This gives a useful experimental benchmark for a single-converter B4C double-GEM at 4 meV, but the headline efficiency number rests on an uncalibrated reference detector.

read the letter

The paper reports a new measured efficiency of 8.69% (stat) for their 10x10 cm2 boron-coated double-GEM with APV25 readout at the HANARO cold beam, plus an imaging edge-spread result around 0.55 mm. They also show the pulse-height spectrum lines up qualitatively with Geant4. That combination supplies concrete numbers for a 3He-free position-sensitive detector at cold energies, which is the main practical value here. The setup is straightforward and the imaging test with the Cd mask is a direct check on spatial performance. The work is honest experimental characterization with no over-claiming in the abstract. The soft spot is the absolute efficiency: it is given only as a ratio to the Ce:LiCAF reference, with no independent calibration described and only statistical error quoted. If the reference carries its own systematic or if beam contamination affects the two detectors differently, the 8.69% value moves by an unknown amount. The imaging result is less exposed to that issue. Background handling and beam divergence details are also thin in what is shown. This is for groups building or using neutron beamline detectors who need 3He-free options with strip readout. A reader working on GEM or converter technology would find the specific numbers and setup description worth looking at. It deserves peer review because the measurements are new and address a real supply constraint, even though the calibration question needs to be sorted out in revision.

Referee Report

2 major / 2 minor

Summary. The manuscript presents the development of a 10B-coated double-GEM detector (BGEM) with a single B4C converter cathode and 512-channel APV25 orthogonal-strip readout over a 10×10 cm² active area. Tested at the HANARO Bio-REF beamline with a monochromatic 4.5 Å (4.03 meV) cold neutron beam, the absolute detection efficiency relative to a 6Li-based Ce:LiCAF reference detector is reported as ε_BGEM=(8.69±0.20)% (statistical uncertainty only). The pulse-height spectrum is stated to be qualitatively consistent with Geant4 energy-deposition simulations, and Cd-mask imaging yields a Gaussian-equivalent edge-spread width of σ=555⊕102 μm. The work positions these results as a cold-neutron beamline benchmark for a single-converter BGEM detector with full-strip APV25 readout.

Significance. If the measurements hold after addressing calibration details, the paper supplies practical experimental benchmarks for 3He-free cold-neutron detectors in beamline environments. The efficiency value and imaging resolution metric offer concrete reference points for detector design in neutron imaging applications where helium-3 scarcity is a constraint.

major comments (2)

[Efficiency results section] Efficiency results section: The headline absolute efficiency ε_BGEM=(8.69±0.20)% is obtained exclusively as a ratio to the Ce:LiCAF reference detector. No independent absolute calibration of the reference (e.g., gold-foil activation or calibrated 3He monitor) is described, and only statistical uncertainty is quoted. This is load-bearing for the central efficiency claim because any unaccounted systematic in the reference efficiency at 4.5 Å or differential beam effects would shift the reported value by an unknown amount.
[Imaging results section] Imaging results section: The edge-spread width is reported as σ=555⊕102 μm without explanation of the ⊕ operator or the separate determination of the two components (e.g., whether they represent detector intrinsic resolution and mask contribution combined in quadrature). This affects the interpretability and reproducibility of the resolution benchmark.

minor comments (2)

[Abstract and results] Abstract and results: The statement that the pulse-height spectrum is 'qualitatively consistent' with Geant4 simulations does not specify which spectral features agree or differ, nor any quantitative metric such as a Kolmogorov-Smirnov statistic.
[Detector description] Detector description: Acronyms BGEM and APV25 are used without initial definition; ensure first-use expansion for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful review and constructive comments. We address each major comment below.

read point-by-point responses

Referee: [Efficiency results section] Efficiency results section: The headline absolute efficiency ε_BGEM=(8.69±0.20)% is obtained exclusively as a ratio to the Ce:LiCAF reference detector. No independent absolute calibration of the reference (e.g., gold-foil activation or calibrated 3He monitor) is described, and only statistical uncertainty is quoted. This is load-bearing for the central efficiency claim because any unaccounted systematic in the reference efficiency at 4.5 Å or differential beam effects would shift the reported value by an unknown amount.

Authors: We agree that the efficiency is reported solely as a ratio to the Ce:LiCAF reference detector and that the manuscript provides no description of an independent absolute calibration for the reference. The quoted uncertainty is statistical only. We will revise the efficiency results section to explicitly note these points, clarify that the result is relative, and discuss the implications of possible systematics in the reference efficiency. revision: yes
Referee: [Imaging results section] Imaging results section: The edge-spread width is reported as σ=555⊕102 μm without explanation of the ⊕ operator or the separate determination of the two components (e.g., whether they represent detector intrinsic resolution and mask contribution combined in quadrature). This affects the interpretability and reproducibility of the resolution benchmark.

Authors: We agree that the notation and component breakdown require clarification. The ⊕ symbol denotes addition in quadrature, with 555 μm representing the detector contribution and 102 μm the mask contribution. We will revise the imaging results section to define the operator explicitly and describe how the two components were obtained from the Cd-mask measurements. revision: yes

Circularity Check

0 steps flagged

No circularity: direct experimental measurements with no derivations or fitted predictions

full rationale

The paper reports absolute detection efficiency as a direct ratio measurement to a reference Ce:LiCAF detector and imaging resolution from Cd-mask edge-spread analysis. No equations, models, or predictions are claimed that reduce by construction to fitted inputs or self-citations. The central results are experimental benchmarks without load-bearing self-definitional steps, ansatzes smuggled via citation, or uniqueness theorems imported from prior author work. This matches the default case of a self-contained experimental report.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The efficiency claim rests on the accuracy of the external reference detector and the stated beam properties; no free parameters or new entities are introduced.

axioms (2)

domain assumption The Ce:LiCAF reference detector has a known and stable absolute efficiency
Directly used to normalize the BGEM count rate to absolute efficiency
domain assumption The HANARO beam is monochromatic at 4.5 Å with negligible contamination
Stated as input for energy-specific efficiency interpretation
