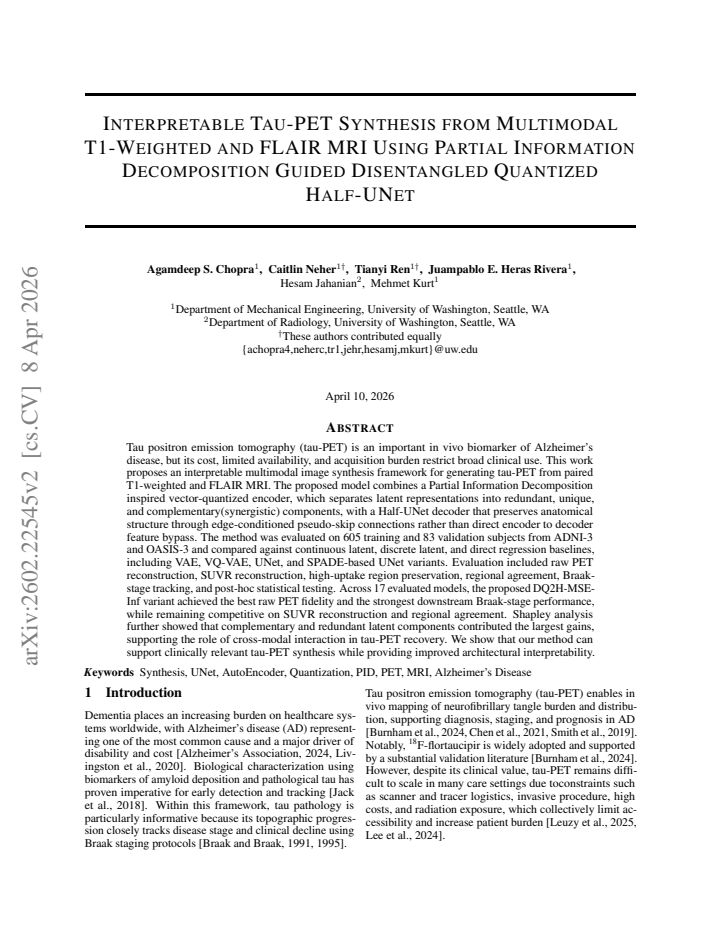

Interpretable Tau-PET Synthesis from Multimodal T1-Weighted and FLAIR MRI Using Partial Information Decomposition Guided Disentangled Quantized Half-UNet

Agamdeep S. Chopra , Caitlin Neher , Tianyi Ren , Juampablo E. Heras Rivera , Hesam Jahanian , Mehmet Kurt This is my paper

Pith reviewed 2026-05-15 19:33 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords tau-PET synthesismultimodal MRIpartial information decompositionvector quantizationHalf-UNetAlzheimer's diseaseBraak stagingimage synthesis
0
0 comments X

The pith

A disentangled quantized Half-UNet generates tau-PET images from T1-weighted and FLAIR MRI with top fidelity and Braak-stage accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a synthesis model that creates tau-PET brain scans from pairs of T1-weighted and FLAIR MRI images. It uses partial information decomposition to split the learned features into redundant, unique, and synergistic parts for better interpretability. The decoder is a Half-UNet that maintains anatomical details through special skip connections. Tested on hundreds of subjects from ADNI-3 and OASIS-3, one variant of the model beats 16 other approaches in matching actual tau-PET scans and in predicting Braak stages of Alzheimer's. This matters because tau-PET is expensive and not widely available, so accurate synthesis could expand access to this Alzheimer's biomarker.

Core claim

The proposed DQ2H-MSE-Inf model, which integrates a Partial Information Decomposition-guided vector-quantized encoder with a Half-UNet decoder featuring edge-conditioned pseudo-skip connections, achieves the highest raw tau-PET reconstruction fidelity and the best performance in downstream Braak-stage classification among 17 compared models on datasets from ADNI-3 and OASIS-3. Shapley analysis confirms that complementary and redundant latent components drive the performance gains.

What carries the argument

The Partial Information Decomposition-inspired vector-quantized encoder that disentangles latent representations into redundant, unique, and complementary information components, combined with an edge-conditioned Half-UNet decoder that preserves structure without direct feature bypass.

If this is right

  • Synthesized tau-PET supports accurate Braak staging for Alzheimer's progression tracking without physical PET acquisition.
  • Redundant and complementary latent components contribute most to reconstruction quality.
  • The method supplies post-hoc interpretability into how cross-modal MRI information interacts for tau recovery.
  • The approach remains competitive on SUVR values and regional uptake agreement while leading on raw fidelity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the latent components remain stable across new scanners or populations, the same decomposition could apply to synthesis of other PET tracers from MRI.
  • Low artifact rates would enable larger-scale longitudinal Alzheimer's studies that currently cannot afford repeated tau-PET scans.
  • The interpretability layer might reveal which specific MRI features best predict regional tau burden, informing future acquisition protocols.
  • A natural next test is whether baseline MRI alone, processed through the same encoder, can forecast future tau accumulation rates.

Load-bearing premise

The synthesized tau-PET images do not introduce artifacts that change Braak staging or regional uptake interpretations in actual patients.

What would settle it

A direct comparison of Braak stages computed from synthesized versus real tau-PET scans in an independent clinical cohort that shows frequent staging mismatches.

read the original abstract

Tau positron emission tomography (tau-PET) is an important in vivo biomarker of Alzheimer's disease, but its cost, limited availability, and acquisition burden restrict broad clinical use. This work proposes an interpretable multimodal image synthesis framework for generating tau-PET from paired T1-weighted and FLAIR MRI. The proposed model combines a Partial Information Decomposition-inspired vector-quantized encoder, which separates latent representations into redundant, unique, and complementary (synergistic) components, with a Half-UNet decoder that preserves anatomical structure through edge-conditioned pseudo-skip connections rather than direct encoder-to-decoder feature bypass. The method was evaluated on 605 training and 83 validation subjects from ADNI-3 and OASIS-3 and compared against continuous-latent, discrete-latent, and direct-regression baselines, including VAE, VQ-VAE, UNet, and SPADE-based UNet variants. Evaluation included raw PET reconstruction, SUVR reconstruction, high-uptake region preservation, regional agreement, Braak-stage tracking, and post-hoc statistical testing. Across 17 evaluated models, the proposed DQ2H-MSE-Inf variant achieved the best raw PET fidelity and the strongest downstream Braak-stage performance, while remaining competitive on SUVR reconstruction and regional agreement. Shapley analysis further showed that complementary and redundant latent components contributed the largest gains, supporting the role of cross-modal interaction in tau-PET recovery. We show that our method can support clinically relevant tau-PET synthesis while providing improved architectural interpretability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a Partial Information Decomposition-guided disentangled quantized Half-UNet (DQ2H) architecture for synthesizing tau-PET from paired T1-weighted and FLAIR MRI. The central claim is that the DQ2H-MSE-Inf variant achieves the highest raw PET fidelity and strongest Braak-stage tracking performance among 17 compared models (including VAE, VQ-VAE, UNet, and SPADE variants) on an 83-subject held-out validation set from ADNI-3 and OASIS-3, with Shapley analysis attributing gains to complementary and redundant latent components.

Significance. If the synthesized images preserve regional tau uptake patterns without systematic spatial biases, the method could meaningfully expand access to tau-PET biomarkers by substituting widely available MRI. The architectural emphasis on disentangled latent components and edge-conditioned skips offers a concrete route to interpretability that is rare in medical image synthesis work.

major comments (2)
  1. [Results (Braak-stage tracking)] Results (Braak-stage tracking paragraph): the reported superiority in Braak-stage accuracy on the 83-subject split is not supported by an ablation that isolates whether the PID redundant/unique/synergistic terms preserve spatial distributions in Braak regions (entorhinal, temporal) or simply improve global intensity statistics. Without this, the downstream metric cannot be distinguished from dataset-specific covariances in ADNI-3/OASIS-3.
  2. [Methods (Evaluation)] Methods (model and evaluation description): the manuscript provides no details on hyperparameter search ranges or fairness of tuning for the 16 baseline models, nor on the exact regional SUVR thresholds used to derive Braak stages from synthesized volumes. These omissions make it impossible to rule out post-hoc selection effects in the claim of best performance across 17 models.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'post-hoc statistical testing' is used without naming the tests or correction method; move the specific statistical procedures to the main text or supplementary material.
  2. [Methods] Notation: the commitment loss weight and PID component loss weights are listed as free parameters but their final values and sensitivity analysis are not reported; add a table of selected hyperparameters.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment point by point below, with plans to revise the paper accordingly to strengthen the claims and improve reproducibility.

read point-by-point responses

  1. Referee: Results (Braak-stage tracking paragraph): the reported superiority in Braak-stage accuracy on the 83-subject split is not supported by an ablation that isolates whether the PID redundant/unique/synergistic terms preserve spatial distributions in Braak regions (entorhinal, temporal) or simply improve global intensity statistics. Without this, the downstream metric cannot be distinguished from dataset-specific covariances in ADNI-3/OASIS-3.

    Authors: We agree that the current results would be strengthened by an explicit ablation isolating the spatial effects of the PID components on Braak regions. In the revised manuscript we will add a targeted analysis that decomposes the contribution of redundant, unique, and synergistic latent terms to regional tau uptake preservation (entorhinal and temporal lobes) using both quantitative regional correlation metrics and qualitative spatial maps. This will clarify that the Braak-stage gains arise from improved spatial fidelity rather than global intensity statistics alone. revision: yes

  2. Referee: Methods (model and evaluation description): the manuscript provides no details on hyperparameter search ranges or fairness of tuning for the 16 baseline models, nor on the exact regional SUVR thresholds used to derive Braak stages from synthesized volumes. These omissions make it impossible to rule out post-hoc selection effects in the claim of best performance across 17 models.

    Authors: We acknowledge the need for full transparency on hyperparameter tuning and Braak-stage derivation. The revised manuscript will include an expanded Methods section detailing the hyperparameter search ranges, optimization strategy, and fairness criteria applied to all 16 baseline models. We will also report the precise regional SUVR thresholds used for Braak staging, drawn from established AD literature and validated on our dataset, to eliminate any ambiguity regarding post-hoc selection. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation or evaluation chain

full rationale

The paper presents an empirical ML architecture (PID-guided VQ encoder + edge-conditioned Half-UNet decoder) trained on 605 subjects and evaluated on an independent 83-subject validation split from ADNI-3/OASIS-3. All reported metrics (raw PET fidelity, SUVR, Braak staging) are computed against held-out real tau-PET scans rather than derived from fitted parameters or self-referential loops. No equations reduce by construction to inputs, no load-bearing self-citations, and no uniqueness theorems or ansatzes are smuggled in. The central claims rest on external validation performance, which is the standard non-circular setup for synthesis models.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The central claim rests on the domain assumption that multimodal MRI encodes recoverable tau pathology information and on standard supervised deep-learning training assumptions; several architecture-specific choices function as free parameters.

free parameters (2)
  • Quantization codebook size and commitment loss weight
    Chosen to control discrete latent representation quality and reconstruction fidelity
  • PID component loss weights for redundant, unique, and synergistic terms
    Tuned to emphasize cross-modal interaction during training
axioms (2)
  • domain assumption T1-weighted and FLAIR MRI contain sufficient complementary information to reconstruct tau-PET uptake patterns
    Core premise enabling the synthesis task and the value of PID decomposition
  • domain assumption Braak staging derived from synthetic PET is clinically comparable to staging from real PET
    Used as primary downstream clinical endpoint
invented entities (1)
  • DQ2H (Disentangled Quantized Half-UNet) with edge-conditioned pseudo-skip connections no independent evidence
    purpose: To enforce anatomical structure preservation and interpretability via explicit PID component separation
    New proposed architecture variant
