arxiv: 2603.10798 · v1 · submitted 2026-03-11 · ❄️ cond-mat.mtrl-sci · cond-mat.mes-hall

Engineering Magnetic Anisotropy in Permalloy Films via Atomic Force Nanolithography

Abhishek Naik , Cyril Delforge , Nicolas Lejeune , Daniel Stoffels , Joris Van de Vondel , Kristiaan Temst , Alejandro V. Silhanek , Emile Fourneau This is my paper

Pith reviewed 2026-05-15 13:16 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords magnetic anisotropypermalloyatomic force nanolithographynanoscale groovesuniaxial anisotropydomain wallsmagnonics
0
0 comments X p. Extension

The pith

Nanoscale groove arrays engraved in permalloy films create tunable in-plane uniaxial magnetic anisotropy aligned with the grooves.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Atomic force nanolithography patterns nanoscale grooves into permalloy films to produce a strong in-plane uniaxial anisotropy whose easy axis follows the groove direction. The strength of this anisotropy grows as the groove period shrinks and the engraving depth increases, providing continuous control over magnetic hardness in one fabrication step. The same grooves also steer magnetic domain walls along chosen paths, as shown by chessboard-like domain patterns. Because the technique works on many ferromagnetic materials and arbitrary corrugation shapes, it supplies a direct way to build tailored magnetic elements such as magnonic waveguides and anisotropic magnetoresistance sensors.

Core claim

Patterning nanoscale groove arrays into permalloy (Ni80Fe20) films by atomic force nanolithography induces a robust in-plane uniaxial anisotropy with the easy axis parallel to the grooves; the anisotropy field rises with smaller groove period and greater engraving depth, enabling single-step tuning of magnetic hardness and directed domain-wall trajectories in artificial microstructures.

What carries the argument

Nanoscale groove arrays created by atomic force nanolithography, which generate geometric shape anisotropy that orients magnetization along the groove direction and tunes its strength via period and depth.

If this is right

  • Anisotropy field magnitude scales continuously with groove period and depth within a single film.
  • Domain configurations and domain-wall paths can be predefined by the engraved microstructure geometry.
  • The method extends to other soft ferromagnets and arbitrary corrugation shapes for device design.
  • Magnonic elements and anisotropic magnetoresistance sensors gain direct control over propagation and sensing axes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Combining this patterning with standard lithography could produce hybrid circuits where magnetic and electronic functions are defined together.
  • The same groove geometry might be used to create reconfigurable anisotropy if the film is later subjected to strain or temperature cycling.
  • Quantitative micromagnetic modeling of the exact groove cross-section would allow prediction of anisotropy values for new materials without new experiments.

Load-bearing premise

The anisotropy is produced primarily by the geometric shape of the grooves rather than by mechanical stress, surface oxidation, or local thickness variations from the engraving process.

What would settle it

Fabricating identical groove geometries by a non-contact method that avoids mechanical stress and measuring whether the uniaxial anisotropy field remains the same or disappears.

Figures

Figures reproduced from arXiv: 2603.10798 by Abhishek Naik, Alejandro V. Silhanek, Cyril Delforge, Daniel Stoffels, Emile Fourneau, Joris Van de Vondel, Kristiaan Temst, Nicolas Lejeune.

Figure 1
Figure 1. Figure 1: FIG. 1: (a) Illustration of the surface artificial grooves engraving (SAGE) process, highlighting the relevant geometrical param [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: (a,b) Variation of the coercive field [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Angular dependence of (a) [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: (a) Schematic illustration of the SAGE pattern de [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: a) False-color scanning electron microscopy image of the device, comprising a ferromagnetic waveguide overlaid with [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

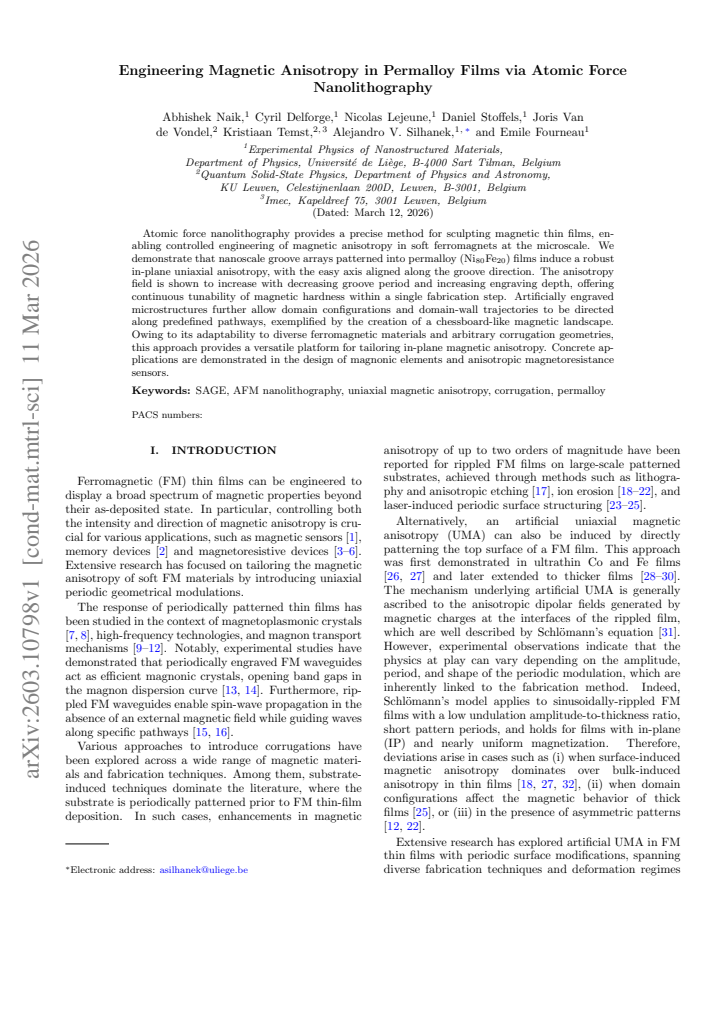

read the original abstract

Atomic force nanolithography provides a precise method for sculpting magnetic thin films, enabling controlled engineering of magnetic anisotropy in soft ferromagnets at the microscale. We demonstrate that nanoscale groove arrays patterned into permalloy (Ni80Fe20) films induce a robust in-plane uniaxial anisotropy, with the easy axis aligned along the groove direction. The anisotropy field is shown to increase with decreasing groove period and increasing engraving depth, offering continuous tunability of magnetic hardness within a single fabrication step. Artificially engraved microstructures further allow domain configurations and domain-wall trajectories to be directed along predefined pathways, exemplified by the creation of a chessboard-like magnetic landscape. Owing to its adaptability to diverse ferromagnetic materials and arbitrary corrugation geometries, this approach provides a versatile platform for tailoring in-plane magnetic anisotropy. Concrete applications are demonstrated in the design of magnonic elements and anisotropic magnetoresistance sensors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The manuscript demonstrates that atomic force nanolithography can pattern nanoscale groove arrays into permalloy (Ni80Fe20) films to induce a robust in-plane uniaxial magnetic anisotropy aligned with the groove direction. The anisotropy field increases with decreasing groove period and increasing engraving depth, enabling continuous tunability. The method is applied to direct domain configurations, including chessboard-like magnetic landscapes, and is positioned for use in magnonic elements and anisotropic magnetoresistance sensors.

Significance. If the experimental trends hold, this provides a single-step, post-deposition technique for engineering tunable in-plane anisotropy in soft ferromagnets using arbitrary corrugation geometries. This could simplify fabrication of magnonic waveguides and AMR sensors by replacing multilayer or field-annealing approaches, with the reported scaling behavior offering practical design rules.

major comments (1)
  1. §4 (Results on anisotropy scaling): The attribution of the observed uniaxial anisotropy primarily to groove geometry (shape anisotropy) requires explicit evidence ruling out secondary contributions from engraving-induced mechanical stress, local thickness variations, or surface oxidation, as these effects could produce similar trends with period and depth; without such controls or micromagnetic comparisons, the central mechanism claim remains under-supported.
minor comments (3)
  1. Abstract: The statement that 'concrete applications are demonstrated' should be expanded with one specific quantitative example (e.g., a measured change in sensor sensitivity or spin-wave frequency shift) to better convey impact.
  2. Methods section: Provide the AFM tip radius, applied force setpoint, and scan speed used for engraving, as these parameters directly determine groove depth reproducibility and are essential for replication.
  3. Figure captions (domain images): Include the applied field direction relative to the grooves and the measurement technique (e.g., MOKE or MFM) for the chessboard landscape to clarify how domain trajectories were directed.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment and the constructive comment on the anisotropy mechanism. We address the point below and have revised the manuscript to strengthen the supporting evidence.

read point-by-point responses

  1. Referee: §4 (Results on anisotropy scaling): The attribution of the observed uniaxial anisotropy primarily to groove geometry (shape anisotropy) requires explicit evidence ruling out secondary contributions from engraving-induced mechanical stress, local thickness variations, or surface oxidation, as these effects could produce similar trends with period and depth; without such controls or micromagnetic comparisons, the central mechanism claim remains under-supported.

    Authors: We agree that explicit controls and comparisons are needed to support the primary attribution to shape anisotropy. In the revised manuscript we have added micromagnetic simulations that model only the measured groove geometry (period and depth) with no stress or oxidation terms; these reproduce both the magnitude and the scaling of the experimental anisotropy fields. We also include new AFM data confirming that local thickness variations are confined to the intended grooves and new XPS spectra showing no detectable post-engraving surface oxidation. Uniformly etched control films (no grooves) exhibit no measurable anisotropy, which helps exclude uniform stress or oxidation contributions. While we cannot perform dedicated in-situ stress measurements within the present study, the observed easy-axis direction (parallel to the grooves) and the quantitative match to geometry-only simulations are inconsistent with the perpendicular or isotropic trends expected from typical stress or oxidation mechanisms. Section 4 has been expanded with these results and a brief discussion of the remaining limitations. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental demonstration with no derivations

full rationale

This is an experimental paper demonstrating that AFM-patterned groove arrays in permalloy films produce tunable in-plane uniaxial anisotropy aligned with the grooves. The abstract and summary describe direct fabrication, measurement of anisotropy field scaling with period and depth, and domain control, with no equations, first-principles derivations, or predictions that reduce to fitted inputs by construction. No self-citation chains, ansatzes, or uniqueness theorems are invoked as load-bearing steps. The central claim is supported by empirical trends that remain falsifiable and independent of any internal redefinition or renaming of results. This matches the default expectation for non-circular experimental work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard shape-anisotropy principles in thin-film magnetism and the assumption that the engraving process does not introduce confounding magnetic changes.

axioms (1)
  • domain assumption Shape and surface morphology of a magnetic thin film can induce uniaxial anisotropy
    Standard textbook result in micromagnetics invoked to interpret the groove effect.
