arxiv: 2603.12436 · v2 · submitted 2026-03-12 · 🪐 quant-ph · cond-mat.mes-hall· physics.optics

Doppler-induced tunable and shape-preserving frequency conversion of microwave wave packets

Felix Ahrens , Enrico Bogoni , Renato Mezzena , Andrea Vinante , Nicol\`o Crescini , Alessandro Irace , Andrea Giachero , Gianluca Rastelli
show 2 more authors
Iacopo Carusotto Federica Mantegazzini
This is my paper

Pith reviewed 2026-05-15 11:32 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mes-hallphysics.optics
keywords microwave frequency conversionDoppler effectsuperconducting transmission linetravelling waveshape preservationquantum control
0
0 comments X

The pith

A propagating front in a superconducting transmission line induces tunable Doppler shifts in microwave wave packets while preserving their temporal shape.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a method for converting the frequency of microwave signals by creating a moving boundary that induces a Doppler shift across the wave packet. This approach uses a high-kinetic-inductance superconducting transmission line in travelling-wave geometry to achieve shifts of up to 3.7 percent at 500 MHz and 4 GHz. The key advantage is that the wave packet's temporal shape remains unchanged, unlike conventional frequency-mixing techniques that generate unwanted products. The shift is controlled by a quasi-dc current and can be extended indefinitely through cascading or larger velocity changes. This provides a tool for precise control in superconducting quantum processors and sensor readouts.

Core claim

We introduce a new approach to microwave frequency conversion that harnesses a dynamic Doppler effect induced by a propagating front that separates regions of different phase velocities. Employing a high-kinetic-inductance superconducting transmission line in a travelling-wave geometry, we were able to implement frequency shifts of microwave wave packets at 500 MHz and 4 GHz of up to 3.7 percent while fully preserving their temporal shape.

What carries the argument

The dynamic Doppler effect induced by a controllable propagating front that separates regions of different phase velocities within the high-kinetic-inductance superconducting transmission line.

If this is right

  • Frequency conversion is continuously tunable by adjusting the quasi-dc current amplitude.
  • No spurious mixing products appear in the output spectrum.
  • Arbitrary patterns can be imprinted on the instantaneous frequency profile of long wave packets.
  • Cascading multiple conversions or engineering larger phase-velocity changes allows arbitrarily large total shifts.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The technique could support real-time frequency modulation for dynamic control of superconducting qubit interactions.
  • Integration with sensor arrays might enable clean frequency multiplexing without crosstalk from mixing artifacts.
  • Similar propagating-front mechanisms could be explored in other low-loss waveguiding systems for analogous conversions.

Load-bearing premise

A controllable propagating front can be created and maintained in the transmission line such that the Doppler shift occurs uniformly across the wave packet without introducing dispersion, loss, or reflections that distort the shape.

What would settle it

Detection of temporal shape distortion or additional spurious frequency components in the output spectrum after the frequency shift would falsify the preservation claim.

Figures

Figures reproduced from arXiv: 2603.12436 by Alessandro Irace, Andrea Giachero, Andrea Vinante, Enrico Bogoni, Federica Mantegazzini, Felix Ahrens, Gianluca Rastelli, Iacopo Carusotto, Nicol\`o Crescini, Renato Mezzena.

Figure 1

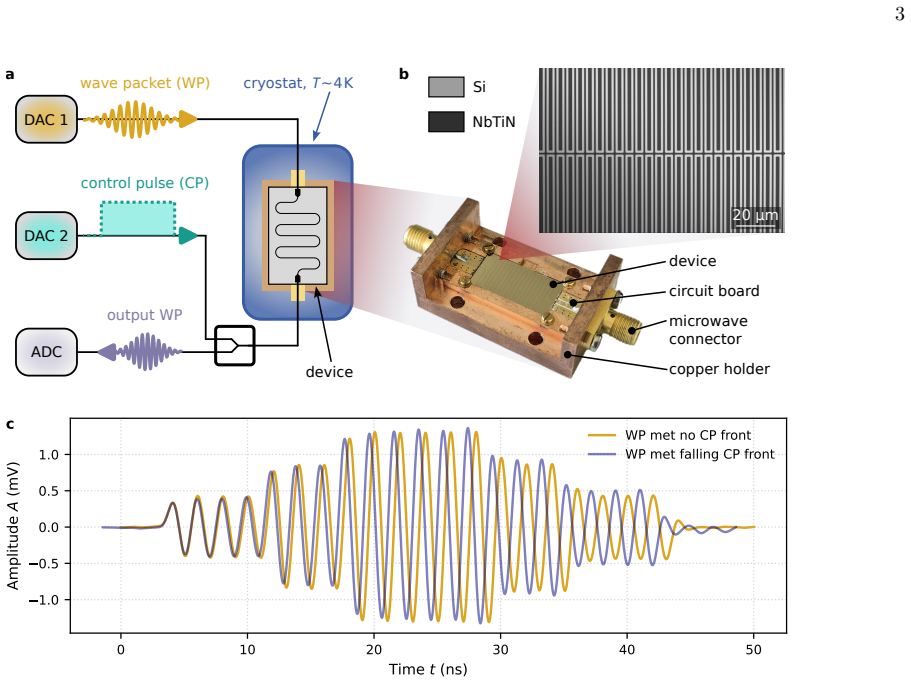

Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
read the original abstract

In superconducting electronics, the ability to control the frequency of microwave wave packets is crucial for several applications, such as the operation of superconducting quantum processors and the readout of superconducting sensors. We introduce a new approach to microwave frequency conversion that harnesses a dynamic Doppler effect induced by a propagating front that separates regions of different phase velocities. Employing a high-kinetic-inductance superconducting transmission line in a travelling-wave geometry, we were able to implement frequency shifts of microwave wave packets at 500$\,$MHz and 4$\,$GHz of up to 3.7$\,$% while fully preserving their temporal shape. In contrast to conventional methods based on frequency-mixing, our Doppler-induced frequency-conversion method avoids spurious mixing products, is continuously tunable by a quasi-dc current amplitude, and allows to imprint arbitrary patterns on the instantaneous frequency profile of temporally long wave packets. By engineering transmission lines that allow for larger phase-velocity changes and/or by cascading multiple Doppler-induced frequency conversions, an unlimited amount of frequency shifting is in principle attainable. These features demonstrate the potential of our frequency-conversion technique as a promising tool for advanced control of microwave wave packets for different quantum applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a Doppler-induced frequency conversion method for microwave wave packets, realized via a propagating front that separates regions of differing phase velocity in a high-kinetic-inductance superconducting transmission line operated in travelling-wave geometry. The central experimental claim is tunable shifts of up to 3.7% for packets centered at 500 MHz and 4 GHz, achieved by quasi-dc current control while fully preserving temporal shape, without generating spurious mixing products, and with the possibility of imprinting arbitrary instantaneous-frequency patterns or cascading for larger shifts.

Significance. If the shape-preservation claim holds under the reported conditions, the result would provide a useful addition to the toolkit for microwave control in superconducting quantum processors and sensors. The absence of mixing spurs, continuous tunability via current amplitude, and the in-principle scalability via cascading or larger velocity contrast are clear advantages over conventional mixers. The experimental demonstration of the effect at two widely separated carrier frequencies strengthens the case for practical utility.

major comments (2)
  1. [Abstract] Abstract: the central claim that the temporal shape is 'fully preserving' for shifts up to 3.7% rests on the propagating front acting as an ideal step discontinuity. The manuscript must quantify the front rise time (or spatial width) relative to the inverse bandwidth of the 500 MHz and 4 GHz packets and demonstrate that any resulting position-dependent Doppler shift or reflection remains below the noise floor of the shape metric; without this, the uniformity assumption is unverified and load-bearing for the reported fidelity.
  2. [Experimental results] Experimental results section: the reported percentage shifts lack accompanying error bars, a defined shape-preservation metric (e.g., normalized overlap integral or RMS envelope deviation), and raw time-domain traces before/after conversion. These omissions prevent independent assessment of whether small chirp or amplitude distortions are present at the claimed level.
minor comments (2)
  1. The abstract states that arbitrary patterns can be imprinted on the instantaneous frequency profile; a supplemental figure showing an example non-constant frequency ramp would clarify this capability.
  2. [Discussion] A brief comparison, even qualitative, to the spurious-product levels of standard Josephson mixers would help readers gauge the practical advantage.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments, which help clarify the presentation of our results. We address each major comment below and will revise the manuscript accordingly to strengthen the claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that the temporal shape is 'fully preserving' for shifts up to 3.7% rests on the propagating front acting as an ideal step discontinuity. The manuscript must quantify the front rise time (or spatial width) relative to the inverse bandwidth of the 500 MHz and 4 GHz packets and demonstrate that any resulting position-dependent Doppler shift or reflection remains below the noise floor of the shape metric; without this, the uniformity assumption is unverified and load-bearing for the reported fidelity.

    Authors: We agree that explicit quantification of the front rise time relative to packet bandwidth is required to rigorously support the ideal-step approximation and shape preservation. In the revised manuscript we will add measured rise-time data for the bias-current pulses together with a comparison to the inverse bandwidths of both the 500 MHz and 4 GHz packets. Theoretical modeling and experimental bounds will be included to show that any residual position-dependent Doppler variation or reflection lies below the noise floor of our shape metric. revision: yes

  2. Referee: [Experimental results] Experimental results section: the reported percentage shifts lack accompanying error bars, a defined shape-preservation metric (e.g., normalized overlap integral or RMS envelope deviation), and raw time-domain traces before/after conversion. These omissions prevent independent assessment of whether small chirp or amplitude distortions are present at the claimed level.

    Authors: We acknowledge that the current presentation omits error bars, a quantitative shape metric, and raw traces. In the revision we will define a shape-preservation metric (normalized overlap integral between input and output envelopes) and report its value with uncertainty for each data set. Statistical error bars will be added to all quoted frequency shifts, and representative raw time-domain traces (before and after conversion) for both carrier frequencies will be included in the main text or supplementary material. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration of Doppler shift with no derivation reducing to inputs

full rationale

The manuscript reports measured frequency shifts (up to 3.7%) and shape preservation in a travelling-wave superconducting line driven by a quasi-dc current front. All central claims rest on direct experimental observation rather than any mathematical derivation, fitted parameter renamed as prediction, or self-citation chain. No equations are presented that define the observed shift in terms of itself or that import uniqueness from prior author work. The Doppler mechanism is invoked as standard wave physics applied to the engineered velocity discontinuity; the reported outcomes are therefore independent of any internal fitting loop.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract does not explicitly list free parameters or axioms; the existence and controllability of the propagating front is treated as an engineering achievement rather than a derived quantity.
