Scalable Inspection Planning via Flow-based Mixed Integer Linear Programming
Pith reviewed 2026-05-15 10:12 UTC · model grok-4.3
The pith
Reformulating graph inspection planning as network flow yields MILP models that scale to 15,000 vertices.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors reformulate the POI-coverage and path-connectivity constraints of the graph inspection planning problem as a network flow inside a mixed-integer linear program and develop a Branch-and-Cut solver that exploits the combinatorial structure of flows, producing substantially tighter lower bounds and non-trivial solutions on instances with up to 15,000 vertices and thousands of points of interest.
What carries the argument
Network-flow reformulation of the coverage and connectivity constraints within the mixed-integer linear program for graph inspection planning.
If this is right
- The flow-based MILP produces substantially tighter lower bounds than existing formulations.
- Optimality gaps shrink by 30-50 percent on large instances.
- Non-trivial solutions are obtained for graphs with up to 15,000 vertices and thousands of POIs.
- Prior state-of-the-art methods typically exhaust memory or return no meaningful optimality guarantees on the same scale.
Where Pith is reading between the lines
- The same flow encoding could be reused for other coverage-constrained path problems such as surveillance or search-and-rescue.
- Tighter bounds from the discrete model could be lifted back to the continuous space to guide sampling refinement.
- Online replanning becomes feasible once the solver handles thousands of vertices in seconds rather than minutes.
- Integration with adaptive sampling that adds vertices only near uncovered POIs might further reduce memory use.
Load-bearing premise
The sampling-based discretization that turns the continuous inspection task into a graph problem is assumed to preserve coverage and connectivity well enough for the flow model to remain valid in the original space.
What would settle it
A continuous-space test in which a solution returned by the discrete flow model leaves some point of interest uncovered due to sampling gaps would show the discretization step fails to preserve the required properties.
Figures

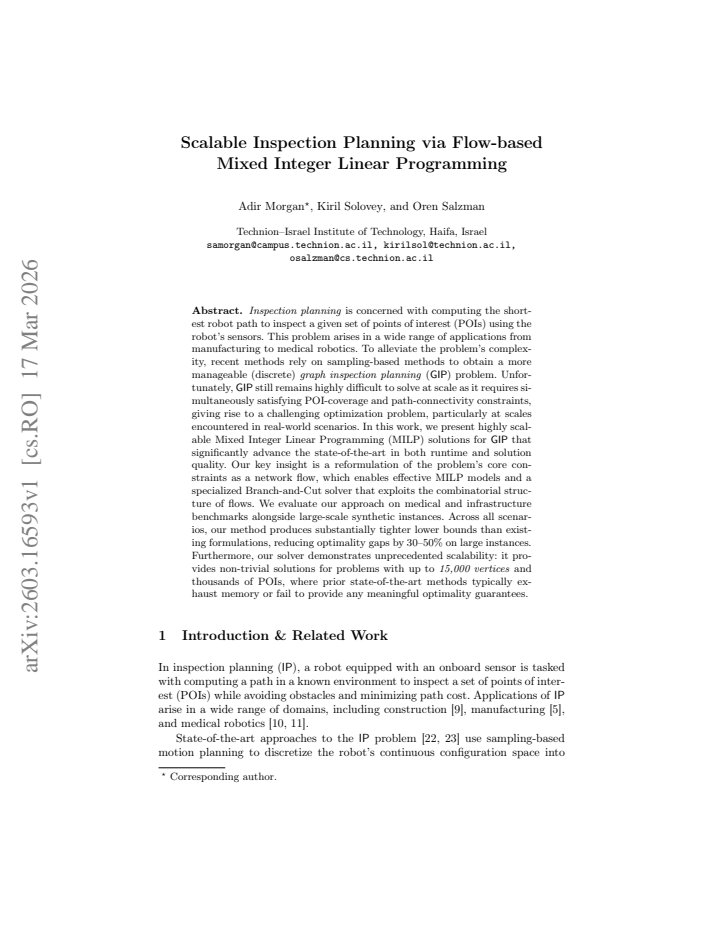

read the original abstract
Inspection planning is concerned with computing the shortest robot path to inspect a given set of points of interest (POIs) using the robot's sensors. This problem arises in a wide range of applications from manufacturing to medical robotics. To alleviate the problem's complexity, recent methods rely on sampling-based methods to obtain a more manageable (discrete) graph inspection planning (GIP) problem. Unfortunately, GIP still remains highly difficult to solve at scale as it requires simultaneously satisfying POI-coverage and path-connectivity constraints, giving rise to a challenging optimization problem, particularly at scales encountered in real-world scenarios. In this work, we present highly scalable Mixed Integer Linear Programming (MILP) solutions for GIP that significantly advance the state-of-the-art in both runtime and solution quality. Our key insight is a reformulation of the problem's core constraints as a network flow, which enables effective MILP models and a specialized Branch-and-Cut solver that exploits the combinatorial structure of flows. We evaluate our approach on medical and infrastructure benchmarks alongside large-scale synthetic instances. Across all scenarios, our method produces substantially tighter lower bounds than existing formulations, reducing optimality gaps by 30-50% on large instances. Furthermore, our solver demonstrates unprecedented scalability: it provides non-trivial solutions for problems with up to 15,000 vertices and thousands of POIs, where prior state-of-the-art methods typically exhaust memory or fail to provide any meaningful optimality guarantees.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a network-flow reformulation of the Graph Inspection Planning (GIP) problem obtained by sampling-based discretization of continuous inspection tasks. POI coverage and path-connectivity constraints are encoded via standard flow-conservation equalities inside a MILP, solved by a custom Branch-and-Cut procedure that exploits the flow structure. Experiments on medical, infrastructure, and large synthetic instances report 30-50% reductions in optimality gaps relative to prior formulations and non-trivial feasible solutions on graphs with up to 15,000 vertices and thousands of POIs.
Significance. If the empirical bound improvements and scaling results are reproducible, the work supplies a practically useful MILP encoding for a core robotic planning primitive. The flow-based modeling is a direct, non-circular application of network-flow techniques that demonstrably enlarges the solvable instance size; this is a concrete, falsifiable advance over existing GIP solvers.
major comments (2)
- [§3] §3 (Flow-based MILP): the validity of the lower bounds rests on the claim that the sampling discretization preserves coverage and connectivity; however, no formal statement or quantitative bound is given on the approximation error introduced by the sampling procedure, which directly affects whether the reported optimality gaps are with respect to the original continuous problem or only the discrete proxy.
- [Experiments] Experimental section: the abstract states 30-50% gap reductions and scalability to 15k vertices, yet the manuscript provides neither the precise instance-generation parameters, the exact set of competing formulations, nor the termination criteria and memory limits used for the baselines; without these, the central scalability claim cannot be independently verified.
minor comments (2)
- [§3] Notation for flow variables and coverage indicators should be introduced once and used uniformly; several equations reuse the same symbol for distinct quantities.

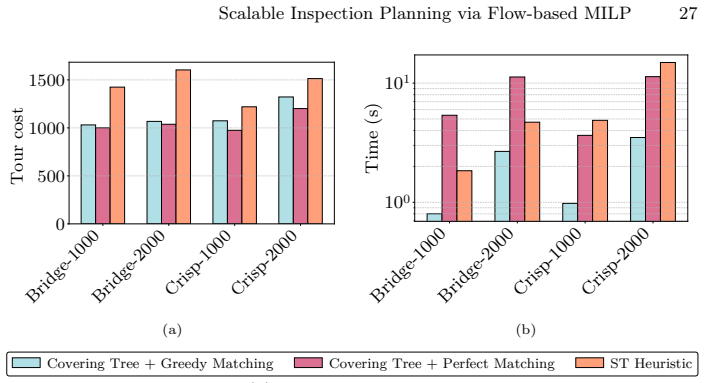

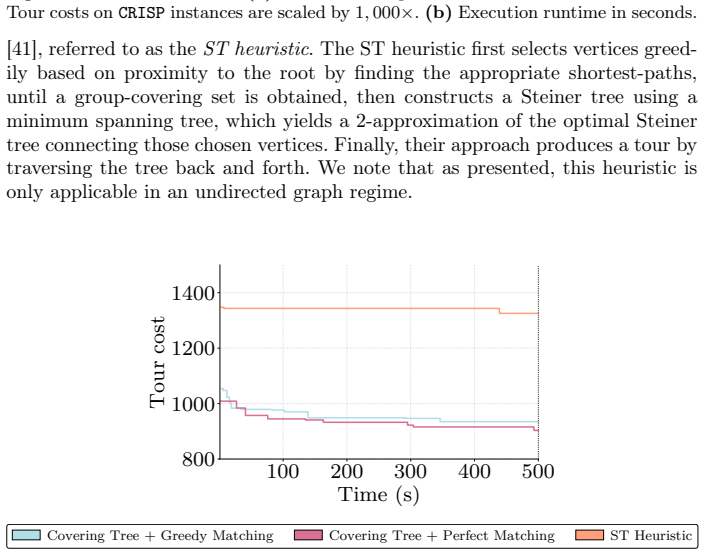

- [Experiments] Figure captions for the scalability plots should state the number of random seeds and report both median and worst-case runtimes.
Simulated Author's Rebuttal
We thank the referee for the constructive review and the recommendation for minor revision. The comments identify opportunities to strengthen clarity regarding discretization and experimental reproducibility. We address each point below and will incorporate the suggested changes in the revised manuscript.
read point-by-point responses
-
Referee: [§3] §3 (Flow-based MILP): the validity of the lower bounds rests on the claim that the sampling discretization preserves coverage and connectivity; however, no formal statement or quantitative bound is given on the approximation error introduced by the sampling procedure, which directly affects whether the reported optimality gaps are with respect to the original continuous problem or only the discrete proxy.
Authors: We thank the referee for highlighting this distinction. The GIP formulation in the paper is defined on the discrete graph produced by the sampling-based discretization step, which is a standard preprocessing technique in sampling-based planning. All optimality gaps and lower bounds reported are with respect to this discrete instance, consistent with prior GIP literature. The sampling procedure itself is external to the MILP and follows established methods without introducing additional approximation claims in our contribution. We agree that an explicit clarification would improve readability and will add a short paragraph in Section 3 stating that the MILP solves the discretized GIP exactly and that gaps are relative to the discrete proxy. revision: yes
-
Referee: [Experiments] Experimental section: the abstract states 30-50% gap reductions and scalability to 15k vertices, yet the manuscript provides neither the precise instance-generation parameters, the exact set of competing formulations, nor the termination criteria and memory limits used for the baselines; without these, the central scalability claim cannot be independently verified.
Authors: We acknowledge the need for greater detail to support independent verification. In the revised manuscript we will expand the experimental section (and add a dedicated appendix if space is limited) to include: (i) full instance-generation parameters (graph sizes, POI counts and densities, sampling densities, and random seeds where applicable), (ii) the complete list of baseline formulations with citations, and (iii) the precise termination criteria (time limits, optimality gap tolerances) and memory limits applied uniformly to all solvers. These additions will make the reported 30-50% gap reductions and scalability results fully reproducible. revision: yes
Circularity Check
No significant circularity
full rationale
The paper describes a direct MILP reformulation of the discretized graph inspection planning problem by encoding coverage and connectivity via standard network-flow conservation constraints. No equations or claims reduce the reported bound improvements or scalability results to fitted parameters, self-definitions, or self-citation chains; the performance gains are presented strictly as empirical outcomes on benchmark instances. The modeling steps rely on well-established flow-based MILP techniques without importing uniqueness theorems or ansatzes from prior author work, and the derivation remains self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Flow conservation and capacity constraints correctly encode path connectivity and POI coverage in the discretized graph.
- standard math Standard MILP solvers and branch-and-cut techniques can exploit the flow structure for improved performance.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Our key insight is a reformulation of the problem's core constraints as a network flow... multi-commodity flow (MCF) ... group-cutset constraints
-
IndisputableMonolith/Foundation/ArithmeticFromLogic.leanLogicNat ≃ Nat unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
GIP generalizes both the set cover problem and the traveling salesman problem
