arxiv: 2603.22849 · v3 · submitted 2026-03-24 · ❄️ cond-mat.mtrl-sci · cond-mat.soft

Mechanical Origin of High-Temperature Thermal Stability in Platinum Oxides

Fangyuan Ma , Mengzhao Sun , Xuejian Gong , Jun Cai , Zhujun Wang , Di Zhou This is my paper

Pith reviewed 2026-05-15 01:13 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.soft
keywords platinum oxidesthermal stabilityMoiré patternisostatic networkelastic energystructural transitioncatalysts2D materials
0
0 comments X

The pith

A shift to an isostatic atomic network in platinum oxides creates a commensurate Moiré superlattice that relaxes elastic energy and raises thermal stability by hundreds of Kelvin.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the high-temperature stability of platinum oxides after a structural transition comes from mechanical properties of their atomic elastic network. An over-constrained pre-transition lattice forms an incommensurate Moiré pattern with the platinum substrate, producing localized self-stress that lowers heat resistance. Post-transition, the structure becomes isostatic with equal degrees of freedom and constraints, forming a commensurate Moiré superlattice that relaxes strain energy. This network connectivity principle offers a way to design more durable catalysts for high-temperature uses.

Core claim

Prior to the transition, an over-constrained lattice generates localized states of self-stress through an incommensurate Moiré pattern with the platinum substrate, reducing thermal endurance. After the transition, the oxide shifts to a mechanically flexible structure with balanced degrees of freedom and constraints. The isostatic network, together with the platinum substrate, forms a commensurate Moiré superlattice that relaxes elastic energy and enhances stability by several hundred Kelvin.

What carries the argument

The isostatic elastic network with balanced degrees of freedom and constraints, which enables formation of a commensurate Moiré superlattice with the substrate to relax elastic energy.

If this is right

  • The transition allows platinum oxide catalysts to operate at significantly higher temperatures without degrading.
  • Similar mechanical transitions could stabilize other two-dimensional oxides on metal substrates.
  • Thermal stability in these systems is governed by the balance of constraints rather than just chemical bonding.
  • Designing catalysts with isostatic networks provides a route to extreme-environment applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending this to other metal-oxide interfaces could reveal general rules for Moiré-driven stability.
  • Simulations varying substrate lattice mismatch might test how commensurability affects the transition temperature.
  • Applying the same connectivity analysis to non-oxide 2D materials on supports could predict new stable phases.

Load-bearing premise

That the post-transition structure is isostatic, meaning it has exactly balanced degrees of freedom and constraints, and that this balance produces a commensurate Moiré superlattice relaxing elastic energy to boost stability.

What would settle it

Direct measurement or calculation demonstrating that the post-transition platinum oxide lattice remains over-constrained or forms an incommensurate Moiré pattern without elastic energy relaxation.

Figures

Figures reproduced from arXiv: 2603.22849 by Di Zhou, Fangyuan Ma, Jun Cai, Mengzhao Sun, Xuejian Gong, Zhujun Wang.

Figure 1

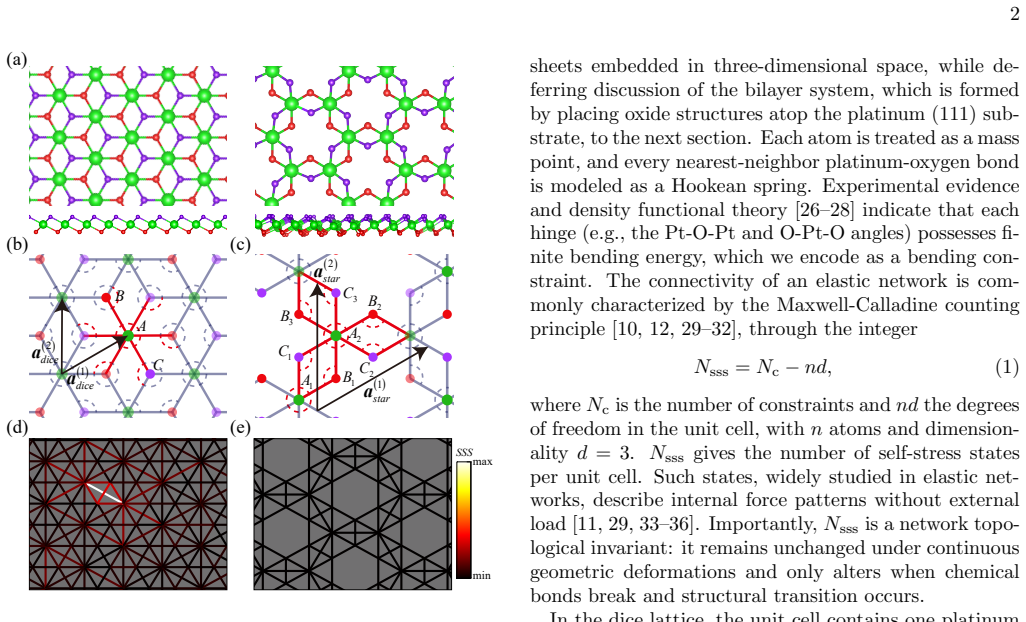

Figure 1. Figure 1: FIG. 1. Elastic network modeling of two-dimensional plat [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Initial bilayer structures prior to mechanical relax [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Percentage distributions of stretching and bending [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Three adjacent sites in a spring-mass model. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Time evolution of the average dimensionless molecu [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. The height variations of platinum atoms in the dice [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Distributions of elastic energy per constraint for [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

Platinum oxides are vital catalysts, but their limited thermal stability hinders applications. Recent studies have uncovered a structural transition in two-dimensional platinum oxides that significantly enhances their thermal resilience by several hundred Kelvin. Herein, we demonstrate that this enhanced stability stems from the mechanical robustness of the elastic network at the atomic scale. Prior to the transition, an over-constrained lattice generates localized states of self-stress through an incommensurate Moir\'{e} pattern with the platinum substrate, reducing thermal endurance. After the transition, the oxide shifts to a mechanically flexible structure with balanced degrees of freedom and constraints. The isostatic network, together with the platinum substrate, forms a commensurate Moir\'{e} superlattice that relaxes elastic energy and enhances stability. These findings highlight the fundamental role of network connectivity in governing thermal stability, and provide a design principle for catalysts in extreme environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that the several-hundred-Kelvin increase in thermal stability of 2D platinum oxides after a structural transition arises from a shift in the atomic-scale elastic network: the pre-transition over-constrained lattice produces localized self-stress via an incommensurate Moiré pattern with the Pt substrate, while the post-transition isostatic network (balanced degrees of freedom and constraints) forms a commensurate Moiré superlattice that relaxes elastic energy and thereby enhances endurance.

Significance. If the mechanical link is established, the work supplies a network-based design rule for high-temperature catalyst stability that connects rigidity theory to Moiré commensurability. It applies standard constraint counting to a concrete materials system and could guide engineering of 2D oxides for extreme environments.

major comments (2)
  1. [Results section on structural transition and constraint counting] The constraint-counting analysis labels the post-transition structure isostatic, yet the manuscript supplies no explicit calculation of the elastic-energy difference between the incommensurate pre-transition and commensurate post-transition Moiré registries, nor any mapping of that energy scale onto the observed stability jump.
  2. [Discussion of stability enhancement] The central claim that isostaticity directly produces the commensurate Moiré superlattice and the attendant elastic-energy relaxation is stated without supporting derivation or simulation data that would establish causality rather than correlation.
minor comments (1)
  1. [Abstract] The abstract presents the quantitative stability increase without citing the specific experimental or computational data on which it rests.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments, which help clarify the mechanical interpretation of the thermal stability enhancement. We address each major comment below and will revise the manuscript to incorporate the requested calculations and derivations.

read point-by-point responses

  1. Referee: [Results section on structural transition and constraint counting] The constraint-counting analysis labels the post-transition structure isostatic, yet the manuscript supplies no explicit calculation of the elastic-energy difference between the incommensurate pre-transition and commensurate post-transition Moiré registries, nor any mapping of that energy scale onto the observed stability jump.

    Authors: We agree that an explicit calculation of the elastic-energy difference is required to quantify the mechanical contribution. In the revised manuscript we will add first-principles calculations that directly compare the elastic energies of the incommensurate pre-transition and commensurate post-transition Moiré structures. We will further map the computed energy scale onto the observed several-hundred-Kelvin stability increase by relating it to the relevant thermal activation barriers for oxide decomposition. revision: yes

  2. Referee: [Discussion of stability enhancement] The central claim that isostaticity directly produces the commensurate Moiré superlattice and the attendant elastic-energy relaxation is stated without supporting derivation or simulation data that would establish causality rather than correlation.

    Authors: We acknowledge that the manuscript currently presents the connection as a consequence of constraint counting without an explicit derivation or dynamical evidence. In the revision we will insert a dedicated subsection that derives, from rigidity theory, how the isostatic balance of degrees of freedom and constraints permits relaxation into the commensurate registry. We will also include molecular-dynamics trajectories that illustrate the energy-relaxation pathway and thereby establish the causal link to the enhanced thermal endurance. revision: yes

Circularity Check

0 steps flagged

No significant circularity; mechanical explanation is independent of stability data

full rationale

The paper applies standard Maxwell constraint counting to label the post-transition oxide network as isostatic and notes the shift from incommensurate to commensurate Moiré registry with the substrate. These steps rest on direct structural identification and classical rigidity theory rather than redefining the observed thermal stability jump as an input or fitting parameter. No equation or claim reduces the stability enhancement to a self-citation chain or tautological re-labeling; the derivation remains self-contained against external benchmarks of network mechanics.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on the domain assumption that the observed structural transition produces an isostatic network whose constraint balance directly controls elastic energy via Moiré matching; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption The structural transition produces an isostatic network with balanced degrees of freedom and constraints.
    Invoked to explain why the post-transition state relaxes elastic energy and raises thermal stability.
