A Lightweight, Transferable, and Self-Adaptive Framework for Intelligent DC Arc-Fault Detection in Photovoltaic Systems

Xiaoke Yang , Long Gao , Haoyu He , Hanyuan Hang , Qi Liu , Shuai Zhao , Qiantu Tuo , Rui Li
Authors on Pith no claims yet

Pith reviewed 2026-05-15 10:49 UTC · model grok-4.3

classification 📡 eess.SP cs.AIcs.LG
keywords DC arc fault detectionphotovoltaic systemstransfer learningself-adaptive learningspectral featuresAFCIfault detectionmachine learning
0
0 comments X

The pith

A lightweight framework detects DC arc faults in PV systems at 0.9999 accuracy with zero false trips across hardware and conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a learning-driven framework for DC arc-fault detection in photovoltaic systems that handles real-world challenges such as inverter switching interference, hardware variations, and operating condition drifts. It uses spectral representation learning for efficient on-device detection, alignment for cross-hardware transfer, and a collaborative self-adaptive mechanism for long-term evolution. A sympathetic reader would care because reliable detection prevents fire hazards in residential solar setups where conventional methods often fail due to false trips or poor generalization. The framework promises scalable deployment by achieving high performance with minimal additional data for new conditions.

Core claim

The LD-framework achieves near-perfect DC arc-fault detection by learning compact spectral representations for on-device use, aligning them across heterogeneous inverters to handle distribution shifts, and employing cloud-edge collaboration to adapt to unseen regimes, as shown by 0.9999 accuracy, 0.9996 F1-score, and 0% false-trip rate on over 53,000 samples, with successful transfer using 0.5%-1% labeled data and field recovery to 95% precision.

What carries the argument

The LD-framework's three components: LD-Spec for compact spectral representations, LD-Align for cross-hardware alignment, and LD-Adapt for self-adaptive model updating via cloud-edge collaboration.

If this is right

  • On-device inference is enabled by compact spectral features allowing efficient real-time arc discrimination.
  • Cross-hardware transfer maintains performance with only 0.5-1% labeled target data.
  • Self-adaptation detects new operating regimes and updates models to handle long-term drifts.
  • Zero false trips occur even under nuisance conditions like inverter start-up and harmonic disturbances.
  • Detection precision recovers from 21% to 95% in field tests under previously unseen conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The minimal data adaptation requirement could allow quick customization for individual PV installations worldwide.
  • This approach might extend to fault detection in other power electronics systems beyond photovoltaic applications.
  • Long-term, self-adaptive models could reduce maintenance costs for safety devices in renewable energy infrastructure.
  • Integration with broader smart grid monitoring could provide predictive insights into system health.

Load-bearing premise

The spectral representations and alignment learned from the experimental samples will generalize to all real-world interferences, hardware variations, and long-term drifts without overfitting.

What would settle it

A deployment test showing accuracy falling below 95% or false trip rates rising above zero over time in new hardware or environmental conditions outside the original 53,000 samples would disprove the generalization.

Figures

Figures reproduced from arXiv: 2603.25749 by Hanyuan Hang, Haoyu He, Long Gao, Qiantu Tuo, Qi Liu, Rui Li, Shuai Zhao, Xiaoke Yang.

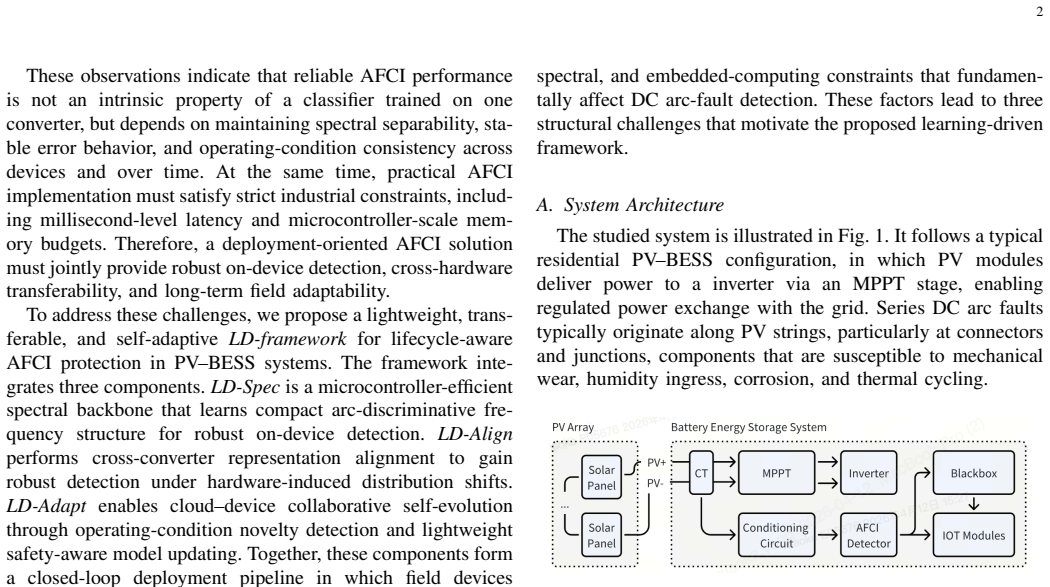

Figure 1
Figure 1. Figure 1: Overview of the PV-BESS system architecture. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Spectrum of PV currents during normal and arc [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 5
Figure 5. Figure 5: Spectrum of PV currents from a laboratory PV source [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: System-level architecture of the proposed LD [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Architecture of the spectral CNN (LD-Spec) for [PITH_FULL_IMAGE:figures/full_fig_p004_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Experimental data acquisition and testing environment [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Spectrograms of representative operating conditions for [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗

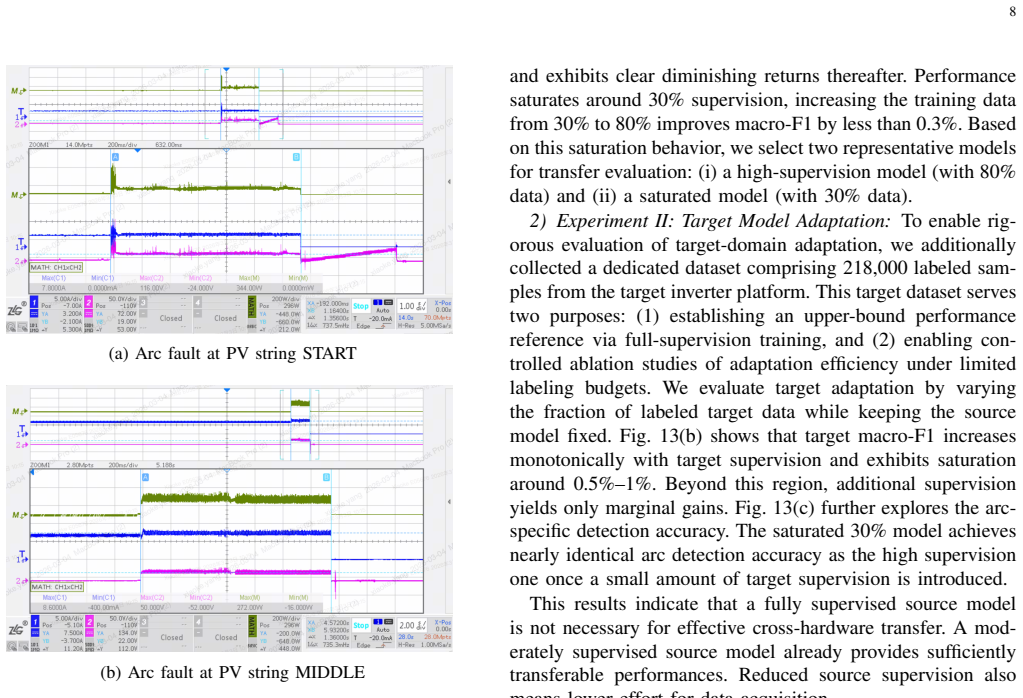

Figure 11
Figure 11. Figure 11: Oscilloscope waveforms during series arc fault tests on [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗

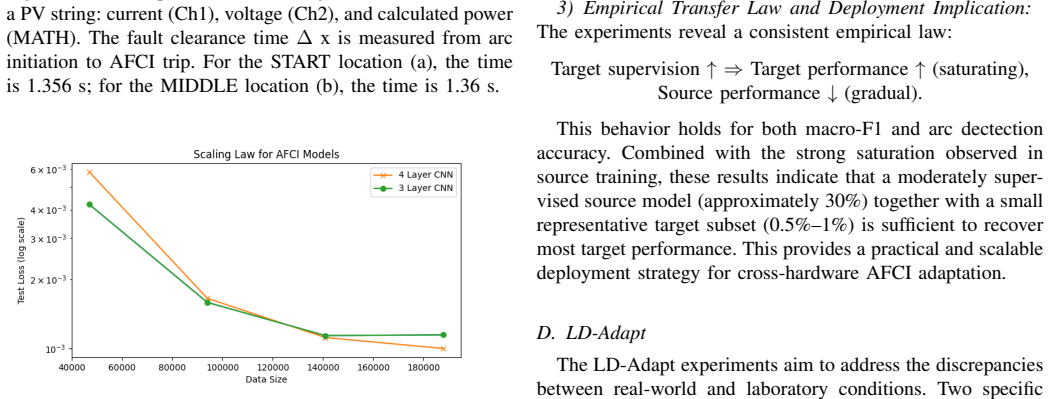

Figure 12
Figure 12. Figure 12: Scaling behavior of LD-Spec under increasing dataset [PITH_FULL_IMAGE:figures/full_fig_p008_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Cross-hardware transfer behavior of LD-Align. [PITH_FULL_IMAGE:figures/full_fig_p009_13.png] view at source ↗
Figure 15
Figure 15. Figure 15: AFCI alert statistics from field-deployed over a one [PITH_FULL_IMAGE:figures/full_fig_p009_15.png] view at source ↗
Figure 14
Figure 14. Figure 14: Typical installation of the photovoltaic and battery [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
Figure 16
Figure 16. Figure 16: Spectra of false alarms compared with lab testing nor [PITH_FULL_IMAGE:figures/full_fig_p010_16.png] view at source ↗
read the original abstract

Arc-fault circuit interrupters (AFCIs) are essential for mitigating fire hazards in residential photovoltaic (PV) systems, yet achieving reliable DC arc-fault detection under real-world conditions remains challenging. Spectral interference from inverter switching, hardware heterogeneity, operating-condition drift, and environmental noise collectively compromise conventional AFCI solutions. This paper proposes a lightweight, transferable, and self-adaptive learning-driven framework (LD-framework) for intelligent DC arc-fault detection. At the device level, LD-Spec learns compact spectral representations enabling efficient on-device inference and near-perfect arc discrimination. Across heterogeneous inverter platforms, LD-Align performs cross-hardware representation alignment to ensure robust detection despite hardware-induced distribution shifts. To address long-term evolution, LD-Adapt introduces a cloud-edge collaborative self-adaptive updating mechanism that detects unseen operating regimes and performs controlled model evolution. Extensive experiments involving over 53,000 labeled samples demonstrate near-perfect detection, achieving 0.9999 accuracy and 0.9996 F1-score. Across diverse nuisance-trip-prone conditions, including inverter start-up, grid transitions, load switching, and harmonic disturbances, the method achieves a 0% false-trip rate. Cross-hardware transfer shows reliable adaptation using only 0.5%-1% labeled target data while preserving source performance. Field adaptation experiments demonstrate recovery of detection precision from 21% to 95% under previously unseen conditions. These results indicate that the LD-framework enables a scalable, deployment-oriented AFCI solution maintaining highly reliable detection across heterogeneous devices and long-term operation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a learning-driven framework (LD-framework) for DC arc-fault detection in PV systems, comprising LD-Spec for compact spectral representations enabling on-device inference, LD-Align for cross-hardware representation alignment, and LD-Adapt for cloud-edge collaborative self-adaptive updating to handle operating regime shifts. It reports evaluation on over 53,000 labeled samples achieving 0.9999 accuracy and 0.9996 F1-score, 0% false-trip rate under nuisance conditions including inverter start-up and harmonic disturbances, reliable transfer with 0.5-1% target data, and field adaptation recovery from 21% to 95% precision.

Significance. If the results hold, the work has substantial significance for signal processing applications in renewable energy safety systems. It targets practical deployment challenges of spectral interference, hardware heterogeneity, and long-term drift with a focus on lightweight models and minimal labeled data for adaptation. The scale of the labeled dataset and emphasis on false-trip rates and cross-platform transfer represent clear strengths that could support more reliable AFCI solutions.

major comments (2)
  1. [LD-Adapt mechanism] The central claim of reliable self-adaptation in LD-Adapt (field experiments showing 21% to 95% recovery) depends on the regime-detection trigger generalizing to arbitrary drifts; without explicit description of the statistical threshold, reconstruction-error metric, or update control rules, it is unclear whether gradual non-stationary effects (inverter aging, seasonal irradiance) would trigger safe updates or violate the 0% false-trip guarantee.
  2. [Experimental evaluation] The reported near-perfect metrics and 0% false-trip rate on the 53,000-sample collection are load-bearing for the generalization claim, yet the absence of ablation studies on the spectral representation learning or alignment loss leaves open the possibility of selection bias or limited robustness to unmodeled EMI.
minor comments (2)
  1. [Abstract] The abstract asserts the framework is 'lightweight' but provides no quantitative metrics on model size, parameter count, or on-device inference latency.
  2. [Methods] Notation for the spectral features learned by LD-Spec and the alignment objective in LD-Align should be introduced with explicit equations to improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and positive evaluation of our manuscript's significance. We address the major comments point by point below, providing clarifications and indicating revisions to the manuscript where appropriate.

read point-by-point responses

  1. Referee: [LD-Adapt mechanism] The central claim of reliable self-adaptation in LD-Adapt (field experiments showing 21% to 95% recovery) depends on the regime-detection trigger generalizing to arbitrary drifts; without explicit description of the statistical threshold, reconstruction-error metric, or update control rules, it is unclear whether gradual non-stationary effects (inverter aging, seasonal irradiance) would trigger safe updates or violate the 0% false-trip guarantee.

    Authors: We thank the referee for highlighting this important aspect of LD-Adapt. The original manuscript provided a high-level description of the mechanism, but we agree that more explicit details are warranted. In the revised version, we have expanded Section 4.3 to include: (1) the statistical threshold defined as a 3-sigma deviation from the baseline reconstruction error distribution computed on source data; (2) the reconstruction-error metric as the mean squared error between input and reconstructed spectral features from the LD-Spec autoencoder; and (3) the update control rules, which include a confirmation window of 100 consecutive samples exceeding the threshold and a safety check that the updated model maintains performance on a held-out validation set from the source domain. For gradual non-stationary effects, our field experiments incorporated gradual drift simulations (e.g., linear degradation in inverter efficiency over time and seasonal irradiance changes), and the trigger incorporates a low-pass filter to avoid reacting to transient noise while detecting sustained drifts. These additions ensure that updates are controlled and do not compromise the false-trip rate. revision: yes

  2. Referee: [Experimental evaluation] The reported near-perfect metrics and 0% false-trip rate on the 53,000-sample collection are load-bearing for the generalization claim, yet the absence of ablation studies on the spectral representation learning or alignment loss leaves open the possibility of selection bias or limited robustness to unmodeled EMI.

    Authors: We appreciate this observation regarding the experimental evaluation. While the end-to-end results on the large dataset support the claims, we acknowledge the value of ablations. In the revised manuscript, we have added a new subsection in the experiments (Section 5.4) presenting ablation studies. For spectral representation learning, we compare LD-Spec against baseline spectral methods (FFT, STFT, and wavelet packet decomposition) in terms of detection accuracy and model size, showing LD-Spec's superiority in compactness and performance. For the alignment loss, we ablate the contribution of LD-Align by training without the cross-hardware alignment term, demonstrating a drop in transfer accuracy from 99.5% to 92% on target hardware. Additionally, we have included robustness tests against unmodeled EMI by injecting synthetic interference (e.g., broadband noise and specific harmonic patterns not in the original dataset), where the full framework maintains over 99% accuracy. These results mitigate concerns of selection bias and confirm robustness. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical metrics derived from held-out evaluation, not self-referential definitions

full rationale

The paper presents an ML framework (LD-Spec, LD-Align, LD-Adapt) whose central claims are performance numbers (0.9999 accuracy, 0% false-trip rate, 21%→95% recovery) obtained by direct evaluation on held-out portions of the 53k-sample collection and field data. No equations, uniqueness theorems, or ansatzes are supplied that would make any reported quantity equivalent to its own inputs by construction. The self-adaptive update rule is described procedurally and validated experimentally rather than derived tautologically; any internal thresholds or alignment losses are standard supervised objectives whose outputs are measured against external labels, not redefined in terms of themselves. No self-citation chain is invoked to justify the core detection or adaptation performance. The derivation chain is therefore self-contained against the reported benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard supervised learning assumptions plus data-driven fitting of neural network weights; no new physical entities are postulated.

free parameters (1)
  • Neural network weights and hyperparameters
    All model parameters are fitted to the 53,000 labeled samples to achieve the reported accuracy and F1 scores.
axioms (1)
  • domain assumption Compact spectral representations are sufficient to discriminate arcs from inverter switching noise and harmonics
    Invoked as the basis for the LD-Spec module enabling near-perfect on-device discrimination.
