Analyzing Healthcare Interoperability Vulnerabilities: Formal Modeling and Graph-Theoretic Approach

Gahangir Hossain; Jawad Mohammed

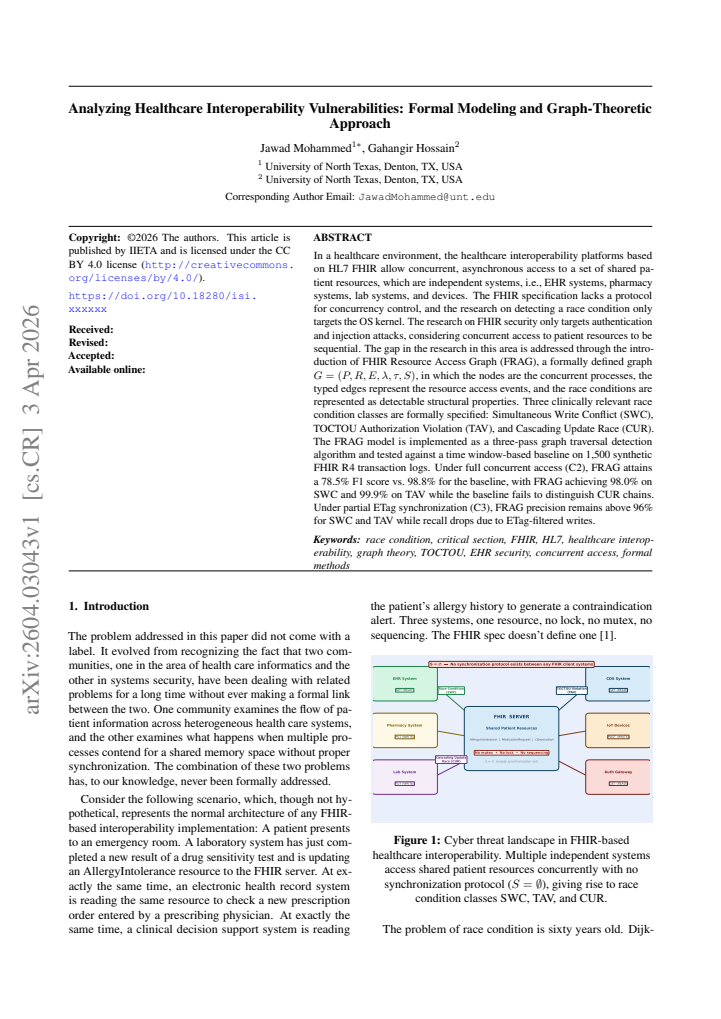

arxiv: 2604.03043 · v1 · submitted 2026-04-03 · 💻 cs.CR · cs.AI

Analyzing Healthcare Interoperability Vulnerabilities: Formal Modeling and Graph-Theoretic Approach

Jawad Mohammed , Gahangir Hossain This is my paper

Pith reviewed 2026-05-13 19:52 UTC · model grok-4.3

classification 💻 cs.CR cs.AI

keywords FHIRrace conditionshealthcare interoperabilitygraph theoryconcurrency vulnerabilitiesHL7 securitysynthetic transaction logs

0 comments

The pith

A graph model called FRAG detects three classes of race conditions in concurrent FHIR resource access that sequential methods overlook.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces FRAG, a formally defined graph where nodes are concurrent processes accessing shared patient resources and typed edges represent access events. Race conditions appear as identifiable structural patterns rather than requiring sequential assumptions. The model specifies three clinically relevant classes: simultaneous write conflicts, TOCTOU authorization violations, and cascading update races. A three-pass traversal algorithm implements detection and is evaluated on synthetic FHIR R4 logs, showing markedly higher performance than a time-window baseline under full concurrency. This approach fills a gap in FHIR security research by treating concurrent access as the norm instead of an edge case.

Core claim

The central claim is that the FHIR Resource Access Graph FRAG, defined as G = (P, R, E, {λ}, {τ}, S), encodes concurrency vulnerabilities in healthcare interoperability as detectable graph properties. Nodes represent processes, edges capture resource access events with labels for timing and state, and three race classes—Simultaneous Write Conflict (SWC), TOCTOU Authorization Violation (TAV), and Cascading Update Race (CUR)—are formally specified. The model is realized as a three-pass graph traversal algorithm that achieves 90% F1 score on 1,500 synthetic logs under full concurrent access, compared with 25.5% for the baseline.

What carries the argument

The FHIR Resource Access Graph (FRAG), a directed multigraph with process nodes, typed access edges, and auxiliary label and state sets that turns race conditions into structural detection tasks.

If this is right

FHIR platforms can replace sequential-access assumptions with graph-based checks to catch simultaneous writes and authorization races before they affect patient data.
The three specified race classes become systematically enumerable in any set of concurrent resource access events.
Detection performance improves from 25.5% to 90% F1 under full concurrency, reducing the chance that race-induced inconsistencies reach clinical use.
Security analysis of HL7 FHIR systems now has a concrete method that does not treat concurrent access as inherently safe.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Production EHR and pharmacy systems could embed FRAG-style traversal in their audit pipelines to surface race risks during peak load periods.
The same graph construction might apply to other resource-sharing standards that lack explicit concurrency controls, such as certain device-to-EHR interfaces.
Hospitals auditing historical logs with FRAG could quantify how often authorization violations arise from timing gaps rather than malicious injection.

Load-bearing premise

The 1,500 synthetic FHIR R4 transaction logs capture the same concurrent access patterns and race condition frequencies that occur in real production healthcare systems.

What would settle it

Applying the three-pass FRAG traversal to real transaction logs from a live multi-system FHIR interoperability platform and comparing detected races against independently logged incidents or clinical outcome discrepancies would confirm or refute the detection claims.

Figures

Figures reproduced from arXiv: 2604.03043 by Gahangir Hossain, Jawad Mohammed.

**Figure 1.** Figure 1: Cyber threat landscape in FHIR-based healthcare interoperability. Multiple independent systems access shared patient resources concurrently with no synchronization protocol (S = ∅), giving rise to race condition classes SWC, TAV, and CUR. The problem of race condition is sixty years old. DijkarXiv:2604.03043v1 [cs.CR] 3 Apr 2026 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

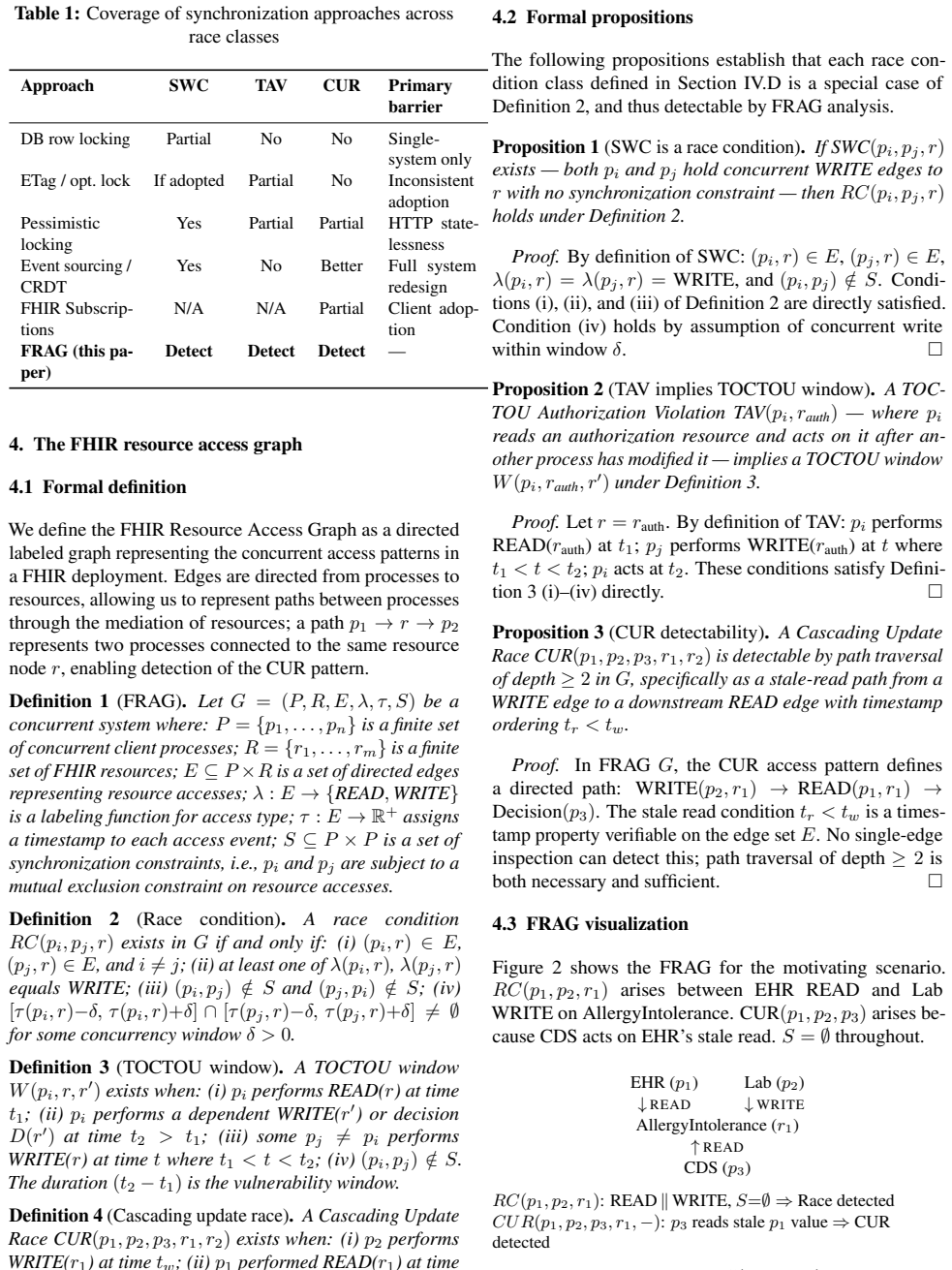

**Figure 2.** Figure 2: shows the FRAG for the motivating scenario. RC(p1, p2, r1) arises between EHR READ and Lab WRITE on AllergyIntolerance. CUR(p1, p2, p3) arises because CDS acts on EHR’s stale read. S = ∅ throughout. EHR (p1) Lab (p2) ↓ READ ↓ WRITE AllergyIntolerance (r1) ↑ READ CDS (p3) RC(p1, p2, r1): READ ∥ WRITE, S=∅ ⇒ Race detected CUR(p1, p2, p3, r1, −): p3 reads stale p1 value ⇒ CUR detected [PITH_FULL_IMAGE:figur… view at source ↗

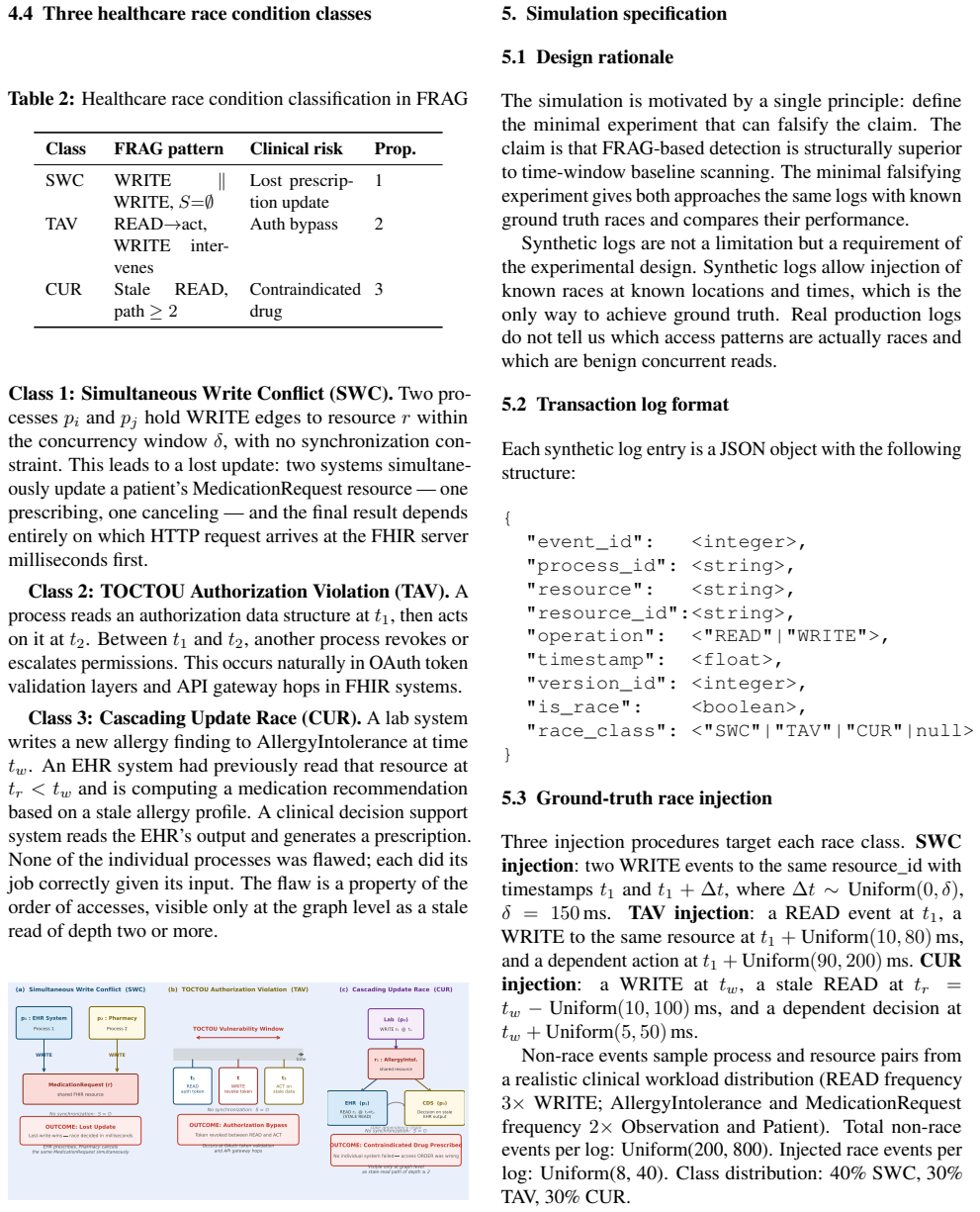

**Figure 3.** Figure 3: The three healthcare race condition classes formally defined in FRAG: (a) Simultaneous Write Conflict (SWC) — two concurrent WRITE operations with no synchronization; (b) TOCTOU Authorization Violation (TAV) — permission revoked inside the vulnerability window; (c) Cascading Update Race (CUR) — a stale-read dependency chain of depth ≥ 2. 5. Simulation specification 5.1 Design rationale The simulation is mo… view at source ↗

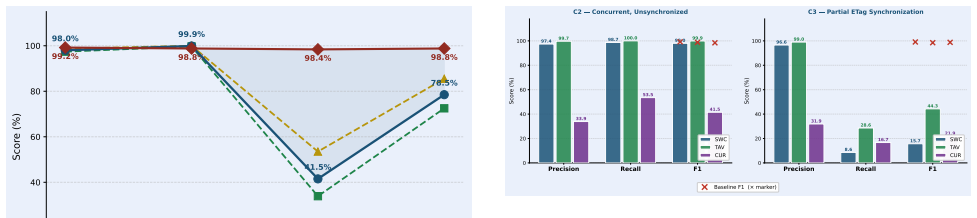

**Figure 6.** Figure 6: Per-class Precision, Recall, and F1 for FRAG under C2 (left) and C3 (right). Red × markers indicate corresponding Baseline F1 scores. Precision remains high under C3 while recall decreases due to ETag-protected write filtering [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
