arxiv: 2604.03747 · v1 · submitted 2026-04-04 · 💻 cs.RO

Recognition: no theorem link

CT-VoxelMap: Efficient Continuous-Time LiDAR-Inertial Odometry with Probabilistic Adaptive Voxel Mapping

Lei Zhao , Xingyi Li , Tianchen Deng , Chuan Cao , Han Zhang , Weidong Chen
Authors on Pith no claims yet

Pith reviewed 2026-05-13 17:07 UTC · model grok-4.3

classification 💻 cs.RO
keywords continuous-time odometryLiDAR-inertial fusionB-spline representationmatrix Lie groupsvoxel mappingrobot localizationIMU propagation
0
0 comments X

The pith

Representing B-spline control-point increments on matrix Lie groups yields simpler analytical Jacobians for continuous-time LiDAR-inertial odometry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to deliver stable localization for robots during fast motion or on rough terrain by fusing LiDAR and IMU data in a continuous-time framework. It replaces earlier quaternion-based or variable-control-point spline methods with increments expressed directly on matrix Lie groups, exploiting the cumulative B-spline form to obtain compact Jacobians that avoid boundary-condition handling. IMU forward propagation supplies an online estimate of spline-to-trajectory fitting error, while a hybrid feature-driven voxel map and a re-estimation policy together raise accuracy, robustness, and speed. Experiments on public datasets report better results than prior continuous-time approaches on most sequences.

Core claim

By treating increments of B-spline control points as variables on matrix Lie groups and using the cumulative spline formulation, the method obtains simpler analytical Jacobians without extra boundary considerations. IMU measurements are propagated forward to estimate fitting errors online; these estimates feed a hybrid feature-based voxel map whose management is adapted probabilistically. A re-estimation policy further reduces compute while preserving robustness. The resulting system shows superior trajectory accuracy on most evaluated public sequences.

What carries the argument

Cumulative B-spline representation of pose increments on matrix Lie groups, paired with IMU-driven online fitting-error estimation and probabilistic adaptive voxel mapping.

If this is right

  • Simpler Jacobians reduce the cost of each Gauss-Newton iteration, enabling higher update rates on embedded hardware.
  • Online fitting-error correction keeps the estimated trajectory closer to the true continuous motion even when control points are sparsely placed.
  • Hybrid voxel management improves map consistency when the robot transitions between flat and uneven surfaces.
  • The re-estimation policy allows the system to drop low-information features without restarting the entire optimization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same Lie-group increment trick could be applied to other spline-based estimators that currently operate in quaternion space.
  • Because fitting errors are estimated rather than ignored, the method may tolerate lower spline knot density, freeing memory on long trajectories.
  • The probabilistic voxel rule might be replaced by learned feature importance without changing the rest of the pipeline.

Load-bearing premise

The IMU forward-propagation estimate of B-spline fitting error remains unbiased and the hybrid voxel-map selection does not favor particular terrains or motion profiles.

What would settle it

Run the estimator on a high-speed rough-terrain sequence, measure the difference between the spline trajectory and the IMU-integrated ground-truth trajectory at many interior knots, and check whether the reported fitting-error correction actually reduces that residual below the level achieved by earlier spline methods.

Figures

Figures reproduced from arXiv: 2604.03747 by Chuan Cao, Han Zhang, Lei Zhao, Tianchen Deng, Weidong Chen, Xingyi Li.

Figure 1
Figure 1. Figure 1: Dataset platforms and mapping performance. Despite [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

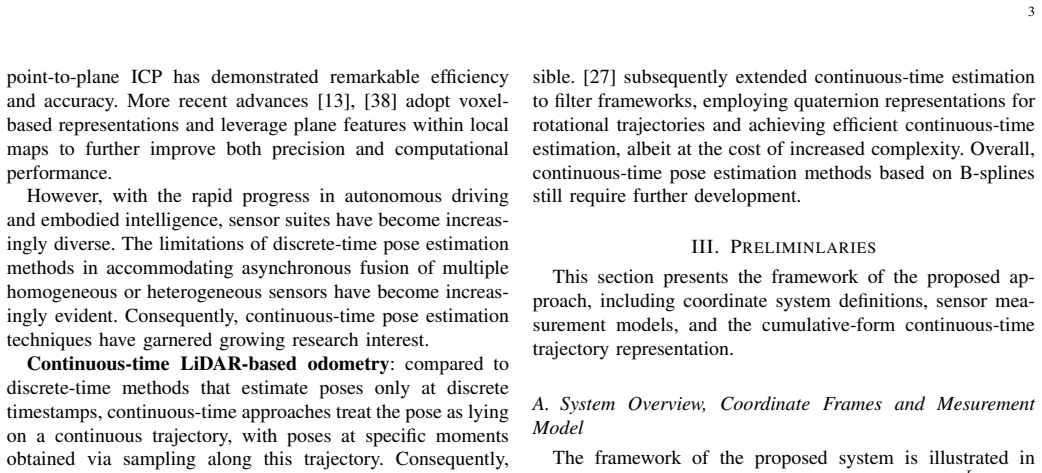

Figure 2. Figure 2: Fig.2. The LiDAR coordinate frame is denoted as [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The black line denotes a continuous trajectory, repre [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

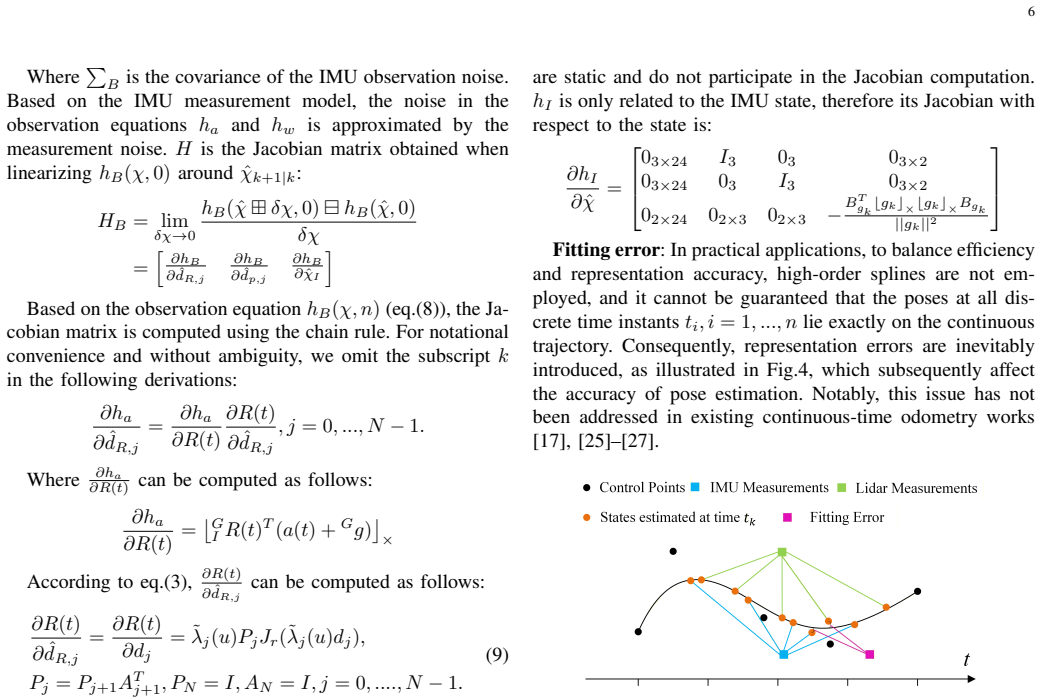

Figure 4. Figure 4: Schematic diagram of representation error of continu [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Voxel representation and decomposition diagram. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

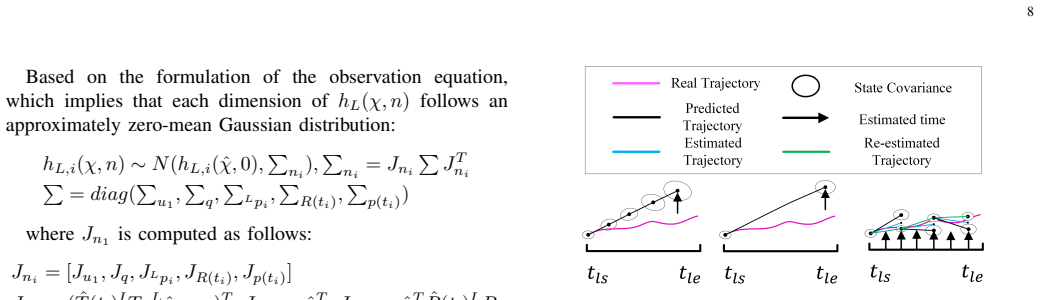

Figure 6. Figure 6: The schematic diagram illustrates three prediction and [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The experiments are conducted on four public datasets with diverse platforms and environmental conditions. M2UD is [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Performing results comparison of different methods on the ‘aggressive04‘ and ‘AMtown03‘ sequence. [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Performing results comparison of CT-VLO with [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗
Figure 11

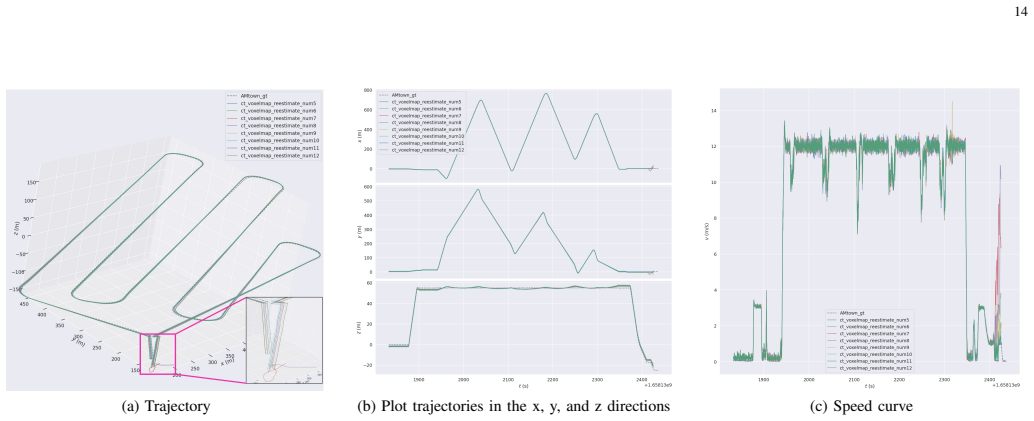

Figure 11. Figure 11: Performing results comparison of CT-VLO with different re-estimation times on ‘AMtown03‘ sequence. [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Description of the Experimental Wheel-Legged Robot [PITH_FULL_IMAGE:figures/full_fig_p014_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Comparison of Trajectories Across Different Scenes in the Dataset. [PITH_FULL_IMAGE:figures/full_fig_p015_13.png] view at source ↗
read the original abstract

Maintaining stable and accurate localization during fast motion or on rough terrain remains highly challenging for mobile robots with onboard resources. Currently, multi-sensor fusion methods based on continuous-time representation offer a potential and effective solution to this challenge. Among these, spline-based methods provide an efficient and intuitive approach for continuous-time representation. Previous continuous-time odometry works based on B-splines either treat control points as variables to be estimated or perform estimation in quaternion space, which introduces complexity in deriving analytical Jacobians and often overlooks the fitting error between the spline and the true trajectory over time. To address these issues, we first propose representing the increments of control points on matrix Lie groups as variables to be estimated. Leveraging the feature of the cumulative form of B-splines, we derive a more compact formulation that yields simpler analytical Jacobians without requiring additional boundary condition considerations. Second, we utilize forward propagation information from IMU measurements to estimate fitting errors online and further introduce a hybrid feature-based voxel map management strategy, enhancing system accuracy and robustness. Finally, we propose a re-estimation policy that significantly improves system computational efficiency and robustness. The proposed method is evaluated on multiple challenging public datasets, demonstrating superior performance on most sequences. Detailed ablation studies are conducted to analyze the impact of each module on the overall pose estimation system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes CT-VoxelMap, a continuous-time LiDAR-inertial odometry framework. It represents B-spline control-point increments on matrix Lie groups to obtain compact analytical Jacobians, estimates B-spline fitting errors online via IMU forward propagation to weight a hybrid feature-based probabilistic voxel map, and applies a re-estimation policy to improve efficiency. The method is claimed to achieve superior accuracy and robustness on challenging public datasets relative to prior spline-based approaches, with supporting ablation studies.

Significance. If the central performance claims are substantiated, the work would provide a practical, resource-efficient advance for real-time localization on mobile robots in fast-motion or rough-terrain scenarios by combining Lie-group spline representations with adaptive voxel management.

major comments (2)
  1. [§3.2] §3.2 (IMU forward-propagation error estimation): the claim that IMU-propagated residuals provide an unbiased online estimate of B-spline fitting error is load-bearing for the hybrid voxel-map weighting and re-estimation policy. IMU bias, scale-factor errors, and limited spline bandwidth can produce systematic residuals on high-frequency motion; without explicit bias analysis or sensitivity experiments on rough-terrain sequences, the reported accuracy gains remain unverified.
  2. [Experiments] Experiments section, Table/Figure of per-sequence results: the superiority claim is stated for 'most sequences' but lacks reported standard deviations, full ablation tables with numerical deltas, or controls for post-hoc dataset selection. This weakens the statistical support for the central performance assertion.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'detailed ablation studies' should briefly enumerate the modules tested to improve reader orientation.
  2. [Method] Notation: ensure the Lie-group cumulative B-spline formulation is cross-referenced to the exact equation numbers used in the Jacobian derivation for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the constructive feedback on our manuscript. We address each major comment point by point below and will revise the paper accordingly to strengthen the validation of the IMU-based error estimation and the statistical presentation of results.

read point-by-point responses

  1. Referee: [§3.2] §3.2 (IMU forward-propagation error estimation): the claim that IMU-propagated residuals provide an unbiased online estimate of B-spline fitting error is load-bearing for the hybrid voxel-map weighting and re-estimation policy. IMU bias, scale-factor errors, and limited spline bandwidth can produce systematic residuals on high-frequency motion; without explicit bias analysis or sensitivity experiments on rough-terrain sequences, the reported accuracy gains remain unverified.

    Authors: We appreciate the referee's observation on the assumptions underlying the IMU forward-propagation residuals. In our framework, IMU biases are jointly estimated within the optimization state and corrected online, which reduces systematic drift in the propagated residuals. The spline bandwidth is chosen to balance computational cost and motion fidelity based on typical LiDAR rates. Nevertheless, we agree that an explicit sensitivity study would better substantiate the unbiased claim under high-frequency or rough-terrain conditions. In the revised manuscript we will add a dedicated subsection with bias-perturbation experiments and results on additional rough-terrain sequences, reporting accuracy with and without bias correction to quantify robustness. revision: yes

  2. Referee: [Experiments] Experiments section, Table/Figure of per-sequence results: the superiority claim is stated for 'most sequences' but lacks reported standard deviations, full ablation tables with numerical deltas, or controls for post-hoc dataset selection. This weakens the statistical support for the central performance assertion.

    Authors: We agree that stronger statistical reporting would improve the presentation. The current results use standard public benchmarks and report all sequences without omission, yet we acknowledge the value of standard deviations and explicit numerical deltas. In the revision we will expand the Experiments section to include standard deviations (computed over repeated runs where feasible), full ablation tables showing per-module accuracy and runtime deltas, and a brief clarification on dataset usage confirming that no post-hoc selection occurred. These additions will directly support the superiority claims with transparent quantitative evidence. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained

full rationale

The paper introduces a Lie-group representation for B-spline control-point increments, derives compact Jacobians from the cumulative B-spline form, and treats IMU forward propagation for online fitting-error estimation as an independent module feeding a hybrid voxel-map policy and re-estimation rule. These steps are presented as design choices whose performance is assessed on external public datasets. No equation reduces a claimed improvement to a quantity defined by the same fitted parameters, no load-bearing premise rests solely on self-citation, and no uniqueness theorem is imported from prior author work to force the formulation. The central accuracy claims therefore rest on empirical comparison rather than tautological re-labeling of inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The method rests on standard Lie-group properties for B-spline cumulative form and conventional IMU integration assumptions; no new physical entities are introduced. Free parameters such as voxel resolution thresholds and feature-probability cutoffs are implied but not quantified in the abstract.

free parameters (1)
  • voxel resolution and probability thresholds
    Adaptive voxel map management requires choosing or tuning resolution and probability cutoffs that affect feature retention and map density.
axioms (2)
  • domain assumption B-spline cumulative form allows compact Jacobian derivation without boundary conditions
    Invoked when representing control-point increments on Lie groups.
  • domain assumption IMU forward propagation provides unbiased estimates of spline fitting error
    Central to the hybrid error-correction step.
