Input Matrix Optimization for Desired Reachable Set Warping of Linear Systems

Hrishav Das , Melkior Ornik

Authors on Pith no claims yet

Pith reviewed 2026-05-13 16:41 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.OC

keywords reachable setsinput matrix optimizationlinear systemslinear programmingcontrol designreachable set warpingADMIRE modeldamped oscillator

0 comments

The pith

For linear systems under standard assumptions, selecting the input matrix to maximize reachable set warping along a direction reduces to a finite number of linear optimization problems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses the problem of choosing an input matrix for a linear dynamical system so that its reachable set is warped as far as possible in a chosen direction. The central result shows that, when the system dynamics meet certain conditions, this optimization task simplifies exactly to solving a small collection of linear programs. This makes the design problem computationally straightforward rather than requiring general nonlinear search. The same procedure is shown to produce useful results even when the assumptions are relaxed, as demonstrated on an aircraft model and a damped oscillator.

Core claim

The main result establishes that under certain assumptions on the dynamics, the problem of selecting the optimal input matrix for desired reachable set warping reduces to a finite number of linear optimization problems. When these assumptions are relaxed, the same approach yields good results heuristically. The results are validated on a linearized ADMIRE fighter jet model and a damped oscillator with complex eigenvalues.

What carries the argument

The reduction of the input-matrix warping problem to a finite set of linear programs, which works by exploiting the structure of the reachable set under linear dynamics.

If this is right

The optimal input matrix can be recovered using standard linear-programming solvers without nonlinear search.
Reachable-set shaping becomes practical for systems whose dynamics fit the stated assumptions, such as the linearized ADMIRE aircraft model.
The same linear-program sequence remains effective for systems with complex eigenvalues even when the strict assumptions are dropped.
Warping the reachable set along a direction of interest can be used directly to improve performance or safety margins in control design.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The reduction technique could be applied to discrete-time or sampled-data linear systems with only minor changes to the reachable-set description.
Similar input-matrix optimization might be useful for guaranteeing that reachable sets avoid forbidden regions in safety-critical applications.
The method provides a concrete starting point for extending reachable-set warping ideas to uncertain or switched linear systems.
Combining the warping objective with secondary goals such as input-energy minimization would be a natural next computational step.

Load-bearing premise

The linear system dynamics must satisfy the conditions that allow the reachable-set warping objective to be expressed exactly as a finite collection of linear programs.

What would settle it

Solve the proposed linear programs for a concrete system that meets the assumptions, then compare the resulting warping value against the true maximum obtained by direct nonlinear optimization or exhaustive search over the input matrix; any significant gap falsifies the exact-reduction claim.

Figures

Figures reproduced from arXiv: 2604.04165 by Hrishav Das, Melkior Ornik.

**Figure 2.** Figure 2: Growth along p direction (d = [1, 0, 0]⊤). Red: nominal RB. Green: optimized RB∗ . B. System with Imaginary Eigenvalues of A We next examine a stable damped oscillator. The system matrix A has complex eigenvalues, so Theorem 1 does not apply and optimality of B∗ is not guaranteed; what is guaran- [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 5.** Figure 5: Reachable set growth for the damped oscillator with complex [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

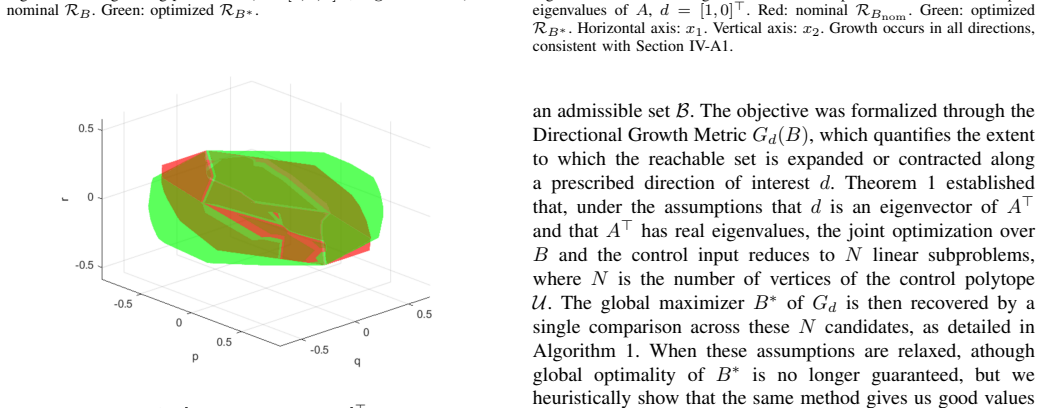

**Figure 4.** Figure 4: Growth along d = [0.3536, 0.6124, 0.7071]⊤ (approximately equal pitch and yaw weighting). Red: nominal RB. Green: optimized RB∗ . teed, per Proposition IV-A1, is multi-directional growth. The two inputs act independently on velocity and position: A = 0 1 −2 −0.8 , Bnom = 0 1 1 0 , x ∈ R 2 . The control set is U = [−1, 1]2 . The admissible set is B = M ∈ R 2×2 : ∥M − Bnom∥F ≤ 0.5 [PITH_FULL_IMAGE:… view at source ↗

read the original abstract

Shaping the reachable set of a dynamical system is a fundamental challenge in control design, with direct implications for both performance and safety. This paper considers the problem of selecting the optimal input matrix for a linear system that maximizes warping of the reachable set along a direction of interest. The main result establishes that under certain assumptions on the dynamics, the problem reduces to a finite number of linear optimization problems. When these assumptions are relaxed, we show heuristically that the same approach yields good results. The results are validated on two systems: a linearized ADMIRE fighter jet model and a damped oscillator with complex eigenvalues. The paper concludes with a discussion of future directions for reachable set warping research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Reduces input-matrix optimization for reachable-set warping to linear programs under vague assumptions, with an unanalyzed heuristic for general cases.

read the letter

The paper reduces the problem of optimizing the input matrix to warp a linear system's reachable set along a chosen direction to a finite number of linear programs, provided some assumptions hold on the system dynamics. When those assumptions don't hold, they fall back to a heuristic that still seems to work on their examples. What stands out is the direct computational route. Reducing the optimization to linear programs is a practical step forward for anyone who needs to shape reachable sets for control design. The validation on the ADMIRE fighter jet model and the damped oscillator shows the method can handle both real-world aerospace dynamics and systems with complex eigenvalues. The main weakness is that the assumptions for the exact reduction are never listed explicitly. The abstract mentions they are relaxed for the examples, but without knowing what they are, it's hard to know when the finite-LP claim applies. The heuristic part also lacks any analysis of its accuracy or error bounds, so the 'good results' rest on visual inspection of the two cases rather than quantified performance. No proof details or derivation steps are provided either, which leaves the central claim somewhat opaque. This work is for researchers in reachable-set control and input design for linear systems, particularly those in aerospace or robotics who care about shaping sets for safety or performance. A reader looking for a new algorithm with some numerical backing would find value here. The paper deserves a serious referee. The reduction is a legitimate incremental advance with concrete examples, even if the supporting theory needs tightening. I would recommend sending it out for review rather than desk rejecting it.

Referee Report

2 major / 2 minor

Summary. The paper claims that for linear dynamical systems, selecting the input matrix to maximize warping of the reachable set along a user-specified direction reduces to a finite collection of linear programs under certain (unspecified) assumptions on the dynamics; when those assumptions are relaxed, the same formulation is applied heuristically and is reported to produce good numerical results on a linearized ADMIRE fighter-jet model and a damped oscillator with complex eigenvalues.

Significance. If the reduction to linear programs can be made rigorous, the work supplies a computationally tractable method for input-matrix design that directly shapes reachable-set geometry, with clear relevance to performance and safety specifications in aerospace and other control applications. The concrete validation on two distinct linear models is a positive feature.

major comments (2)

[Main Result / Theorem] The central theorem (presumably §3 or §4) asserts a reduction to a finite number of linear programs but never enumerates the precise assumptions on A, B, or the input set that make the reduction valid. The abstract itself notes that these assumptions are relaxed for the two numerical examples, leaving the scope of the headline result unclear.
[Numerical Examples] In the validation sections for the ADMIRE model and the complex-eigenvalue oscillator, the heuristic is presented without any error bound, convergence argument, or a posteriori certificate that would quantify how far the obtained warping deviates from the true optimum.

minor comments (2)

[Notation] Notation for the reachable-set warping objective and the decision variables in the linear programs should be introduced once and used consistently; several symbols appear to be redefined across sections.
[Abstract / Introduction] The abstract and introduction would benefit from a single sentence that lists the key assumptions (e.g., real eigenvalues, diagonalizability, polytopic input set) even if they are later relaxed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments. We address each major comment below and will revise the manuscript to improve clarity on the theorem assumptions and the presentation of the heuristic examples.

read point-by-point responses

Referee: [Main Result / Theorem] The central theorem (presumably §3 or §4) asserts a reduction to a finite number of linear programs but never enumerates the precise assumptions on A, B, or the input set that make the reduction valid. The abstract itself notes that these assumptions are relaxed for the two numerical examples, leaving the scope of the headline result unclear.

Authors: We agree that the assumptions require explicit enumeration. The reduction to linear programs holds when A is diagonalizable over the reals with distinct eigenvalues, the input set is the infinity-norm unit ball, and B is unconstrained in its column space. These conditions are derived in the proof of the main theorem but were not listed verbatim in the theorem statement or abstract. In the revision we will add a dedicated assumption paragraph immediately preceding the theorem, update the abstract to state the conditions under which the finite-LP reduction is rigorous, and explicitly note that the numerical examples relax these conditions and are therefore heuristic. revision: yes
Referee: [Numerical Examples] In the validation sections for the ADMIRE model and the complex-eigenvalue oscillator, the heuristic is presented without any error bound, convergence argument, or a posteriori certificate that would quantify how far the obtained warping deviates from the true optimum.

Authors: We acknowledge that no error bounds or certificates are supplied for the heuristic cases. When the assumptions (real distinct eigenvalues, etc.) are relaxed, the underlying optimization ceases to be convex and the finite-LP reduction no longer applies; deriving a priori or a posteriori guarantees would require an entirely separate analysis that lies outside the scope of the present work. In the revision we will expand the discussion of the heuristic to explain the loss of convexity, report the observed numerical behavior more quantitatively (e.g., reachable-set volume ratios), and add a forward-looking remark on the need for approximation theory in future research. revision: partial

Circularity Check

0 steps flagged

No significant circularity; reduction to finite LPs is a standard mathematical claim under stated assumptions

full rationale

The paper's central result is a claimed reduction of the input-matrix optimization problem to a finite number of linear programs under certain (unspecified in abstract) assumptions on the system dynamics. No quoted equations or steps in the provided text show self-definitional constructs, fitted parameters renamed as predictions, or load-bearing self-citations that render the result equivalent to its inputs by construction. The heuristic extension for relaxed assumptions is explicitly labeled as such rather than presented as a rigorous prediction. The derivation therefore remains self-contained against external linear-programming techniques and reachable-set theory, warranting a score of 0.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on unspecified assumptions about the system dynamics that enable the reduction to linear programs; no free parameters or invented entities are mentioned in the abstract.

axioms (1)

domain assumption The linear system dynamics satisfy certain (unspecified) assumptions that allow reduction of the input-matrix optimization to a finite number of linear programs.
Invoked to obtain the main theoretical result; without these assumptions the problem is only solved heuristically.

pith-pipeline@v0.9.0 · 5413 in / 1224 out tokens · 63385 ms · 2026-05-13T16:41:36.544187+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Theorem 1: under Assumptions 1–2 (A has real eigenvalues; d eigenvector of A⊤), B∗ reduces to N linear optimizations over vertices of U via PMP Hamiltonian maximization at t=0
IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Algorithm 1: compute P0=exp(A⊤T)d, solve argmaxB P0⊤Bui for each vertex ui

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

29 extracted references · 29 canonical work pages

[1]

Set propagation techniques for reachability analysis.Annual Review of Control, Robotics, and Autonomous Systems, 4(V olume 4, 2021):369–395, 2021

Matthias Althoff, Goran Frehse, and Antoine Girard. Set propagation techniques for reachability analysis.Annual Review of Control, Robotics, and Autonomous Systems, 4(V olume 4, 2021):369–395, 2021

work page 2021
[2]

Hamilton- jacobi reachability: A brief overview and recent advances

Somil Bansal, Mo Chen, Sylvia Herbert, and Claire J Tomlin. Hamilton- jacobi reachability: A brief overview and recent advances. In2017 IEEE 56th annual conference on decision and control (CDC), pages 2242–

work page
[3]

A time- dependent hamilton-jacobi formulation of reachable sets for continuous dynamic games.IEEE Transactions on automatic control, 50(7):947– 957, 2005

Ian M Mitchell, Alexandre M Bayen, and Claire J Tomlin. A time- dependent hamilton-jacobi formulation of reachable sets for continuous dynamic games.IEEE Transactions on automatic control, 50(7):947– 957, 2005

work page 2005
[4]

Reachability analysis of uncertain nonlinear systems using guaranteed set integration

Nacim Ramdani, Nacim Meslem, and Yves Candau. Reachability analysis of uncertain nonlinear systems using guaranteed set integration. IFAC Proceedings Volumes, 41(2):8972–8977, 2008

work page 2008
[5]

Verification of annotated models from executions

Parasara Sridhar Duggirala, Sayan Mitra, and Mahesh Viswanathan. Verification of annotated models from executions. In2013 Proceedings of the International Conference on Embedded Software (EMSOFT), pages 1–10. IEEE, 2013

work page 2013
[6]

Locally optimal reach set over-approximation for nonlinear systems

Chuchu Fan, James Kapinski, Xiaoqing Jin, and Sayan Mitra. Locally optimal reach set over-approximation for nonlinear systems. InPro- ceedings of the 13th International Conference on Embedded Software, pages 1–10, 2016

work page 2016
[7]

Chapter one - differential inclusions

Stanislaw Raczynski. Chapter one - differential inclusions. In Stanislaw Raczynski, editor,Reachable Sets of Dynamic Systems, Uncertainty, Computational Techniques and Decision Intelligence, pages 1–30. Aca- demic Press, 2023

work page 2023
[8]

Chapter two - differential inclusion solver

Stanislaw Raczynski. Chapter two - differential inclusion solver. In Stanislaw Raczynski, editor,Reachable Sets of Dynamic Systems, Uncertainty, Computational Techniques and Decision Intelligence, pages 31–51. Academic Press, 2023

work page 2023
[9]

Sym- bolic models for nonlinear control systems without stability assumptions

Majid Zamani, Giordano Pola, Manuel Mazo, and Paulo Tabuada. Sym- bolic models for nonlinear control systems without stability assumptions. IEEE Transactions on Automatic Control, 57(7):1804–1809, 2011

work page 2011
[10]

Guaranteeing constraints of disturbed nonlinear systems using set-based optimal control in generator space.IFAC-PapersOnLine, 50(1):11515–11522, 2017

Bastian Sch ¨urmann and Matthias Althoff. Guaranteeing constraints of disturbed nonlinear systems using set-based optimal control in generator space.IFAC-PapersOnLine, 50(1):11515–11522, 2017

work page 2017
[11]

A review of safe reinforcement learning: Methods, theories, and applications.IEEE Transactions on Pattern Analysis and Machine Intelligence, 46(12):11216–11235, 2024

Shangding Gu, Long Yang, Yali Du, Guang Chen, Florian Walter, Jun Wang, and Alois Knoll. A review of safe reinforcement learning: Methods, theories, and applications.IEEE Transactions on Pattern Analysis and Machine Intelligence, 46(12):11216–11235, 2024

work page 2024
[12]

Reachability constrained reinforcement learning

Dongjie Yu, Haitong Ma, Shengbo Li, and Jianyu Chen. Reachability constrained reinforcement learning. InInternational conference on machine learning, pages 25636–25655. PMLR, 2022

work page 2022
[13]

Provably-safe neural network training using hybrid zonotope reachability analysis

Long Kiu Chung and Shreyas Kousik. Provably-safe neural network training using hybrid zonotope reachability analysis. In2025 IEEE 64th Conference on Decision and Control (CDC), pages 7030–7037. IEEE, 2025

work page 2025
[14]

Robust mpc of constrained discrete-time nonlinear systems based on approxi- mated reachable sets.Automatica, 42(10):1745–1751, 2006

Jos ´e Manuel Bravo, Teodoro Alamo, and Eduardo F Camacho. Robust mpc of constrained discrete-time nonlinear systems based on approxi- mated reachable sets.Automatica, 42(10):1745–1751, 2006

work page 2006
[15]

Scalable robust model predictive control for linear sampled-data systems

Felix Gruber and Matthias Althoff. Scalable robust model predictive control for linear sampled-data systems. In2019 IEEE 58th Conference on Decision and Control (CDC), pages 438–444. IEEE, 2019

work page 2019
[16]

Optimization of the reachable set of a linear system with respect to another set

Maxim Viktorovich Balashov and Rinat A Kamalov. Optimization of the reachable set of a linear system with respect to another set. Computational Mathematics and Mathematical Physics, 63(5):751–770, 2023

work page 2023
[17]

Yuchen Zhou and John S. Baras. Reachable set approach to collision avoidance for uavs. In2015 54th IEEE Conference on Decision and Control (CDC), pages 5947–5952, 2015

work page 2015
[18]

Yuchen Zhou, Aneesh Raghavan, and John S. Baras. Time varying control set design for uav collision avoidance using reachable tubes. In2016 IEEE 55th Conference on Decision and Control (CDC), pages 6857–6862, 2016

work page 2016
[19]

Scheduling of control nodes for improved network controllability

Yingbo Zhao, Fabio Pasqualetti, and Jorge Cort ´es. Scheduling of control nodes for improved network controllability. In2016 IEEE 55th Conference on Decision and Control (CDC), pages 1859–1864. IEEE, 2016

work page 2016
[20]

Minimal actuator placement with bounds on control effort.IEEE Transactions on Control of Network Systems, 3(1):67–78, 2015

Vasileios Tzoumas, Mohammad Amin Rahimian, George J Pappas, and Ali Jadbabaie. Minimal actuator placement with bounds on control effort.IEEE Transactions on Control of Network Systems, 3(1):67–78, 2015

work page 2015
[21]

Actuator placement based on reachable set optimization for expected disturbance.Journal of optimization theory and applications, 90(2):279–300, 1996

J Redmond and G Parker. Actuator placement based on reachable set optimization for expected disturbance.Journal of optimization theory and applications, 90(2):279–300, 1996

work page 1996
[22]

A set-based approach for robust control co-design

Trevor J Bird, Jacob A Siefert, Herschel C Pangborn, and Neera Jain. A set-based approach for robust control co-design. In2024 American Control Conference (ACC), pages 2564–2571. IEEE, 2024

work page 2024
[23]

Routledge, 2018

Lev Semenovich Pontryagin.Mathematical theory of optimal processes. Routledge, 2018

work page 2018
[24]

Foundations of optimal control theory.(No Title), 1967

Ernest Bruce Lee and Lawrence Markus. Foundations of optimal control theory.(No Title), 1967

work page 1967
[25]

Local homeo-and diffeomor- phisms: invertibility and convex image.Bulletin of the Australian Mathematical Society, 49(3):377–398, 1994

Gaetano Zampieri and Gianluca Gorni. Local homeo-and diffeomor- phisms: invertibility and convex image.Bulletin of the Australian Mathematical Society, 49(3):377–398, 1994

work page 1994
[26]

Convexity of the reachable set of nonlinear systems under l˜ 2 bounded controls.DYNAMICS OF CONTINUOUS DISCRETE AND IMPULSIVE SYSTEMS SERIES A, 11:255–268, 2004

B Polyak. Convexity of the reachable set of nonlinear systems under l˜ 2 bounded controls.DYNAMICS OF CONTINUOUS DISCRETE AND IMPULSIVE SYSTEMS SERIES A, 11:255–268, 2004

work page 2004
[27]

Convexity of reachable sets of nonlinear ordinary differential equations.Autom

G Reißig. Convexity of reachable sets of nonlinear ordinary differential equations.Autom. Remote Control, 68(9):1527–1543, September 2007

work page 2007
[28]

Ziegler.Lectures on Polytopes, volume 152 ofGraduate Texts in Mathematics

G ¨unter M. Ziegler.Lectures on Polytopes, volume 152 ofGraduate Texts in Mathematics. Springer-Verlag, New York, 1995

work page 1995
[29]

Torkel Glad

Ola H ¨arkeg˚ard and S. Torkel Glad. Resolving actuator redun- dancy—optimal control vs. control allocation.Automatica, 41(1):137– 144, 2005

work page 2005
