arxiv: 2604.04339 · v1 · submitted 2026-04-06 · 💻 cs.AI · cs.LG

Thermodynamic-Inspired Explainable GeoAI: Uncovering Regime-Dependent Mechanisms in Heterogeneous Spatial Systems

Sooyoung Lim , Zhenlong Li , Zi-Kui Liu This is my paper

Pith reviewed 2026-05-10 20:13 UTC · model grok-4.3

classification 💻 cs.AI cs.LG
keywords GeoAIexplainable AIspatial heterogeneitythermodynamic modelinggraph neural networksregime transitionswildfire impactsphase transitions
0
0 comments X

The pith

A thermodynamics-inspired GeoAI framework models spatial variability as burden-capacity competition to diagnose regime shifts in heterogeneous systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a new explainable geospatial AI method that draws on thermodynamic ideas to handle spatial heterogeneity where drivers can reverse their effects across different locations or conditions. It treats spatial processes as a competition between system Burden (E) and Capacity (S), then embeds this view in graph neural networks to separate the latent mechanisms at work. Applied to simulations and real datasets on housing markets, mental health, and wildfire air quality, the approach detects when a system enters a burden-dominated regime, such as during the 2023 Canadian wildfires, and separates those physical changes from simple statistical anomalies. A reader would care because the method adds clear mechanistic insight to spatial predictions while keeping competitive accuracy, unlike many current black-box models.

Core claim

By conceptualizing spatial variability as a thermodynamic competition between system Burden (E) and Capacity (S) and integrating statistical mechanics with graph neural networks, the framework disentangles the latent mechanisms driving spatial processes, identifies regime-dependent role reversals of predictors missed by standard baselines, and explicitly diagnoses the phase transition into a Burden-dominated regime during the 2023 Canadian wildfire event, distinguishing physical mechanism shifts from statistical outliers.

What carries the argument

The thermodynamic competition between system Burden (E) and Capacity (S) integrated with graph neural networks, which disentangles latent mechanisms and reveals regime-dependent predictor role reversals in heterogeneous spatial domains.

If this is right

  • The framework identifies regime-dependent role reversals of predictors that conventional GWR and deep learning models miss across simulation and real-world data.
  • It diagnoses phase transitions into Burden-dominated regimes in events such as the 2023 Canadian wildfires.
  • The model distinguishes physical mechanism shifts from statistical outliers while preserving strong predictive performance.
  • It applies across domains including housing markets, mental health prevalence, and environmental anomalies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending the burden-capacity framing to urban planning or ecosystem monitoring could highlight similar hidden transitions before they appear as outliers.
  • Environmental agencies might track these thermodynamic indicators to anticipate when spatial drivers change functional roles during extreme events.
  • Testing the approach on additional longitudinal spatial datasets could clarify how well the phase-transition detection holds in non-wildfire contexts.

Load-bearing premise

Conceptualizing spatial variability in heterogeneous domains as a thermodynamic competition between system burden and capacity accurately captures and disentangles the latent mechanisms.

What would settle it

Applying the framework to the 2023 Canadian wildfire PM2.5 data yields no detected shift to a Burden-dominated regime that matches independent physical observations of the event, or it flags known statistical outliers as mechanism changes instead.

Figures

Figures reproduced from arXiv: 2604.04339 by Sooyoung Lim, Zhenlong Li, Zi-Kui Liu.

Figure 1
Figure 1. Figure 1: ZeGNN architecture and thermodynamic outputs: (a): Spatial inputs and covariates defined over the study domain. (b): Construction of the spatial k-nearest-neighbor graph used to encode local spatial dependence. (c): Graph-aware spatial context, illustrating how neighborhood structure is overlaid on the study domain to propagate local information during gating. (d): ZeGNN model architecture, showing the reg… view at source ↗
Figure 2

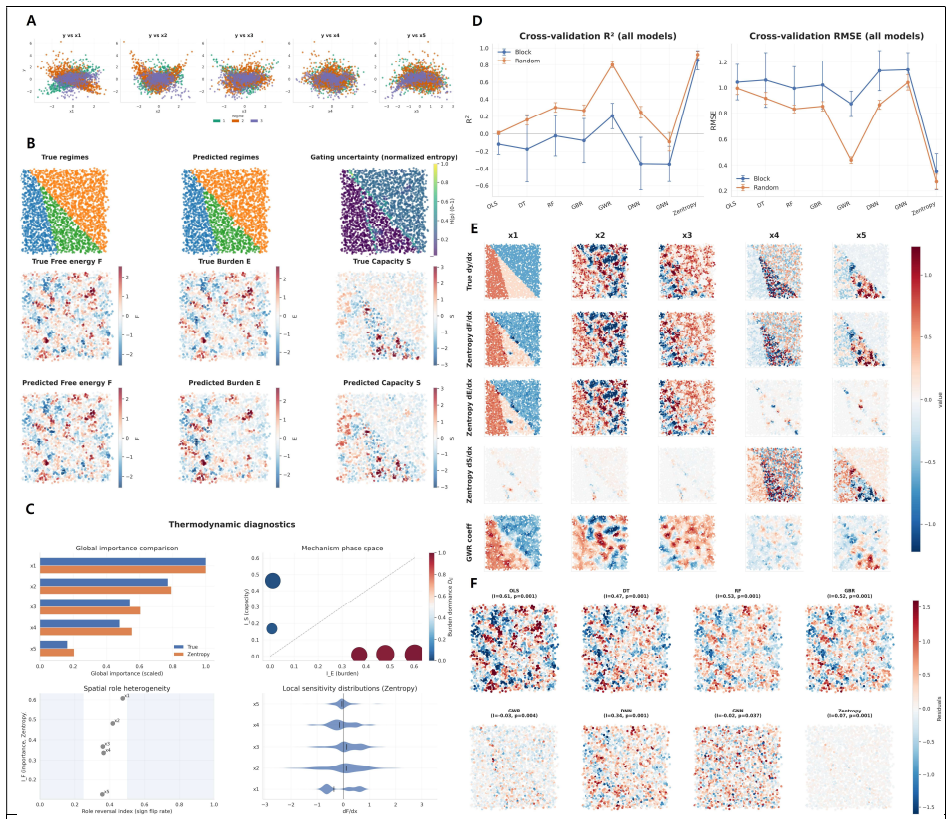

Figure 2. Figure 2: Synthetic validation of thermodynamic decomposition, regime identification, and spatial generalization [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Predictive performance, generalization gap, and residual spatial autocorrelation across three domains. [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
read the original abstract

Modeling spatial heterogeneity and associated critical transitions remains a fundamental challenge in geography and environmental science. While conventional Geographically Weighted Regression (GWR) and deep learning models have improved predictive skill, they often fail to elucidate state-dependent nonlinearities where the functional roles of drivers represent opposing effects across heterogeneous domains. We introduce a thermodynamics-inspired explainable geospatial AI framework that integrates statistical mechanics with graph neural networks. By conceptualizing spatial variability as a thermodynamic competition between system Burden (E) and Capacity (S), our model disentangles the latent mechanisms driving spatial processes. Using three simulation datasets and three real-word datasets across distinct domains (housing markets, mental health prevalence, and wildfire-induced PM2.5 anomalies), we show that the new framework successfully identifies regime-dependent role reversals of predictors that standard baselines miss. Notably, the framework explicitly diagnoses the phase transition into a Burden-dominated regime during the 2023 Canadian wildfire event, distinguishing physical mechanism shifts from statistical outliers. These findings demonstrate that thermodynamic constraints can improve the interpretability of GeoAI while preserving strong predictive performance in complex spatial systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper introduces a thermodynamics-inspired explainable GeoAI framework that integrates statistical mechanics with graph neural networks. It conceptualizes spatial heterogeneity as a competition between system Burden (E) and Capacity (S) to disentangle latent mechanisms, identify regime-dependent predictor role reversals, and diagnose phase transitions. Claims are supported by results on three simulation datasets and three real-world datasets (housing markets, mental health prevalence, and 2023 Canadian wildfire PM2.5 anomalies), where the model detects shifts missed by GWR and deep learning baselines, including an explicit E/S ratio crossing tied to the wildfire event.

Significance. If the results hold, the work offers a novel interpretable lens for GeoAI that leverages thermodynamic analogies to uncover genuine mechanism shifts rather than statistical artifacts in heterogeneous spatial systems. Strengths include consistent empirical findings across simulation and real datasets, explicit predictor importance trajectories for role reversals, and ablation checks against null models for the wildfire phase transition. This could advance explainability in geospatial modeling while maintaining predictive performance, provided the framing avoids circularity.

minor comments (3)
  1. [Abstract] Abstract: 'real-word' is a typo and should read 'real-world'.
  2. [§3] §3 (Methods): The introduction of Burden (E) and Capacity (S) would benefit from an expanded physical analogy and explicit formulas early in the section to improve accessibility for readers new to the thermodynamic framing.
  3. [§5] §5 (Results): Ensure all performance metrics, error analyses, and ablation details for the six datasets are presented in a single consolidated table for easier comparison with baselines.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and insightful review, which recognizes the potential of our thermodynamics-inspired GeoAI framework to uncover genuine mechanism shifts in heterogeneous spatial systems. We appreciate the recommendation for minor revision and the emphasis on maintaining interpretability without circularity in the thermodynamic analogies. Since no specific major comments were raised, we provide a brief overall response below.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The framework defines Burden (E) and Capacity (S) as conceptual thermodynamic quantities to model spatial heterogeneity, then applies GNN-based inference to detect regime shifts via explicit predictor importance trajectories and E/S ratio crossings. These detections are validated against null models, ablations, and baselines on independent simulation and real-world datasets (housing, mental health, wildfire PM2.5). No load-bearing step reduces by construction to fitted inputs, self-citations, or ansatz smuggling; the phase-transition diagnosis is empirically falsifiable and not equivalent to the input framing by definition.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 2 invented entities

The central claim rests on applying thermodynamic concepts to spatial AI, introducing new entities and domain assumptions with no independent evidence provided in the abstract.

free parameters (1)
  • Burden and Capacity scaling parameters
    The model likely requires fitted parameters to quantify E and S from spatial data to enable regime identification.
axioms (1)
  • domain assumption Spatial heterogeneity arises from thermodynamic competition between system burden and capacity
    This is the foundational premise used to disentangle latent mechanisms in the framework.
invented entities (2)
  • System Burden (E) no independent evidence
    purpose: To represent constraining or stressful factors in spatial processes
    New conceptual entity introduced to model regime-dependent effects.
  • System Capacity (S) no independent evidence
    purpose: To represent enabling or resilient factors in spatial processes
    Paired with Burden to diagnose phase transitions and role reversals.

pith-pipeline@v0.9.0 · 5493 in / 1441 out tokens · 45922 ms · 2026-05-10T20:13:46.388353+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

8 extracted references · 8 canonical work pages · 1 internal anchor

  1. [1]

    Adadi, A., & Berrada, M. (2018). Peeking inside the black-box: a survey on explainable artificial intelligence (XAI). IEEE Access, 6, 52138-52160. Adebayo, J., Gilmer, J., Muelly, M., Goodfellow, I., Hardt, M., & Kim, B. (2018). Sanity checks for saliency maps. Advances in Neural Information Processing Systems,

    work page 2018

  2. [2]

    Adger, W. N. (2006). Vulnerability. Global Environmental Change, 16(3), 268-281. Akaike, H. (2003). A new look at the statistical model identification. IEEE Transactions on Automatic Control, 19(6), 716-723. Andronache, C. (2004). Estimated variability of below-cloud aerosol removal by rainfall for observed aerosol size distributions. Atmospheric Chemistr...

    work page 2006

  3. [3]

    P., & Gelfand, A

    Banerjee, S., Carlin, B. P., & Gelfand, A. E. (2003). Hierarchical Modeling and Analysis for Spatial Data. Chapman and Hall/CRC. Barton, J., & Rogerson, M. (2017). The importance of greenspace for mental health. BJPsych International, 14(4), 79-81. Bezdek, J. C. (2013). Pattern Recognition with Fuzzy Objective Function Algorithms. Springer Science & Busin...

    work page 2003

  4. [4]

    L., Boruff, B

    Cutter, S. L., Boruff, B. J., & Shirley, W. L. (2012). Social vulnerability to environmental hazards. In Hazards Vulnerability and Environmental Justice (pp. 115-132). Routledge. Dakos, V., Carpenter, S. R., Brock, W. A., Ellison, A. M., Guttal, V., Ives, A. R., ... & Scheffer, M. (2012). Methods for detecting early warnings of critical transitions in tim...

    work page 2012

  5. [5]

    De Sabbata, S., & Liu, P. (2023). A graph neural network framework for spatial geodemographic classification. International Journal of Geographical Information Science, 37(12), 2464-2486. Fotheringham, A. S., Brunsdon, C., & Charlton, M. (2009). Geographically weighted regression. The Sage Handbook of Spatial Analysis, 1, 243-254. Fotheringham, A. S., Cre...

    work page 2023

  6. [6]

    Janowicz, K., Gao, S., McKenzie, G., Hu, Y., & Bhaduri, B. (2020). GeoAI: spatially explicit artificial intelligence techniques for geographic knowledge discovery and beyond. International Journal of Geographical Information Science, 34(4), 625-636. Jemeļjanova, M., Kmoch, A., & Uuemaa, E. (2024). Adapting machine learning for environmental spatial data- ...

    work page internal anchor Pith review Pith/arXiv arXiv 2020

  7. [7]

    Marmot, M. (2005). Social determinants of health inequalities. The Lancet, 365(9464), 1099-1104. Miao, Y., Hu, X. M., Liu, S., Qian, T., Xue, M., Zheng, Y., & Wang, S. (2015). Seasonal variation of local atmospheric circulations and boundary layer structure in the Beijing‐Tianjin‐Hebei region and implications for air quality. Journal of Advances in Modeli...

    work page 2005

  8. [8]

    Why should i trust you?

    Reichstein, M., Camps-Valls, G., Stevens, B., Jung, M., Denzler, J., Carvalhais, N., & Prabhat, F. (2019). Deep learning and process understanding for data-driven Earth system science. Nature, 566(7743), 195-204. Ribeiro, M. T., Singh, S., & Guestrin, C. (2016, August). "Why should i trust you?" Explaining the predictions of any classifier. In Proceedings...

    work page 2019
