Ion-Containing Bottlebrush Elastomers as Pressure-Sensitive Electroadhesives

Hao Dong , Intanon Lapkriengkri , Nadia Chapple , Hyunki Yeo , Alexandra Zele , Hiba Wakidi , Thuc-Quyen Nguyen , Michael L. Chabinyc
show 2 more authors
Christopher M. Bates Megan T. Valentine
This is my paper

Pith reviewed 2026-05-10 18:33 UTC · model grok-4.3

classification ❄️ cond-mat.soft cond-mat.mtrl-sci
keywords bottlebrush polymerselectroadhesivesion migrationpressure-sensitive adhesiveselastomerslow-voltage adhesionelectrostatic attraction
0
0 comments X

The pith

Ion-containing bottlebrush elastomers function as low-voltage pressure-sensitive electroadhesives by using mobile ion migration to create electrostatic attraction at the interface.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper designs two oppositely charged bottlebrush polymers that form soft elastomers upon crosslinking. When placed in contact, their mobile counterions keep the interface locally neutral. Applying less than 2 volts drives the ions to the electrodes, forming a heterojunction that generates strong electrostatic forces and increases adhesion by a factor of more than 4.5. This approach merges the reversible switching of electroadhesives with the conformable, pressure-sensitive mechanics of conventional adhesives while operating at low charge densities.

Core claim

Two complementary bottlebrush polymers bearing pendant flexible side chains and independently tunable anionic or cationic groups were designed to form soft and tough elastomers after crosslinking. When the two oppositely charged bottlebrush networks were brought into contact, a smooth, continuous interface formed, which is locally charge neutral due to the presence of mobile counterions. At low voltages (less than 2 V), mobile ions migrate toward the electrodes, creating an interfacial heterojunction and significant electrostatic attraction that enhances adhesion, yielding an on/off ratio of up to more than 4.5.

What carries the argument

Oppositely charged bottlebrush networks with mobile counterions that enable ion migration to form an interfacial heterojunction under low voltage.

If this is right

  • The materials combine on-demand reversibility of electroadhesives with tunable conformability of pressure-sensitive adhesives.
  • Operation at voltages below 2 V and charge densities as low as 18 C/g supports use in soft robots, haptic devices, and biomedical devices.
  • The PSA-like mechanics allow adhesion enhancement even without high charge density.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the ion migration can be precisely controlled, similar designs might extend to other soft matter systems for tunable adhesion.
  • Testing long-term cycling stability could reveal whether repeated ion movement degrades the elastomer over time.
  • The low voltage requirement might allow integration with flexible electronics without external power sources.

Load-bearing premise

The two oppositely charged bottlebrush networks form a smooth, continuous interface that remains locally charge neutral due to mobile counterions, allowing controlled ion migration without significant leakage or degradation.

What would settle it

Measuring the adhesion force before and after applying less than 2 V across the interface and confirming the on/off ratio exceeds 4.5 without observing irreversible changes or high current leakage would support the claim; failure to see reversible enhancement would falsify it.

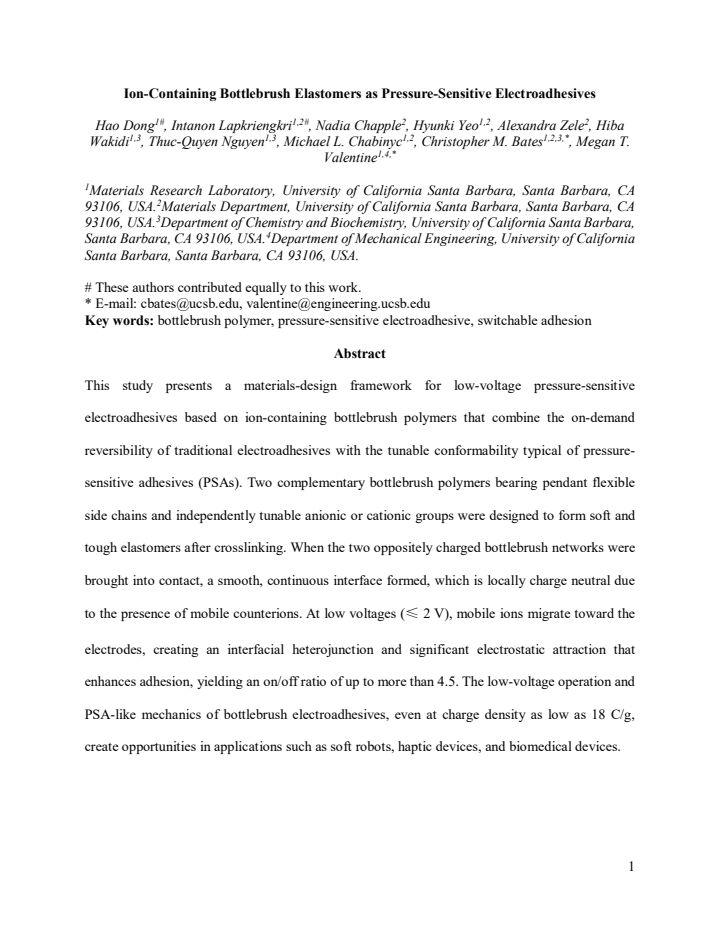

read the original abstract

This study presents a materials-design framework for low-voltage pressure-sensitive electroadhesives based on ion-containing bottlebrush polymers that combine the on-demand reversibility of traditional electroadhesives with the tunable conformability typical of pressure-sensitive adhesives (PSAs). Two complementary bottlebrush polymers bearing pendant flexible side chains and independently tunable anionic or cationic groups were designed to form soft and tough elastomers after crosslinking. When the two oppositely charged bottlebrush networks were brought into contact, a smooth, continuous interface formed, which is locally charge neutral due to the presence of mobile counterions. At low voltages (less than 2 V), mobile ions migrate toward the electrodes, creating an interfacial heterojunction and significant electrostatic attraction that enhances adhesion, yielding an on/off ratio of up to more than 4.5. The low-voltage operation and PSA-like mechanics of bottlebrush electroadhesives, even at charge density as low as 18 C/g, create opportunities in applications such as soft robots, haptic devices, and biomedical devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a materials design framework for low-voltage pressure-sensitive electroadhesives using ion-containing bottlebrush polymers. Two complementary bottlebrush networks with anionic and cationic groups are crosslinked to form soft elastomers. Upon contact, they form a smooth interface that is locally charge neutral due to mobile counterions. Application of voltages less than 2 V drives ion migration to create an interfacial heterojunction, resulting in enhanced electrostatic adhesion with an on/off ratio exceeding 4.5. The approach maintains PSA-like mechanics even at low charge densities of 18 C/g, with potential applications in soft robots, haptic devices, and biomedical devices.

Significance. If the experimental results hold and the mechanism is confirmed to be dominated by electrostatic attraction from ion redistribution rather than other effects, this represents a notable advance in electroadhesive materials. It bridges the gap between traditional high-voltage electroadhesives and conformable pressure-sensitive adhesives, enabling reversible adhesion at voltages compatible with portable electronics and sensitive environments. The use of bottlebrush architecture for tunable properties adds to the design space for soft matter electroadhesives.

major comments (2)
  1. The central claim that mobile ion migration at <2 V forms a stable interfacial heterojunction responsible for the >4.5 on/off adhesion ratio (as stated in the abstract and detailed in the electroadhesion performance results) requires stronger evidence that faradaic reactions, ion pairing, or leakage currents are negligible. The manuscript should include supporting electrochemical data such as current-time transients or impedance spectra over the relevant voltage range to demonstrate capacitive behavior; without this, alternative explanations for the adhesion change cannot be ruled out and the stress-test concern on mechanism validity remains unaddressed.
  2. The claim that the system functions effectively even at charge density as low as 18 C/g is load-bearing for the design principle (abstract and materials characterization section). However, the manuscript lacks direct control experiments or systematic variation of charge density to establish the threshold and isolate its contribution to adhesion enhancement independent of other variables like crosslinking density or side-chain length.
minor comments (2)
  1. The abstract uses 'more than 4.5' for the on/off ratio; reporting the precise maximum value with error bars from replicate measurements would improve precision and allow better assessment of reproducibility.
  2. In the description of interface formation, the assumption of a 'smooth, continuous interface' that is locally charge neutral would benefit from a brief reference to supporting microscopy or surface characterization data to ground the claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments and for recognizing the potential of our ion-containing bottlebrush electroadhesives. We have revised the manuscript to directly address both major concerns by adding the requested electrochemical characterization and systematic charge-density variation data.

read point-by-point responses

  1. Referee: The central claim that mobile ion migration at <2 V forms a stable interfacial heterojunction responsible for the >4.5 on/off adhesion ratio (as stated in the abstract and detailed in the electroadhesion performance results) requires stronger evidence that faradaic reactions, ion pairing, or leakage currents are negligible. The manuscript should include supporting electrochemical data such as current-time transients or impedance spectra over the relevant voltage range to demonstrate capacitive behavior; without this, alternative explanations for the adhesion change cannot be ruled out and the stress-test concern on mechanism validity remains unaddressed.

    Authors: We agree that direct electrochemical evidence is required to confirm the capacitive mechanism. In the revised manuscript we have added current-time transients at 0.5–2 V showing an initial current peak followed by exponential decay to a steady-state current below 0.5 μA cm⁻², consistent with double-layer charging. We have also included impedance spectra (0.1 Hz–100 kHz) at 1 V that fit a simple RC equivalent circuit with high charge-transfer resistance and no detectable Warburg or faradaic elements. These data, now in a new supplementary figure and discussed in the main text, support that ion migration is predominantly capacitive and that faradaic reactions or leakage are negligible under the reported conditions. revision: yes

  2. Referee: The claim that the system functions effectively even at charge density as low as 18 C/g is load-bearing for the design principle (abstract and materials characterization section). However, the manuscript lacks direct control experiments or systematic variation of charge density to establish the threshold and isolate its contribution to adhesion enhancement independent of other variables like crosslinking density or side-chain length.

    Authors: We acknowledge the value of systematic variation. The revised manuscript now includes a new data set for bottlebrush elastomers with charge densities of 18, 25, and 40 C/g prepared at fixed crosslinking density and side-chain length. The on/off adhesion ratios increase from 4.5 to 6.8 with rising charge density while the shear moduli remain in the 10–50 kPa PSA range. These results, presented in a new figure, isolate the contribution of charge density and confirm that the low-voltage electroadhesive effect persists at 18 C/g without requiring changes in network mechanics. revision: yes

Circularity Check

0 steps flagged

No significant circularity; purely experimental demonstration

full rationale

The paper is an experimental materials science study focused on synthesis, crosslinking, and testing of bottlebrush polymer networks for electroadhesion. No mathematical derivations, equations, fitted parameters, or predictive models are present that could reduce to inputs by construction. Claims about ion migration and adhesion enhancement rest on direct experimental measurements (voltage application, adhesion force ratios) rather than self-referential logic or self-citations for uniqueness. The interface neutrality assumption is stated as a design premise but is not used in any load-bearing derivation that loops back to itself. This is a standard non-circular experimental report.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard polymer chemistry assumptions about crosslinking forming elastomers and ion migration under voltage, with no free parameters fitted to data or new entities postulated.

axioms (2)
  • domain assumption Crosslinking of bottlebrush polymers bearing pendant flexible side chains and ionic groups forms soft and tough elastomers.
    Standard assumption in polymer materials science invoked in the abstract description of network formation.
  • domain assumption Mobile counterions allow formation of a locally charge-neutral interface upon contact of oppositely charged networks.
    Based on established behavior of ion-containing polymers as stated in the abstract.
