arxiv: 2604.05877 · v1 · submitted 2026-04-07 · 💻 cs.CV · cs.AI

Automatic dental superimposition of 3D intraorals and 2D photographs for human identification

Antonio D. Villegas-Yeguas , Xavier Abreau-Freire , Guillermo R-Garc\'ia , Andrea Valsecchi , Teresa Pinho , Daniel P\'erez-Mongiovi , Oscar Ib\'a\~nez , Oscar Cord\'on This is my paper

Pith reviewed 2026-05-10 19:28 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords dental identification3D-2D superimpositionforensic odontologycamera pose estimationmorphological comparisonhuman identificationcomputer vision
0
0 comments X

The pith

A 3D-2D superimposition method enables automatic objective dental identification by aligning post-mortem scans to ante-mortem photographs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops two optimization-based techniques to superimpose 3D intraoral scans onto 2D photographs so that dental morphology can be compared automatically. This matters in identification work because many cases lack formal ante-mortem records, making social-media photos the only available images of teeth. One technique pairs landmarks while the other segments the teeth region to estimate camera parameters; both are tested on more than twenty thousand cross-comparisons drawn from 142 samples. The resulting rankings place the correct match at average positions of 1.6 and 1.5, beating chart-based filters and supplying a visual, quantitative score. A sympathetic reader cares because the approach turns an otherwise slow and subjective step into a fast, repeatable computation that can be inspected directly on the overlaid images.

Core claim

By estimating camera parameters through either paired landmarks or teeth-region segmentation, the 3D post-mortem model can be projected to match the viewpoint of an ante-mortem photograph, allowing direct morphological comparison that produces mean ranking positions of 1.6 and 1.5 across 20,164 trials and supplies an objective quantitative score together with the superimposed visualization.

What carries the argument

Camera-parameter optimization that aligns the 3D intraoral scan to the 2D photograph either by landmark pairs or by teeth segmentation so that morphological features can be compared directly.

Load-bearing premise

Real ante-mortem photographs and post-mortem 3D scans contain consistent dental features that the landmark or segmentation optimization can align despite differences in lighting, perspective, camera quality, and dental state.

What would settle it

A collection of real forensic cases in which the correct identity is never ranked among the top five candidates despite successful optimization on controlled data would show that the alignment does not generalize.

Figures

Figures reproduced from arXiv: 2604.05877 by Andrea Valsecchi, Antonio D. Villegas-Yeguas, Daniel P\'erez-Mongiovi, Guillermo R-Garc\'ia, Oscar Cord\'on, Oscar Ib\'a\~nez, Teresa Pinho, Xavier Abreau-Freire.

Figure 1
Figure 1. Figure 1: The three landmark sets proposed. A. First approach: Superimposition using landmarks This proposal is to use the Posest algorithm to solve the P nP + f problem [20], similar to the solution proposed in [15], although in our case we do not have the problem of soft tissue since we are comparing the same bone tissue. With regard to the landmarks to be used, we propose a whole set including landmarks along the… view at source ↗
Figure 2
Figure 2. Figure 2: Examples of occlusion of the upper part (top [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Example of the segmentation for one case. In [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

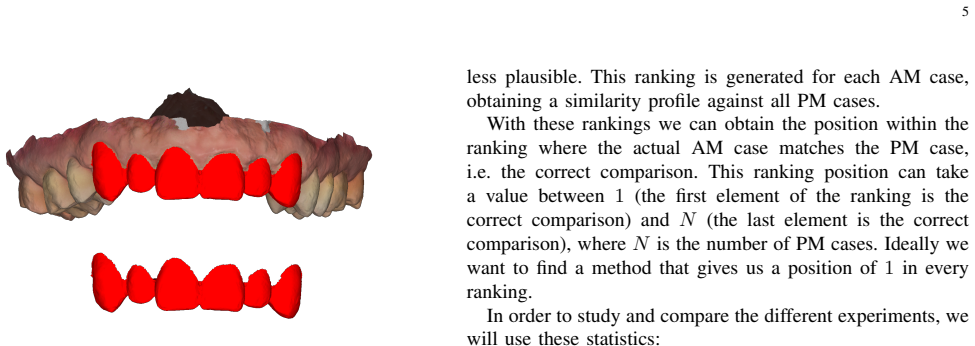

Figure 4. Figure 4: Example of a 3D mesh segmentation. Above the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

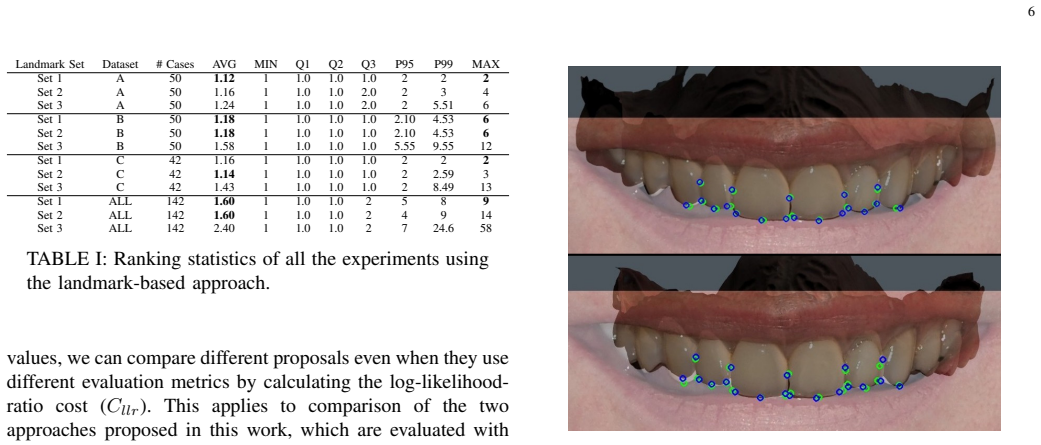

Figure 5. Figure 5: Comparison of the superimposition of the PT0230 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

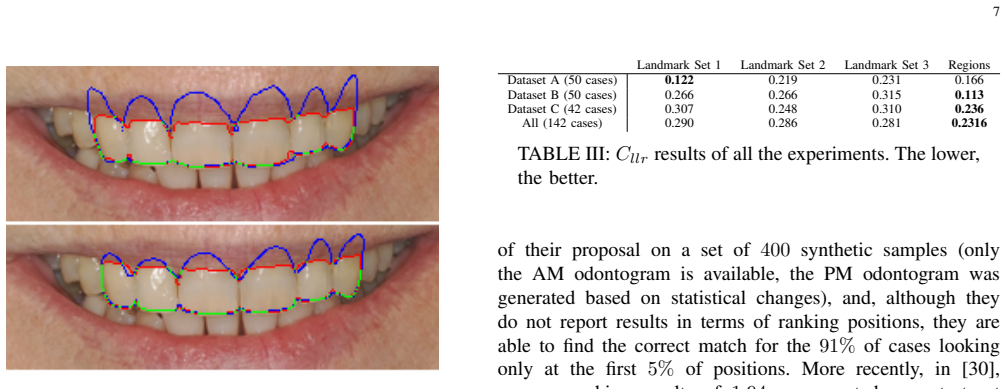

Figure 6. Figure 6: Comparison of the superimposition of the PT0123 [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of the superimposition of the PT0046 [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Example of the PDF for the results of the regions [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

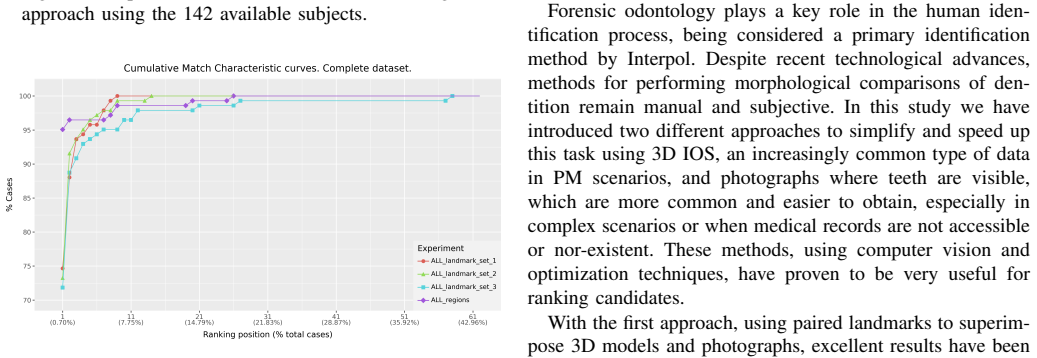

Figure 9. Figure 9: CMC curves for the complete dataset. Note that [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
read the original abstract

Dental comparison is considered a primary identification method, at the level of fingerprints and DNA profiling. One crucial but time-consuming step of this method is the morphological comparison. One of the main challenges to apply this method is the lack of ante-mortem medical records, specially on scenarios such as migrant death at the border and/or in countries where there is no universal healthcare. The availability of photos on social media where teeth are visible has led many odontologists to consider morphological comparison using them. However, state-of-the-art proposals have significant limitations, including the lack of proper modeling of perspective distortion and the absence of objective approaches that quantify morphological differences. Our proposal involves a 3D (post-mortem scan) - 2D (ante-mortem photos) approach. Using computer vision and optimization techniques, we replicate the ante-mortem image with the 3D model to perform the morphological comparison. Two automatic approaches have been developed: i) using paired landmarks and ii) using a segmentation of the teeth region to estimate camera parameters. Both are capable of obtaining very promising results over 20,164 cross comparisons from 142 samples, obtaining mean ranking values of 1.6 and 1.5, respectively. These results clearly outperform filtering capabilities of automatic dental chart comparison approaches, while providing an automatic, objective and quantitative score of the morphological correspondence, easily to interpret and analyze by visualizing superimposed images.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes two optimization-based computer vision methods for 3D-2D dental superimposition to support forensic human identification: one using paired landmarks and one using teeth-region segmentation to recover camera parameters from ante-mortem 2D photographs relative to post-mortem 3D intraoral scans. Both methods are evaluated on 20,164 cross-comparisons drawn from 142 samples, reporting mean ranking values of 1.6 and 1.5 respectively; these are claimed to outperform automatic dental-chart filtering while supplying an objective, visualizable quantitative score of morphological correspondence.

Significance. If the reported rankings prove robust under uncontrolled real-world conditions (lighting, viewpoint, dental state), the work would provide a practical, automated tool that addresses a documented bottleneck in odontological identification, particularly for cases lacking formal medical records. The scale of the cross-comparison experiment and the explicit production of superimposable images are concrete strengths that could be directly useful to practitioners.

major comments (2)
  1. [Abstract] Abstract: The central performance claims (mean ranks of 1.6 and 1.5) are presented without any description of the camera model, optimization objective, loss function, or ranking procedure. This absence prevents assessment of whether the optimizer is recovering accurate poses or merely exploiting dataset-specific regularities.
  2. [Abstract] Abstract / implied Results: The 142-sample test set is not characterized with respect to the very variations (uncontrolled social-media lighting, arbitrary viewpoints, changes in dental state) that the introduction identifies as the core challenge for prior work. Without this information, the low mean ranks demonstrate only that the methods function under matched conditions, not that they solve the stated identification problem.
minor comments (2)
  1. [Abstract] Abstract: 'specially' should be 'especially'; 'easily to interpret' should be 'easy to interpret'.
  2. [Abstract] Abstract: The phrase 'providing an automatic, objective and quantitative score of the morphological correspondence, easily to interpret and analyze by visualizing superimposed images' is grammatically awkward and should be rephrased for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address each major comment below and indicate the revisions we will make to improve the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central performance claims (mean ranks of 1.6 and 1.5) are presented without any description of the camera model, optimization objective, loss function, or ranking procedure. This absence prevents assessment of whether the optimizer is recovering accurate poses or merely exploiting dataset-specific regularities.

    Authors: We agree that the abstract is too concise and omits essential technical context. The manuscript fully specifies the pinhole camera model (including radial distortion), the optimization procedure (gradient-based minimization of either landmark reprojection error or teeth-region overlap), the loss functions, and the ranking method (ordering by final alignment similarity score). To address the concern, we will expand the abstract with a brief description of the optimization-based superimposition and ranking procedure while remaining within length limits. revision: yes

  2. Referee: [Abstract] Abstract / implied Results: The 142-sample test set is not characterized with respect to the very variations (uncontrolled social-media lighting, arbitrary viewpoints, changes in dental state) that the introduction identifies as the core challenge for prior work. Without this information, the low mean ranks demonstrate only that the methods function under matched conditions, not that they solve the stated identification problem.

    Authors: The referee correctly notes that the abstract and results section do not explicitly quantify dataset variation. The 142 samples were collected from real identification cases and include social-media photographs exhibiting natural differences in lighting, viewpoint, and dental state; however, we did not report summary statistics on these factors. We will add a dedicated paragraph in the Experiments section (and reference it from the abstract) that characterizes the observed ranges of viewpoint angles, lighting conditions, and dental variations to substantiate that the evaluation reflects the challenges outlined in the introduction. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical optimization evaluated on held-out comparisons

full rationale

The paper describes two optimization procedures (landmark-pair and teeth-segmentation) that estimate camera parameters to superimpose a post-mortem 3D intraoral scan onto an ante-mortem 2D photograph. Performance is then measured by ranking the correct match among 20,164 cross-comparisons drawn from 142 samples. No derivation step, equation, or claim reduces to a self-definition, a fitted parameter renamed as a prediction, or a load-bearing self-citation chain; the reported mean ranks (1.5–1.6) are direct experimental outcomes rather than algebraic consequences of the method’s own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the method implicitly relies on standard computer vision assumptions such as accurate landmark detection and segmentability of teeth regions, but none are detailed or justified here.
