arxiv: 2604.06453 · v1 · submitted 2026-04-07 · ❄️ cond-mat.str-el · cond-mat.mes-hall· cond-mat.mtrl-sci

Topochemically-engineered coexistence of charge and spin orders in intercalated endotaxial heterostructures

Samra Husremovi\'c , Wanlin Zhang , Medha Dandu , Berit H. Goodge , Isaac M. Craig , Ellis Kennedy , Matthew P. Erodici , Karen C. Bustillo
show 5 more authors
Chengyu Song Jim Ciston Sin\'ead Griffin Archana Raja D. Kwabena Bediako
This is my paper

Pith reviewed 2026-05-10 18:10 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mes-hallcond-mat.mtrl-sci
keywords charge density waveferromagnetismintercalationheterostructurestwo-dimensional materialstantalum disulfidetopochemical synthesisendotaxial
0
0 comments X

The pith

Metastable intercalated heterostructures stabilize long-range magnetism alongside a room-temperature commensurate charge density wave in one material.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that nanoscale endotaxial polytype heterostructures formed by iron intercalation in tantalum disulfide can host both ferromagnetism and a robust commensurate charge density wave without the usual strong competition between these orders. Iron atoms inserted at the van der Waals gaps supply localized spins that order magnetically, while the 1T polytype layers independently sustain the charge density wave up to room temperature. Iron concentration simultaneously adjusts the strength and transition points of both orders. A sympathetic reader would care because this separation of hosting layers offers a concrete route to multifunctional 2D quantum materials where multiple electronic phases normally exclude one another.

Core claim

We show that the two-dimensional metastable crystal T/H-Fe_x TaS2 comprises an endotaxial polytype heterostructure of 1T-TaS2 and H-TaS2 with Fe intercalated in the van der Waals interfaces. In this structure the Fe intercalants provide localized spins that support ferromagnetism, while the 1T layers host a robust commensurate charge density wave that persists to room temperature. Fe content simultaneously tunes ordering of spin and charge degrees of freedom.

What carries the argument

The endotaxial polytype heterostructure of 1T and H TaS2 layers with Fe intercalants placed at the van der Waals gaps, which assigns magnetism to the intercalants and the charge density wave to the 1T layers.

If this is right

  • Ferromagnetism and the commensurate charge density wave coexist in a single 2D material without strong competition.
  • Iron concentration acts as a single knob that simultaneously controls the transition temperatures and strengths of both orders.
  • The charge density wave remains stable up to room temperature while magnetic order is also present.
  • Topochemical intercalation into endotaxial heterostructures provides a general route to stabilize and control competing quantum phases in layered materials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same topochemical approach could be tested in other transition-metal dichalcogenides to create additional combinations of long-range orders.
  • If the layers remain electronically decoupled at the interfaces, similar heterostructures might host superconductivity together with one of the present orders.
  • The ability to tune both orders with a single intercalant species suggests possible voltage- or field-driven switching if intercalation can be made partially reversible.

Load-bearing premise

The material truly forms distinct endotaxial 1T and H polytype layers with Fe intercalants localized in the gaps so that spin and charge orders can reside independently without strong mutual suppression or being an artifact of synthesis or measurement.

What would settle it

If high-resolution structural imaging or temperature-dependent transport and magnetization data show that the commensurate charge density wave is absent or drops well below room temperature precisely when long-range magnetic order appears, or if the crystal is revealed to be a uniform mixed phase rather than an endotaxial heterostructure.

Figures

Figures reproduced from arXiv: 2604.06453 by Archana Raja, Berit H. Goodge, Chengyu Song, D. Kwabena Bediako, Ellis Kennedy, Isaac M. Craig, Jim Ciston, Karen C. Bustillo, Matthew P. Erodici, Medha Dandu, Samra Husremovi\'c, Sin\'ead Griffin, Wanlin Zhang.

Figure 1
Figure 1. Figure 1: Synthesis of Fe-intercalated endotaxial heterostructures. (a) Schematic depiction of synthesizing Fe-intercalated polytype heterostructures (T/H FexTaS2 ) from two-dimensional (2D) 1T TaS2 crystals. (b) Room-temperature atomic-resolution HAADF-STEM micrograph of a cross-sectioned T/H FexTaS2 heterostructure along the [1010] zone axis. Yellow and pink markings on the HAADF image signify H–TaS2 and 1T TaS2 l… view at source ↗

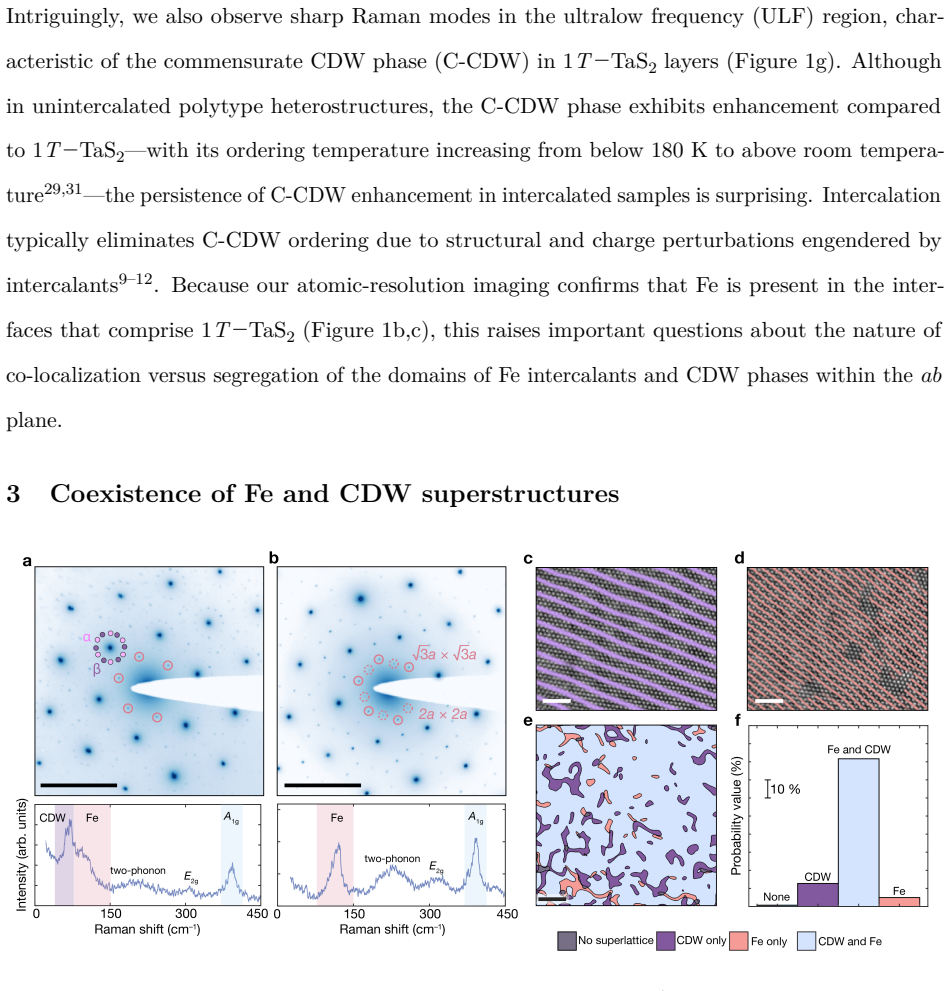

Figure 2
Figure 2. Figure 2: Coexistence of intercalant and CDW superlattices in T/H FexTaS2 heterostructures. (a,b) Raman spectra and corresponding SAED patterns of two T/H FexTaS2 heterostructures on electron-transparent Si3N4 TEM grids. For each sample, Raman spectra and SAED patterns were collected in nearly identical regions of the crystal. In SAED patterns, the first-order Fe superlattice and CDW superstructure reflections are m… view at source ↗

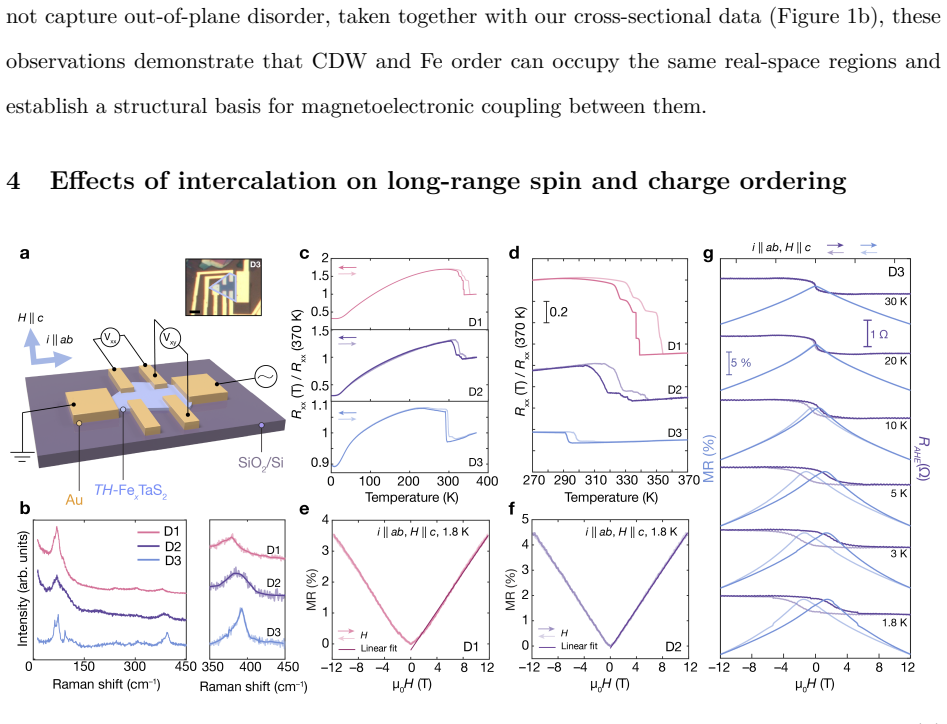

Figure 3
Figure 3. Figure 3: Electronic evidence of spin and charge ordering in TH-TaS2 heterostructures. (a) Schematic of a T/H FexTaS2 device on SiO2/Si. Inset: Optical micrograph of device D3, with the sample outline marked in light blue and the sample area false-colored. Scale bar: 2 µm. (b) Raman spectra of measured devices, labeled D1—D3. Device D1 is a pristine polytype heterostructure (TH-TaS2 ) without Fe. Device D2 is lightl… view at source ↗
Figure 4
Figure 4. Figure 4: Charge density wave ordering of the ferromagnetic device D3. (a) Raman spectra of device D3 acquired at 7.6 K and 350 K in two regions: (1) the main channel area (region R1) and (2) near the device edge (region R2). The right panel shows the low-frequency portion of the spectra, with the iron-related (Fe* ) mode at ∼134.5 cm−1 indicated by an arrow. (b) Schematic illustration of an intercalated polytype he… view at source ↗
Figure 5
Figure 5. Figure 5: Effects of intercalant ordering on the CDW thermal hysteresis. (a) Raman spectra measured upon cooling from 350 K (blue) and warming from 7.6 K (red) for device D3 in regions R1 (main measurement channel) and R2 (edge of the device). Data was collected using a 532 nm laser. (b) Cartoon illustration of the potential temperature-dependent domain evolution for D3: R1 and D3: R2. Purple lines represent disorde… view at source ↗
read the original abstract

Correlated electron systems that host multiple electronic orders offer routes to multifunctional quantum materials, but strong competition between these orders often prevents their coexistence. Here we show that nanoscale, metastable intercalated heterostructures can stabilize a rare combination of long-range magnetism and a commensurate charge density wave (C-CDW) order in a single material. We synthesize a two-dimensional (2D) metastable crystal, T/H-Fe$_x$TaS2, which comprises an endotaxial polytype heterostructure of 1T-TaS$_2$ and H-TaS$_2$ with Fe intercalated in the van der Waals interfaces. In T/H-Fe$_x$TaS2, Fe intercalants provide localized spins that support ferromagnetism, while 1T layers host a robust commensurate charge density wave (C-CDW) that persists to room temperature. In these intercalated heterostructures, Fe content simultaneously tunes ordering of spin and charge degrees of freedom, positioning topochemically-prepared intercalated endotaxial heterostructures as a route to stabilize and control competing quantum phases in 2D materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the topochemical synthesis of metastable T/H-Fe_x TaS2 endotaxial polytype heterostructures, in which Fe intercalants at van der Waals interfaces stabilize long-range ferromagnetism while the 1T-TaS2 layers host a commensurate charge-density-wave (C-CDW) order that remains robust up to room temperature; Fe concentration is shown to tune both orders simultaneously.

Significance. If the structural and ordering assignments hold, the work demonstrates a practical route to decouple and co-stabilize competing spin and charge orders in a single 2D platform, which is of clear interest to the correlated-electron and 2D-materials communities. The multi-technique evidence (TEM, XRD, magnetometry, transport) and the explicit tuning with Fe content constitute reproducible experimental strengths.

major comments (2)
  1. [TEM/XRD characterization] TEM/XRD characterization section: the assignment of Fe localization exclusively to the interfaces and the resulting independence of the 1T-layer C-CDW from the magnetic order is load-bearing for the central claim; quantitative comparison of the CDW superlattice intensity and transition temperature versus Fe content (and versus pristine 1T-TaS2) is needed to rule out subtle suppression or structural artifacts.
  2. [Magnetometry and transport] Magnetometry and transport section: the reported ferromagnetic transition temperature and the persistence of C-CDW peaks to 300 K are presented as coexisting, but the manuscript does not show whether the CDW wavevector or gap is measurably altered below the magnetic ordering temperature; such data would directly test the “independent stabilization” assertion.
minor comments (2)
  1. [Abstract and introduction] Figure captions and methods: the notation “T/H-Fe_x TaS2” and the definition of “endotaxial” should be introduced once in the main text with a brief schematic for readers outside the immediate subfield.
  2. [References] Reference list: several key works on 1T-TaS2 CDW and on Fe-intercalated TMDs are cited, but recent papers on polytype heterostructures in TaS2 could be added for context.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive evaluation of our work and for the constructive comments, which have helped us improve the manuscript. We address each of the major comments below and have incorporated revisions accordingly.

read point-by-point responses

  1. Referee: [TEM/XRD characterization] TEM/XRD characterization section: the assignment of Fe localization exclusively to the interfaces and the resulting independence of the 1T-layer C-CDW from the magnetic order is load-bearing for the central claim; quantitative comparison of the CDW superlattice intensity and transition temperature versus Fe content (and versus pristine 1T-TaS2) is needed to rule out subtle suppression or structural artifacts.

    Authors: We agree that quantitative comparisons are important to substantiate the independence of the orders. In the revised manuscript, we have added quantitative analysis of the CDW superlattice reflections from the XRD data across different Fe concentrations. The integrated intensity of the CDW peaks, normalized to the structural Bragg peaks, shows no significant variation with increasing Fe content, and remains comparable to that in pristine 1T-TaS2. The CDW transition temperature, determined from the onset of the superlattice peaks, is unchanged. Additionally, we have included STEM-EDS line profiles confirming Fe localization strictly at the van der Waals interfaces between 1T and H layers, with no detectable Fe within the 1T-TaS2 slabs. These additions are now presented in Section 3.2 and Figure 4. revision: yes

  2. Referee: [Magnetometry and transport] Magnetometry and transport section: the reported ferromagnetic transition temperature and the persistence of C-CDW peaks to 300 K are presented as coexisting, but the manuscript does not show whether the CDW wavevector or gap is measurably altered below the magnetic ordering temperature; such data would directly test the “independent stabilization” assertion.

    Authors: To directly test for any coupling between the magnetic and CDW orders, we have examined the temperature dependence of the CDW order parameter below the ferromagnetic transition temperature. Using low-temperature XRD measurements, we find that the CDW wavevector remains locked at the commensurate position with no measurable shift or broadening across the magnetic ordering temperature. Furthermore, the transport measurements show no anomaly at the ferromagnetic transition that would indicate a change in the CDW gap. These results are now included in the revised Figure 6 and Supplementary Figure S5, reinforcing the independent stabilization of the two orders. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental report with no derivations or predictions

full rationale

This is an experimental materials science paper reporting synthesis of T/H-Fe_x TaS2 heterostructures and their characterization via TEM, XRD, transport, and magnetometry. No equations, first-principles derivations, fitted parameters presented as predictions, or theoretical claims appear in the provided text or abstract. The central claim (coexistence of ferromagnetism and C-CDW) rests on direct observational data rather than any chain that could reduce to its inputs by construction. Self-citations, if present in the full manuscript, are irrelevant here because there is no load-bearing derivation or uniqueness theorem invoked. The work is self-contained against standard experimental benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental materials science paper; no mathematical free parameters, axioms, or invented entities are invoked. The central claim rests on the validity of synthesis, structural characterization, and magnetic/electronic measurements.
