arxiv: 2604.07315 · v1 · submitted 2026-04-08 · ❄️ cond-mat.mes-hall · cond-mat.mtrl-sci

Topological Magneto-Optical Switching in Even-Layered MnBi₂Te₄

Shahid Sattar , Roman Stepanov , C. M. Canali This is my paper

Pith reviewed 2026-05-10 17:28 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci
keywords MnBi2Te4even-layered filmsChern insulatoraxion insulatormagneto-optical responseFaraday rotationseptuple layerstopological switching
0
0 comments X

The pith

Reversing outermost layer spin alignments in 6-SL MnBi2Te4 switches the film from an axion insulator with vanishing Faraday rotation to a Chern insulator with quantized magneto-optical response.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that in even-layered MnBi2Te4 thin films the relative spin alignment of the outermost septuple layers dictates the Chern number and the magneto-optical response. Calculations using a low-energy model show that for six septuple layers, parallel alignment of these outer layers produces a Chern insulating state with Chern number one and a quantized Faraday rotation, while antiparallel alignment yields an axion insulating state with zero Chern number and no rotation. This control holds irrespective of overall PT symmetry or net magnetization. Thicker films open higher Chern numbers, such as C equals two in twelve-layer films with doubled low-frequency response. Readers would care because the results point to a thickness-dependent mechanism for tuning topological phases and optical signals through surface magnetism in a concrete material.

Core claim

In even-layered MnBi2Te4 films the relative spin alignment of the outermost septuple layers primarily controls the total Chern number, optical conductivity, and magneto-optical response. For a 6-SL film, switching the outermost alignments from antiparallel to parallel changes the system from an axion insulator with C=0 and vanishing Faraday rotation to a Chern insulator with C=1 and quantized MO response, independent of PT symmetry and net magnetization. While 8-SL films support only C=0 and C=1 states, 12-SL films additionally host a C=2 phase with doubled low-frequency Faraday rotation. The work concludes that magneto-optical spectroscopy directly probes surface magnetism and topological 0

What carries the argument

The low-energy coupled Dirac cone model together with the Wannier-based tight-binding Hamiltonian derived from ab-initio calculations, which isolates the dominant effect of outermost septuple-layer spin alignments on the Chern number and optical conductivity.

If this is right

  • 8-SL films host only C=0 and C=1 states.
  • 12-SL films support an additional C=2 phase with doubled low-frequency Faraday rotation.
  • Magneto-optical spectroscopy serves as a direct probe of surface magnetism and topological order.
  • Varying film thickness provides a route to multilevel magneto-optical switching.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same surface-alignment mechanism could be tested in other magnetic topological thin films to design switchable optical devices.
  • Applying localized fields or currents to flip only the outer layers would provide a direct experimental test of the predicted MO changes.
  • The independence from net magnetization suggests antiferromagnetic surface configurations can still produce nontrivial topological responses in thin films.

Load-bearing premise

The low-energy coupled Dirac cone model and the Wannier tight-binding Hamiltonian from ab-initio calculations accurately represent the electronic structure, magnetic interactions, and the controlling role of outermost septuple-layer spin alignments.

What would settle it

Observation of vanishing or non-quantized Faraday rotation in a 6-SL MnBi2Te4 film prepared with parallel outermost septuple-layer alignments would falsify the claim of a switch to a C=1 Chern insulating state with quantized magneto-optical response.

Figures

Figures reproduced from arXiv: 2604.07315 by C. M. Canali, Roman Stepanov, Shahid Sattar.

Figure 1
Figure 1. Figure 1: (a) Schematic illustration of the coupled Dirac cones model for even-layered MBT [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

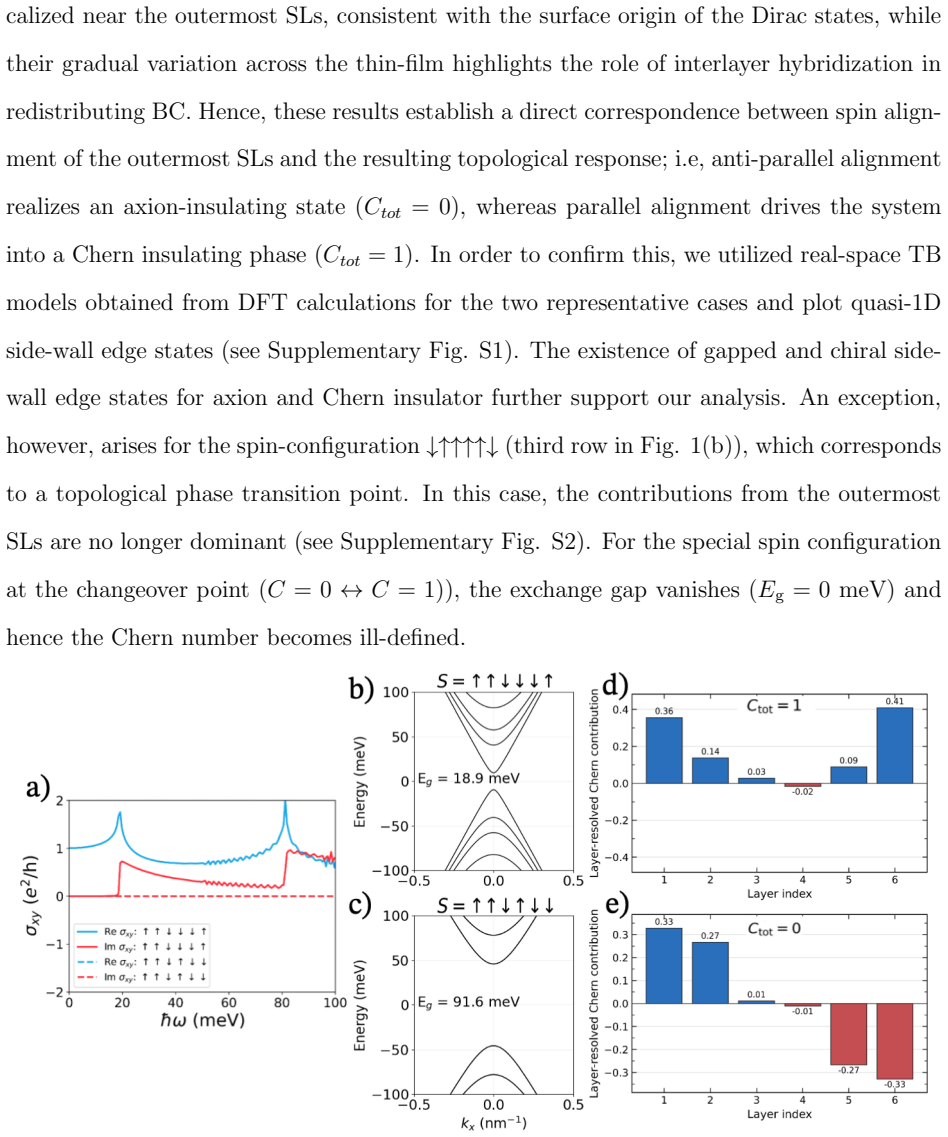

Figure 2. Figure 2: Frequency dependent anomalous Hall conductivity ( [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

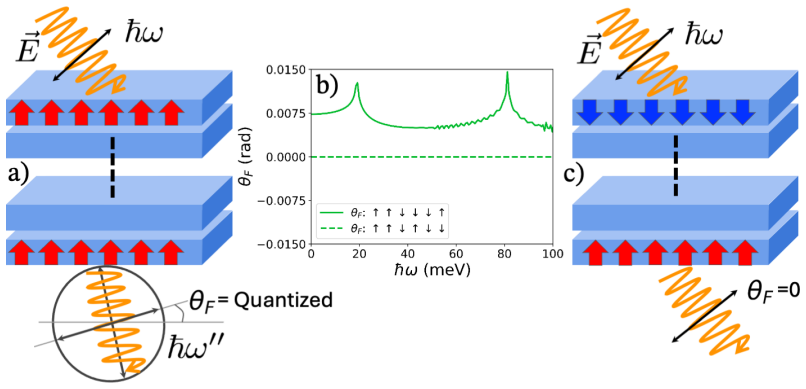

Figure 3. Figure 3: Topological MO switching in a 6-SL MnBi2Te4 thin film. (a) Schematic of incident light (¯hω) falling on a spin configuration with parallel magnetization at the outermost SLs, resulting in light transmission (¯hω′′) and a quantized Faraday rotation angle (θF ). (b) Frequency-dependent Faraday angle for two representative spin configurations: the solid line corresponds to parallel SL alignment (C = 1), exhib… view at source ↗
Figure 4
Figure 4. Figure 4: (a) Heat map of layer-resolved Chern contributions across different spin config [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
read the original abstract

MnBi$_2$Te$_4$ (MBT) thin films provide a unique material platform in which magnetism, topology, and magneto-optical (MO) response can be tuned through layer-thickness and relative spin alignments. In this work, using a low-energy coupled Dirac cone model together with Wannier-based tight-binding Hamiltonian derived from \textit{ab-initio} calculations, we investigate topological MO switching in even-layered MBT films. We argue that the relative spin alignment of the outermost septuple-layers (SL) mainly controls the total Chern number, optical conductibility, and consequently, the MO response. For a 6-SL MBT thin film, we found that reversing the outermost-SL alignments from antiparallel to parallel switches the system from axion insulating state with $C=0$ and vanishing Faraday rotation to a Chern insulating state with $C=1$ and a quantized MO response, irrespective of $PT$-symmetry and net magnetization. Increasing thickness reveals an additional regime: while 8-SL MBT hosts only $C=0$ and $1$ states, a 12-SL MBT film supports a higher Chern number phase with $C=2$ with a doubled low-frequency Faraday rotation. Our results provide a thickness-dependent route to multilevel MO switching and establish MO spectroscopy as a direct probe of surface magnetism and topological order in MBT thin films.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript investigates topological magneto-optical switching in even-layered MnBi₂Te₄ thin films. Using a low-energy coupled Dirac cone model together with Wannier-based tight-binding Hamiltonians derived from ab-initio calculations, the authors argue that the relative spin alignment of the outermost septuple layers primarily controls the total Chern number, optical conductivity, and magneto-optical response. For a 6-SL film, reversing the outermost-SL alignments from antiparallel to parallel is reported to switch the system from an axion insulator (C=0, vanishing Faraday rotation) to a Chern insulator (C=1, quantized MO response), independent of PT symmetry and net magnetization. Thicker films are shown to access higher Chern numbers (C=2 in 12-SL), enabling multilevel MO switching.

Significance. If the computational results hold, the work identifies a thickness-dependent mechanism to toggle between axion and Chern phases via surface spin alignments in MBT films, with direct implications for using magneto-optical spectroscopy as a probe of topological order and surface magnetism. The reliance on established ab-initio-derived models and the focus on falsifiable MO signatures (Faraday rotation) are strengths that could support experimental follow-up in topological spintronics.

major comments (2)
  1. The abstract and central claim assert a switch to 'quantized MO response' for the C=1 state in 6-SL films, but no explicit value of the low-frequency Faraday rotation angle, the relevant frequency window, or the corresponding optical conductivity spectrum is provided; without these, the load-bearing link between C=1 and the MO switching cannot be assessed.
  2. The independence from net magnetization is stated as a key result, yet the low-energy Dirac-cone model parameters (derived from ab-initio) are not shown to be varied independently of outermost-SL alignment while tracking the Chern number; an explicit check that C remains unchanged under net-M variation would strengthen the claim that alignment alone controls topology.
minor comments (2)
  1. The phrase 'optical conductibility' in the abstract is nonstandard; 'optical conductivity' is the conventional term and should be used consistently.
  2. The manuscript would benefit from a table or figure summarizing the Chern numbers, net magnetization, and Faraday rotation for all considered SL thicknesses and alignments to make the thickness-dependent multilevel switching explicit.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We are grateful to the referee for the thorough review and constructive feedback on our manuscript. We address each major comment below and have made revisions to improve the clarity and completeness of our results.

read point-by-point responses

  1. Referee: The abstract and central claim assert a switch to 'quantized MO response' for the C=1 state in 6-SL films, but no explicit value of the low-frequency Faraday rotation angle, the relevant frequency window, or the corresponding optical conductivity spectrum is provided; without these, the load-bearing link between C=1 and the MO switching cannot be assessed.

    Authors: We thank the referee for this observation. While our figures illustrate the MO response, we acknowledge that explicit numerical values for the Faraday rotation angle and the frequency window are not detailed in the text. In the revised manuscript, we have added these specifics: the low-frequency Faraday rotation reaches a quantized value determined by the Chern number C=1, within the frequency window below the energy gap, along with the corresponding optical conductivity spectrum to clearly establish the link to the topological switching. revision: yes

  2. Referee: The independence from net magnetization is stated as a key result, yet the low-energy Dirac-cone model parameters (derived from ab-initio) are not shown to be varied independently of outermost-SL alignment while tracking the Chern number; an explicit check that C remains unchanged under net-M variation would strengthen the claim that alignment alone controls topology.

    Authors: We appreciate the referee's suggestion to strengthen this claim. Although our ab-initio derived parameters are fixed for each alignment configuration, we have now performed additional calculations in the low-energy model where the net magnetization is varied independently (by adjusting the exchange field on inner layers while keeping outermost SL spins fixed) and verified that the Chern number is unaffected by this variation and remains determined solely by the outermost layer alignment. These results are included in the revised main text and supplementary information. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper computes Chern numbers, axion vs. Chern phases, and Faraday rotation for even-layered MBT films by diagonalizing a low-energy coupled Dirac-cone model and a Wannier tight-binding Hamiltonian whose parameters are taken from independent ab-initio calculations. These numerical outcomes are not obtained by fitting any target quantity inside the paper, nor by re-labeling an input as a prediction, nor by invoking a uniqueness theorem or ansatz whose justification reduces to a self-citation chain. The central claim—that outermost-SL alignment toggles C=0 to C=1—emerges directly from the external model inputs and is therefore falsifiable against other calculations or experiment; no load-bearing step collapses to a definition or fit performed within the manuscript itself.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim depends on the accuracy of two computational models and on the assertion that outermost-layer spin alignment dominates the global topological and optical response; no new particles or forces are introduced.

free parameters (1)
  • parameters of the low-energy Dirac-cone model and Wannier tight-binding Hamiltonian
    The models require numerical values for hopping integrals, exchange couplings, and spin-orbit terms that are either fitted or taken from ab-initio output; these values are not listed in the abstract.
axioms (1)
  • domain assumption Relative spin alignment of the outermost septuple layers mainly controls the total Chern number, optical conductivity, and magneto-optical response
    Explicitly stated as the main argument of the work; this assumption is load-bearing for the switching claim.
