Text-Conditioned Multi-Expert Regression Framework for Fully Automated Multi-Abutment Design

Mianjie Zheng , Xinquan Yang , Xuefen Liu , Xuguang Li , Kun Tang , He Meng , Linlin Shen
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:18 UTC · model grok-4.3

classification 💻 cs.CV
keywords dental implant designautomated abutment designmulti-expert neural networktext-conditioned regressionimplant site localizationdental AI planningmixture-of-expertsfeature modulation
0
0 comments X

The pith

A text-conditioned multi-expert network automates design of multiple dental implant abutments from scan data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Dental implant abutments connect fixtures to crowns but their design remains manual and slow, especially for cases with several implants. The paper introduces TEMAD to fully automate the process by first locating implant sites and then regressing compatible abutment parameters in one pipeline. Special modules adapt features to individual tooth conditions and use implant system prompts to select the right expert sub-networks for each case. A reader would care because this removes the need for repeated clinician adjustments and scales to complex multi-tooth scenarios. Experiments on a large dataset demonstrate better results than prior methods, particularly when handling multiple abutments together.

Core claim

TEMAD integrates an Implant Site Identification Network to localize implant sites, a Tooth-Conditioned Feature-wise Linear Modulation module that calibrates mesh representations using tooth embeddings for position-specific modulation, and a System-Prompted Mixture-of-Experts mechanism that uses implant system prompts to guide expert selection, thereby enabling fully automated and system-aware regression of abutment parameters for multiple sites in a unified pipeline.

What carries the argument

The System-Prompted Mixture-of-Experts (SPMoE) mechanism, which leverages implant system prompts to select appropriate experts for parameter regression while supported by automatic site localization and tooth-conditioned feature modulation.

If this is right

  • The framework creates a single automated pipeline that handles both implant site localization and abutment parameter regression without separate manual steps.
  • Performance reaches state-of-the-art levels on the large-scale dataset, with particular gains in multi-abutment cases.
  • The approach reduces clinician intervention by making the full design process scalable and system-aware through prompt-based expert routing.
  • Tooth-conditioned modulation and system prompting together ensure that output parameters remain compatible with specific tooth anatomy and chosen implant systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same conditioning approach could support automated design of other prosthetic components where multiple parts must coordinate geometrically.
  • Integration with real-time imaging could enable iterative refinement of designs during virtual surgery planning sessions.
  • Text prompts for system selection suggest a path toward incorporating patient-specific preferences or custom constraints directly into the regression process.
  • Broader testing on scans from different demographics and regions would clarify how far the learned mappings generalize beyond the original training distribution.

Load-bearing premise

The large-scale abutment design dataset used for training and testing is representative of real-world clinical variability in implant sites, tooth conditions, and implant systems.

What would settle it

Testing the generated abutment designs on a new set of unseen patient scans from varied clinical environments and measuring how closely they match manually designed abutments in terms of fit, occlusion, and biomechanical compatibility.

Figures

Figures reproduced from arXiv: 2604.09047 by He Meng, Kun Tang, Linlin Shen, Mianjie Zheng, Xinquan Yang, Xuefen Liu, Xuguang Li.

Figure 1
Figure 1. Figure 1: Illustration of the traditional CAD–CAM workflow for multi-abutment design, [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of the self-supervised masked autoencoder pretraining framework. [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

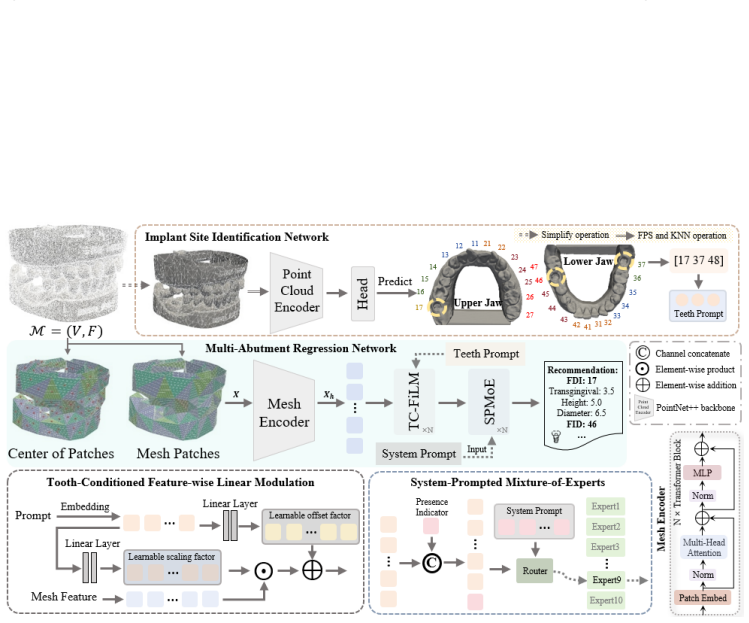

Figure 3
Figure 3. Figure 3: The overall framework of the proposed method. [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

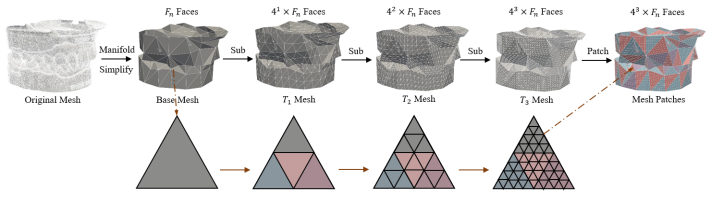

Figure 4
Figure 4. Figure 4: Visualization of the remeshing process. The original intraoral scan mesh is [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Comparison of parameter-specific performance for multi-abutment prediction. [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Visualization of pre-trained reconstruction performance. [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Ablation study on encoder pretraining. The horizontal axis denotes IoU perfor [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗

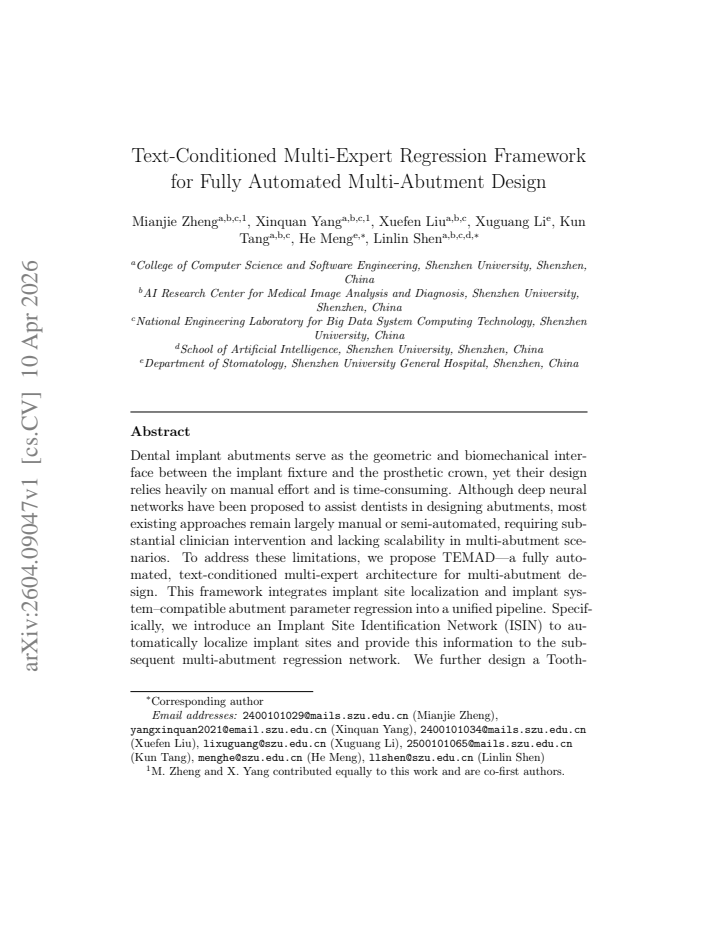

read the original abstract

Dental implant abutments serve as the geometric and biomechanical interface between the implant fixture and the prosthetic crown, yet their design relies heavily on manual effort and is time-consuming. Although deep neural networks have been proposed to assist dentists in designing abutments, most existing approaches remain largely manual or semi-automated, requiring substantial clinician intervention and lacking scalability in multi-abutment scenarios. To address these limitations, we propose TEMAD, a fully automated, text-conditioned multi-expert architecture for multi-abutment design. This framework integrates implant site localization and implant system, compatible abutment parameter regression into a unified pipeline. Specifically, we introduce an Implant Site Identification Network (ISIN) to automatically localize implant sites and provide this information to the subsequent multi-abutment regression network. We further design a Tooth-Conditioned Feature-wise Linear Modulation (TC-FiLM) module, which adaptively calibrates mesh representations using tooth embeddings to enable position-specific feature modulation. Additionally, a System-Prompted Mixture-of-Experts (SPMoE) mechanism leverages implant system prompts to guide expert selection, ensuring system-aware regression. Extensive experiments on a large-scale abutment design dataset show that TEMAD achieves state-of-the-art performance compared to existing methods, particularly in multi-abutment settings, validating its effectiveness for fully automated dental implant planning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes TEMAD, a fully automated text-conditioned multi-expert regression framework for multi-abutment dental implant design. It integrates an Implant Site Identification Network (ISIN) for automatic localization, a Tooth-Conditioned Feature-wise Linear Modulation (TC-FiLM) module for adaptive mesh feature calibration via tooth embeddings, and a System-Prompted Mixture-of-Experts (SPMoE) mechanism for implant system-aware parameter regression. The central claim is that extensive experiments on a large-scale abutment design dataset demonstrate state-of-the-art performance relative to prior methods, particularly in multi-abutment cases, thereby validating the approach for fully automated dental implant planning.

Significance. If the empirical results hold under rigorous validation, the work could meaningfully advance automated dental CAD by reducing reliance on manual abutment design and scaling to multi-implant cases. The unified pipeline combining localization with regression, along with the novel TC-FiLM and SPMoE components, offers a technically coherent extension of conditional modulation and mixture-of-experts ideas to this domain. Credit is due for the end-to-end automation framing and the attempt to incorporate text/system conditioning. However, the significance for clinical translation remains conditional on dataset representativeness and detailed performance reporting.

major comments (2)
  1. The large-scale abutment design dataset is load-bearing for the SOTA and clinical-effectiveness claims, yet the manuscript provides no details on data collection protocol, diversity metrics (e.g., number and distribution of implant systems, tooth conditions, or site variability), or external validation. Without these, it is impossible to confirm that reported gains generalize beyond the training distribution, directly undermining the assertion that the framework validates effectiveness for real-world fully automated planning.
  2. Experimental Results section: the abstract asserts SOTA performance with no quantitative metrics, error bars, baseline details, or ablation studies referenced; if the full experimental section similarly omits these (or fails to isolate the contribution of TC-FiLM and SPMoE), the cross-method comparison cannot support the headline claim.
minor comments (2)
  1. Abstract: including one or two key quantitative results (e.g., mean error or success rate with baseline comparison) would strengthen the SOTA assertion without lengthening the text.
  2. Notation: the acronyms ISIN, TC-FiLM, and SPMoE are introduced without an explicit table or consistent first-use expansion in all sections, which could confuse readers unfamiliar with the dental CAD literature.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and will revise the manuscript to improve clarity and completeness on the dataset and experimental reporting.

read point-by-point responses

  1. Referee: The large-scale abutment design dataset is load-bearing for the SOTA and clinical-effectiveness claims, yet the manuscript provides no details on data collection protocol, diversity metrics (e.g., number and distribution of implant systems, tooth conditions, or site variability), or external validation. Without these, it is impossible to confirm that reported gains generalize beyond the training distribution, directly undermining the assertion that the framework validates effectiveness for real-world fully automated planning.

    Authors: We agree that more explicit details are needed to support claims of generalizability. In the revised manuscript we will expand the dataset description (currently in Section 3) with a full data collection protocol, including curation process, patient cohort size, and diversity metrics such as the distribution across implant systems (four major systems with explicit counts), tooth types/conditions, and site variability. We will also add a limitations subsection discussing external validation; our current results rely on large-scale internal cross-validation and held-out testing, which we will report with additional statistical detail. These changes will allow readers to better evaluate the scope of the reported gains. revision: yes

  2. Referee: Experimental Results section: the abstract asserts SOTA performance with no quantitative metrics, error bars, baseline details, or ablation studies referenced; if the full experimental section similarly omits these (or fails to isolate the contribution of TC-FiLM and SPMoE), the cross-method comparison cannot support the headline claim.

    Authors: The full Experimental Results section (Section 4) already contains quantitative tables with mean errors and standard deviations, baseline comparisons, and ablation studies that isolate TC-FiLM and SPMoE by reporting performance drops when each component is removed. We will revise the abstract to explicitly reference these tables and results, and we will add a short paragraph in the main text that directly highlights the ablation outcomes for each novel module. This will make the support for the SOTA claim fully transparent without requiring new experiments. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical validation of proposed architecture

full rationale

The paper proposes TEMAD, a new text-conditioned multi-expert neural architecture integrating ISIN for site localization, TC-FiLM for tooth-conditioned modulation, and SPMoE for system-aware regression. It validates effectiveness solely through empirical experiments showing SOTA performance on a large-scale abutment design dataset, with no mathematical derivations, predictions, or first-principles results that reduce to fitted parameters or self-defined quantities by construction. No self-citations are load-bearing for the central claim, and the architecture choices are presented as design decisions rather than forced by prior author work or ansatzes. The derivation chain is self-contained as a standard ML method proposal backed by external dataset comparison.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 3 invented entities

The central claim rests on standard deep-learning training assumptions plus three newly introduced modules whose effectiveness is asserted via empirical results on an unspecified dataset. No explicit free parameters beyond ordinary network weights are named.

axioms (2)
  • standard math Standard supervised learning assumptions hold for the regression task (i.i.d. samples, appropriate loss, convergence of optimization).
    Implicit in any deep regression network trained on a dataset.
  • domain assumption The provided text prompts and mesh representations contain sufficient information to determine compatible abutment parameters.
    Required for the text-conditioned and mesh-based modules to succeed.
invented entities (3)
  • Tooth-Conditioned Feature-wise Linear Modulation (TC-FiLM) module no independent evidence
    purpose: Adaptively calibrate mesh representations using tooth embeddings for position-specific feature modulation
    New module introduced to enable tooth-specific conditioning; no independent evidence outside the paper is supplied.
  • System-Prompted Mixture-of-Experts (SPMoE) mechanism no independent evidence
    purpose: Leverage implant system prompts to guide expert selection for system-aware regression
    New routing mechanism tied to text prompts; effectiveness claimed only via the paper's experiments.
  • Implant Site Identification Network (ISIN) no independent evidence
    purpose: Automatically localize implant sites to feed the regression network
    New localization sub-network integrated into the pipeline; no external validation cited.
